PSG upper sliding gate bracket with rubber rollers – 80 mm spacing
Leave feedback on the product
PSG upper bracket for sliding gates made of galvanised steel. Rubber rollers, 80 mm spacing, 65 mm height. Mounting plate 84x50 mm, 5 mm thickness. Weight 0.56 kg. With rubber stopper. For self-supporting and rail-guided gates.
Product code: 001-275
Description
PSG upper sliding gate bracket with rubber rollers – 80 mm spacing

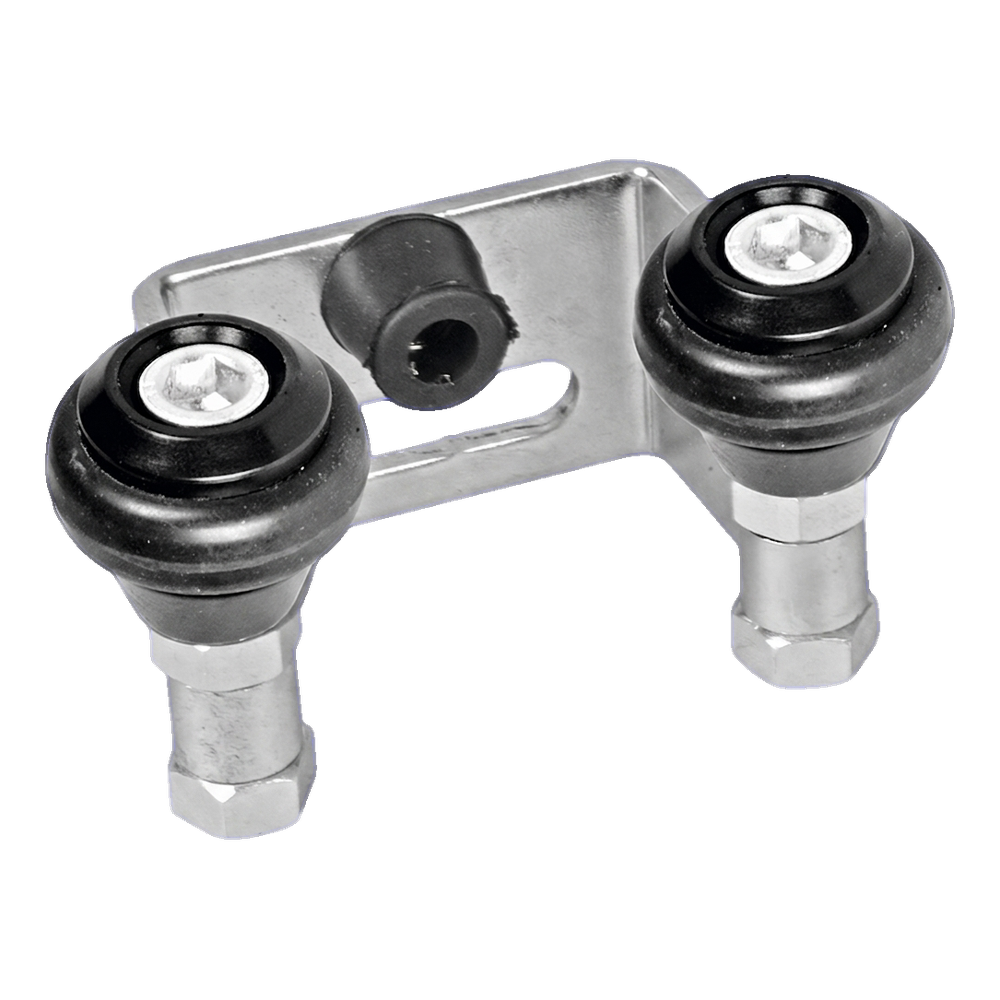

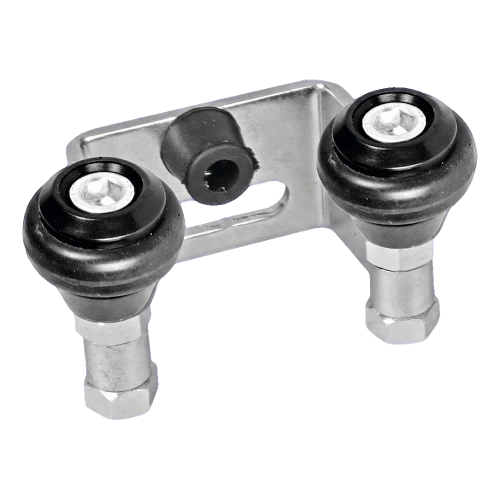

Steel upper sliding gate bracket with rubber guide rollers and central rubber stopper. Component designed for self-supporting and rail-guided sliding gates — stabilises the gate leaf when closed, eliminating lateral movement and ensuring quiet, smooth operation. Rubber rollers effectively dampen noise during gate movement, whilst the additional stopper cushions the impact of the leaf in the end position. Product is galvanised, guaranteeing high corrosion resistance and long-term durability in outdoor conditions.

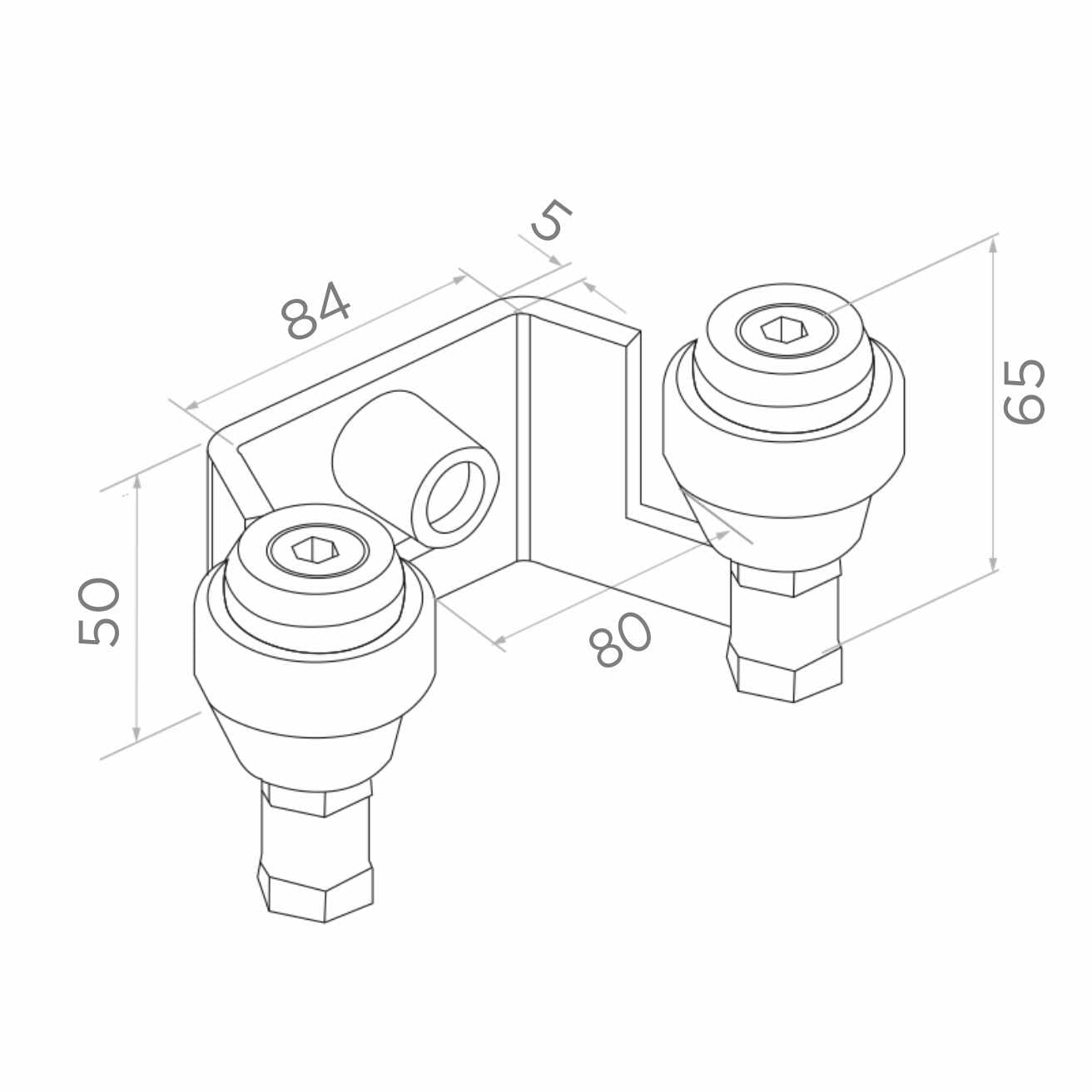

Dimensions and technical data
- Manufacturer: PSG
- Spacing between rollers (L): 80 mm
- Roller assembly height (H): 65 mm
- Mounting plate width: 84 mm
- Mounting plate height: 50 mm
- Plate thickness: 5 mm
- Weight: 0.56 kg
- Material: galvanised steel
- Rollers: rubber — noise reduction
- Stopper: rubber — impact cushioning
- EAN: 5901289674904
Application
The bracket is mounted in the upper part of the sliding gate guide rail. When closed, the gate leaf enters between the two rubber rollers, which stabilise it laterally and prevent vibrations. The central rubber stopper limits the impact force of the leaf in the end position. An ideal solution for installers seeking a durable, quiet and easy-to-install guide element — for both self-supporting and rail-guided gates.
