PSG upper gate roller with two wheels ø 38 mm – for suspended gates
Description
PSG upper gate roller with two wheels ø 38 mm – for suspended gates

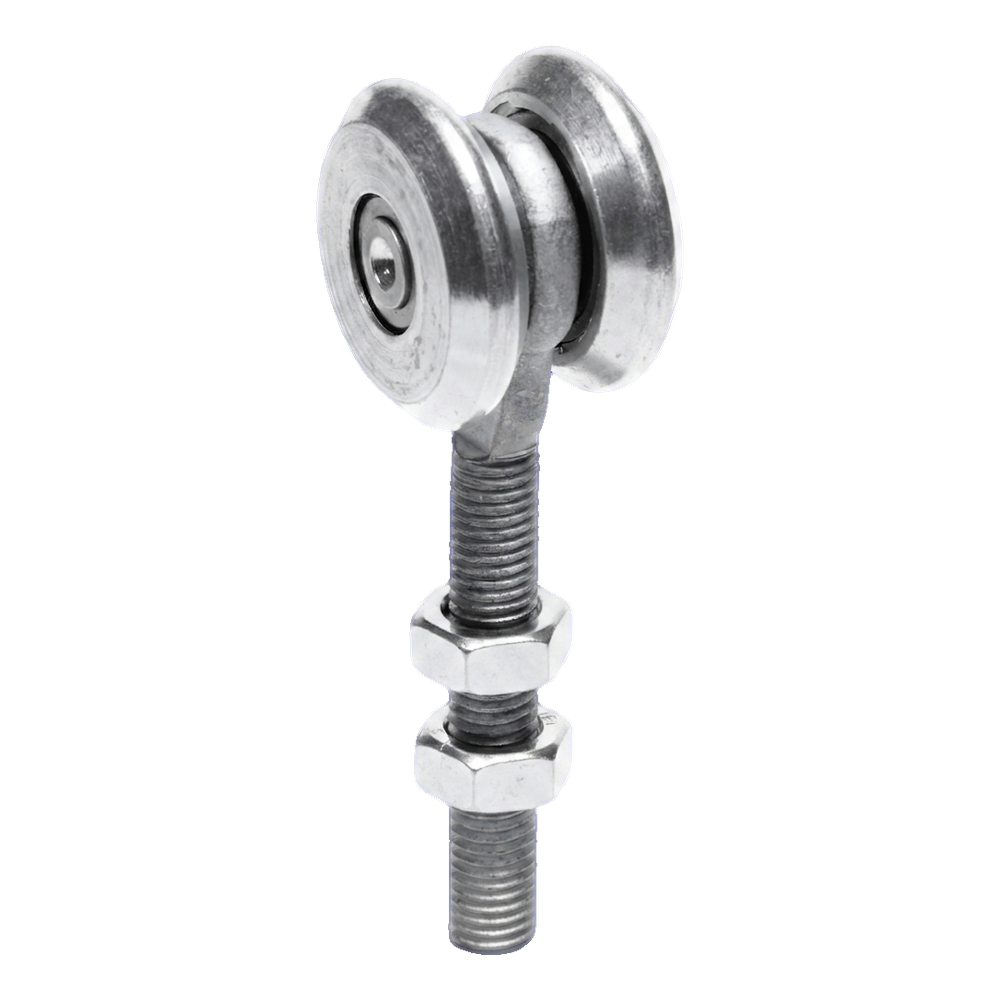

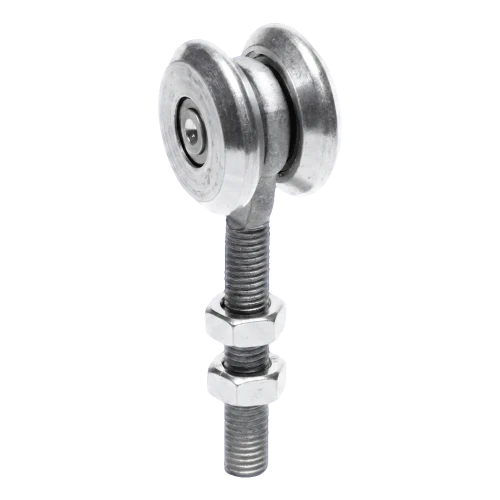

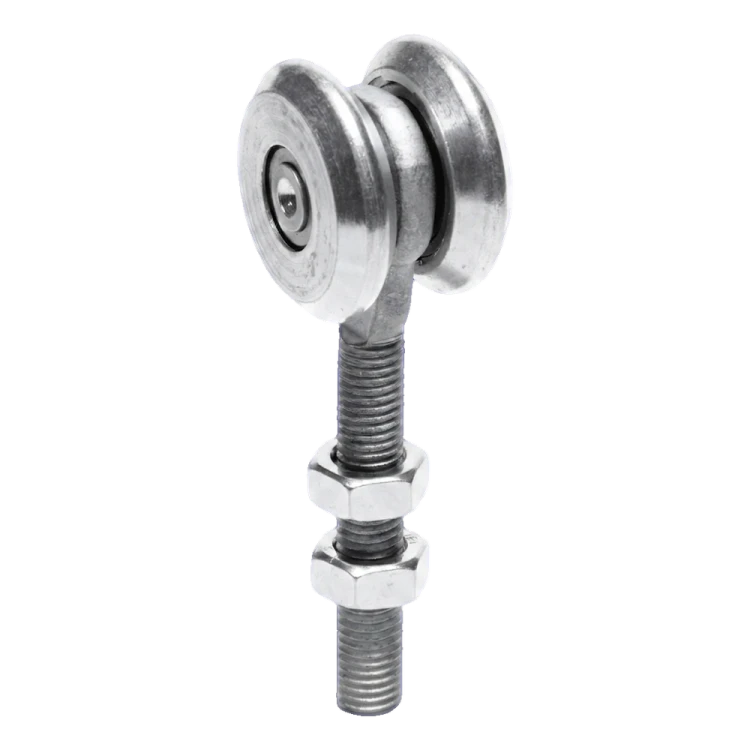

Upper roller with two wheels ø 38 mm from PSG is a durable running element designed for suspended gates. The steel, galvanised construction provides high corrosion resistance and long-lasting, trouble-free operation — even in demanding outdoor conditions. Thanks to the double wheel arrangement, the roller ensures stable and smooth guidance of the gate leaf along the upper rail, minimising rolling resistance and noise during opening and closing.
Maximum load capacity of 60 kg allows for use with gates of moderate weight. The M12 threaded shaft with two nuts enables precise height adjustment of the gate leaf suspension, which significantly speeds up assembly and alignment of the entire structure.

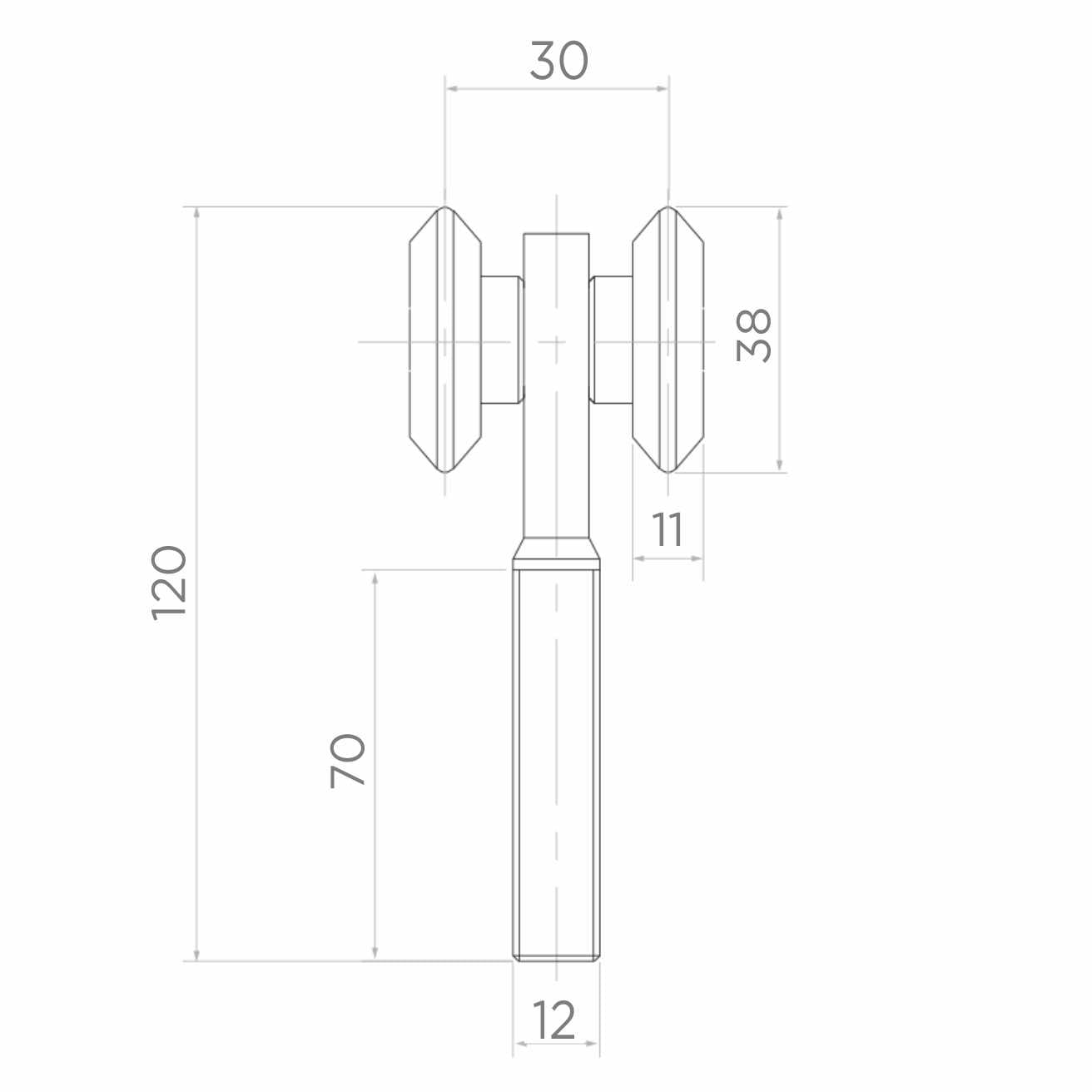

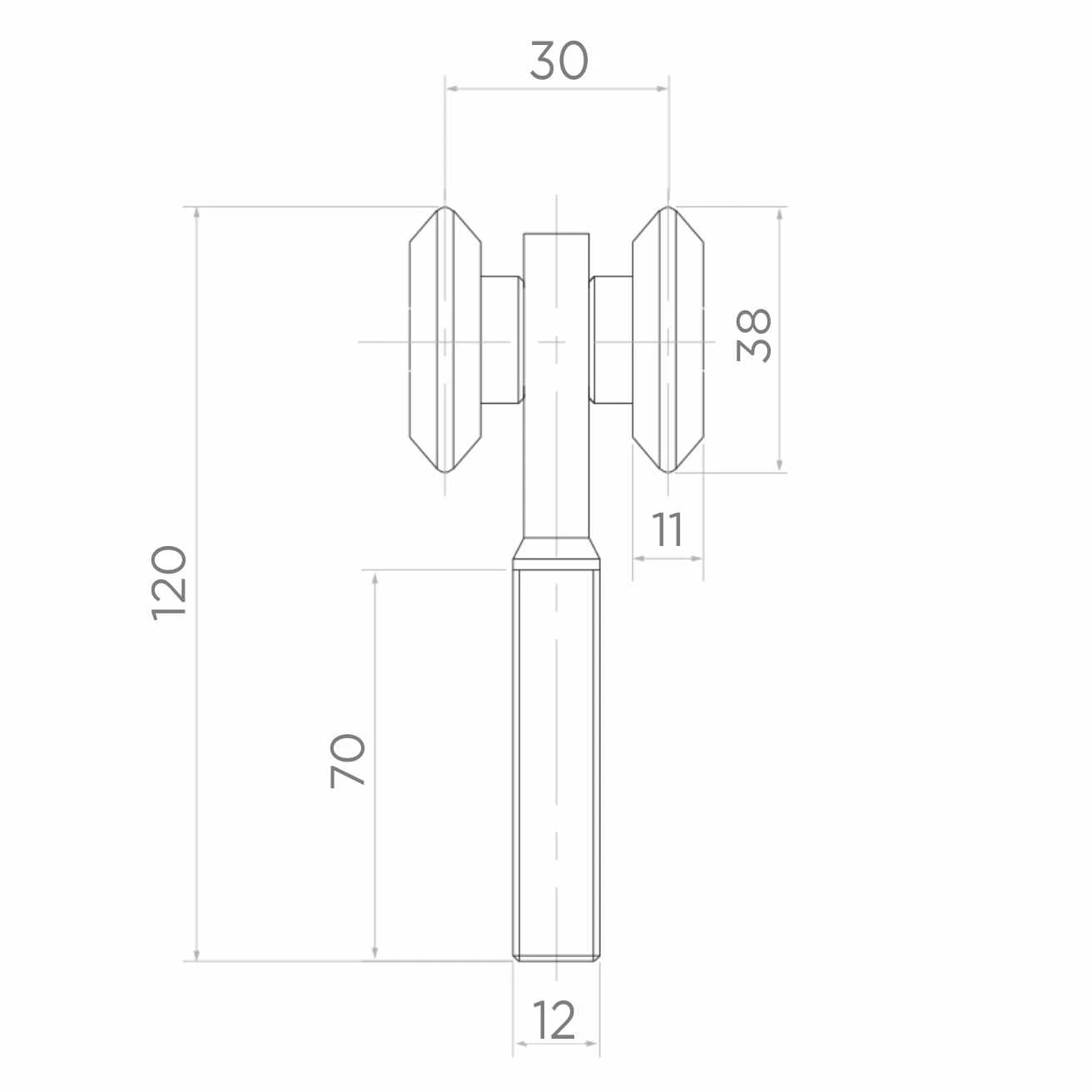

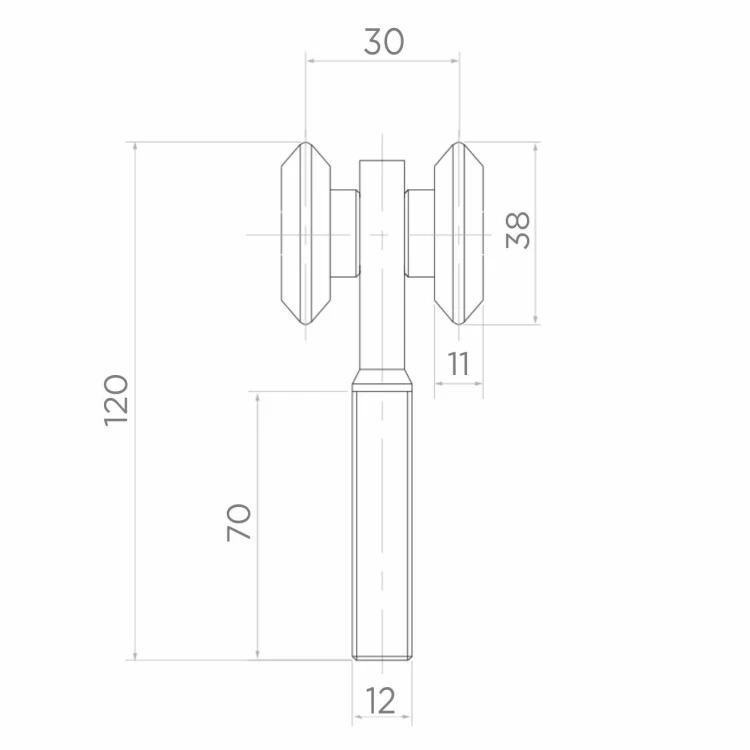

Dimensions and technical data
- Manufacturer: PSG
- Wheel diameter: ø 38 mm
- Single wheel width: 11 mm
- External wheel spacing: 30 mm
- Total height: 120 mm
- Threaded shaft length: 70 mm
- Shaft diameter: M12
- Maximum load capacity: 60 kg
- Material: galvanised steel
- Weight: 0.26 kg
- Volume: 182.4 cm³
- EAN: 5901289675536
Application
The roller is designed for suspended gate systems, where the gate leaf moves along the upper running rail. The double wheel arrangement provides better load distribution and more stable guidance than single-wheel solutions. The galvanised surface protects the element against rust, making the roller suitable for both industrial halls and garage or farm gates exposed to moisture and variable weather conditions.
