PSG – upper gate roller with two 25mm wheels for suspended gates
Leave feedback on the product

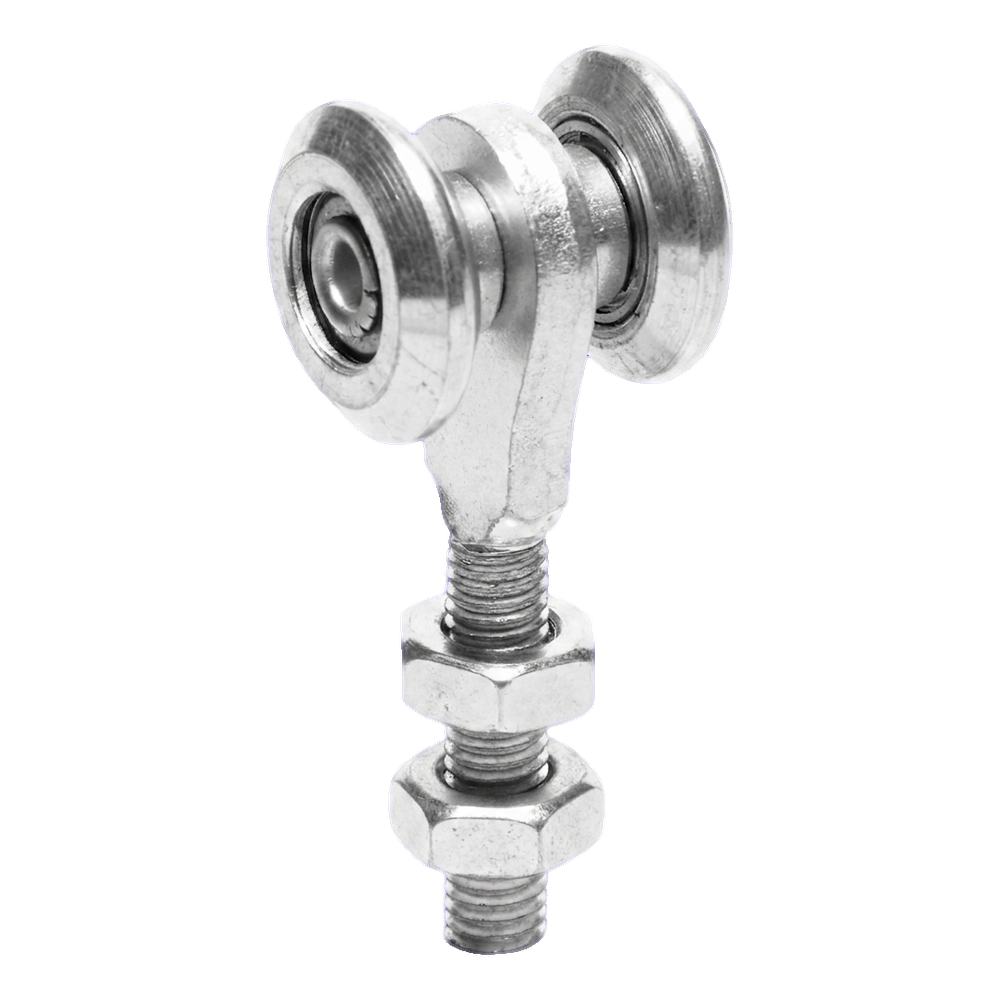

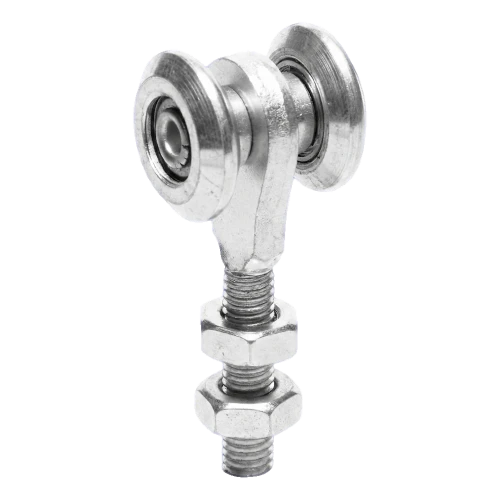

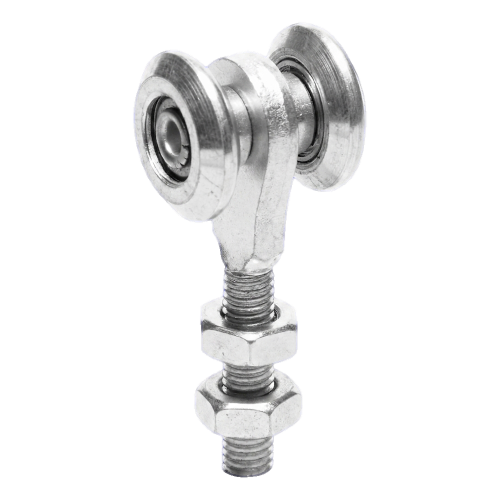

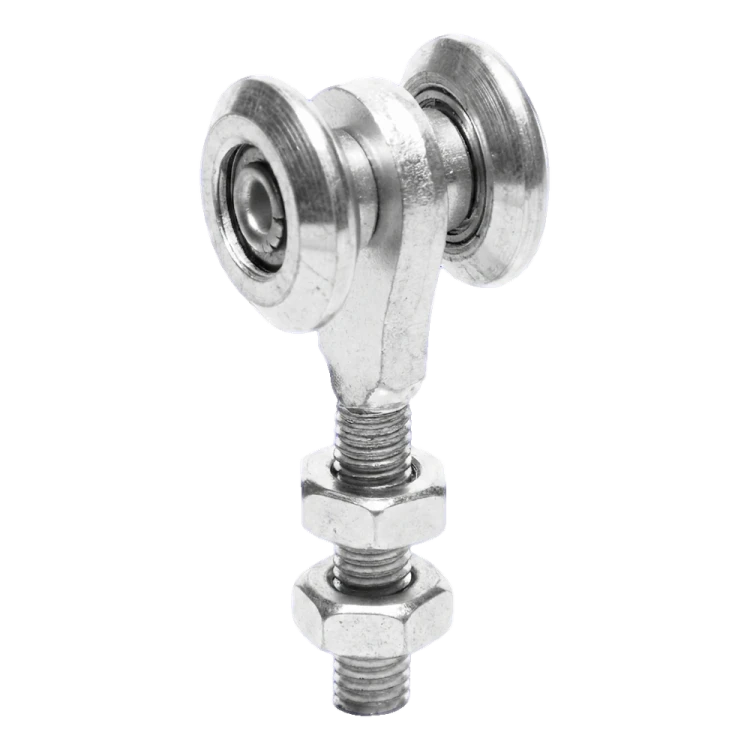

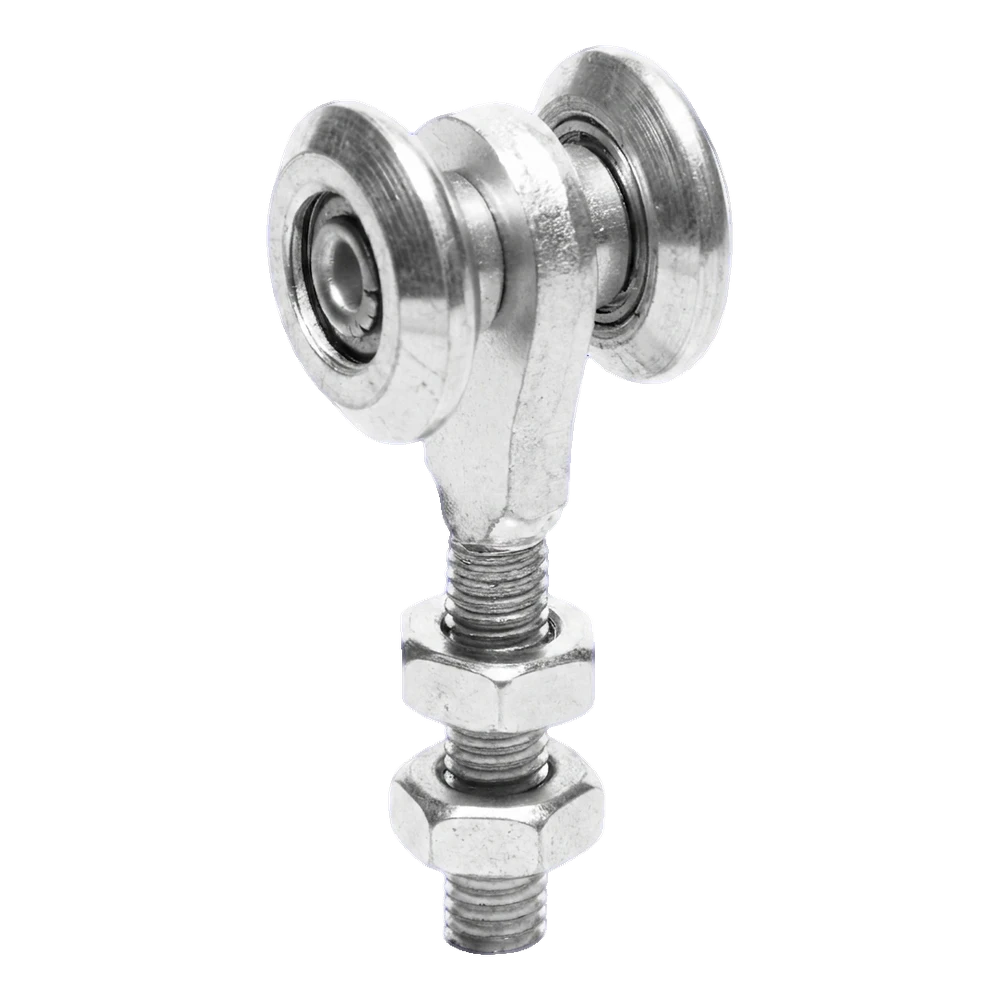

PSG upper gate roller with two steel wheels ø 25 mm. Galvanised construction, threaded spindle M8 length 35 mm. Height 70 mm, width 20 mm, load capacity 30 kg. For suspended gates.
Product code: 001-313
Description
PSG – upper gate roller with two 25mm wheels for suspended gates
Upper roller with two wheels ø 25 mm from PSG brand is a reliable running element designed for suspended gates. The galvanised construction provides durable anti-corrosion protection, and the double wheel system guarantees stable and quiet guidance of the gate leaf along the upper rail. The product performs excellently wherever smooth and trouble-free operation of the gate system is required — both in private and industrial installations.
The maximum load capacity of the trolley is 30 kg, which allows for handling light and medium gate leaves. Compact dimensions and low weight (0.08 kg) facilitate installation and selection of the appropriate number of rollers for a specific gate.

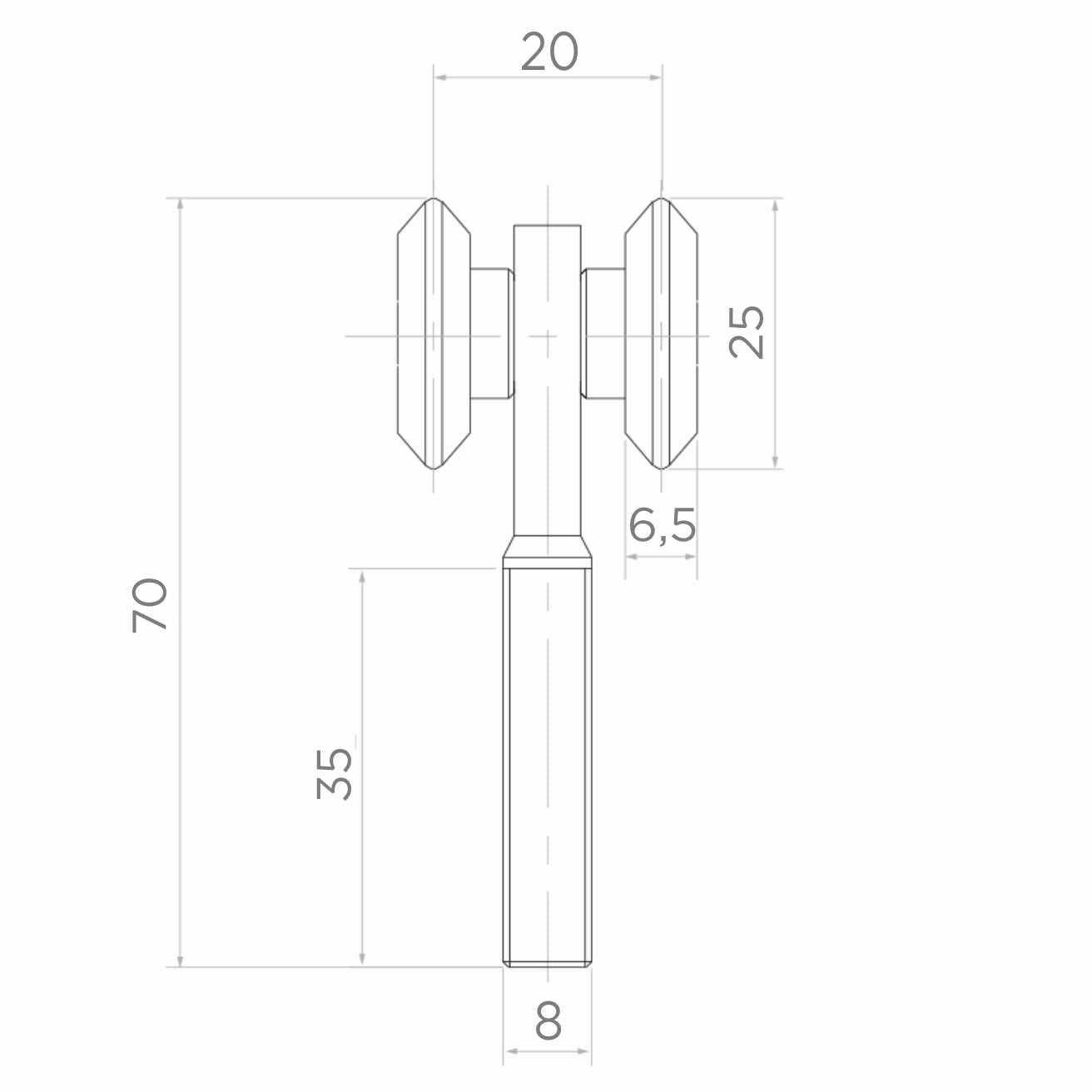

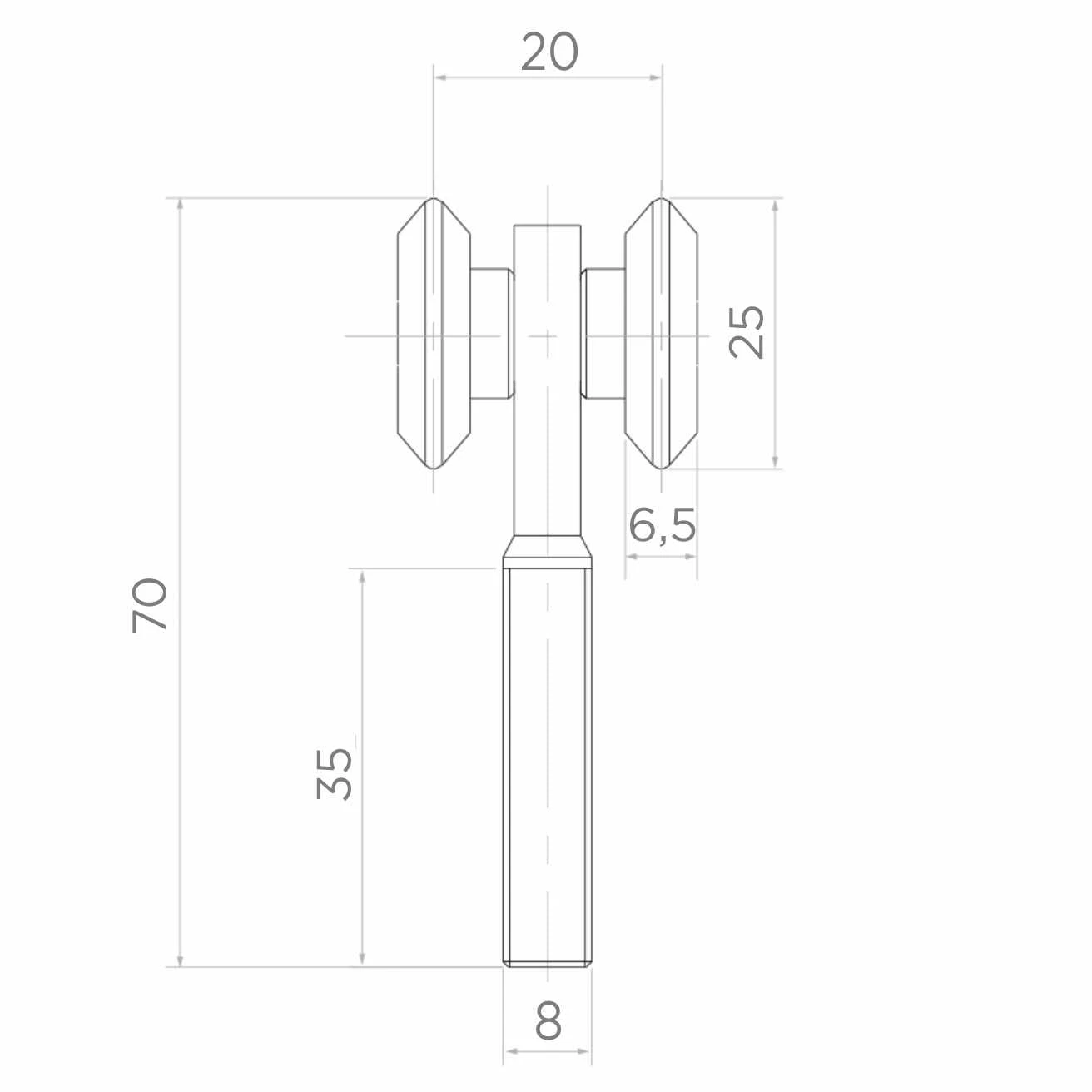

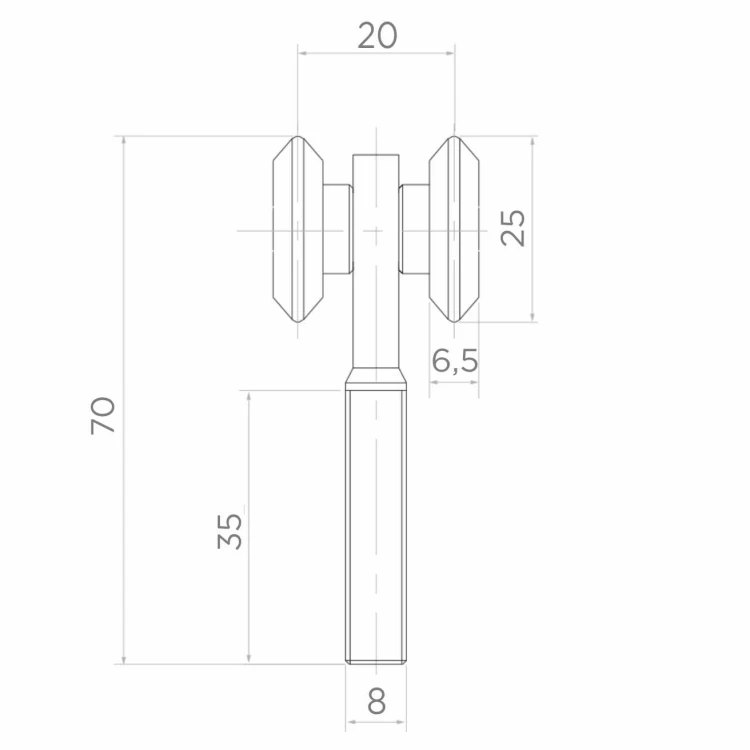

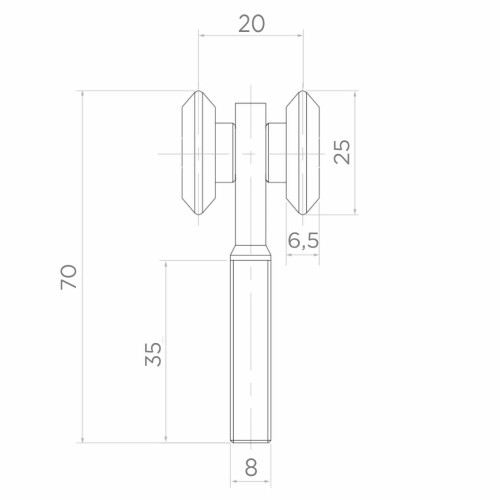

Dimensions and technical data
- Wheel diameter: 25 mm
- Number of wheels: 2
- Total height: 70 mm
- Mounting spindle length: 35 mm
- Spindle diameter: 8 mm (M8 thread)
- External width (between wheels): 20 mm
- Single wheel width: 6.5 mm
- Maximum load capacity: 30 kg
- Weight: 0.08 kg
- Material: galvanised steel
- Manufacturer: PSG
- EAN: 5901289675529
Application and mounting
The roller is designed for suspended gate systems where the leaf moves along an upper rail. The M8 threaded spindle with double nut enables height adjustment of the leaf suspension and secure attachment to the gate bracket. The zinc coating protects the component against moisture and atmospheric factors, which is important for outdoor installation — on fencing, entrance gates and halls.
