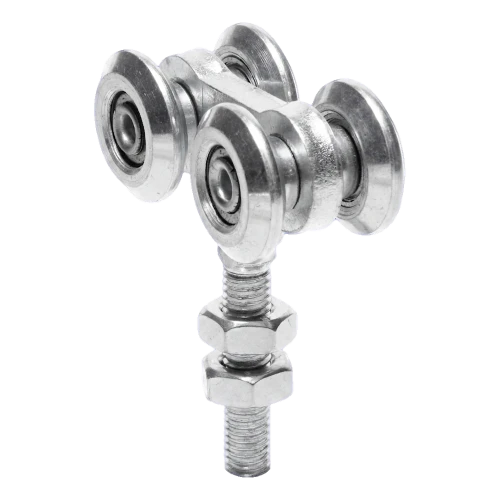

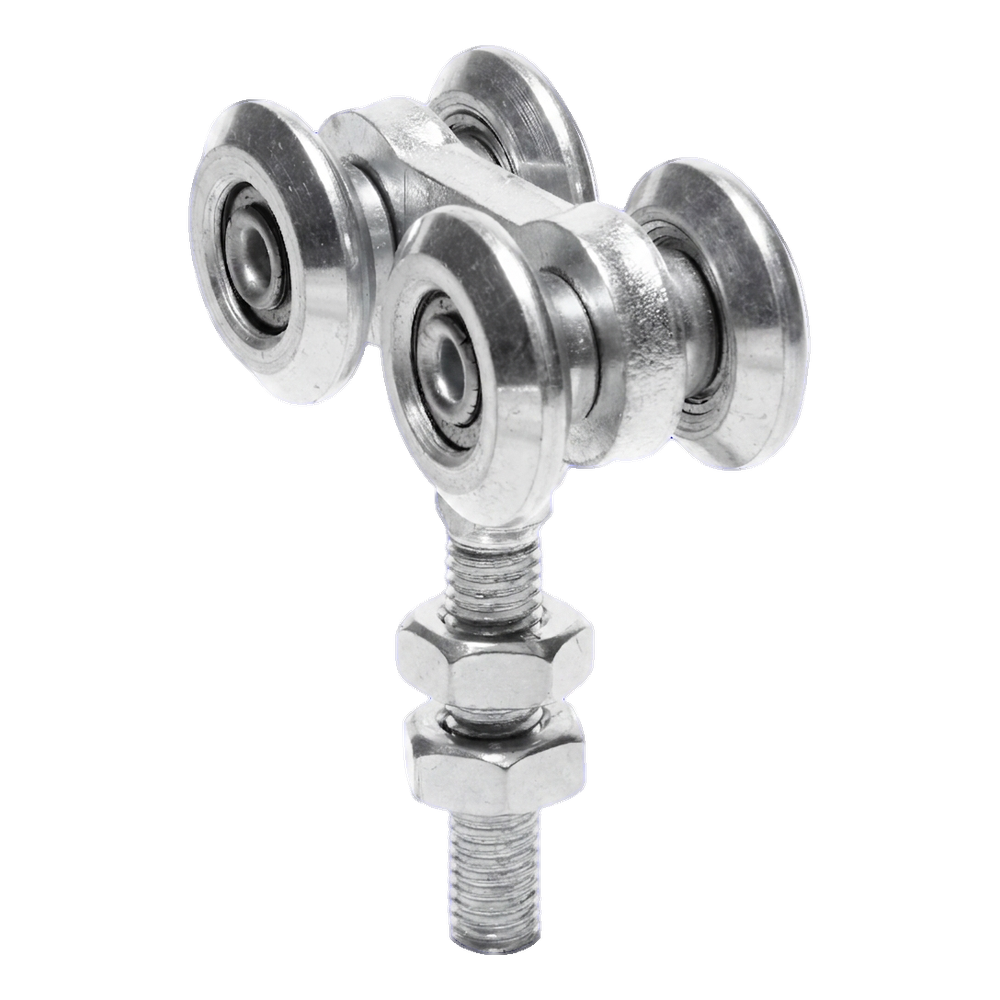

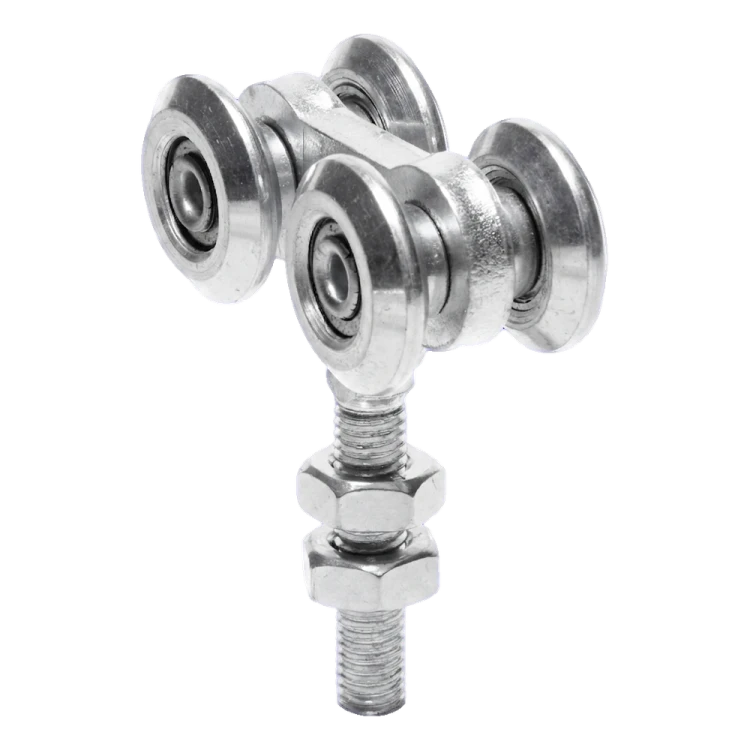

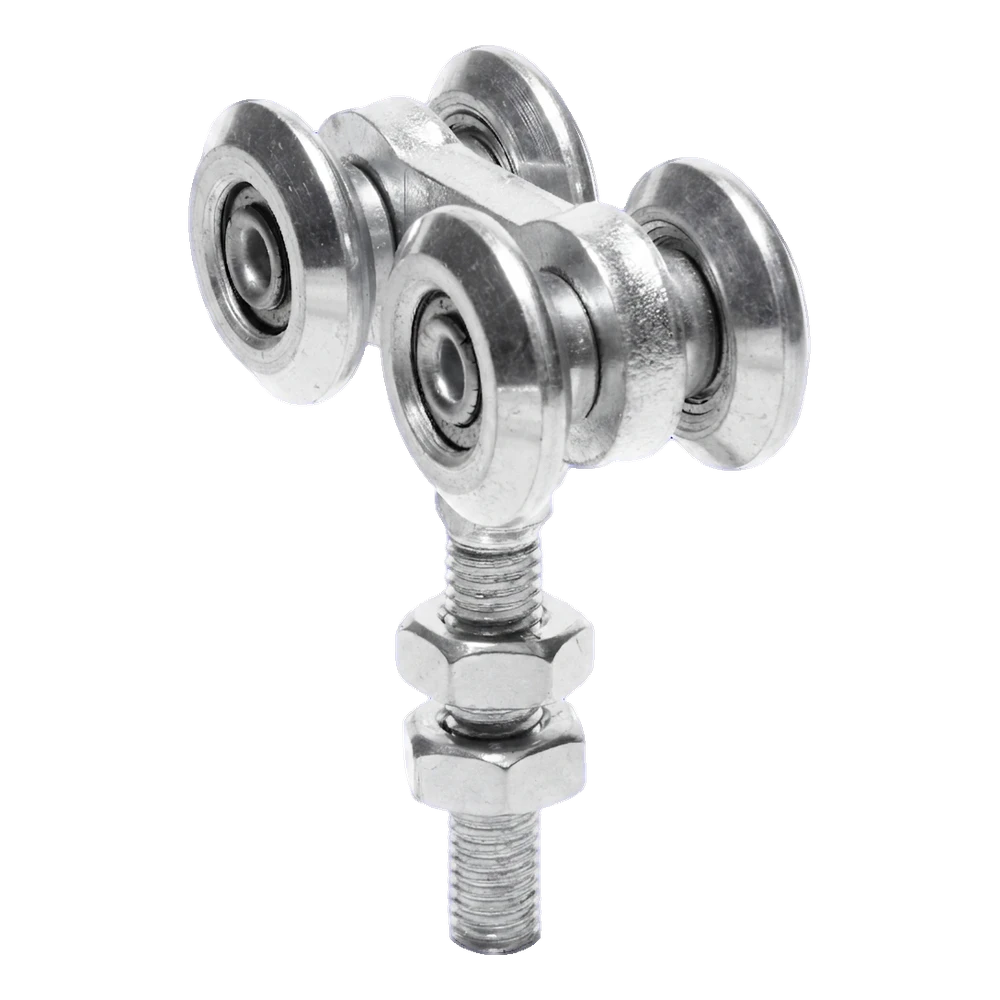

PSG – upper gate roller with four wheels ø 25 mm for suspended gates
Leave feedback on the product
PSG upper roller with four wheels ø 25 mm for suspended gates. M8 thread, load capacity 50 kg, height 70 mm. Galvanised surface. Wheel spacing 20 mm, wheel width 6.5 mm. Weight 0.14 kg.
Product code: 001-315
Description
PSG – upper gate roller with four wheels ø 25 mm for suspended gates
Upper roller with four wheels ø 25 mm by PSG is a durable running element designed for suspended gates. The construction based on four wheels with bearings ensures even load distribution and smooth, quiet gate operation. The entire unit is galvanised, which guarantees high corrosion resistance and long-term operation — even in outdoor conditions.
Maximum load capacity of 50 kg makes the roller suitable for light and medium suspended gates found in residential and commercial properties. The M8 spindle thread enables quick and secure mounting in standard gate suspension systems.

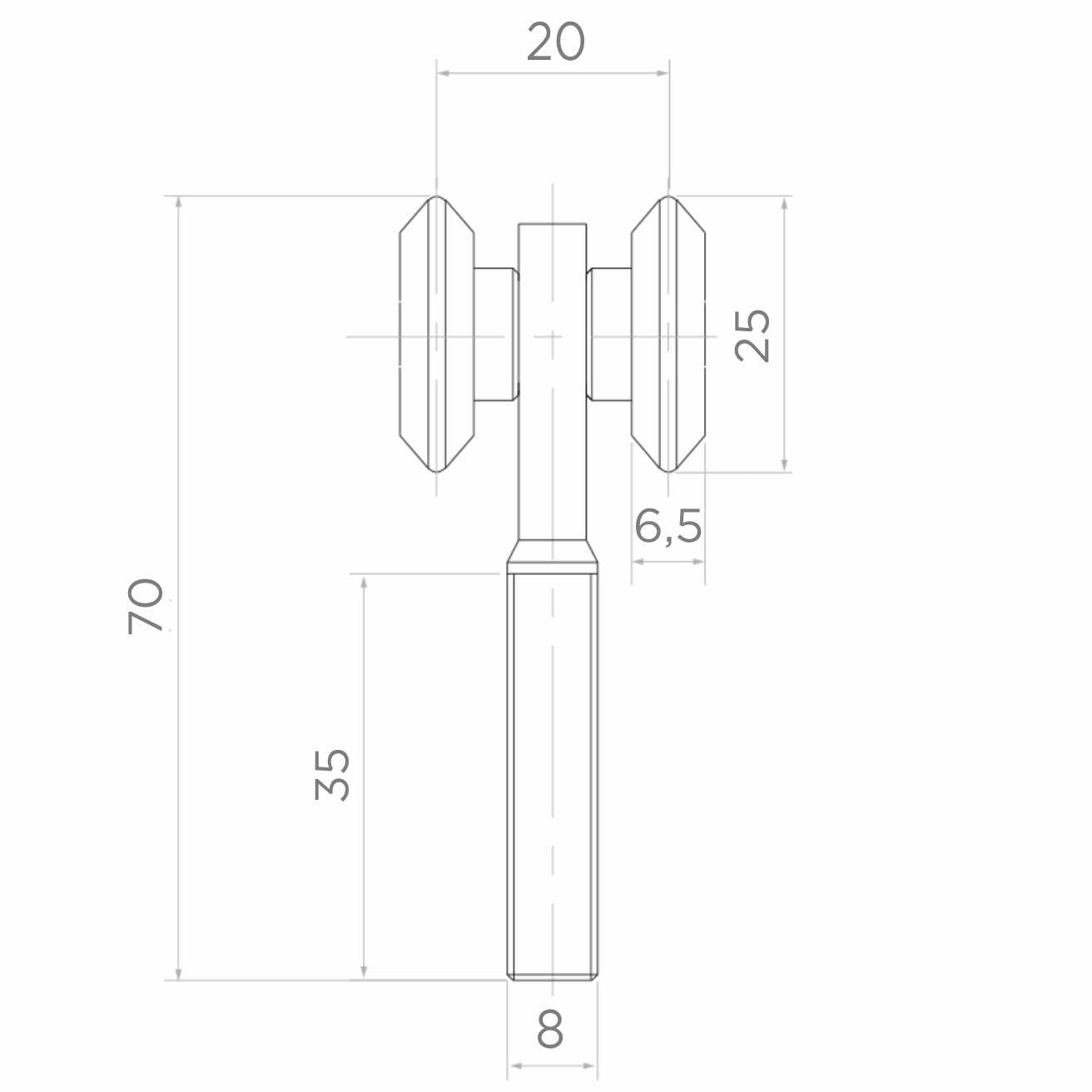

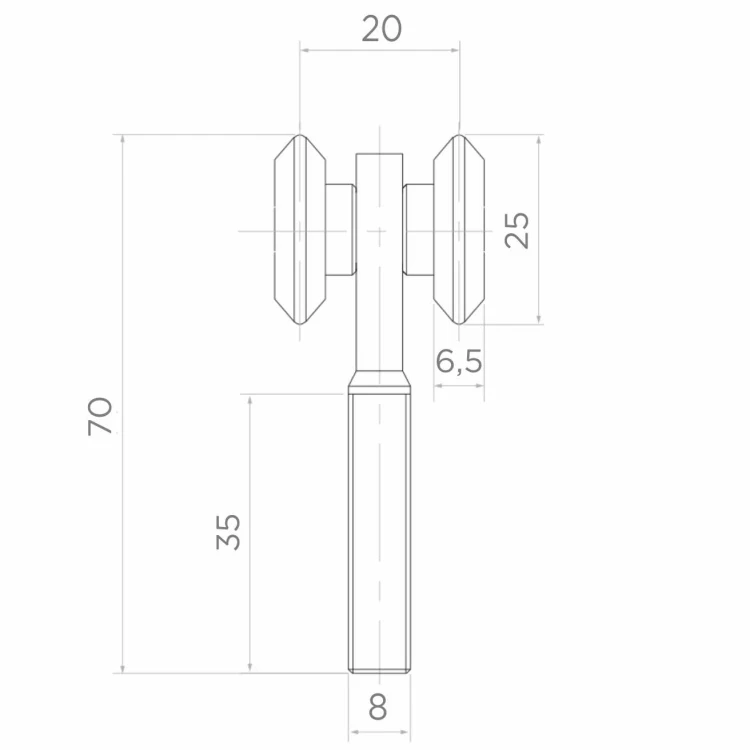

Dimensions and technical parameters
- Manufacturer: PSG
- Wheel diameter: 25 mm
- Number of wheels: 4
- Individual wheel width: 6.5 mm
- Internal wheel spacing: 20 mm
- Total height: 70 mm
- Threaded spindle length: 35 mm
- Spindle diameter (thread): M8
- Maximum load capacity: 50 kg
- Weight: 0.14 kg
- Surface finish: galvanised
- Application: suspended gates
- EAN: 5901289675550
