PSG top sliding gate bracket with rubber rollers – 60 mm spacing
Description
PSG top sliding gate bracket with rubber rollers – 60 mm spacing

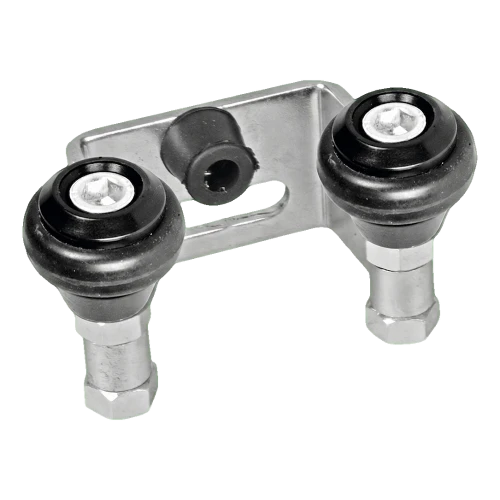

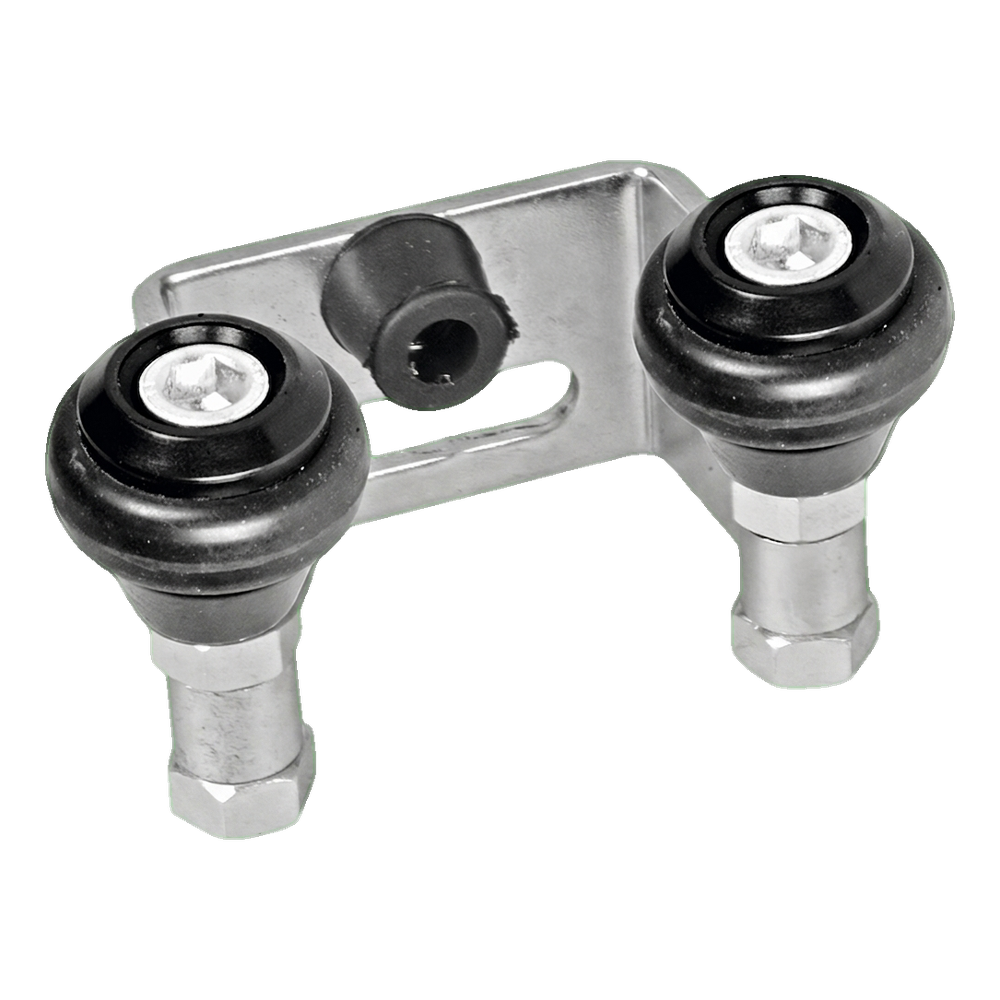

Steel PSG top bracket for cantilever and rail-guided sliding gates, equipped with two rubber guide rollers and rubber buffer. Stabilises the gate leaf when closed, effectively eliminating unwanted lateral movements. Rubber rollers significantly reduce noise during gate closing, which is particularly important in installations in residential areas. Roller spacing of 60 mm ensures precise gate leaf guidance, and surface galvanising guarantees high corrosion resistance and years of outdoor operation.

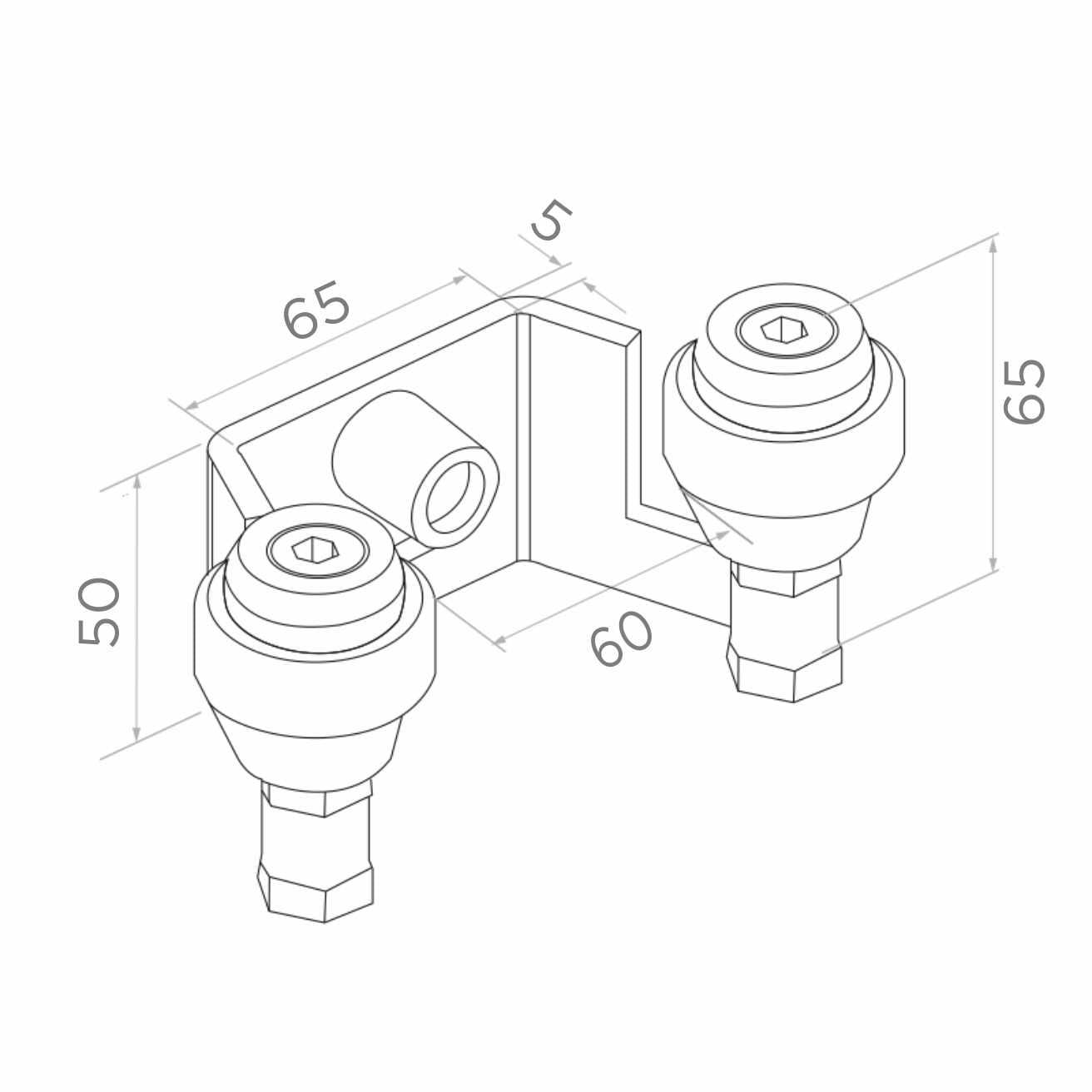

Dimensions and technical specifications
- Manufacturer: PSG
- Material: galvanised steel
- Rollers: rubber (quiet operation)
- Roller spacing (L): 60 mm
- Mounting plate width: 65 mm
- Mounting plate height: 50 mm
- Plate thickness: 5 mm
- Total roller assembly height: 65 mm
- Weight: 0.52 kg
- Additional equipment: rubber buffer
- Application: cantilever and rail-guided sliding gates
- EAN: 5901289674898
Application and installation
The bracket is mounted in the upper part of the gate post and serves as a position stabiliser for the leaf when closed. Two guide rollers grip the gate profile from both sides, preventing lateral deflections caused by wind or vibrations. The rubber buffer cushions the closing moment, protecting both the gate and the post structure. The component is ideal for professional sliding gate installations, ensuring quiet and stable operation.
