PSG swing gate stopper with locking mechanism – adjustable, steel, 70 mm
Leave feedback on the product
Swing gate stopper PSG with locking mechanism, galvanised steel. Adjustable, locking length 70 mm, height 130 mm. Self-locking spring mechanism with foot release. Mounting base 108 mm, weight 1.06 kg.
Product code: 001-450
Product features
[PIM] stopery-blokady-odbojniki #116
- Material Steel
Description
PSG swing gate stopper with locking mechanism – adjustable, steel, 70 mm
Steel stopper with self-locking mechanism from PSG brand — reliable protection for swing gates against uncontrolled closing. Foot release enables quick locking of the gate leaf without using hands, and the adjustable locking length (70 mm) allows precise adjustment of the stopper to installation conditions.
The product performs particularly well in areas exposed to strong winds — the mechanism automatically maintains the gate leaf in the open position, eliminating the risk of impact and damage. The galvanised surface ensures long-term corrosion resistance, making it possible to install the stopper outdoors without additional anti-corrosion protection.
Why choose this stopper?
- Self-locking mechanism — automatically secures the gate, release with one foot movement
- Adjustable — can be adapted to different swing gates
- Galvanised steel construction — durability and corrosion protection
- Floor mounting — stable base with mounting holes
- Rubber elements — quiet operation and protection of gate leaf from scratches
Construction and operating mechanism

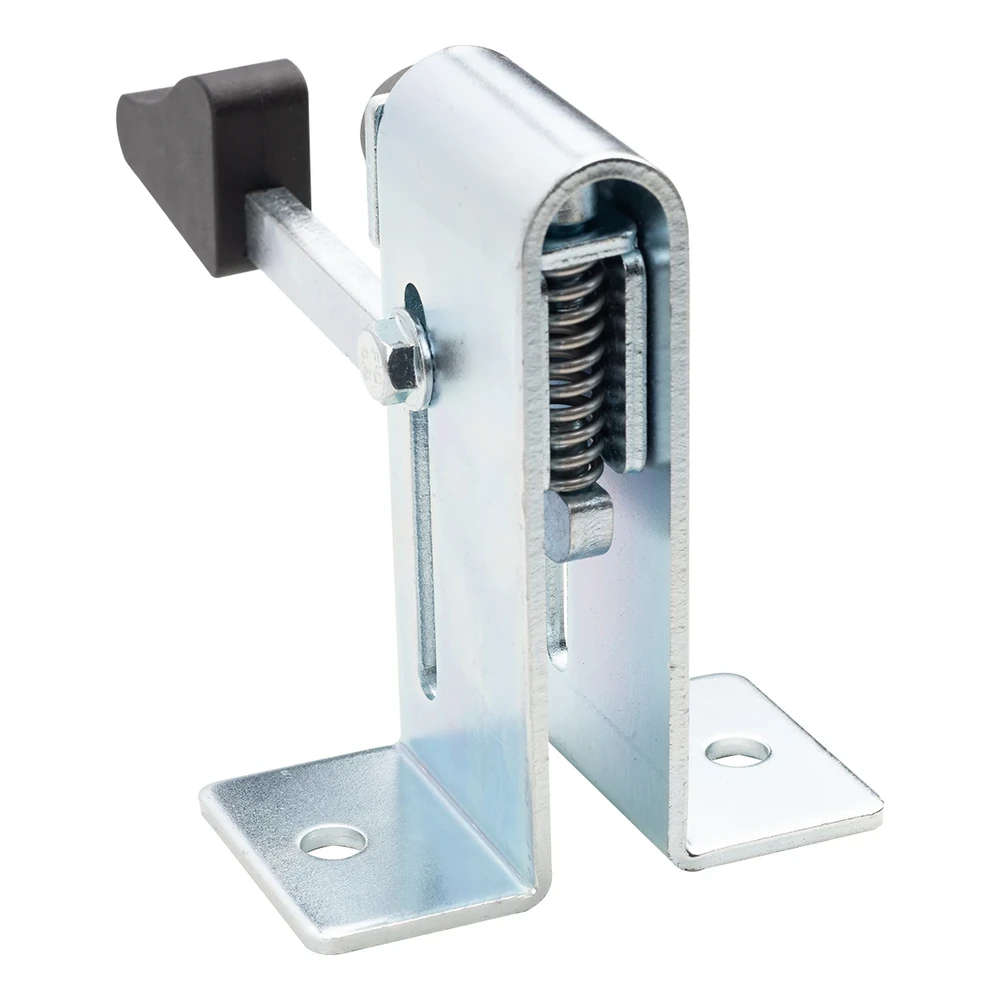

Inside the housing there is a spring latch mechanism, visible in the photograph from the rear of the product. The steel pin moves along the slot in the housing (movement range 68 mm), and the spring maintains it in the locked position. The black foot release allows intuitive unlocking — simply press with the foot to allow the gate leaf to close freely.

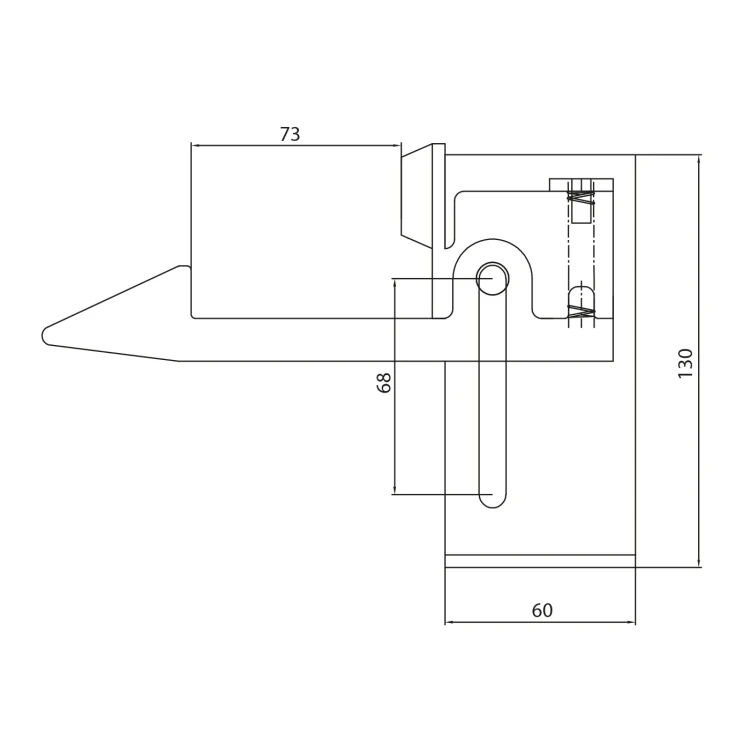

Dimensions and technical parameters
- Manufacturer: PSG
- Type: adjustable stopper with locking mechanism
- Application: swing gates
- Locking length (catch): 70 mm
- Total height (H): 130 mm
- Housing length: 73 mm

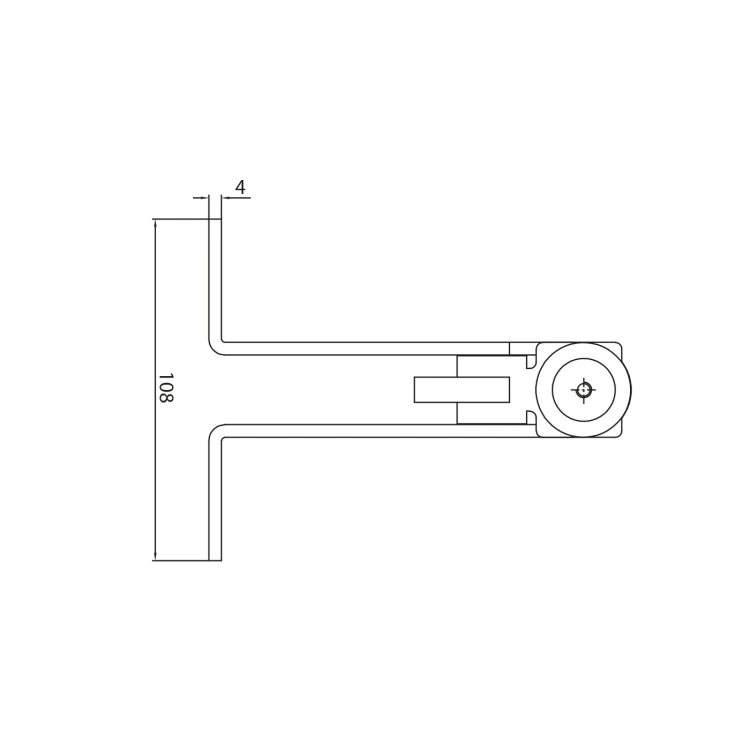

- Mounting base width: 108 mm
- Base width (foot): 60 mm
- Base plate thickness: 4 mm
- Pin movement range: 68 mm
- Material: steel
- Finish: galvanised
- Mechanism: self-locking (spring)
- Weight: 1.06 kg
- EAN: 5901289670326
