PSG steel support bracket for sliding gate approach catch 150×120 mm
Leave feedback on the product
PSG support bracket for sliding gate approach catch, steel construction. Dimensions 150×120 mm, sheet thickness 3 mm, weight 0.72 kg. Vertical arm with 3 elongated holes 11×70 mm, horizontal arm with 4 holes 11×17 mm. Strengthening emboss R8 mm.
Product code: 001-249
Description
PSG steel support bracket for sliding gate approach catch 150×120 mm

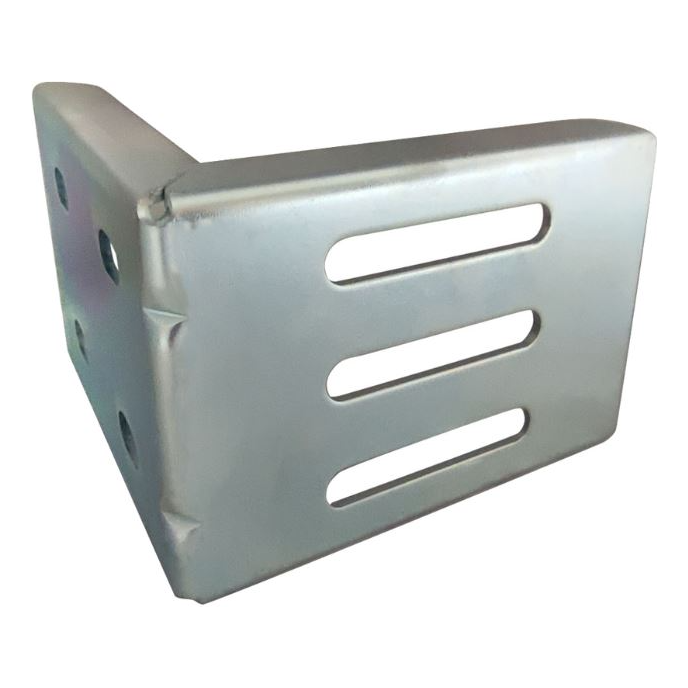

Support bracket for approach catch by PSG is a robust L-shaped mounting element designed for sliding gate systems. It serves as a base for securing the gate trolley approach catch — providing a stable and adjustable connection between the catch and the gate structure or post. Thanks to elongated mounting holes (slots), it enables precise position adjustment in three axes, significantly facilitating gate alignment during installation.

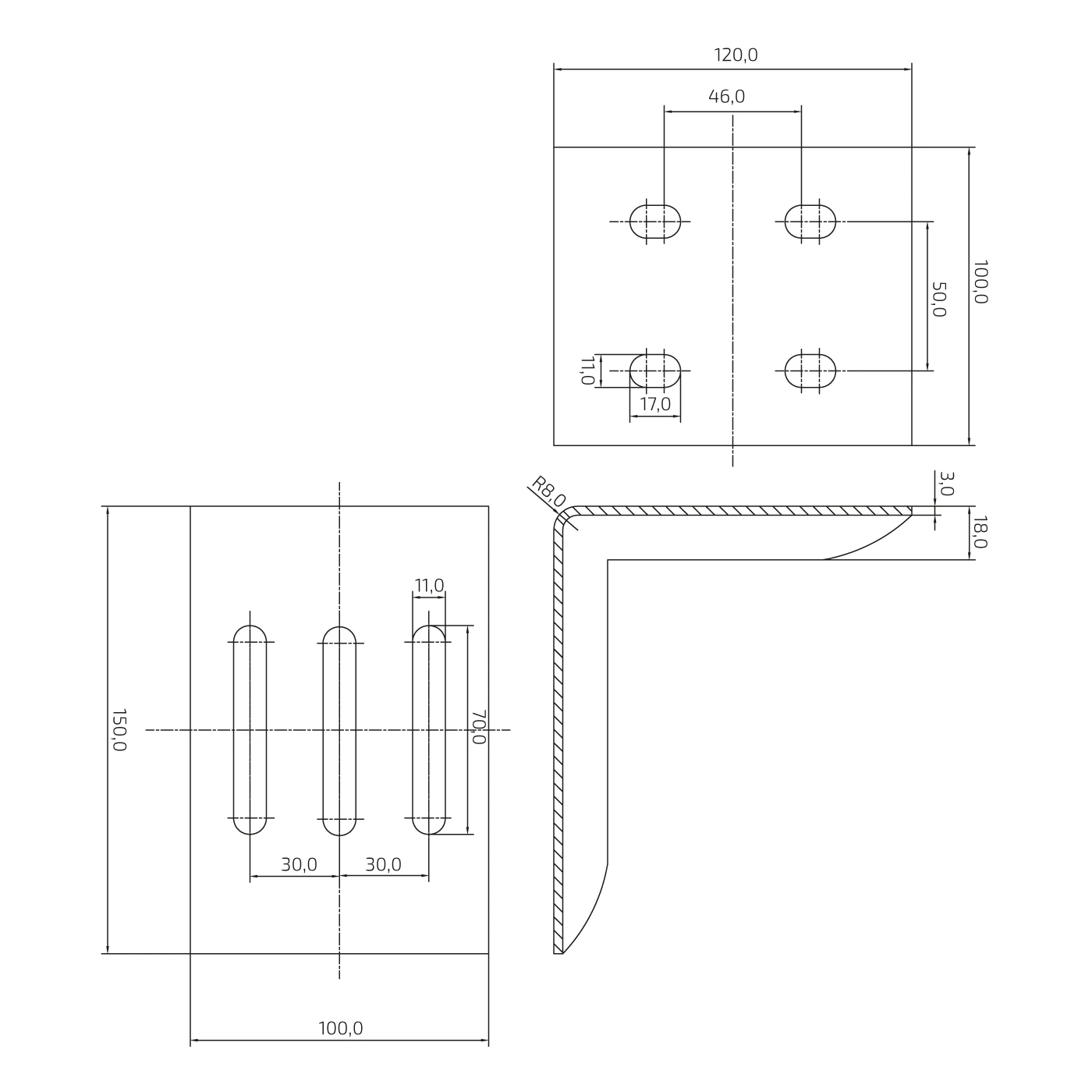

Dimensions and construction
- Vertical arm dimensions (longer): 150 × 100 mm
- Horizontal arm dimensions (shorter): 120 × 100 mm
- Steel sheet thickness: 3 mm
- Internal bend radius: R8 mm
- Strengthening emboss in corner: 18 mm
- Weight: 0.72 kg
Mounting holes
- Vertical arm: 3 elongated holes (slots) with dimensions 11 × 70 mm, centre spacing 30 mm
- Horizontal arm: 4 elongated holes (slots) with dimensions 11 × 17 mm, centre spacing 46 × 50 mm
Elongated mounting holes on both arms allow for smooth position adjustment of the approach catch both vertically and horizontally. Three large slots (70 mm) on the vertical arm provide a wide range of height adjustment, which is particularly important when levelling ground irregularities or adjusting the running rail level.
Catalogue data
- Manufacturer: PSG
- Material: steel with strengthening emboss
- EAN: 5903313203609
The bracket is part of the PSG gate hardware system and works with approach catches dedicated to sliding gate trolleys. Solid construction from steel sheet 3 mm thick with additional corner embossing guarantees high rigidity and durability — even with daily operation of heavy sliding gates.
