PSG steel gate stop for swing gates 120×100 mm – bolt-on limiter
Description
PSG steel gate stop for swing gates 120×100 mm – bolt-on limiter
Steel gate stop for swing gates PSG is a robust limiter (buffer) designed for installation at the junction of gate leaves. It provides reliable blocking of the gate leaf in closed position, protecting the gate and posts from mechanical damage resulting from excessive pressure or wind gusts.

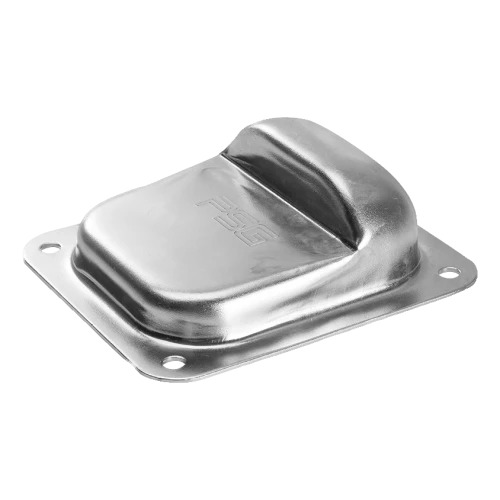

The element made of steel has a characteristic dome shape that effectively dampens impacts from the gate leaf. Four mounting holes with diameter of 9 mm enable quick and secure bolting of the stop to the ground surface — without the need for welding or specialist hardware. This solution is particularly valued by installation teams as it reduces installation time to a minimum.

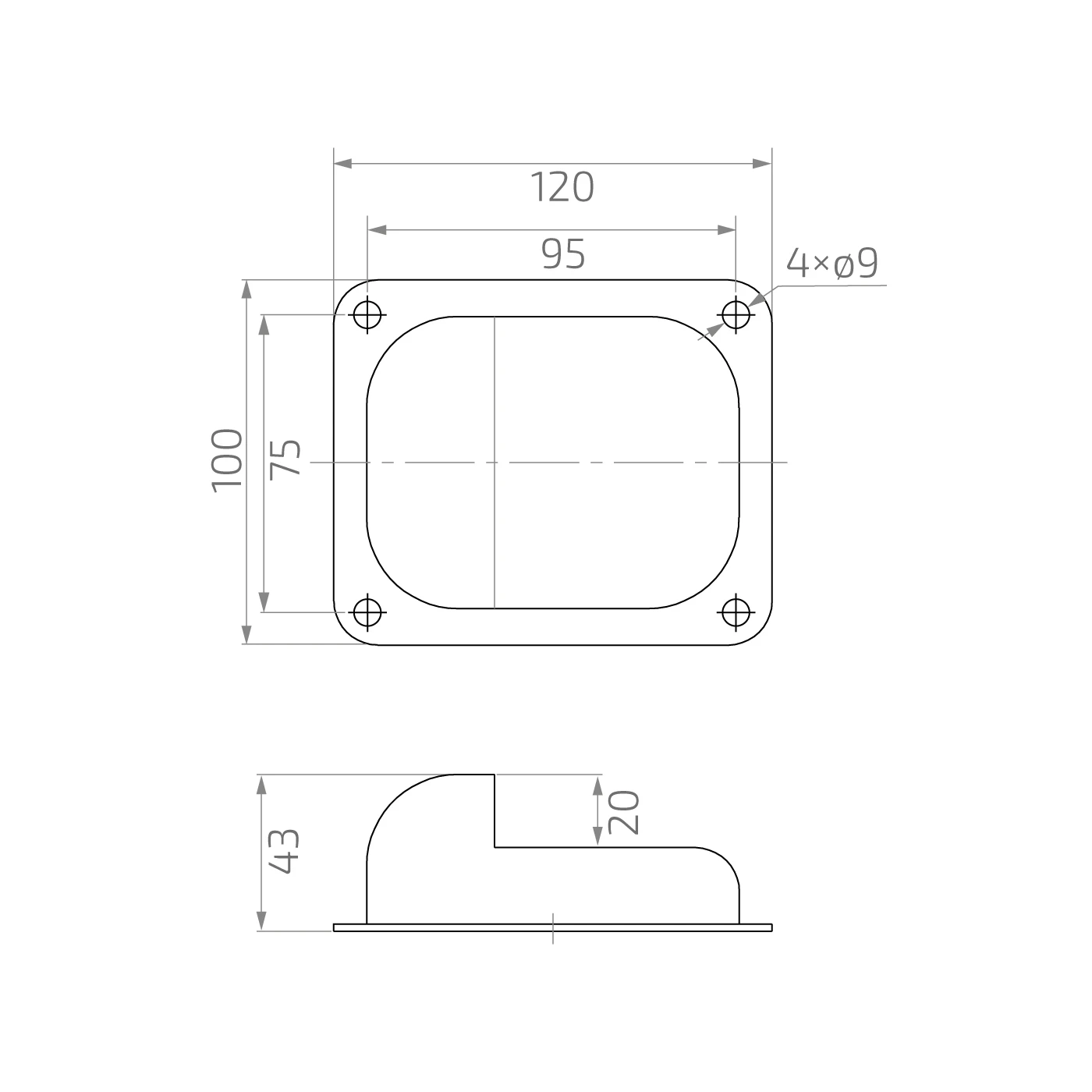

Dimensions and technical data
- Mounting plate dimensions: 120 × 100 mm
- Mounting hole spacing: 95 × 75 mm
- Mounting hole diameter: 4 × ⌀9 mm
- Overall height: 43 mm
- Profile step: 20 mm
- Material: steel
- Weight: 0.55 kg
- Manufacturer: PSG
- EAN: 5901289676403
Application and installation
The stop is mounted on the ground surface (paving stones, concrete, flooring) at the meeting point of double swing gate leaves. Thanks to its compact construction and low profile (43 mm) it does not obstruct pedestrian or vehicle movement, whilst effectively limiting gate leaf movement. Four mounting points arranged at 95 × 75 mm spacing guarantee stability even under high wind loads.
Technical data
| Material | Steel |
