PSG sliding gate approach bracket support – side mount, steel
Description
PSG sliding gate approach bracket support – side mount, steel

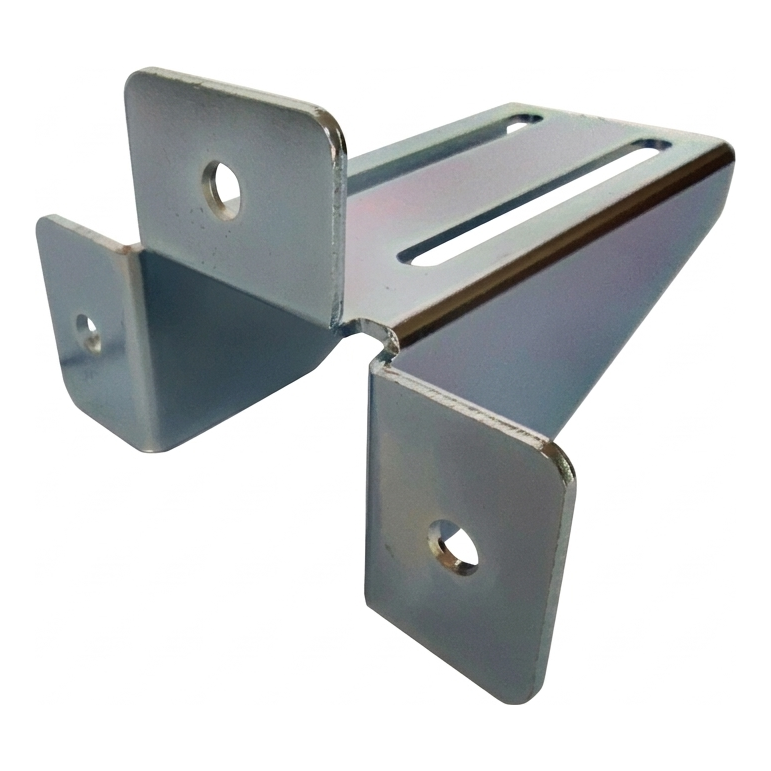

PSG approach bracket support is a steel structural element designed for side mounting of approach socket in self-supporting sliding gates. Thanks to its solid construction made of steel plate with 4 mm thickness and precise mounting holes, it provides durable and stable mounting of roller bracket to post or wall. The product reduces installation time — slotted holes enable position adjustment without the need for re-drilling.
The bracket is an essential element in sliding gate systems where the approach bracket must be mounted from the side rather than from above. It works perfectly wherever the post or wall structure requires the approach socket to be offset from the mounting surface — the 175 mm overhang provides adequate distance.

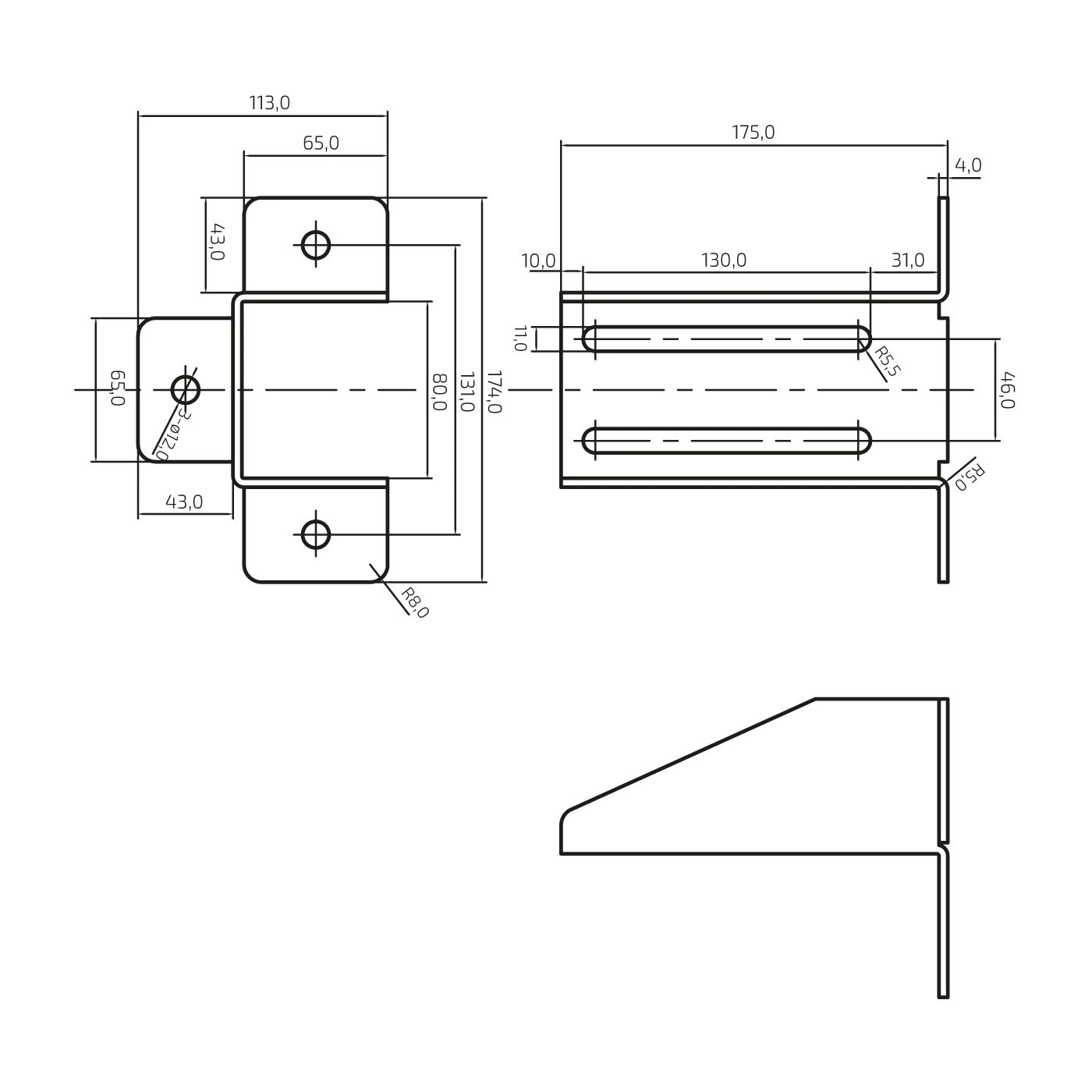

Overall dimensions
- Total height: 174 mm
- Total width: 113 mm
- Length (overhang from wall): 175 mm
- Body height: 80 mm
- Plate thickness: 4 mm
- Weight: 1.156 kg
Mounting and adjustment holes
- Mounting holes: 3 × ⌀12 mm (on side flanges)
- Mounting holes spacing (vertical): 131 mm
- Slotted holes: length 130 mm, width 11 mm
- Slotted holes spacing (vertical): 46 mm
- Distance of slot from front edge: 10 mm
- Distance of slot from rear edge: 31 mm
- Slot rounding radius: R5.5
Mounting flanges
- Side flanges dimensions: 65 × 43 mm
- Front flange dimensions: 65 × 43 mm
- Edge rounding radius: R8
- Bending radius: R5
Material and identification data
- Material: steel plate
- Manufacturer: PSG
- EAN: 5903313203593
The bracket is suitable for mounting on both steel and concrete posts. Slotted holes enable precise adjustment of approach socket position horizontally, which is particularly useful when correcting gate axis after post installation. Three round holes ⌀12 mm on flanges ensure secure anchoring of the element to the substrate.
