PSG side bracket for sliding gate rail 50×46 mm – galvanised, adjustable
Leave feedback on the product
PSG side bracket for sliding gate rail 50×46 mm, galvanised. Steel sheet 4 mm, dimensions L70×H50 mm. Mounting holes 11×26 mm, spacing 40 mm. Weight 0.64 kg. For suspended sliding gates.
Product code: 001-323
Description
PSG side bracket for sliding gate rail 50×46 mm – galvanised, adjustable

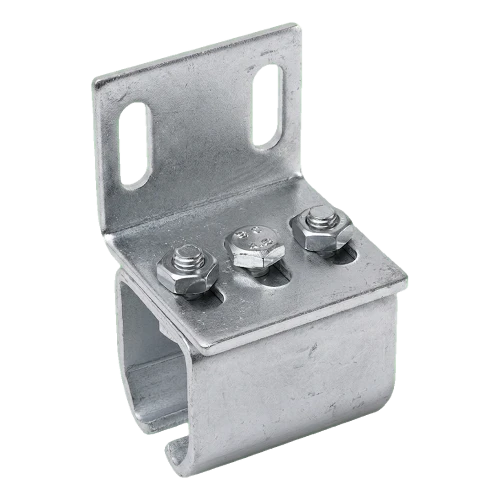

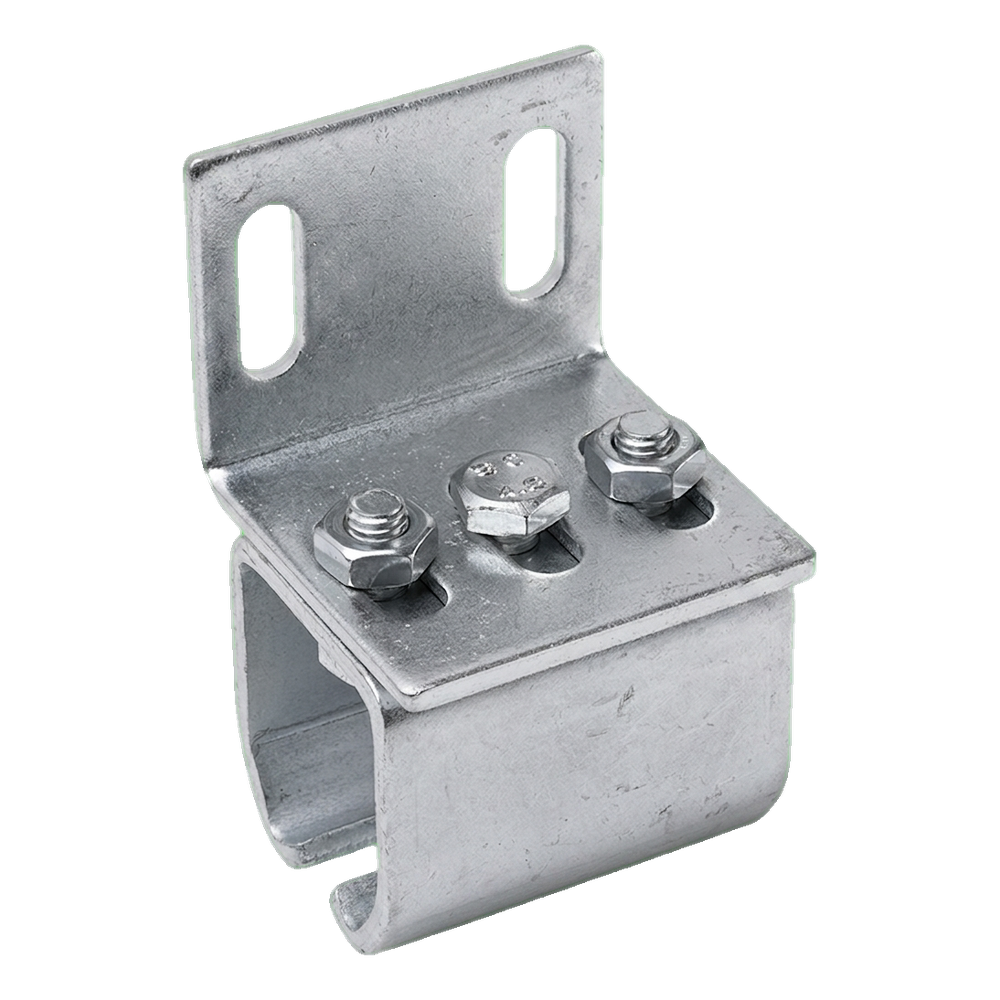

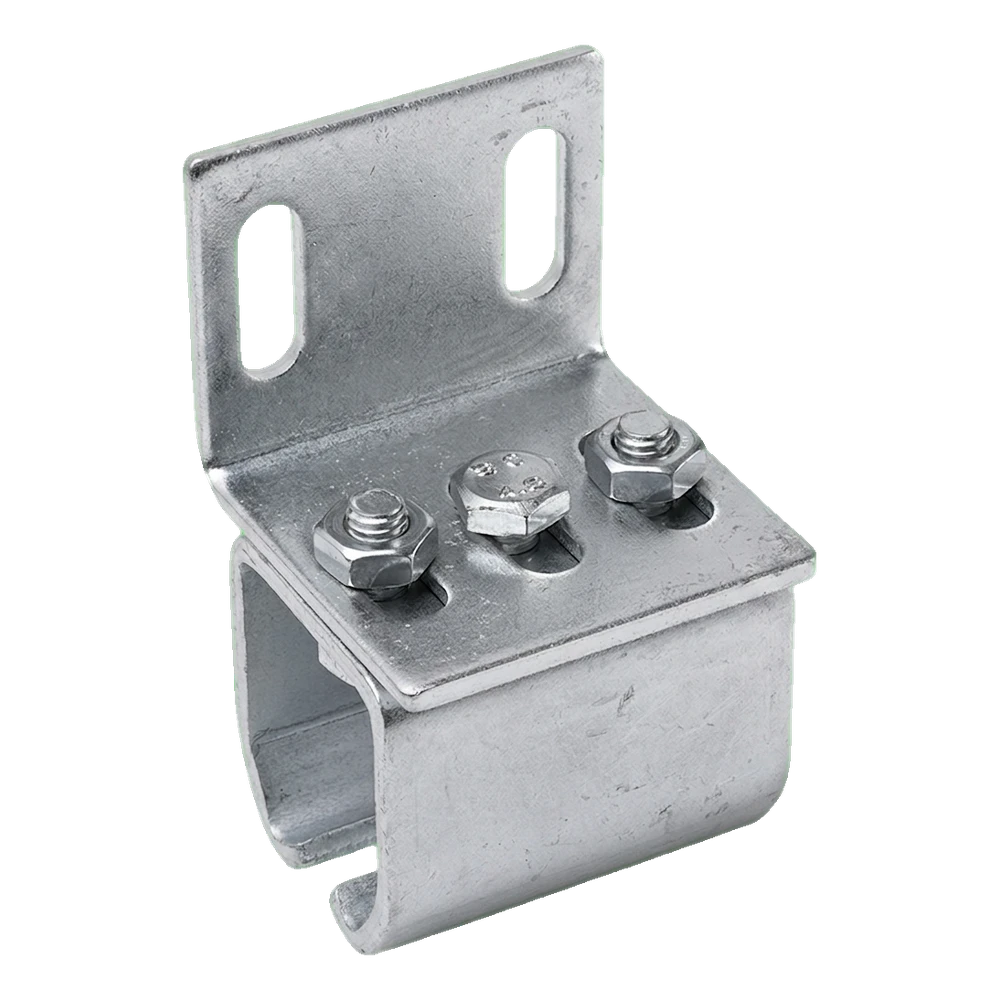

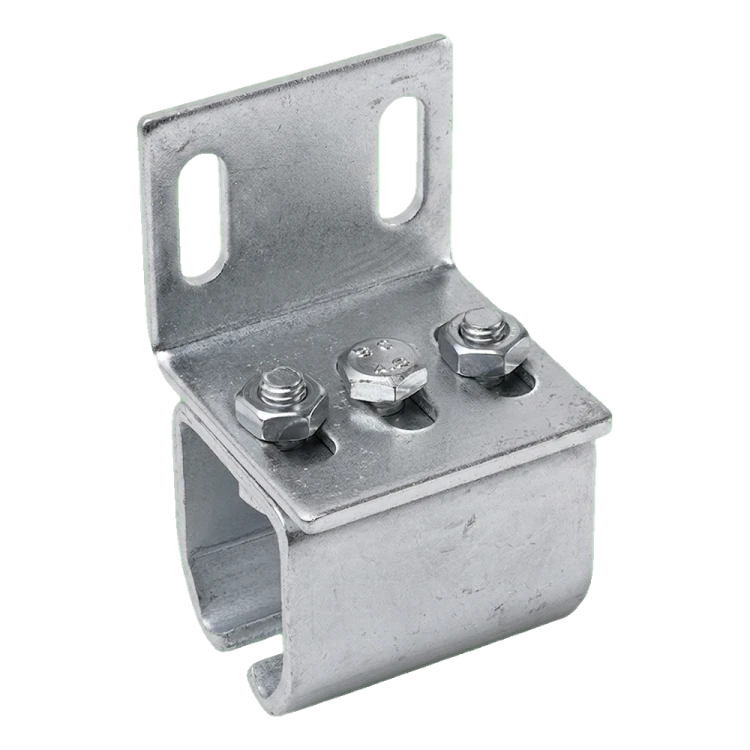

Galvanised PSG side bracket designed for mounting rails (channel sections) 50×46 mm in suspended sliding gates. Thanks to adjustable side mounting, it enables precise adjustment of the gate running rail even on uneven wall and post surfaces. The set is supplied with mounting screws, eliminating the need to order connectors separately and speeding up installation.
The bracket is made from steel sheet with a thickness of 4 mm, ensuring high load capacity and durability. The zinc coating protects the component against corrosion, making it suitable for use in both internal gates and those exposed to atmospheric conditions.

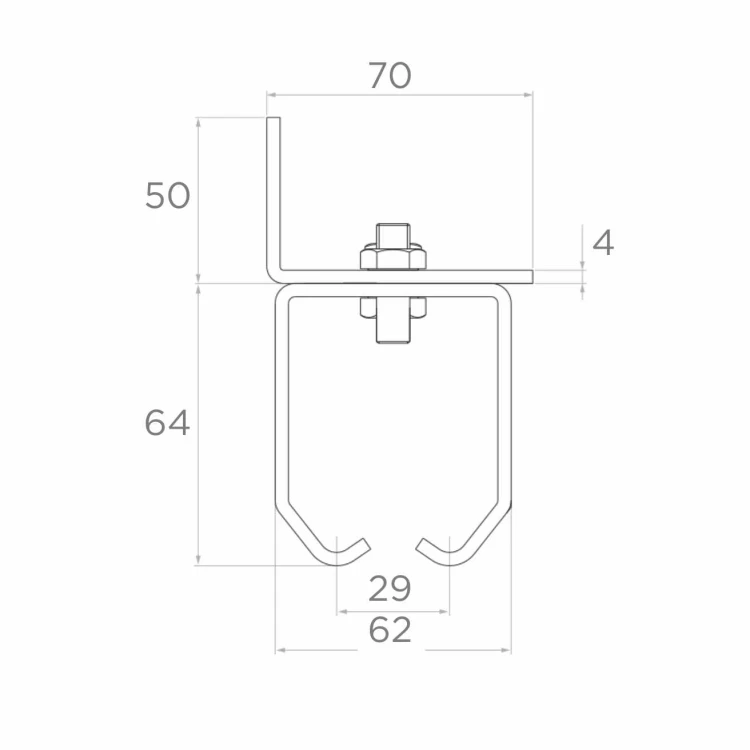

Dimensions and technical data
- Application: rail (channel section) 50×46 mm for suspended gates
- Mounting type: side, adjustable
- Bracket depth (L): 70 mm
- Mounting arm height: 50 mm
- Rail height: 64 mm
- Rail width: 62 mm
- Rail slot width: 29 mm
- Sheet thickness: 4 mm
- Mounting holes (slots): 11 × 26 mm
- Slot spacing: 40 mm
- Material: galvanised steel
- Weight: 0.64 kg
- Included: mounting screws
- Manufacturer: PSG
- EAN: 5901289675635
Elongated mounting holes (slots) with dimensions 11 × 26 mm and spacing 40 mm provide the possibility of adjusting the bracket position vertically, making it easier to align the rail along the entire length of the gate. This is an important advantage particularly for installations on walls with irregular geometry.
