PSG self-supporting sliding gate approach bracket 70/80 galvanised steel
Leave feedback on the product
PSG self-supporting sliding gate approach bracket made from galvanised steel. Sheet thickness 4 mm, dimensions 110.5 x 143 x 100 mm, weight 1.1 kg. For rails 70×70 mm and 80×80 mm. Slotted mounting holes 24×10.5 mm, round hole ø12.1 mm.
Product code: 001-252
Description
PSG self-supporting sliding gate approach bracket 70/80 galvanised steel

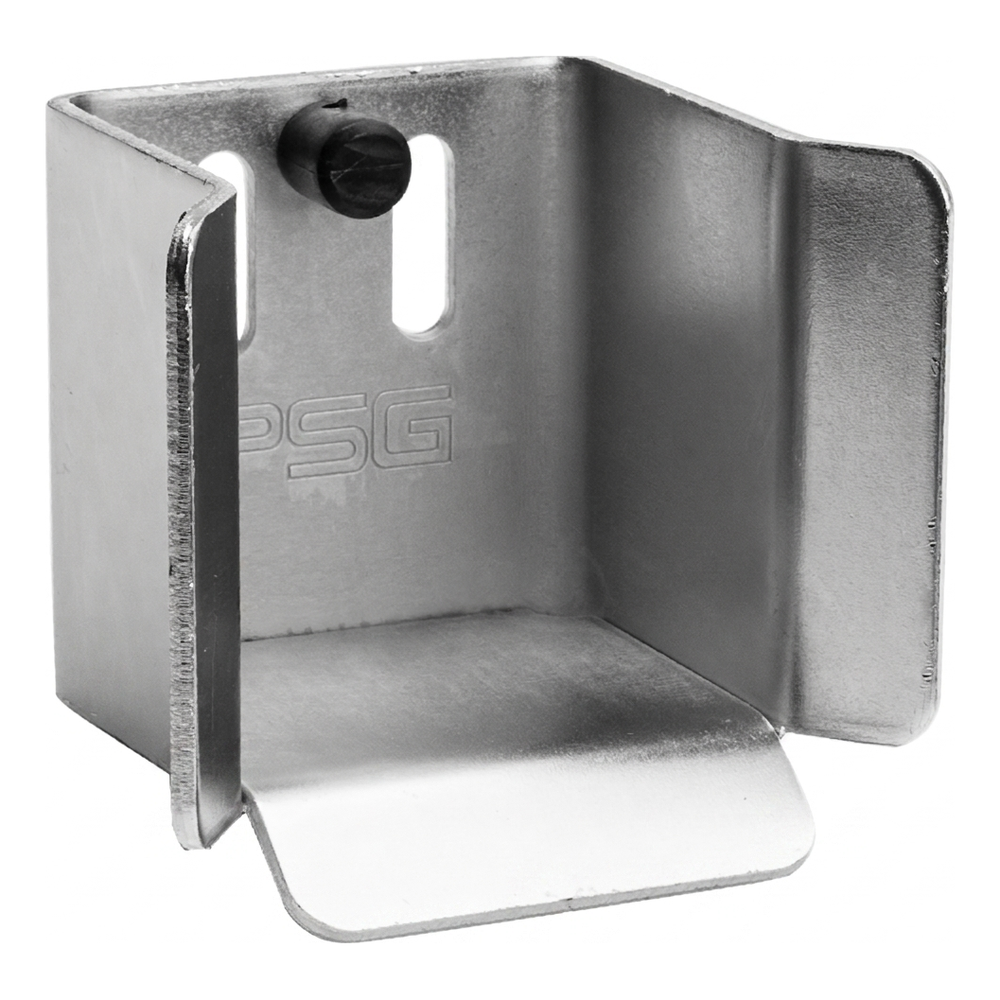

Steel PSG approach bracket designed for self-supporting sliding gates running on 70×70 mm and 80×80 mm rail. Stabilises the gate leaf when closed and evenly distributes its weight across a greater number of structural elements, which significantly extends the service life of gate carriages and reduces their operational wear.
The bracket works with an approach roller and serves a guiding function — when the roller enters the bracket, the gate is stabilised in the closed position, eliminating lateral deflection of the leaf. On the rear mounting plate there are two slotted holes allowing position adjustment during installation and a round hole ø12.1 mm. The built-in rubber buffer cushions the roller impact and dampens noise when closing the gate.
The product is made from galvanised steel with 4 mm sheet thickness, ensuring high corrosion resistance and long-term operation in outdoor conditions.

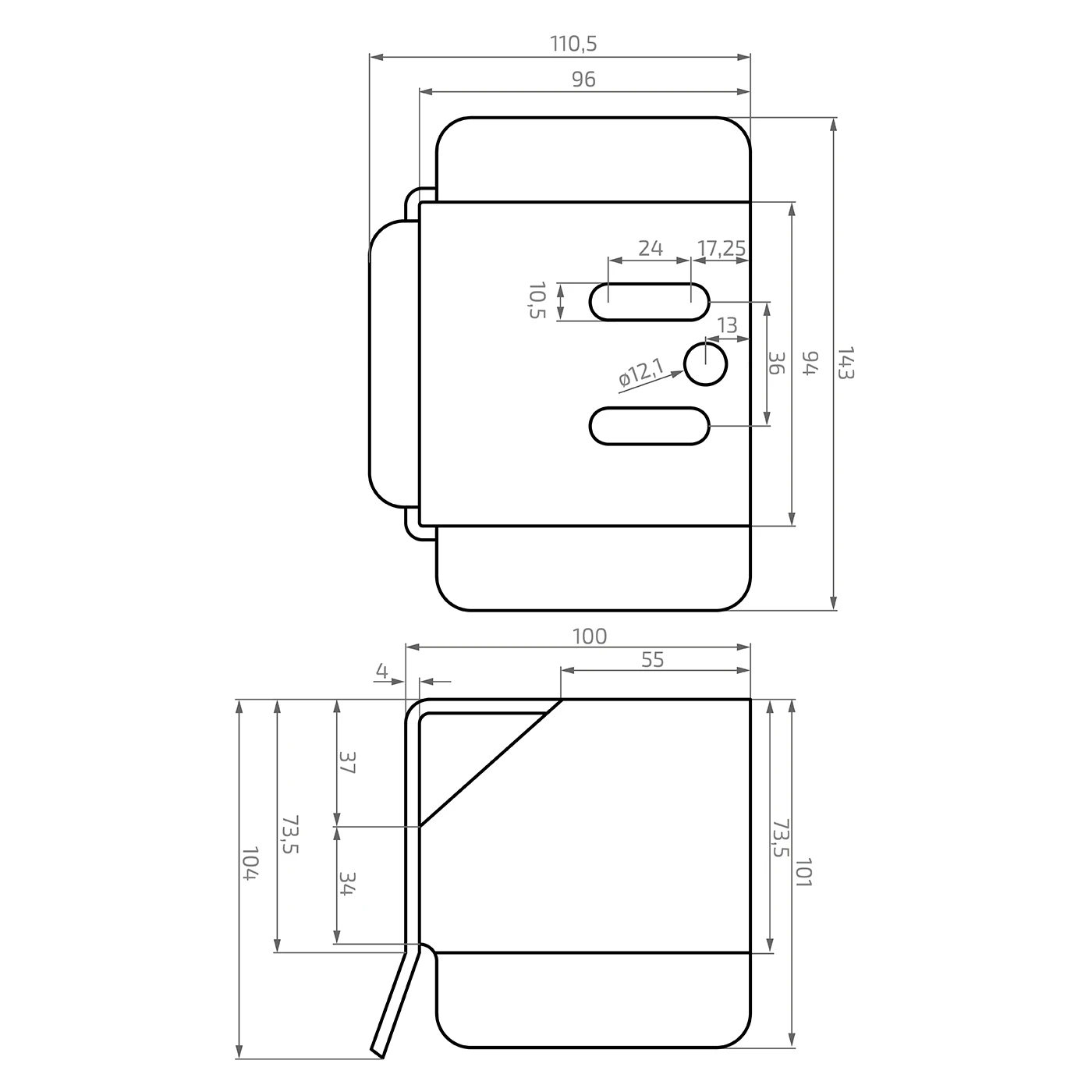

Dimensions and technical data
- Overall width: 110.5 mm
- Mounting plate width: 96 mm
- Mounting plate height: 143 mm
- Side wall height: 94 mm
- Overall depth: 100 mm
- Top cover depth: 55 mm
- Overall height (side view): 101–104 mm
- Sheet thickness: 4 mm
- Slotted mounting holes: 24 × 10.5 mm – 2 pcs
- Round hole: ø12.1 mm
- Hole spacing: 36 mm
- Compatibility: rail 70×70 mm and 80×80 mm
- Material: galvanised steel
- Weight: 1.1 kg
- Manufacturer: PSG
- EAN: 5901289674850
Application
The approach bracket is a key component of the self-supporting sliding gate system. Mounted on the gate post on the closing side, it works with an approach roller attached to the gate leaf. Thanks to adjustable mounting holes, the installer can precisely set the bracket position, adapting it to specific installation conditions. The robust galvanised steel construction with 4 mm thickness guarantees trouble-free operation for many years, even with intensive gate use in industrial and commercial facilities.
