PSG running rail profile end cap 70×70 mm for self-supporting sliding gate
Description
PSG running rail profile end cap 70×70 mm for self-supporting sliding gate

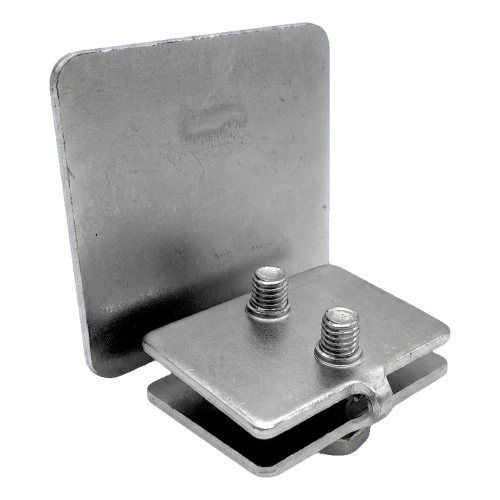

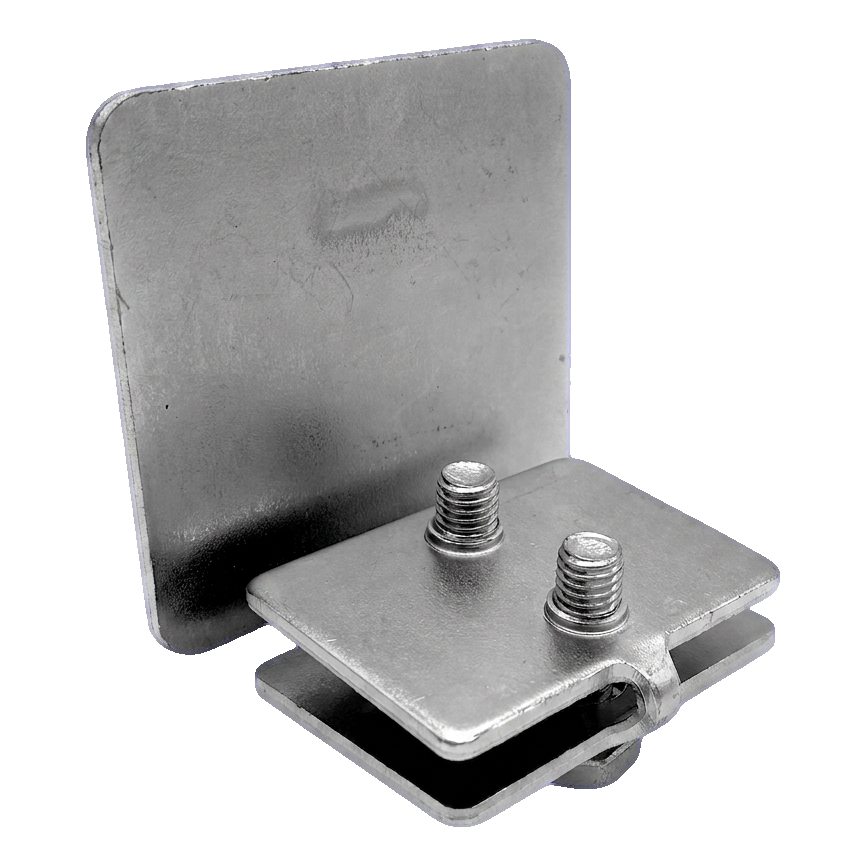

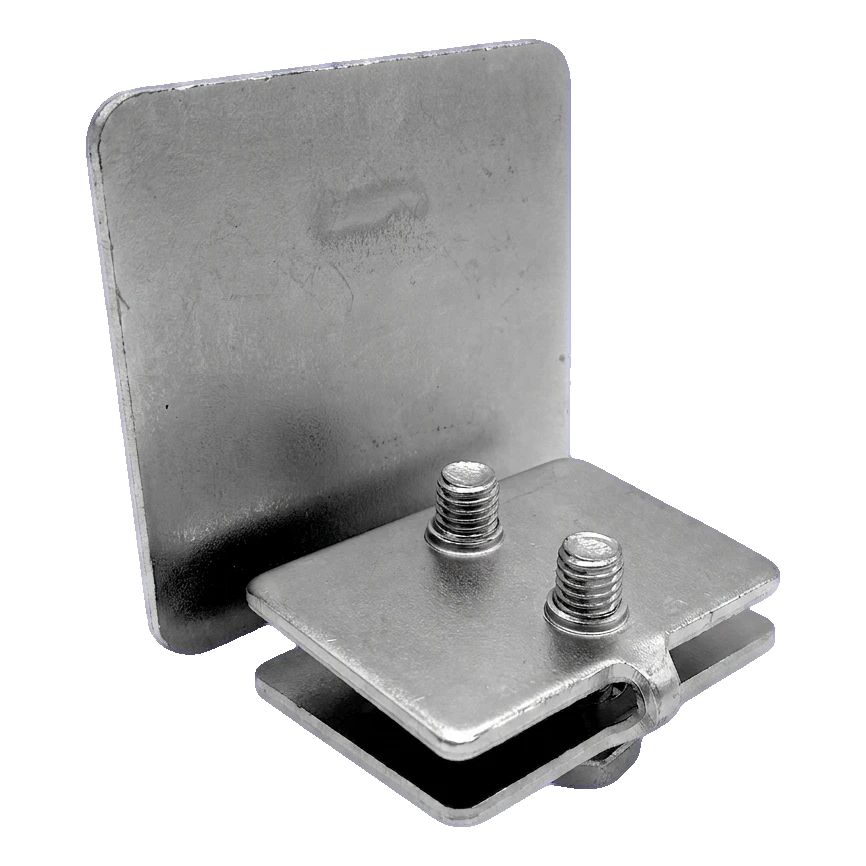

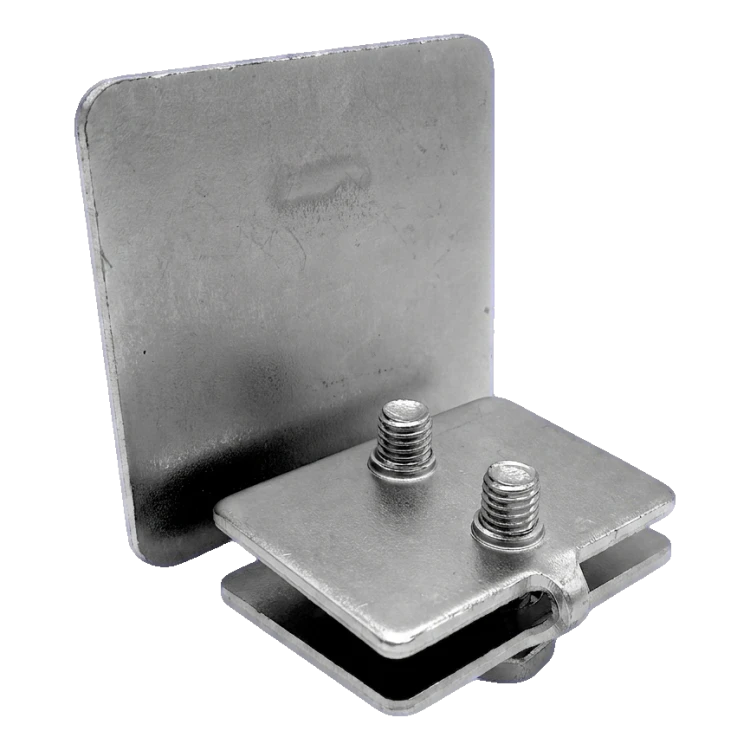

The 70 profile end cap by PSG is a steel, galvanised component designed for aesthetic and functional closure of the running rail of self-supporting sliding gates. It fits profiles with 70×70×4 mm cross-section and is supplied complete with mounting screws, enabling quick installation without the need to source additional fastening components.
The end cap protects the interior of the profile from ingress of dirt, water and snow, extending the service life of the running rail. The galvanised coating provides high corrosion resistance — the component operates reliably in outdoor conditions throughout the year, regardless of weather conditions.

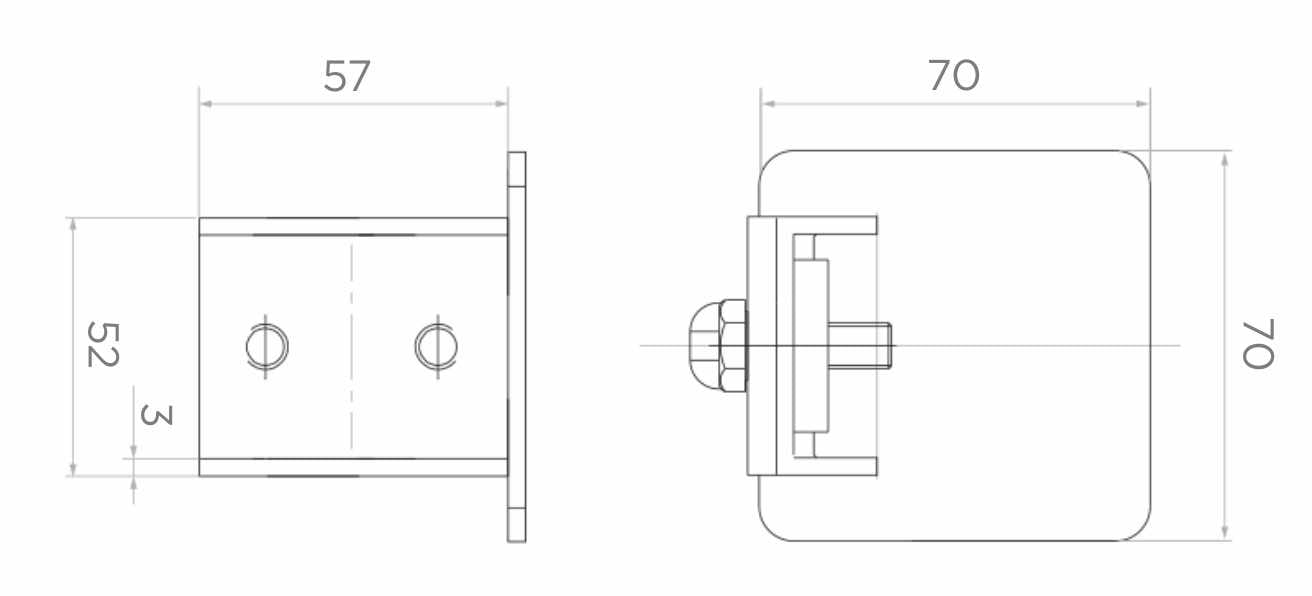

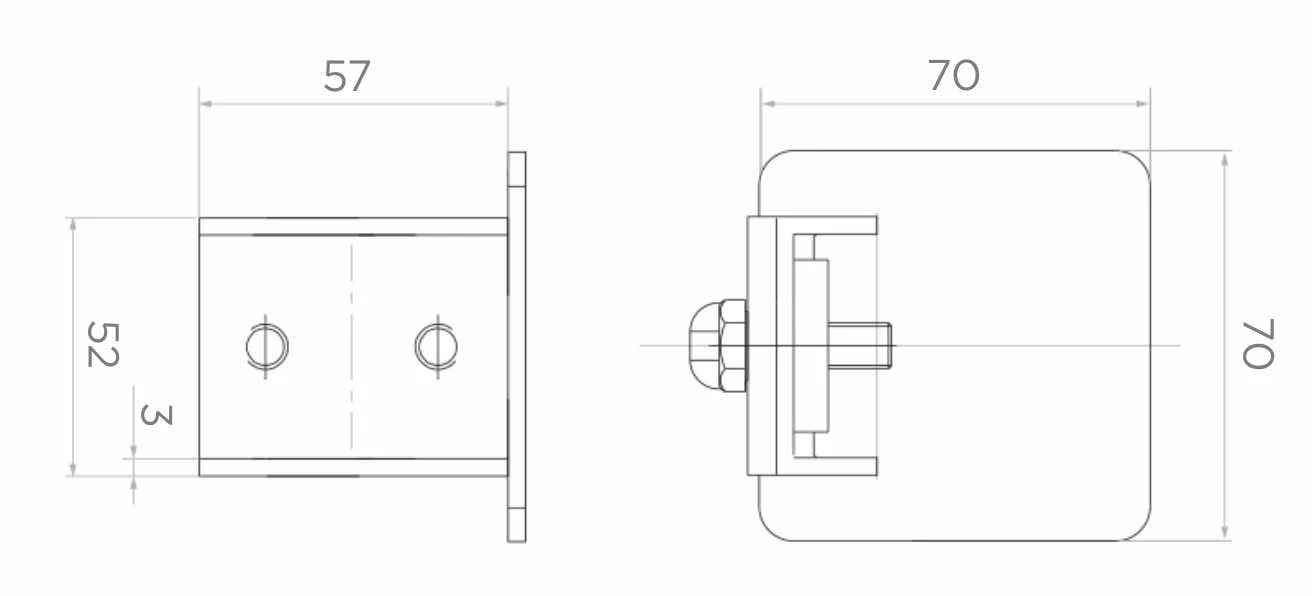

Dimensions and technical data
- Compatibility: running rail profile 70×70×4 mm
- Front plate width (end cap): 70 mm
- Front plate height: 70 mm
- Mounting depth (length inserted into profile): 57 mm
- Internal bracket height: 52 mm
- Bracket plate thickness: 3 mm
- Material: galvanised steel
- Mounting screws: included
- Weight: 0.24 kg
- EAN: 5901289674829
Installation and application
The component is inserted into the running rail profile opening to a depth of 57 mm and secured using the included screws. The design ensures a secure, stable connection without the need for welding. The end cap is used at both ends of the running rail of self-supporting sliding gates — it protects the profile and gives the installation a professional, finished appearance.
