PSG rolled gate hinge with ball fi 35 × 120 mm for welding
Description

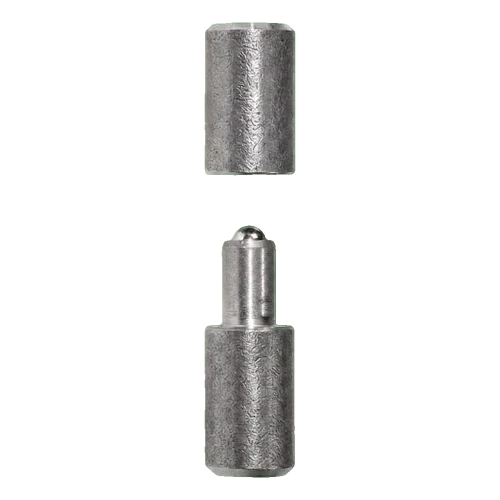

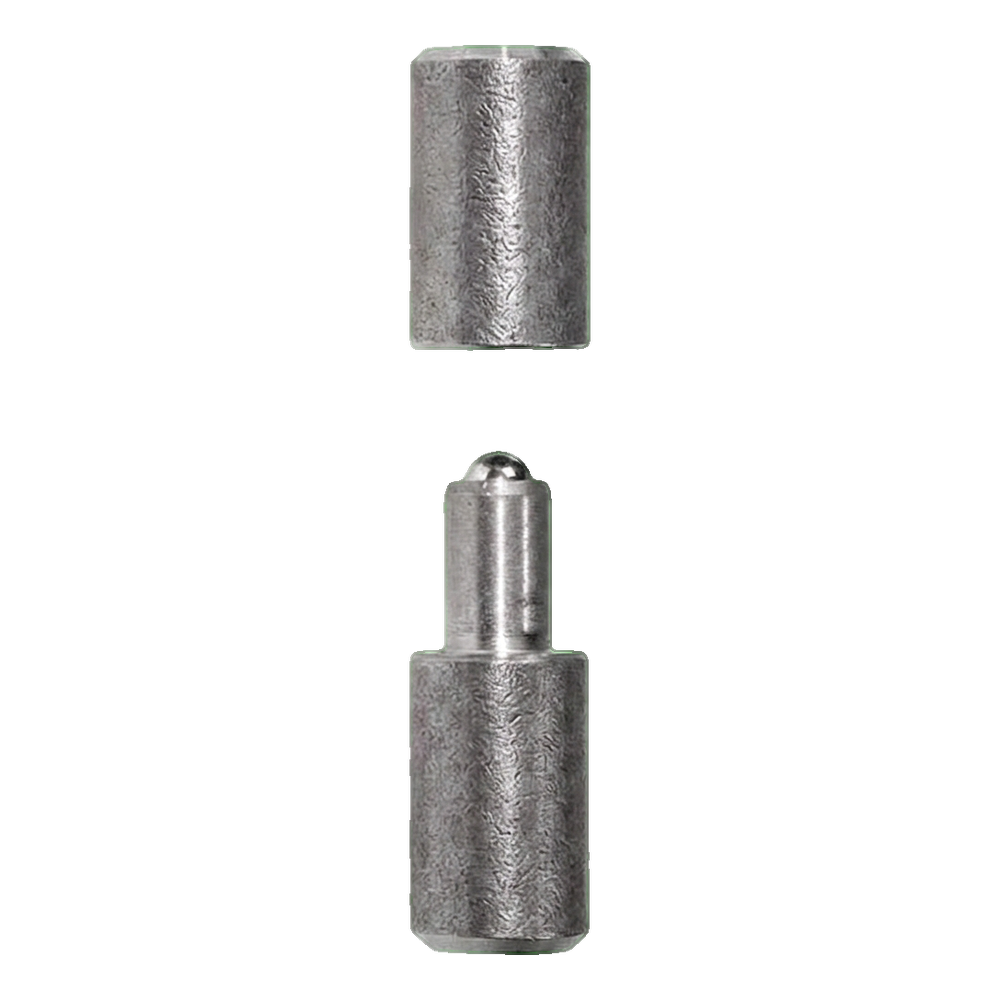

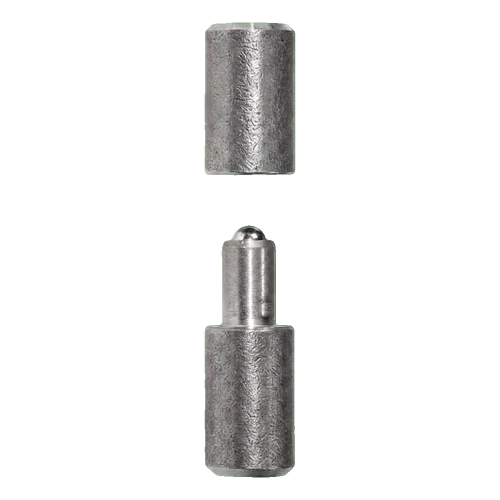

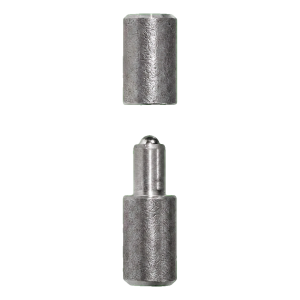

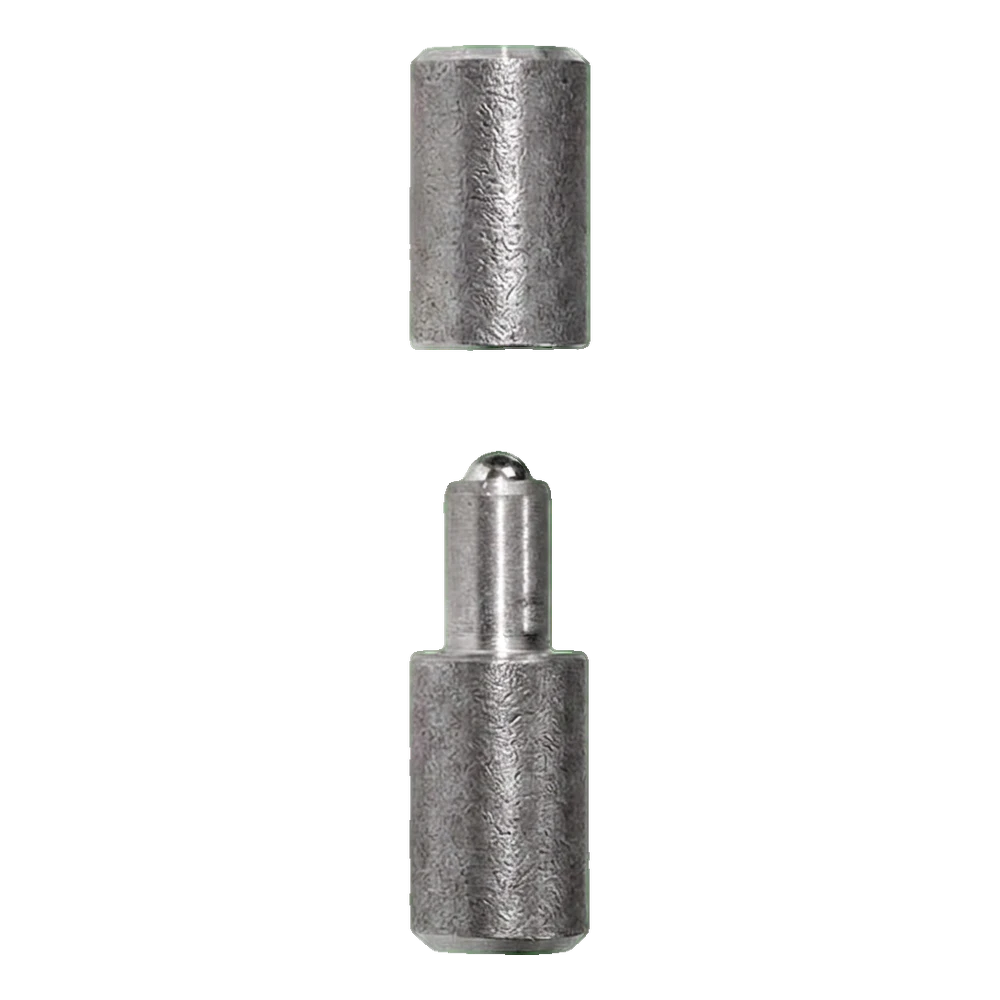

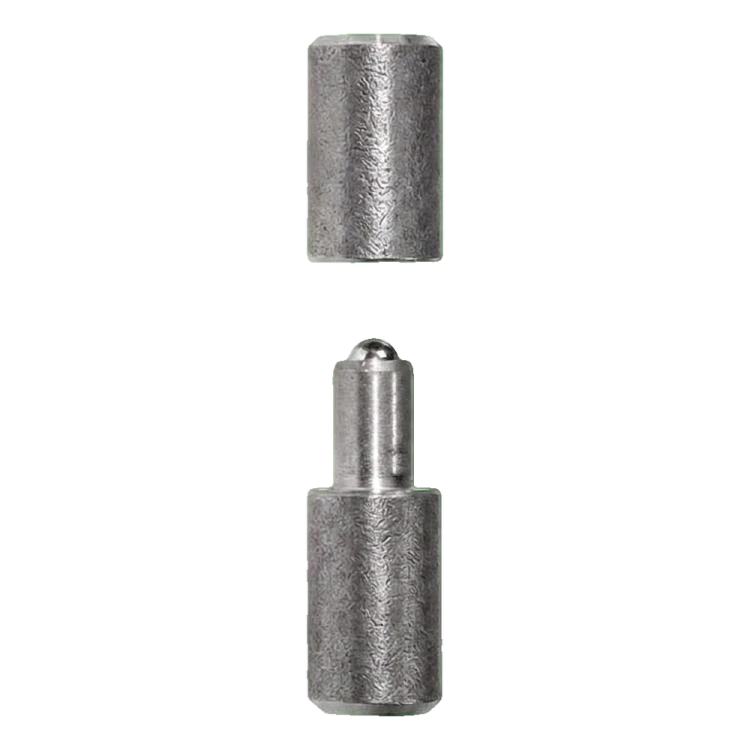

PSG rolled gate hinge with ball fi 35 × 120 mm for welding
Rolled hinge with ball fi 35 × 120 mm by PSG is a durable hardware component designed for leaf gates. The two-piece construction — sleeve with socket and pin with bearing ball — ensures smooth, quiet operation of the gate leaf for years of use. The hinge is intended for installation by welding, which guarantees a permanent, inseparable connection to the post and gate frame.
The rolled cylindrical profile with diameter fi 35 mm ensures even load distribution, whilst the built-in steel ball minimises friction and facilitates opening even of heavy leaves. Thanks to its compact design, the hinge is universal and works well in both single-leaf and double-leaf gates.
Technical data
- Manufacturer: PSG
- Type: rolled hinge with ball
- Application: leaf gates (installation by welding)

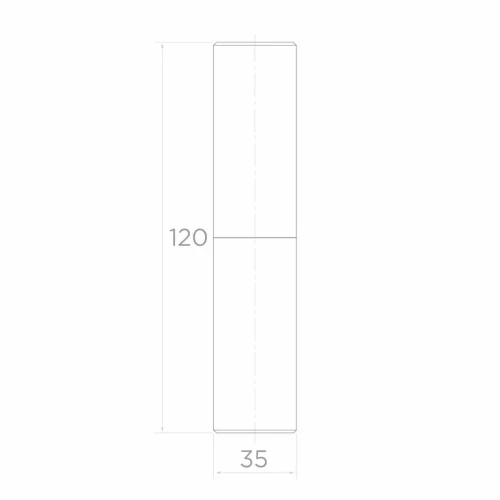

- Diameter (fi): 35 mm
- Total height: 120 mm
- Weight: 0.88 kg
- Volume: 147 cm³
- Construction: two-piece — sleeve + pin with ball
- EAN: 5901289676816
Application and installation
The hinge is installed by welding both parts — the sleeve to the fence post and the pin to the gate leaf frame (or vice versa, depending on the construction). The rolled shape ensures precise fitting of components and easy adjustment of the leaf position. The product is dedicated for professional installation teams carrying out fencing and gate installations — the solid steel construction guarantees reliability even with intensive use.
Technical data
| Diameter | 35 |
| Sposób montażu | Weld-On |
| Material | Steel |
