PSG rolled gate hinge with ball fi 16 × 70 mm steel
Leave feedback on the product
PSG rolled gate hinge with ball fi 16 × 70 mm made of rolled steel. Sleeve and pin with ball for welding into leaf gates. Length 70 mm, diameter 16 mm, pin fi 10 mm. Weight 0.12 kg.
Product code: 001-461
Product features
[PIM] zawiasy #113
- Diameter 16
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG rolled gate hinge with ball fi 16 × 70 mm steel

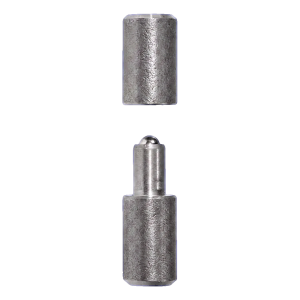

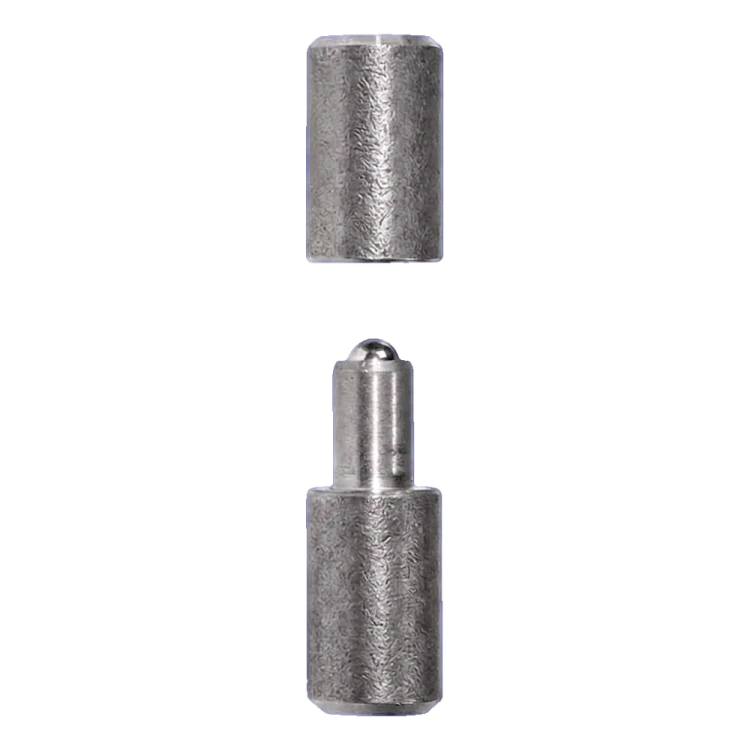

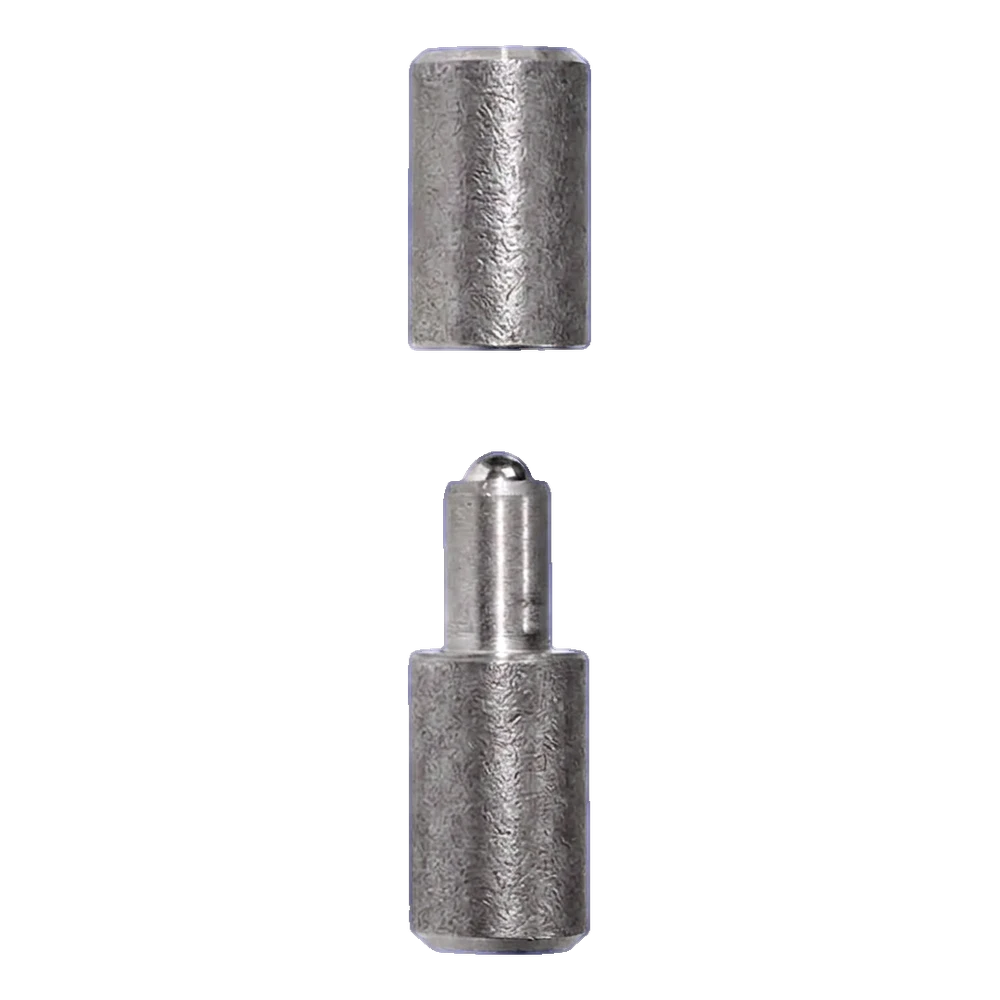

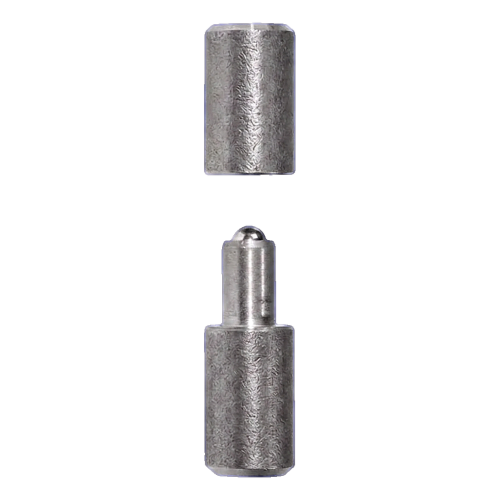

Rolled hinge with ball designed for leaf gates. Two-part construction consists of a sleeve and a pin terminated with a ball, ensuring smooth rotation of the gate leaf and ease of installation by welding method. Rolled from steel, ready for welding into frame and leaf — without the need for drilling holes or using additional connectors.
Compact dimensions (fi 16 × 70 mm) allow this hinge to be used in light and medium leaf gates, garden gates and other metal constructions requiring durable rotary connection.

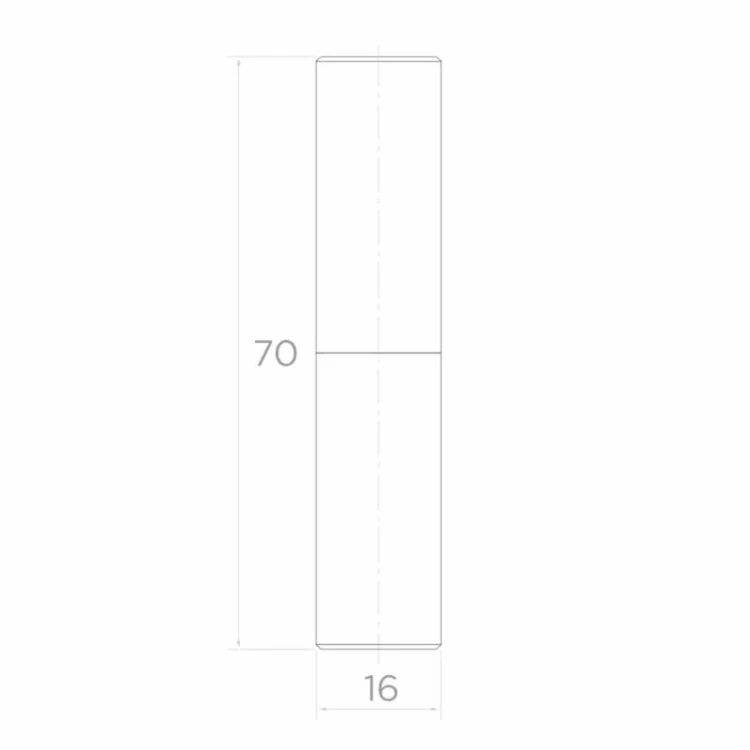

Dimensions and technical parameters
- Total length (H): 70 mm
- External diameter: 16 mm
- Pin length: 17.5 mm
- Pin diameter: 10 mm
- Material: rolled steel
- Type: with ball
- Weight: 0.12 kg
- Manufacturer: PSG
- EAN: 5901289676557
Application and installation
The hinge is installed by welding both parts — sleeve and pin — directly into the gate construction elements. The ball at the end of the pin enables free rotation and simultaneously transfers axial loads. Thanks to this solution, the gate leaf operates quietly and smoothly throughout its entire service life. Ideal for leaf gates, garden gates and all welded steel constructions requiring rotary hinge.
