PSG – rolled gate hinge with ball FI 30×100 mm steel
Description
PSG – rolled gate hinge with ball FI 30×100 mm steel
Rolled hinge with ball FI 30×100 from PSG is a durable hardware element designed for mounting swing gates and garden gates. Thanks to its rolled construction with built-in ball bearing, it ensures smooth and quiet operation of the gate leaf, whilst robust steel construction guarantees years of durability even under intensive use.

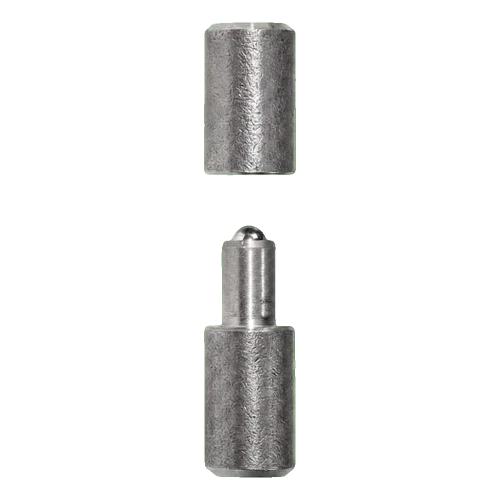

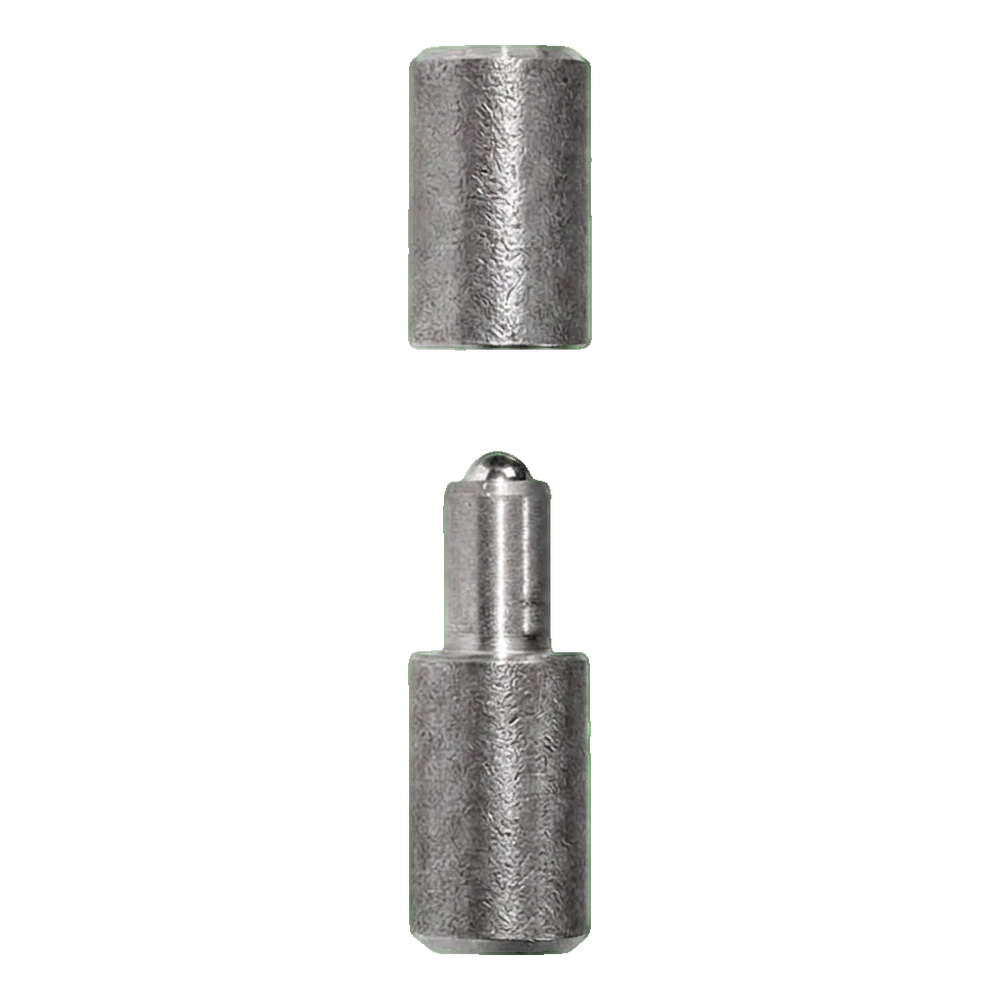

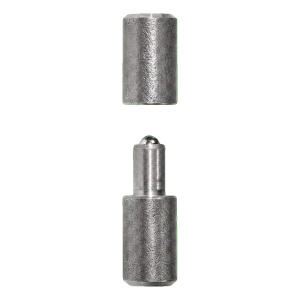

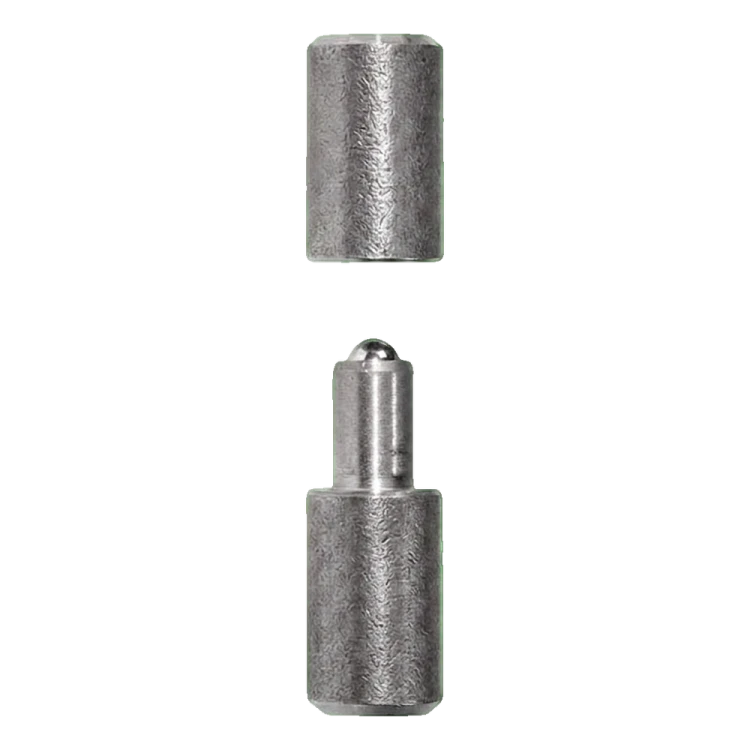

The hinge consists of two elements: upper sleeve (female) and pin with ball (male), which when assembled form a compact, secure pivot point. The spherical end of the pin minimises friction and facilitates hanging of the gate leaf — simply slide the sleeve onto the pin. This solution is particularly appreciated by installation teams, as it significantly reduces the installation time for gates and garden gates.
Application: swing gates, garden gates, utility doors and other heavy hinged constructions requiring load-bearing, rolled hinges.

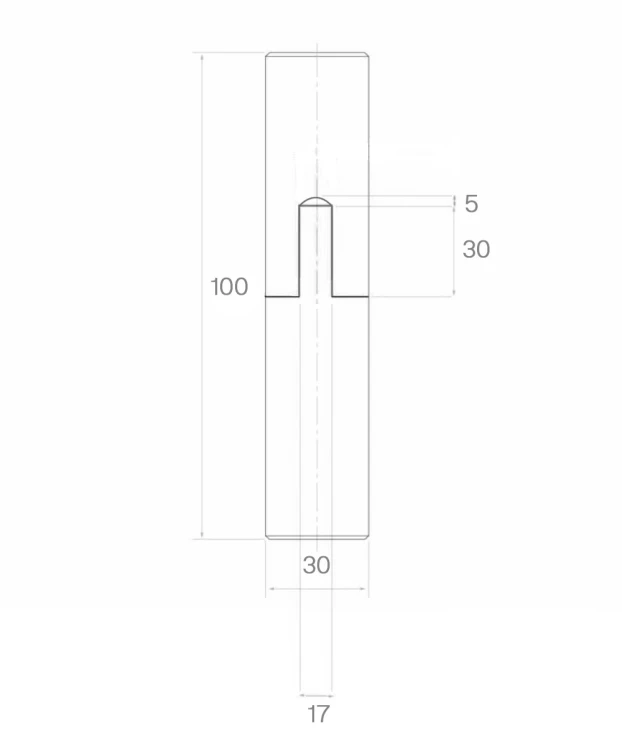

Dimensions and technical parameters
- Overall height (when assembled): 100 mm
- External diameter of sleeve: FI 30 mm
- Pin diameter: FI 17 mm
- Height of cylindrical part of pin: 30 mm
- Height of spherical end of pin: 5 mm
- Material: rolled steel
- Weight: 0.535 kg
- Volume: 90 cm³
- Manufacturer: PSG
- EAN: 5901289676779
Technical data
| Diameter | 30 |
| Sposób montażu | Weld-On |
| Material | Steel |
