PSG rolled gate hinge with ball Ø 27×90 mm steel
Leave feedback on the product
PSG rolled gate hinge with ball Ø 27×90 mm, steel. Height 90 mm, diameter 27 mm, weight 0.4 kg. Consists of upper sleeve and lower pin with ball. For single-leaf and double-leaf swing gates.
Product code: 001-477
Product features
[PIM] zawiasy #113
- Diameter 27
- Mounting Method Weld-On
- Material Steel
Description
PSG rolled gate hinge with ball Ø 27×90 mm steel
Rolled hinge with ball Ø 27×90 mm by PSG is a robust hardware element designed for swing gates. Thanks to its construction with internal ball, it ensures smooth gate leaf operation, minimising friction and component wear. A proven solution used by professional installation companies when mounting fences and entrance gates.

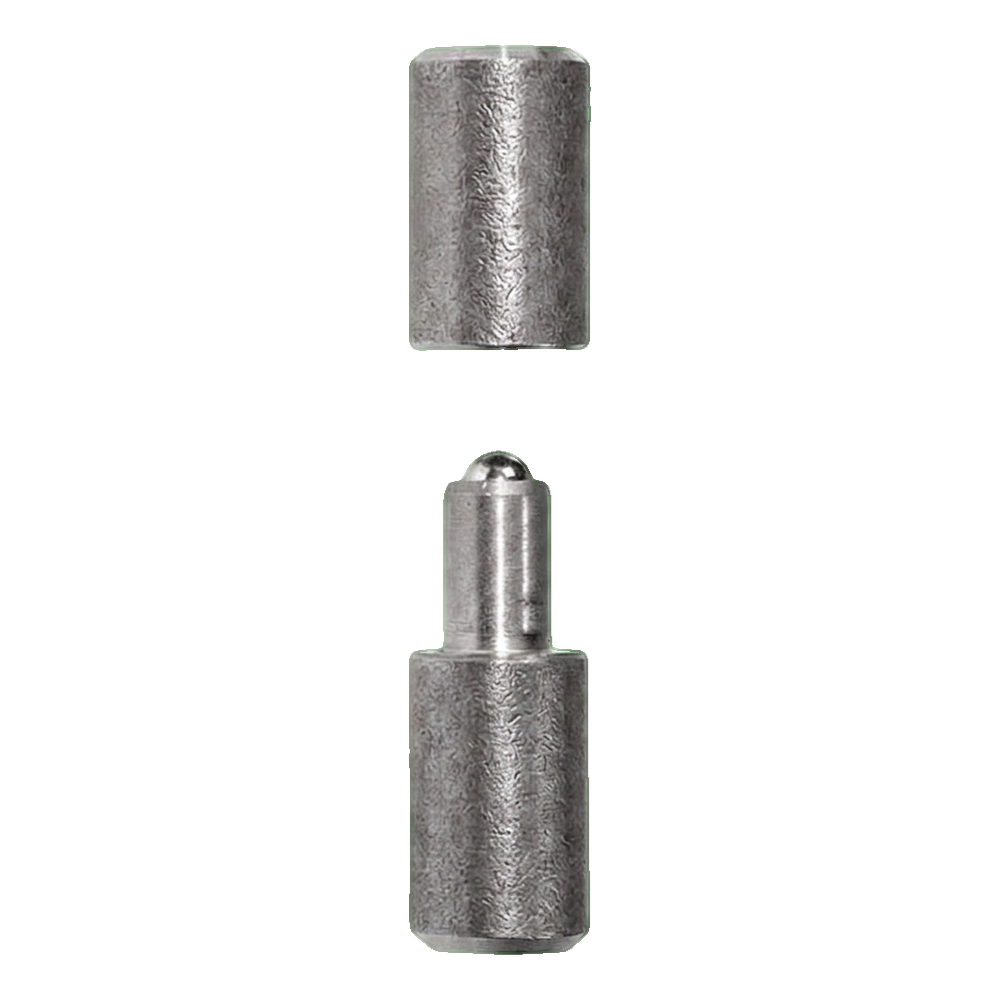

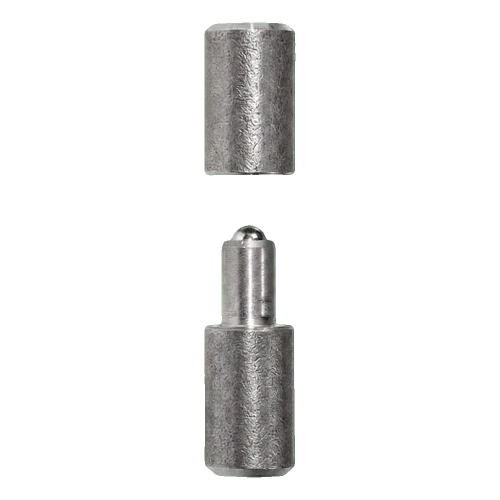

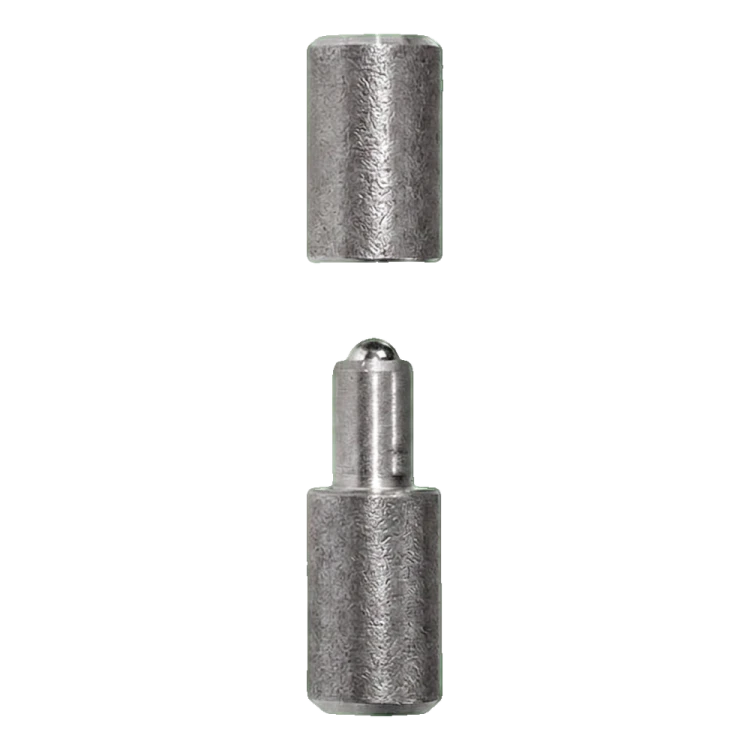

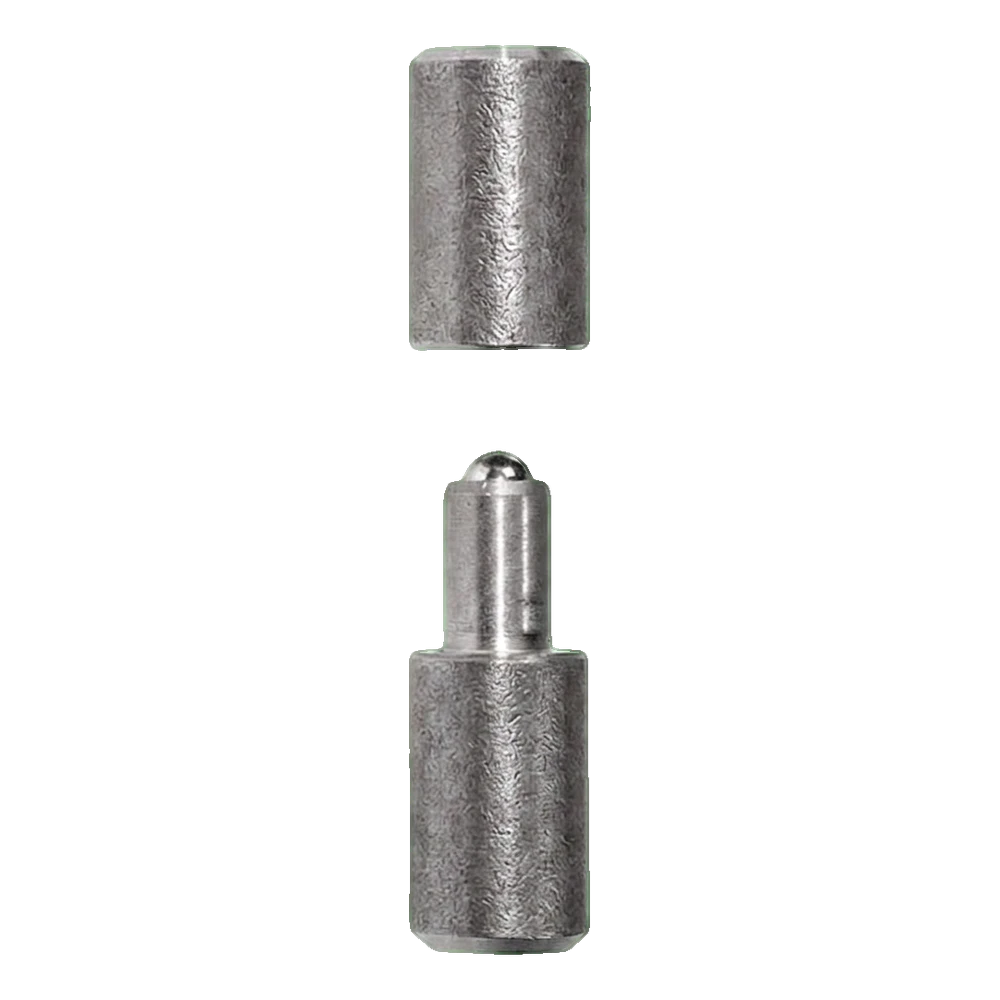

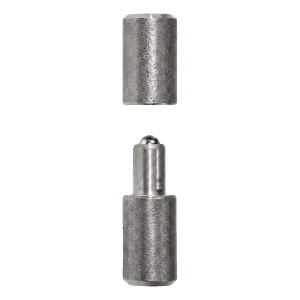

The hinge consists of two elements — upper sleeve (socket) and lower pin with ball, which when assembled form a complete pivot point for the gate leaf. The rolled construction guarantees high manufacturing precision and dimensional repeatability, facilitating serial installation on multiple gates. The steel surface provides high mechanical strength and resistance to dynamic loads during gate opening and closing.

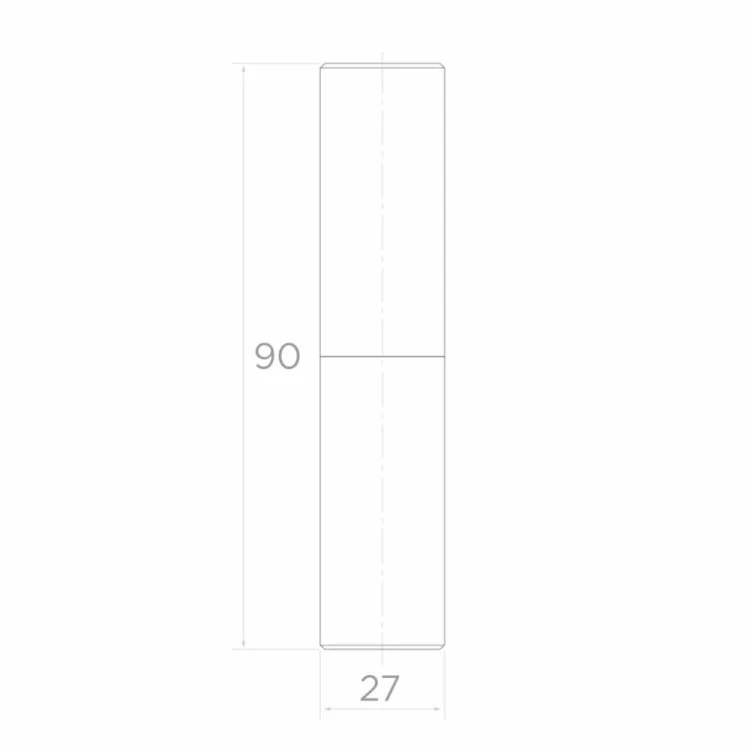

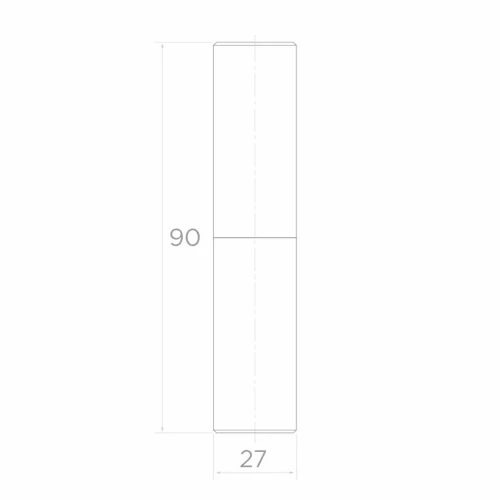

Technical parameters
- Type: rolled hinge with ball
- Application: swing gates
- Diameter (Ø): 27 mm
- Total height: 90 mm
- Material: steel
- Weight: 0.4 kg
- Manufacturer: PSG
- EAN: 5901289676755
Application and installation
The rolled hinge Ø 27×90 is designed for installation on swing gates — both single-leaf and double-leaf. The lower element with ball is welded to the gate post, and the upper sleeve to the leaf (or vice versa, depending on the construction). The ball head of the pin ensures automatic centring and easy leaf fitting, significantly speeding up installation work on site. Compact dimensions (Ø27 × 90 mm) allow use in standard fencing frames and posts.
