PSG rolled gate hinge with ball Ø 12 x H60 mm steel
Description
PSG rolled gate hinge with ball Ø 12 x H60 mm steel
Rolled hinge with ball PSG with diameter 12 mm and total length 60 mm is a proven mounting element designed for swing gates, wicket gates and fencing. The built-in rolling ball effectively reduces friction between hinge parts, ensuring smooth and light opening even with intensive, daily use. Two-part construction — sleeve and pin with ball — enables quick welded mounting and easy fitting of elements to post and gate leaf.
Made from durable steel, the hinge features high resistance to mechanical loads and variable weather conditions — moisture, UV radiation and extreme temperatures. This is a solution that performs for years without requiring replacement or maintenance.
Advantages for installers
- Rolling ball minimises friction — smooth gate operation without additional lubrication
- Two-part construction — quick fitting and adjustment before welding
- Steel construction — high load capacity and resistance to deformation under heavy loads
- Weather resistance — steel withstands moisture, frost and UV radiation
- Universal application — swing gates, wicket gates, fencing
Technical parameters
- Manufacturer: PSG
- Type: rolled hinge with ball
- Hinge diameter: 12 mm
- Total length: 60 mm
- Material: steel
- Weight: 0.07 kg
- Mounting: welded
- EAN: 5903313206556
Mounting and adjustment

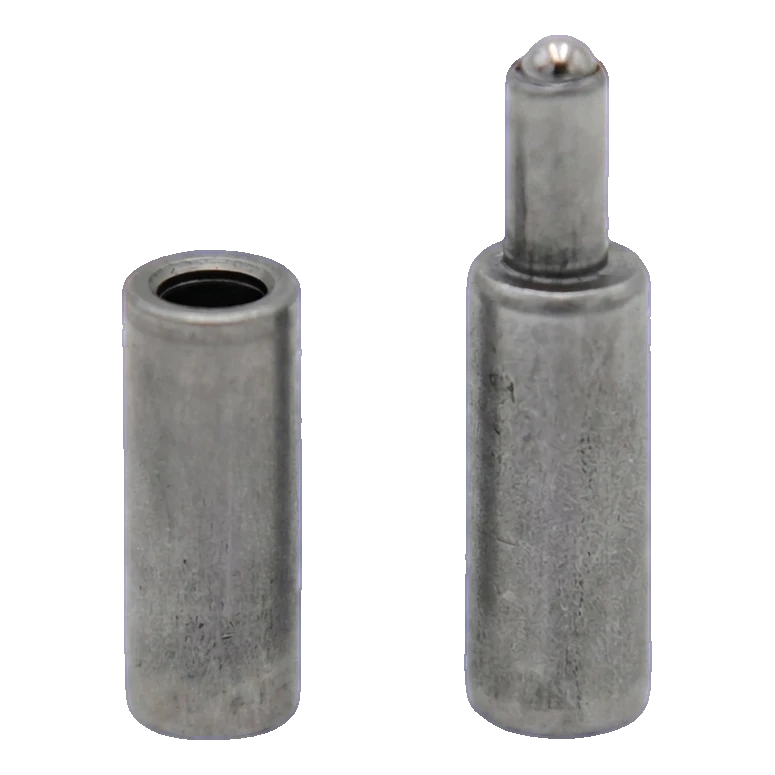

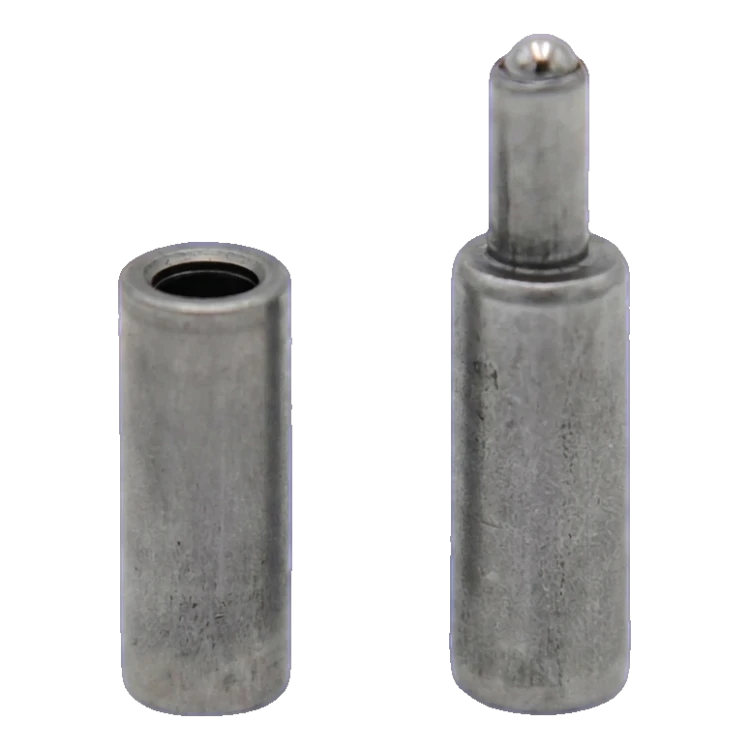

The hinge consists of two elements mounted separately — the sleeve is welded to one construction element (e.g. post), and the pin with ball to another (gate leaf or wicket gate). Before final welding, it is recommended to accurately position and level both parts to guarantee optimal coaxiality and smooth operation. Such prepared mounting ensures construction stability and aesthetic final effect for years of operation.
Technical data
| Diameter | 12 |
| Material | Steel |
