PSG rolled gate hinge steel FI 14 x 70 mm
Description
PSG rolled gate hinge steel FI 14 x 70 mm

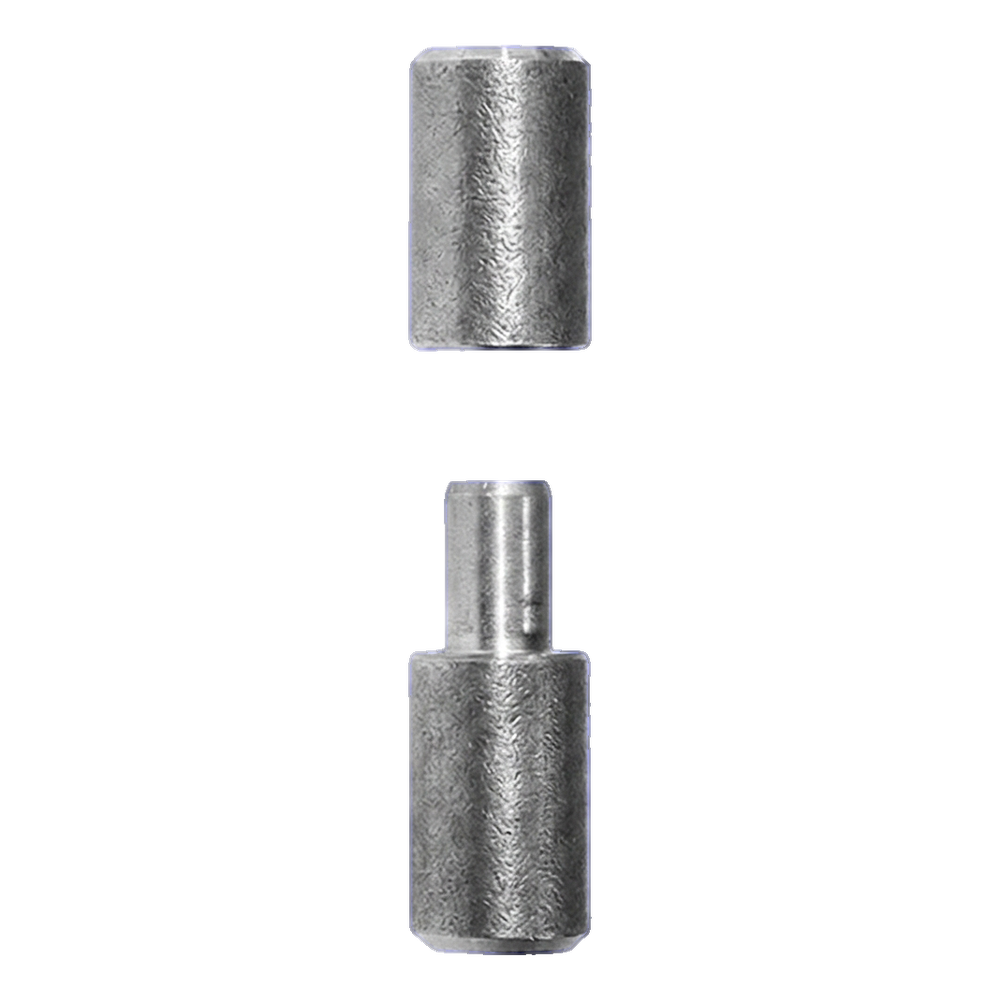

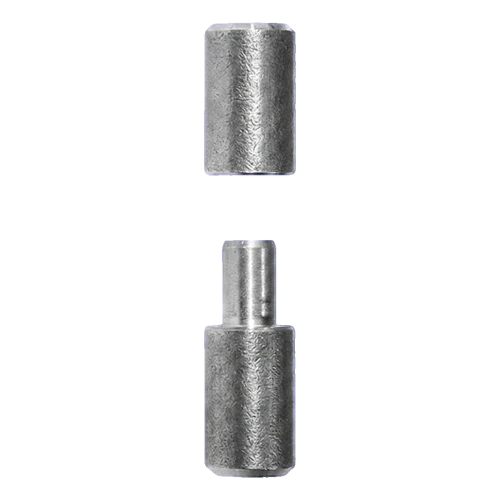

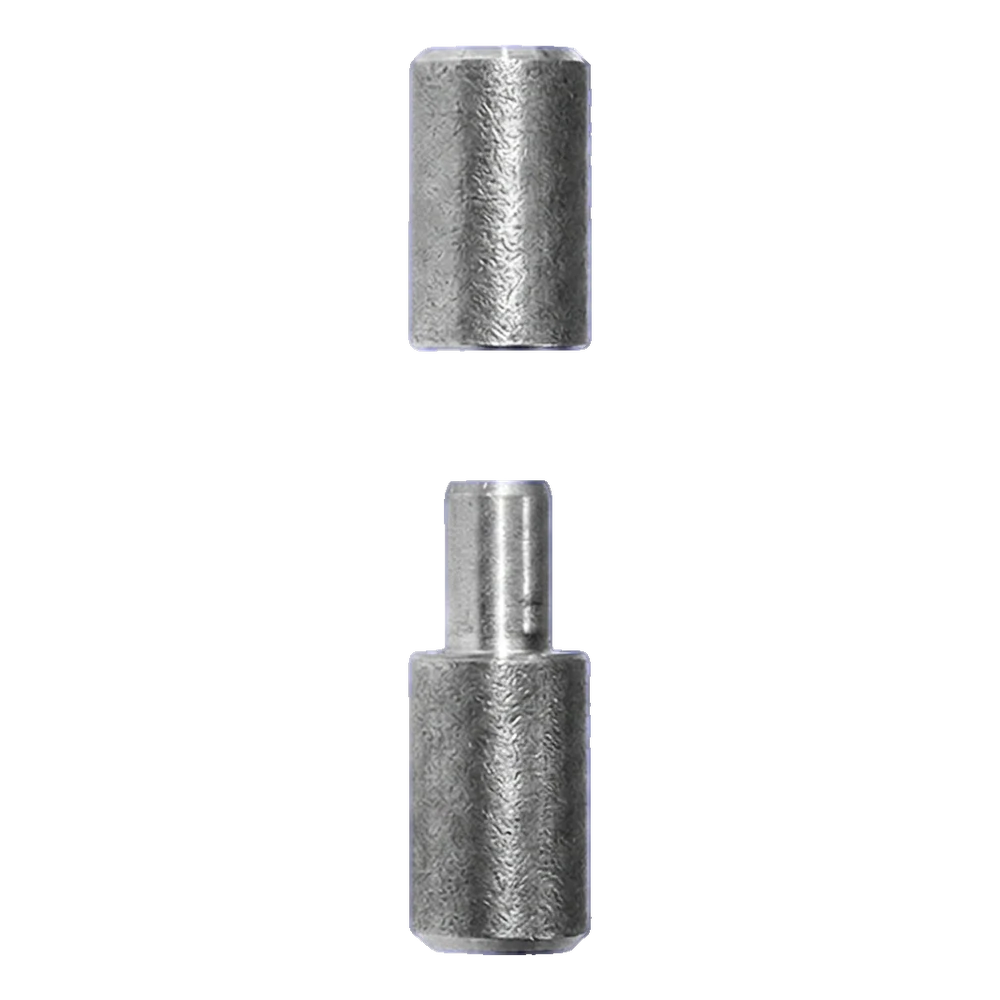

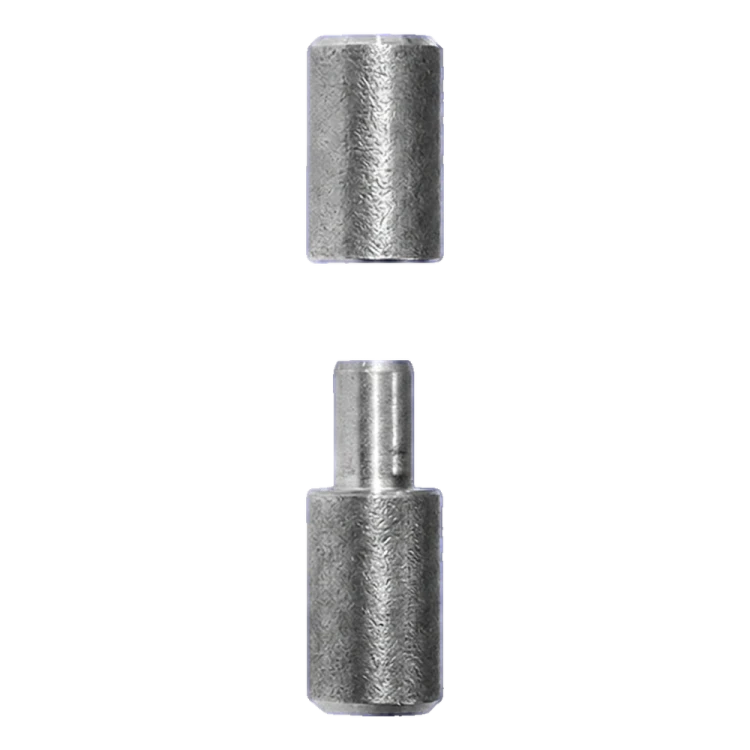

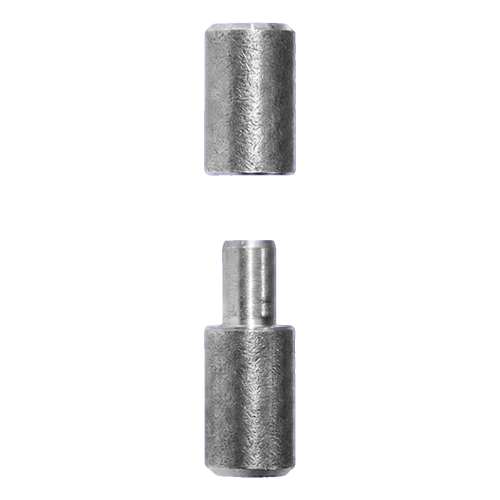

PSG rolled hinge FI 14 × 70 mm is a durable hardware element designed for mounting swing gates, wicket gates and metal doors. Made of high-quality steel using the rolling method, it ensures precise fitting of both parts and smooth operation of the leaf throughout its entire service life. The two-part construction with centering spindle enables quick installation — simply weld individual elements to the gate and post, then place one part onto the other.
Thanks to its compact dimensions and high load capacity, the hinge performs well in both light garden gates and heavier entrance gates. Resistance to atmospheric factors and mechanical damage guarantees long-lasting, trouble-free operation in outdoor conditions.
Advantages of PSG rolled hinge
- High durability — steel resistant to deformation and heavy loads
- Weather resistance — designed for outdoor use
- Simple installation — welding both parts to the structure, then assembling the hinge
- Precise rolling — smooth cooperation of spindle with sleeve, smooth leaf operation
- Universal application — swing gates, wicket gates, metal doors

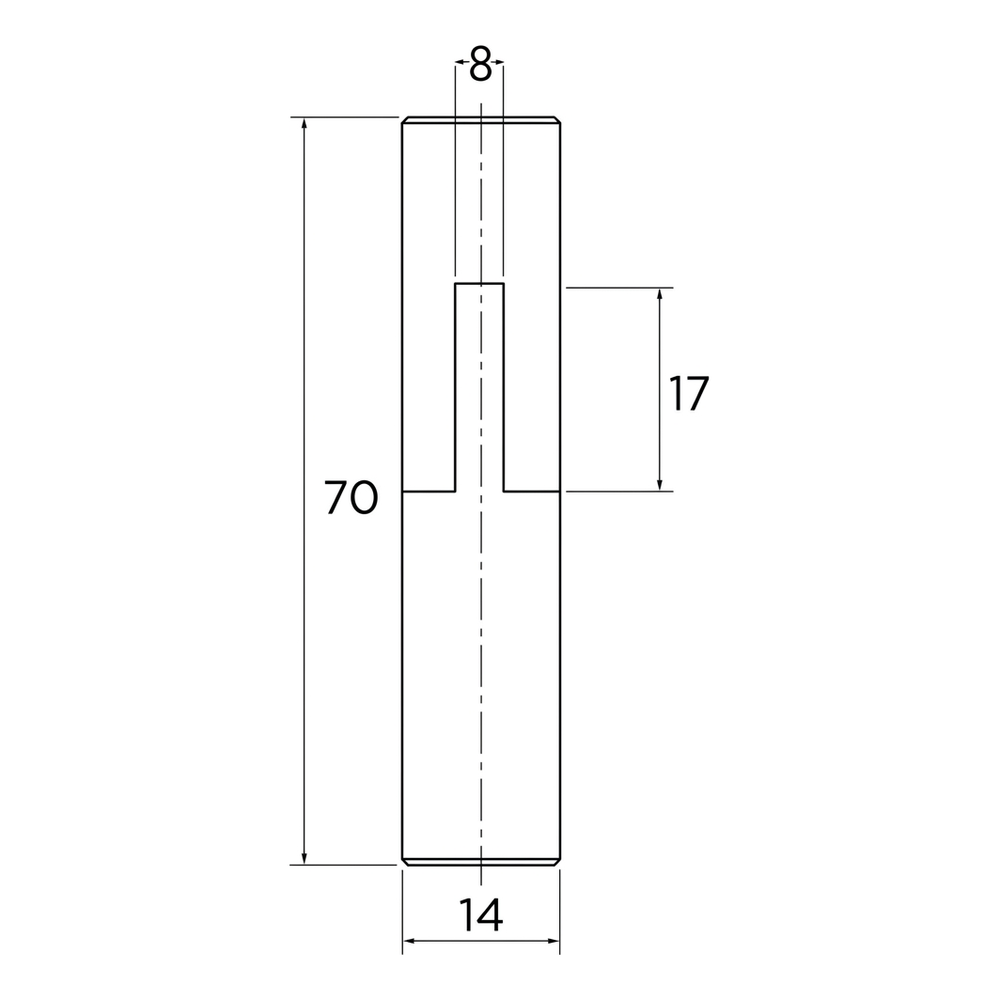

Technical parameters
- Manufacturer: PSG
- Material: steel
- Total height (H): 70 mm
- External diameter (D): 14 mm
- Spindle diameter (d): 8 mm
- Spindle length: 17 mm
- Weight: 0.08 kg
- EAN: 5901289676519
Installation guidelines
Before welding both hinge parts to the gate and post, it is recommended to precisely adjust and align them — this will ensure proper coaxiality and trouble-free opening of the leaf. After completing the welding, simply place the upper part of the hinge onto the lower part to obtain a stable rotating connection.
Technical data
| Mounting Method | Wall-Embedded |
| Diameter | 14 |
| Material | Steel |
