PSG rolled gate hinge FI 24×80 with ball for swing gates
Leave feedback on the product
PSG rolled gate hinge FI 24×80 with ball. Height 80 mm, diameter 24 mm, pin 14 mm. Weight 0.275 kg. For swing gates. Rolled construction with built-in ball reducing friction.
Product code: 001-472
Product features
[PIM] zawiasy #113
- Diameter 24
- Mounting Method Weld-On
- Material Steel
Description
PSG rolled gate hinge FI 24×80 with ball for swing gates

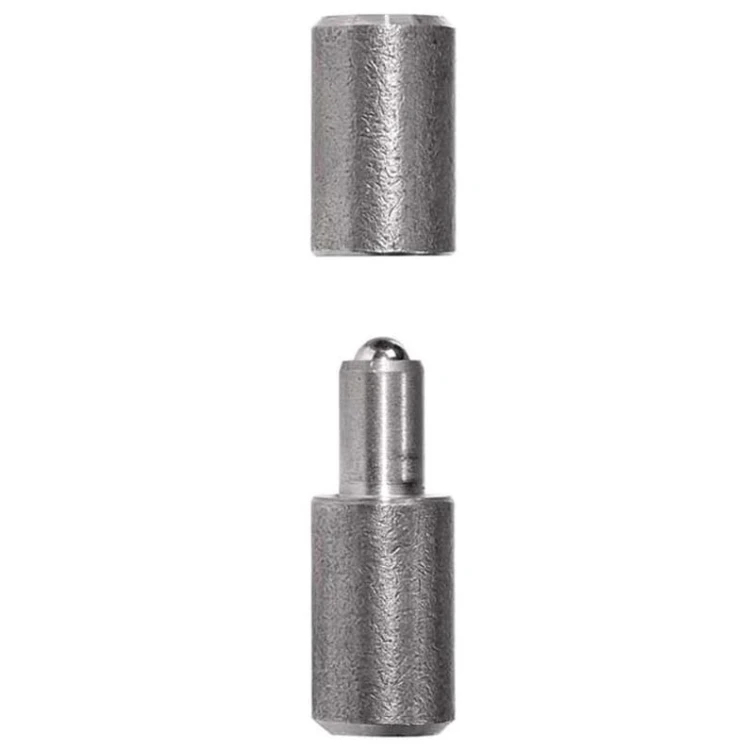

Rolled hinge with ball FI 24×80 by PSG is a robust hardware element designed for swing gates. Thanks to its rolled construction and built-in ball, it ensures smooth operation of the gate leaf, eliminating jerking and excessive friction. It is a reliable component that will perform well in daily use in both residential and industrial gates.

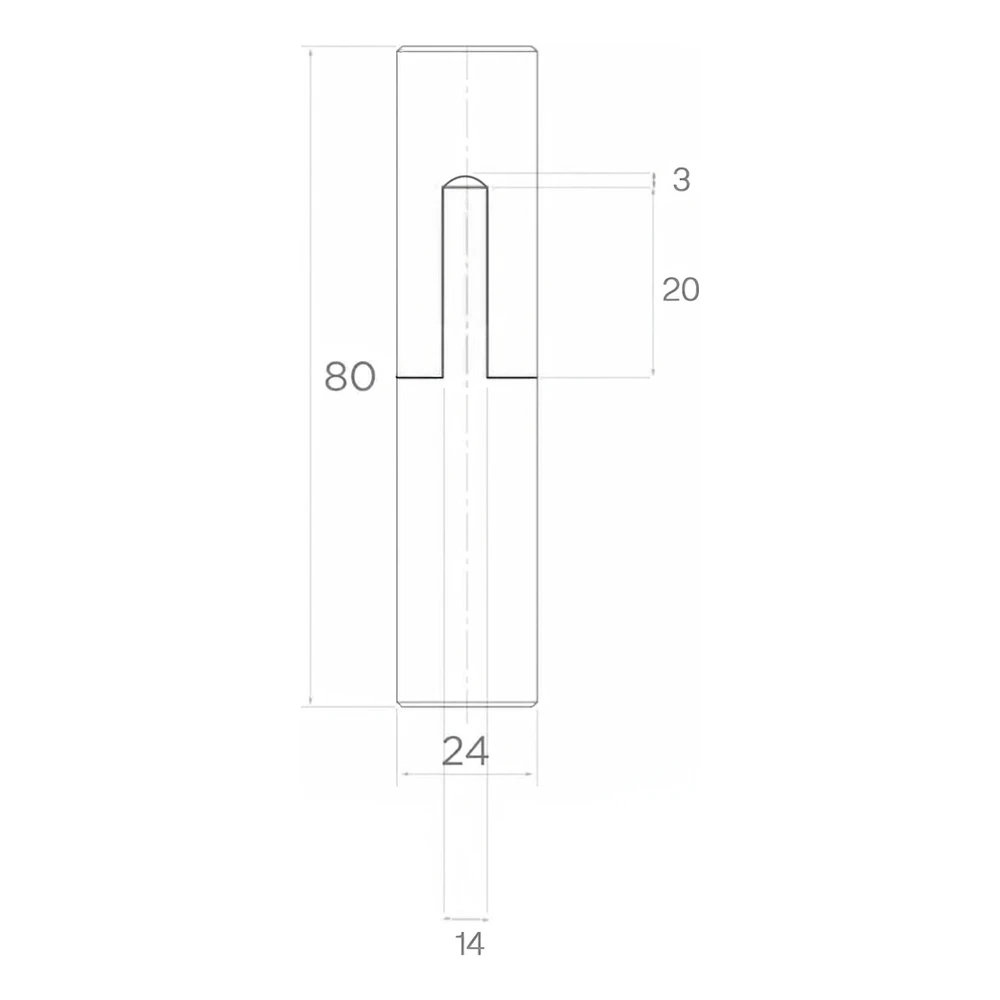

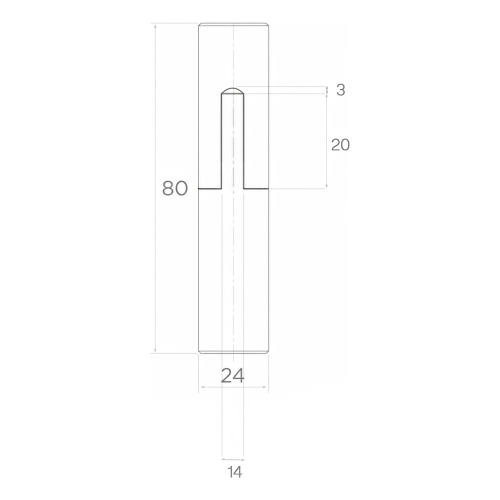

Dimensions and construction
- Total hinge height: 80 mm
- External body diameter (FI): 24 mm
- Internal pin diameter: 14 mm
- Pin length: 20 mm
- Ball height (rounding): 3 mm
- Type: rolled with ball
Product data
- Manufacturer: PSG
- Application: swing gates
- Weight: 0.275 kg
- Volume: 46.08 cm³
- EAN: 5901289676694
The rolled construction of the hinge guarantees high precision manufacturing and dimensional repeatability, which facilitates installation and ensures even load distribution. The ball built into the pin reduces movement resistance and extends hinge life, reducing material wear at the contact point. Thanks to its compact dimensions (80 mm height, 24 mm diameter), the hinge is universal and easy to install in standard swing gate constructions.
