PSG rolled gate hinge Ø 25 × 100 mm for leaf gates
Leave feedback on the product
PSG rolled hinge Ø 25 × 100 mm made of steel for leaf gates. Two-piece: sleeve and pin. Diameter 25 mm, height 100 mm, weight 0.38 kg. Welded mounting.
Product code: 001-474
Product features
[PIM] zawiasy #113
- Diameter 25
- Mounting Method Weld-On
- Material Steel
Description
PSG rolled gate hinge Ø 25 × 100 mm for leaf gates
PSG rolled hinge Ø 25 × 100 mm is a durable hardware element designed for leaf gates. The two-piece rolled construction ensures smooth operation of the gate leaf and easy installation — simply weld both parts to the frame and leaf. Solid steel construction guarantees high load capacity and long-term, trouble-free operation.

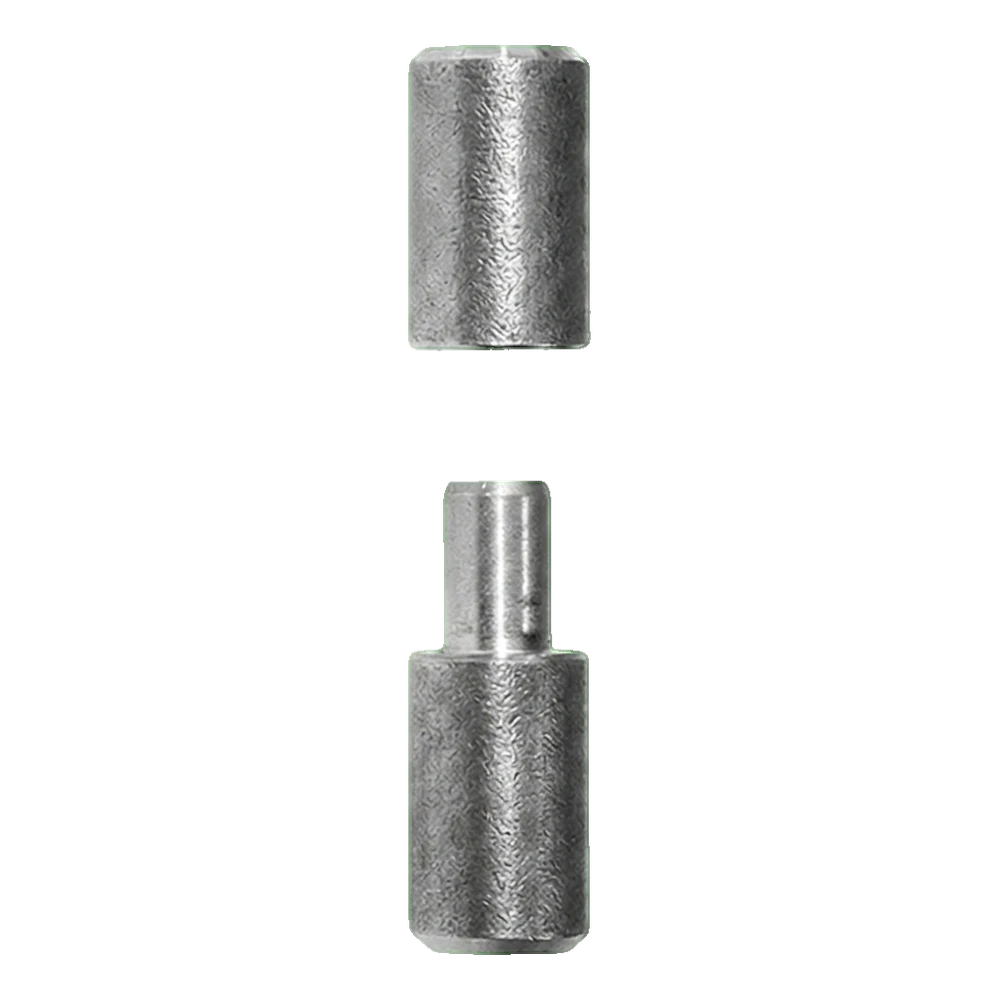

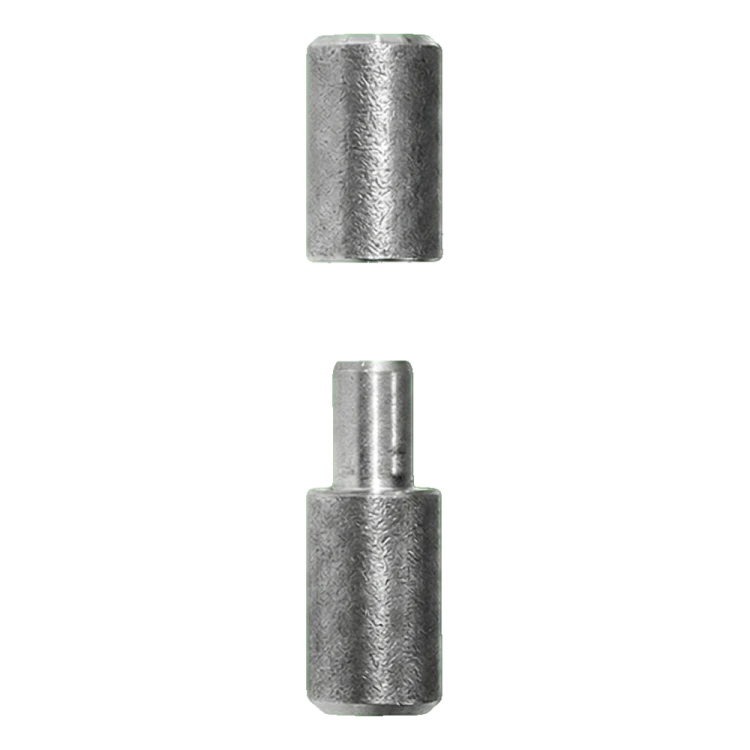

The hinge consists of two elements: sleeve (upper part with socket) and pin (lower part with stud). After welding to the gate structure, the elements work together as a classic pivot hinge. The rolled surface of the pin and socket ensures precise fit and quiet, smooth operation of the leaf.

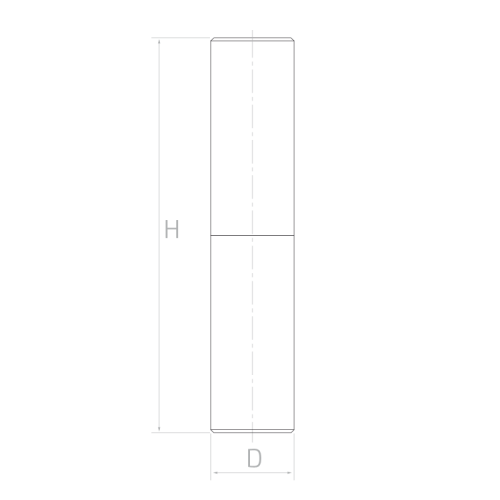

Technical parameters
- Diameter (D): 25 mm
- Total height (H): 100 mm
- Weight: 0.38 kg
- Material: steel
- Type: two-piece rolled hinge
- Application: leaf gates
- Mounting: welded
- Manufacturer: PSG
- EAN: 5901289676724
Application and installation
The Ø 25 rolled hinge is a universal solution used in the construction and modernisation of leaf gates in residential, industrial and commercial fencing. Installation involves welding the sleeve to one structural element (e.g. post) and the pin to another (e.g. gate leaf). Thanks to the 25 mm diameter, the hinge carries significant loads, allowing it to be used in both lightweight gates and heavier double-leaf gates.
