PSG rail stopper for suspended gate rail 6V.032 – galvanised buffer
Description
PSG rail stopper for suspended gate rail 6V.032 – galvanised buffer

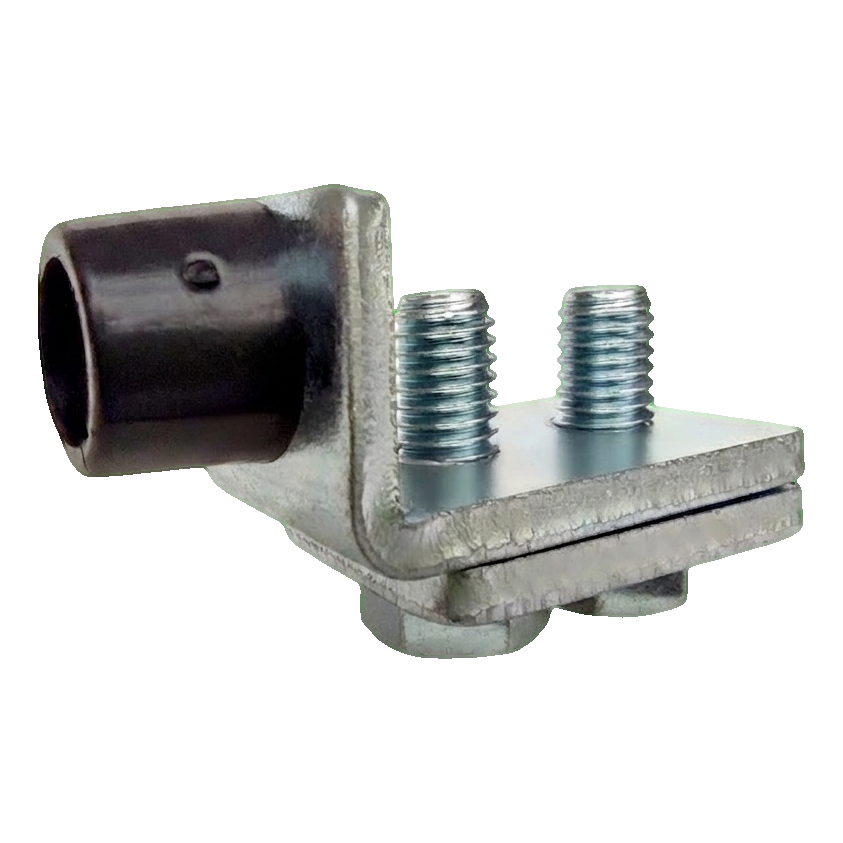

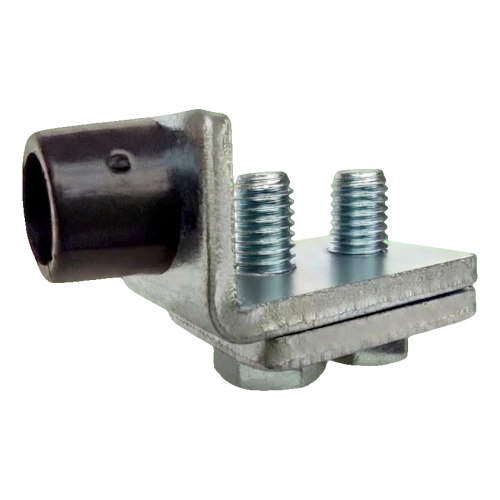

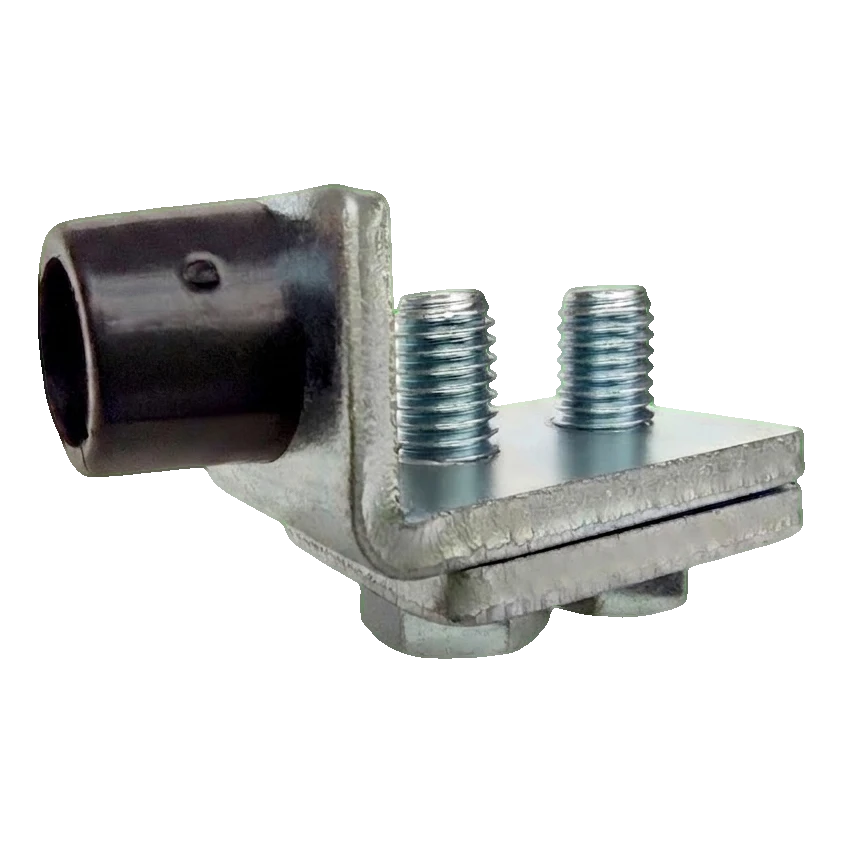

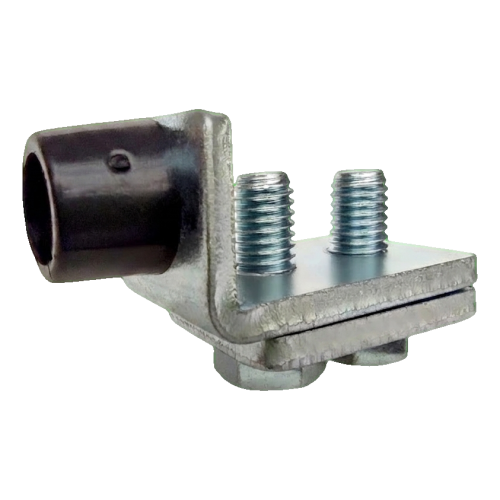

Rail stopper for suspended gates PSG 6V.032 is a reliable buffer mounted on the end section of the running rail. Its primary function is to prevent the trolley from falling off the rail — protecting the running components from damage whilst effectively dampening shocks generated when the gate reaches its end position.
The stopper is fully galvanised, guaranteeing high corrosion resistance and long-term operation even in demanding weather conditions. The buffer made from black nylon absorbs impacts, reducing noise and minimising mechanical wear. Installation is quick and simple — the component is mounted directly onto the rail using two adjustment screws, enabling precise positioning of the stopper without requiring additional specialist tools.
Compatibility and application
The stopper is designed for rails with 35 × 32 × 1.5 mm cross-section, used in suspended gate systems. The mounting slot with 14 mm height enables secure fitting onto the rail profile. Thanks to its compact construction and low weight (100 g), the component does not burden the structure and does not affect the smooth operation of the gate.

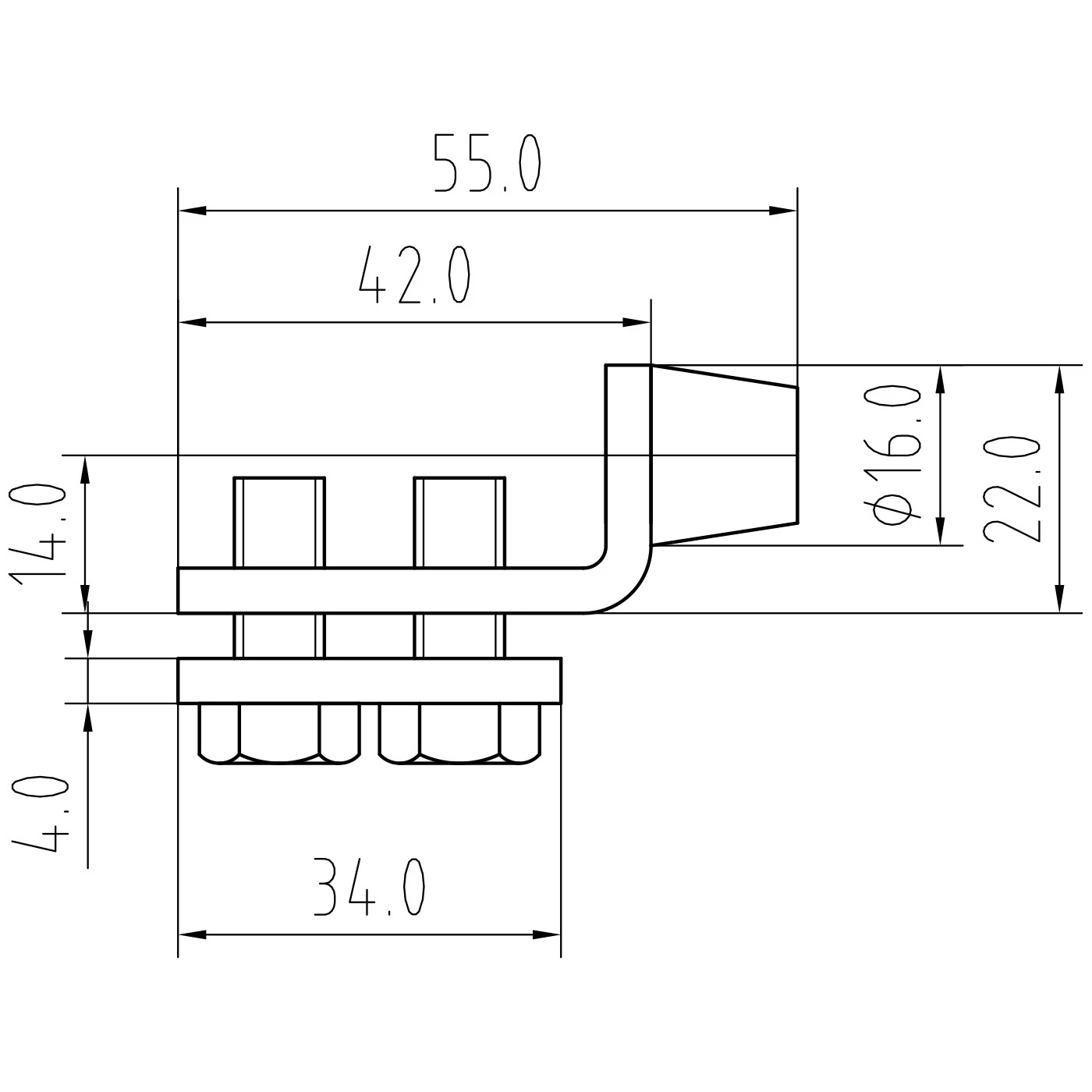

Dimensions and technical parameters
- Manufacturer: PSG
- Overall length: 55 mm
- Bracket length (to bend): 42 mm
- Pressure plate length: 34 mm
- Overall height (H): 34 mm
- Vertical section height: 22 mm
- Mounting slot height: 14 mm
- Pressure plate thickness: 4 mm
- Nylon buffer diameter: Ø16 mm
- Length (L): 25 mm
- Compatible rail: 35 × 32 × 1.5 mm
- Body material: galvanised steel
- Buffer material: black nylon
- Colour: silver (galvanised) / black (buffer)
- Weight: 0.1 kg
- EAN: 5903313203616
PSG 6V.032 stopper is an essential safety component for every suspended gate — simple to install, adjustable and durable. An ideal solution for professional installation teams who value proven components and speed of execution.
Technical data
| Material | Steel |
