PSG rail stopper for overhead gates 6V.046 – trolley travel limiter
Description
PSG rail stopper for overhead gates 6V.046 – trolley travel limiter

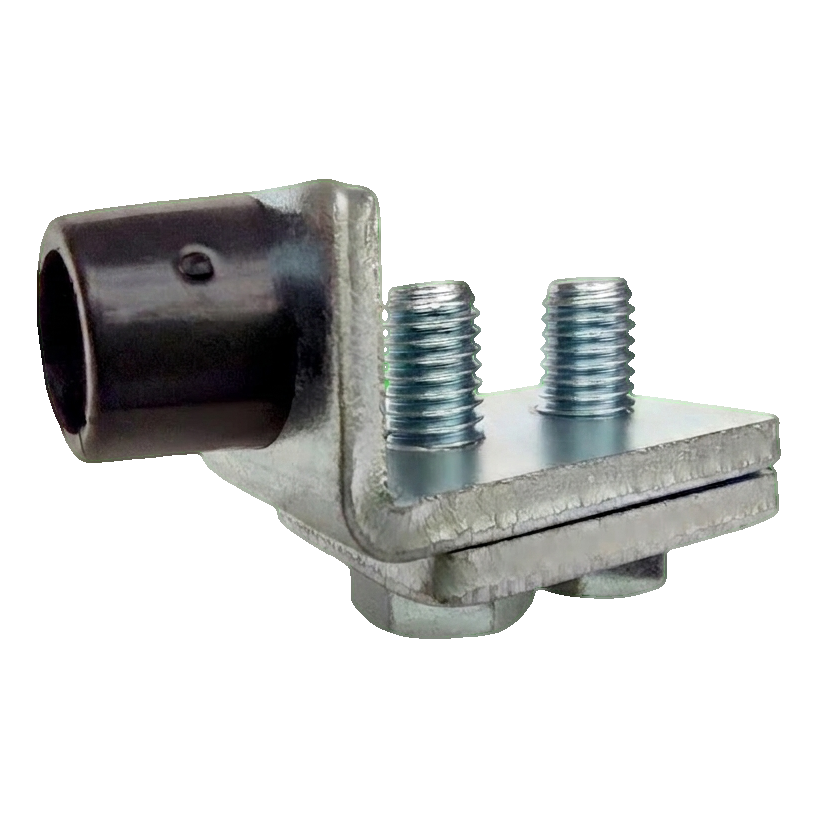

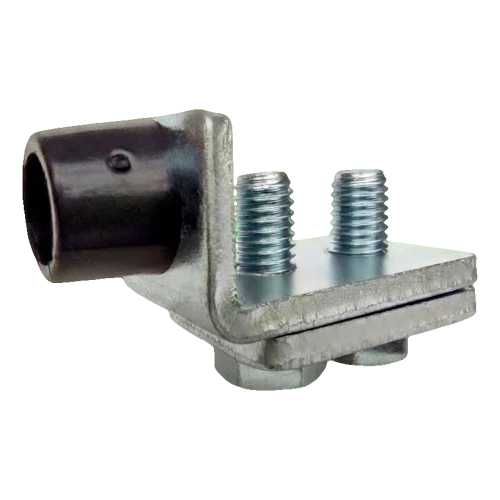

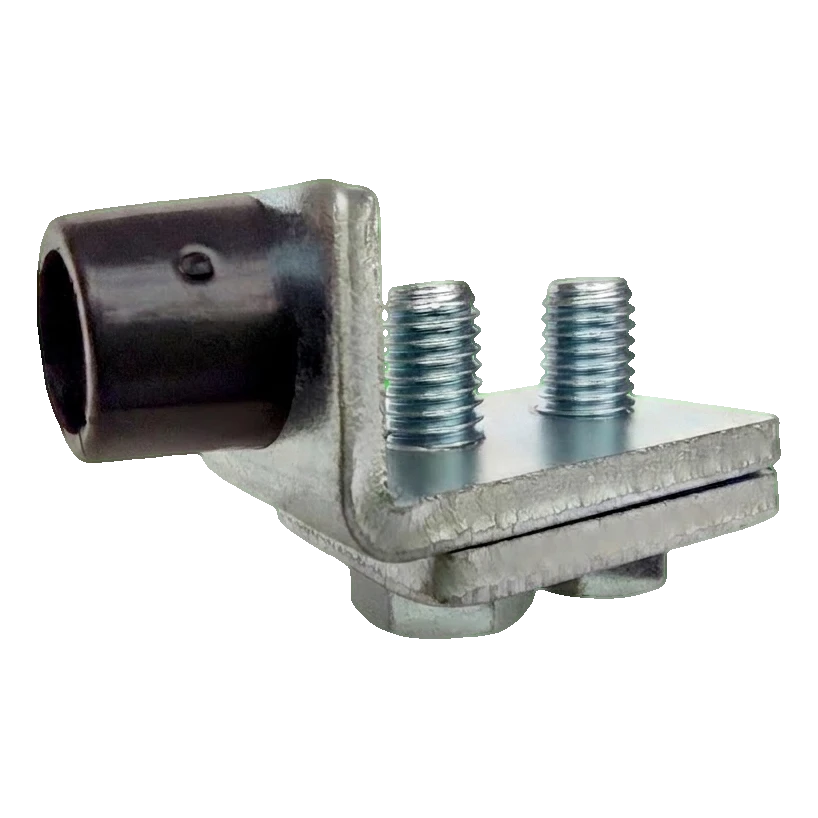

Rail stopper for overhead gates PSG is a robust limiter mounted on the end section of the travel rail 50×46×2 mm. It prevents the trolley from falling off the rail and effectively dampens shocks generated when the gate reaches its end position. Thanks to screw adjustment, the stopper position on the rail can be precisely set, which facilitates calibration of the extreme opening and closing points of the gate.
Construction and operating principle
The stopper body has an angle bracket shape with a clamping system — two screws press down the bottom plate, enabling secure mounting on the rail profile. The buffer made from black nylon cushions impacts from the travel trolley, protecting both the trolley itself and the gate mechanism from damage. The entire metal element is fully galvanised, which provides high corrosion resistance — even in outdoor conditions and environments with elevated humidity.
Dimensions and technical data

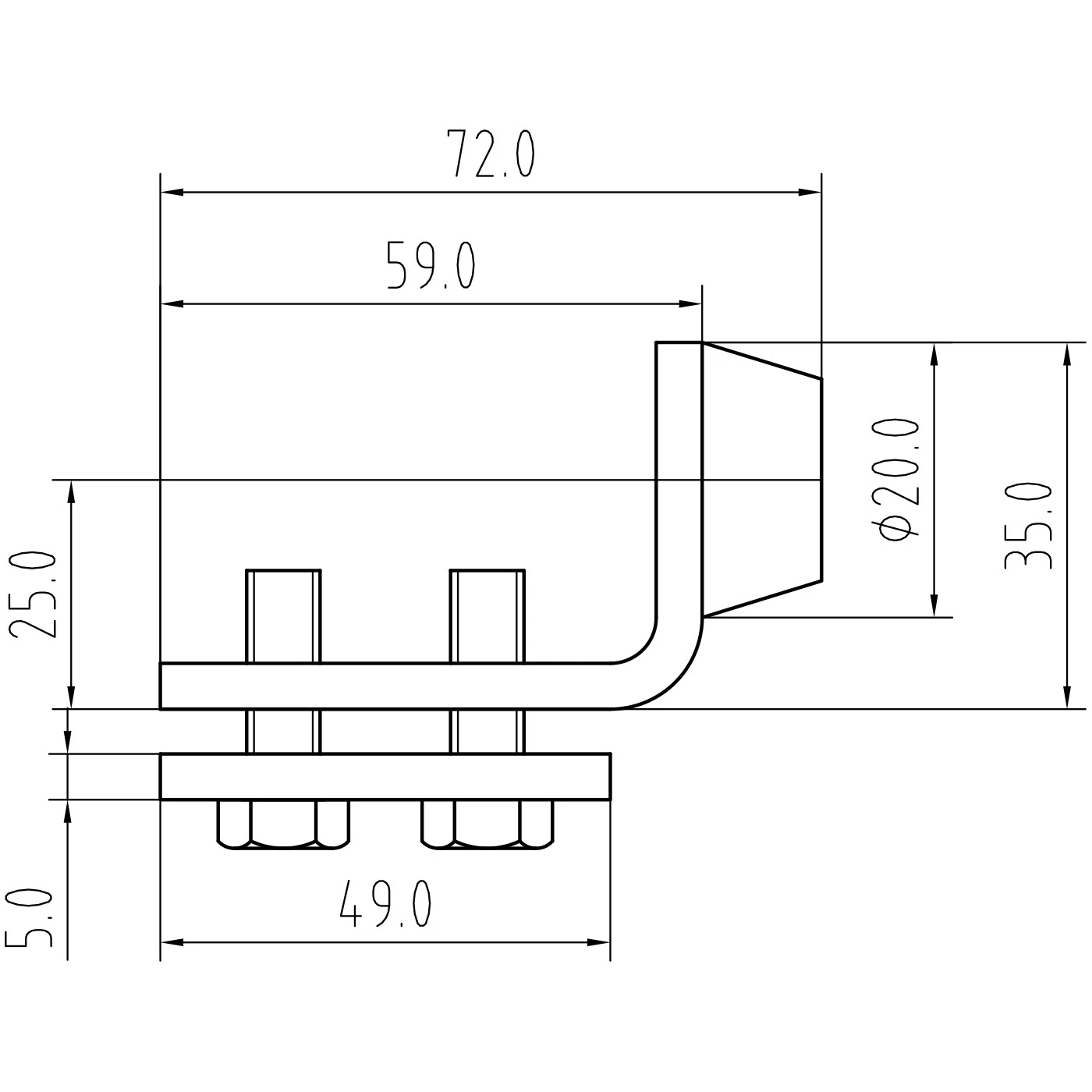

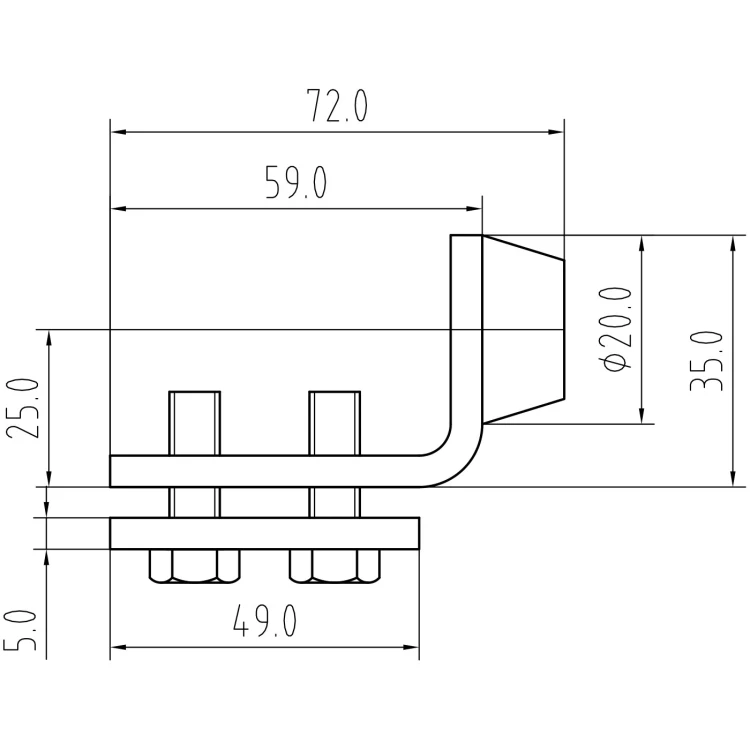

- Total length (with buffer): 72 mm
- Metal angle bracket length: 59 mm
- Clamping plate length: 49 mm
- Total height: 35 mm
- Vertical arm height: 25 mm
- Clamping gap (for rail profile): 5 mm
- Nylon buffer diameter: Ø20 mm
- Compatibility: rail 50×46×2 mm
- Body material: galvanised steel
- Buffer material: black nylon
- Weight: 0.24 kg
- EAN: 5903313203623
Advantages for the installer
- Quick installation — screw clamp allows mounting the stopper without drilling and welding
- Position adjustment — screws enable moving the stopper along the rail and precise setting of the end point
- Trolley protection — nylon buffer absorbs impact energy, extending the service life of travel trolleys
- Durability — full galvanising protects against corrosion, and the nylon buffer does not crack under repeated impacts
PSG stopper is dedicated to overhead gate systems on guide rails. Mounted in pairs — on both ends of the rail — it provides complete protection of the gate's extreme positions and protects the travel mechanism from damage.
Technical data
| Material | Steel |
