PSG rail hanger for sliding gate track 50×46 mm – galvanised, 130 mm
Description
PSG rail hanger for sliding gate track 50×46 mm – galvanised, 130 mm
Galvanised hanger for sliding gate rail designed for channel beam (running rail) with dimensions 50×46 mm. Component used in suspended gates — enables secure suspension of the guide rail on the ceiling or supporting beam. Solid construction made of galvanised steel ensures durability and corrosion resistance, making the hanger suitable for both internal and external installations.

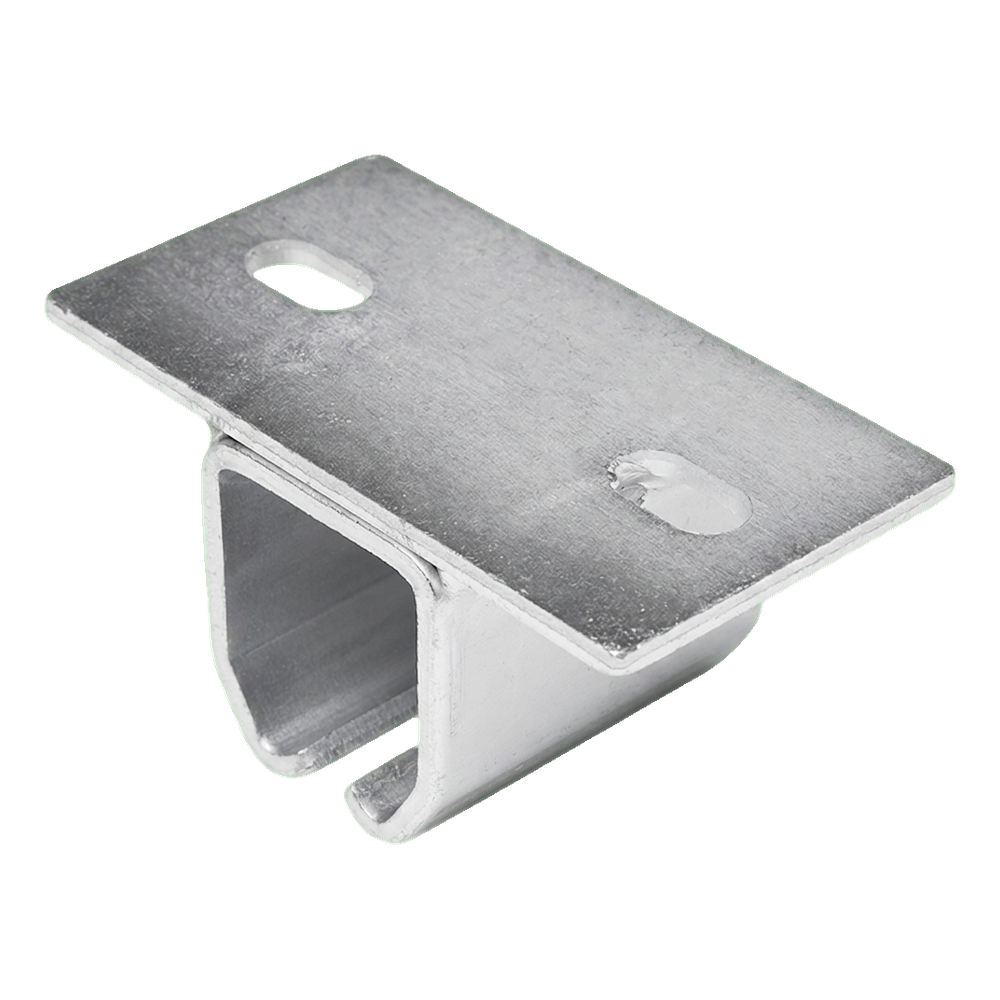

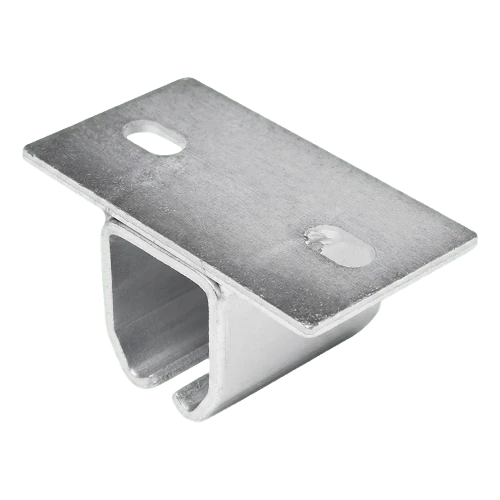

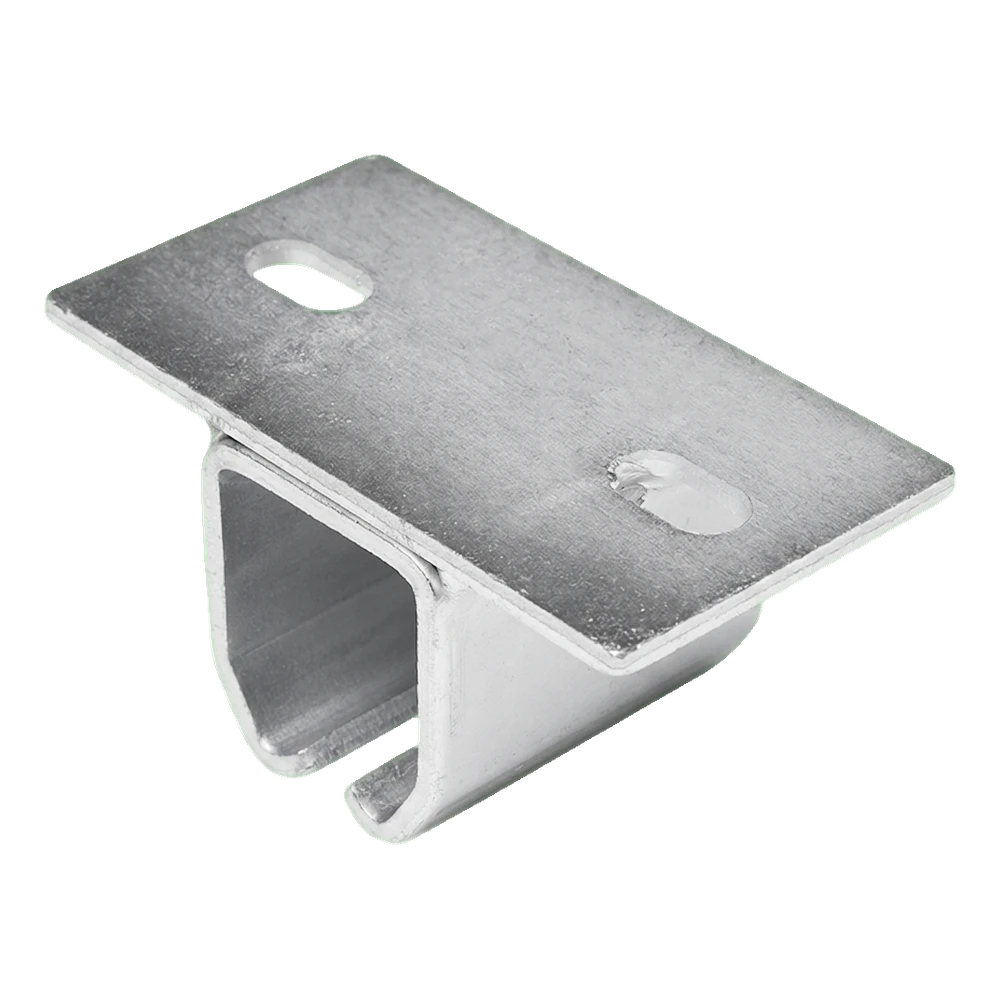

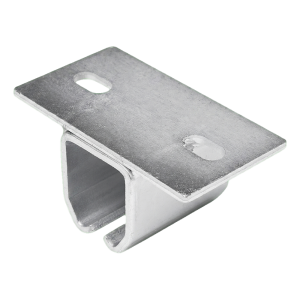

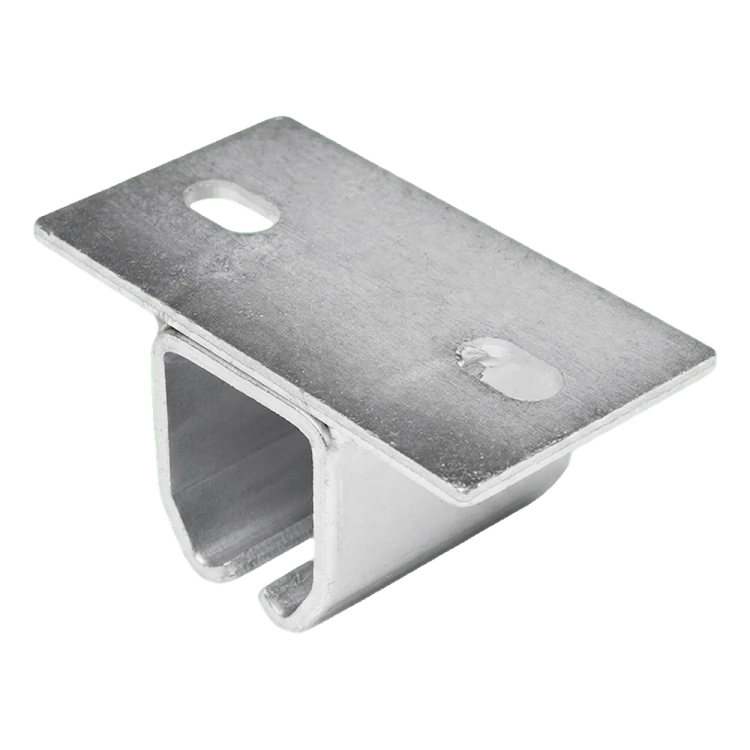

The hanger features a flat mounting plate with holes enabling attachment to the ceiling or load-bearing profile. The lower part forms a C-shaped bracket that encompasses the running rail and ensures stable gate guidance. The hanger profile is precisely bent, and the rolled edges of the lower opening increase structural rigidity and facilitate rail insertion.
Product by PSG brand — proven supplier of accessories for sliding gate systems and fencing.

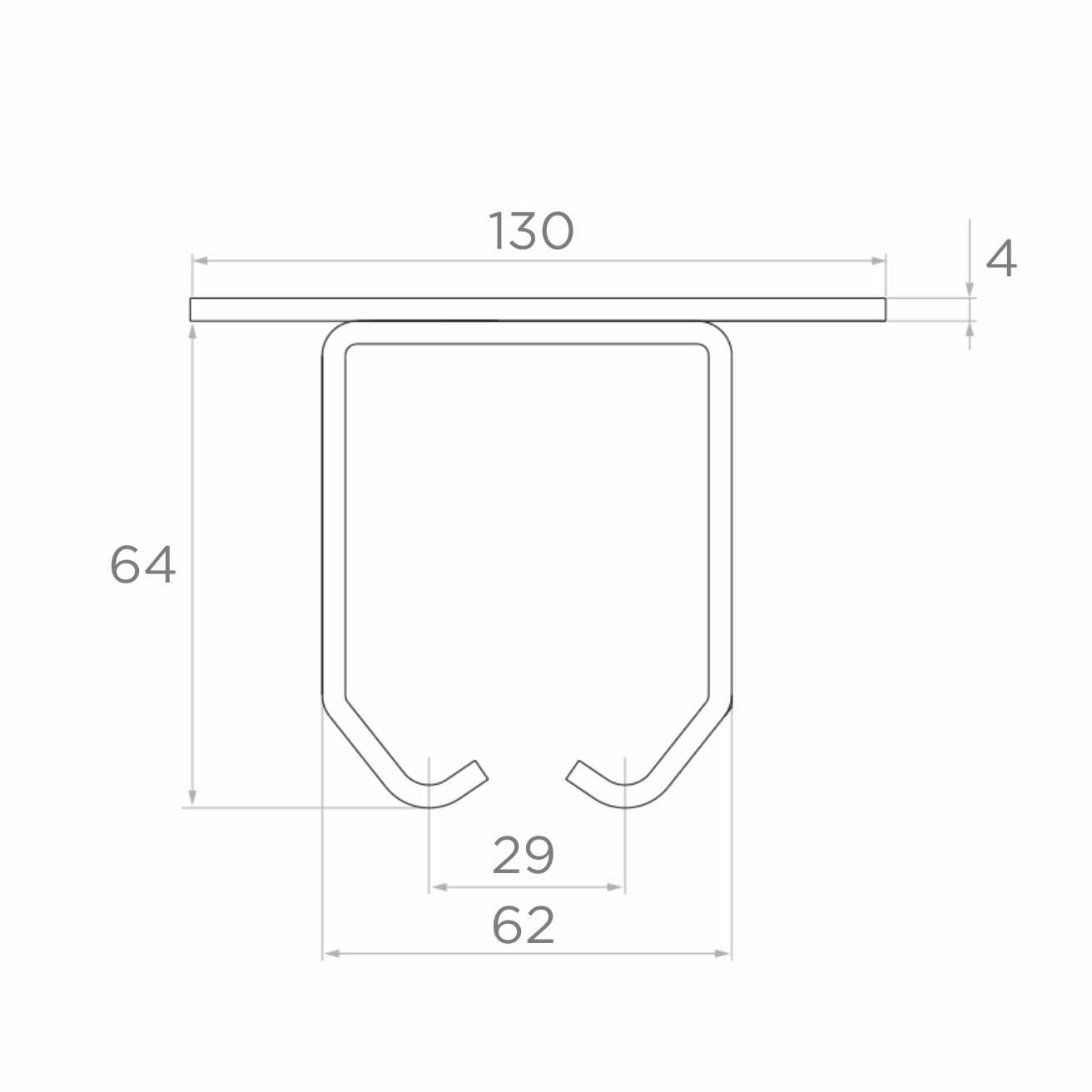

Dimensions and technical data
- Mounting plate width: 130 mm
- Mounting plate thickness: 4 mm
- Hanger height: 64 mm
- External bracket width: 62 mm
- Lower gap width: 29 mm
- Intended for: rail (channel beam) 50×46 mm
- Material: galvanised steel
- Weight: 0.64 kg
- Manufacturer: PSG
- EAN: 5901289675659
Application
The hanger is used for mounting the running rail in suspended (sliding) gates. Installation involves screwing the hanger plate to the load-bearing structure (ceiling, steel beam), then sliding the channel rail into the C-shaped bracket. This allows the gate to move along a rail suspended under the ceiling, eliminating the need to build a ground guide and facilitating vehicle passage.
