PSG movable stainless steel door handle set with round PZ escutcheons
Description

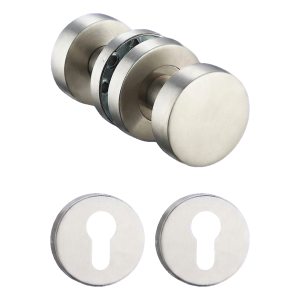

PSG movable stainless steel door handle set with round PZ escutcheons
Handle-to-handle PSG set is a complete, ready-to-install door hardware set made from AISI 304 stainless steel, designed for interior doors in residential, office and public buildings. Movable handles with diameter of 50 mm combined with round escutcheons for cylindrical insert (PZ) guarantee aesthetic and durable door finishing, whilst stainless steel ensures years of corrosion resistance and intensive use.
AISI 304 stainless steel — durability and aesthetics
Handles and escutcheons are made from AISI 304 grade stainless steel, which is characterised by high resistance to corrosion, moisture and mechanical damage. The satin surface finish gives the product a modern, minimalist appearance whilst effectively masking minor traces of use. Thanks to its anti-corrosion properties, the set will perform well in both standard domestic conditions and buildings with high traffic.

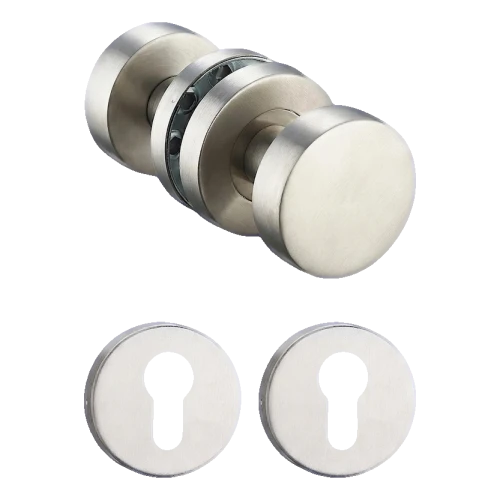

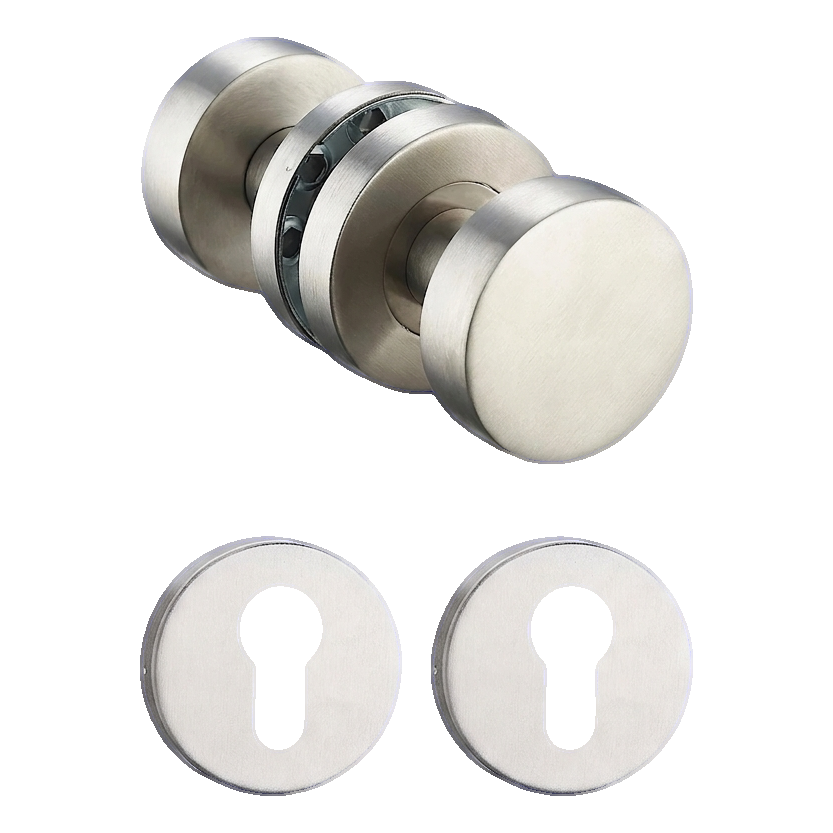

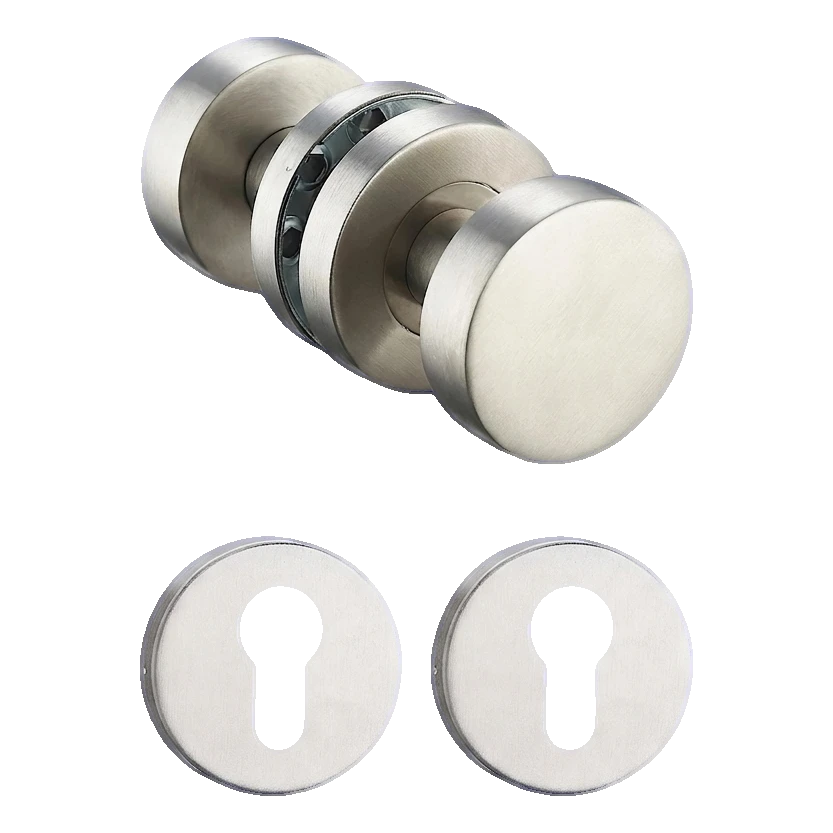

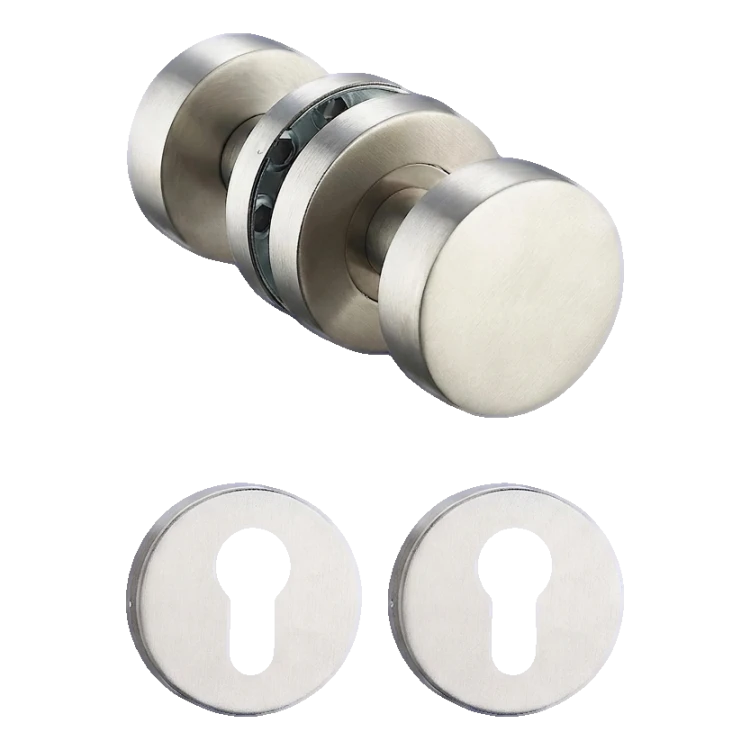

Complete mounting set
The set includes two movable handles with a pair of round escutcheons (roses) with hole for PZ cylinder insert and a complete set of mounting elements. This solution allows for quick and trouble-free installation without the need to select additional components — significant time savings on site.

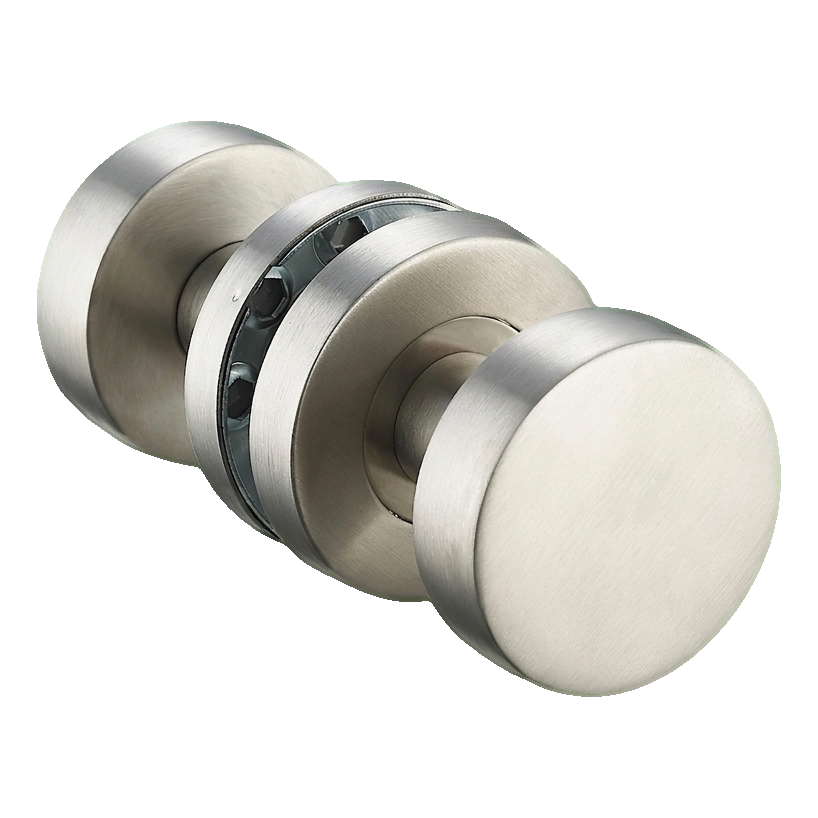

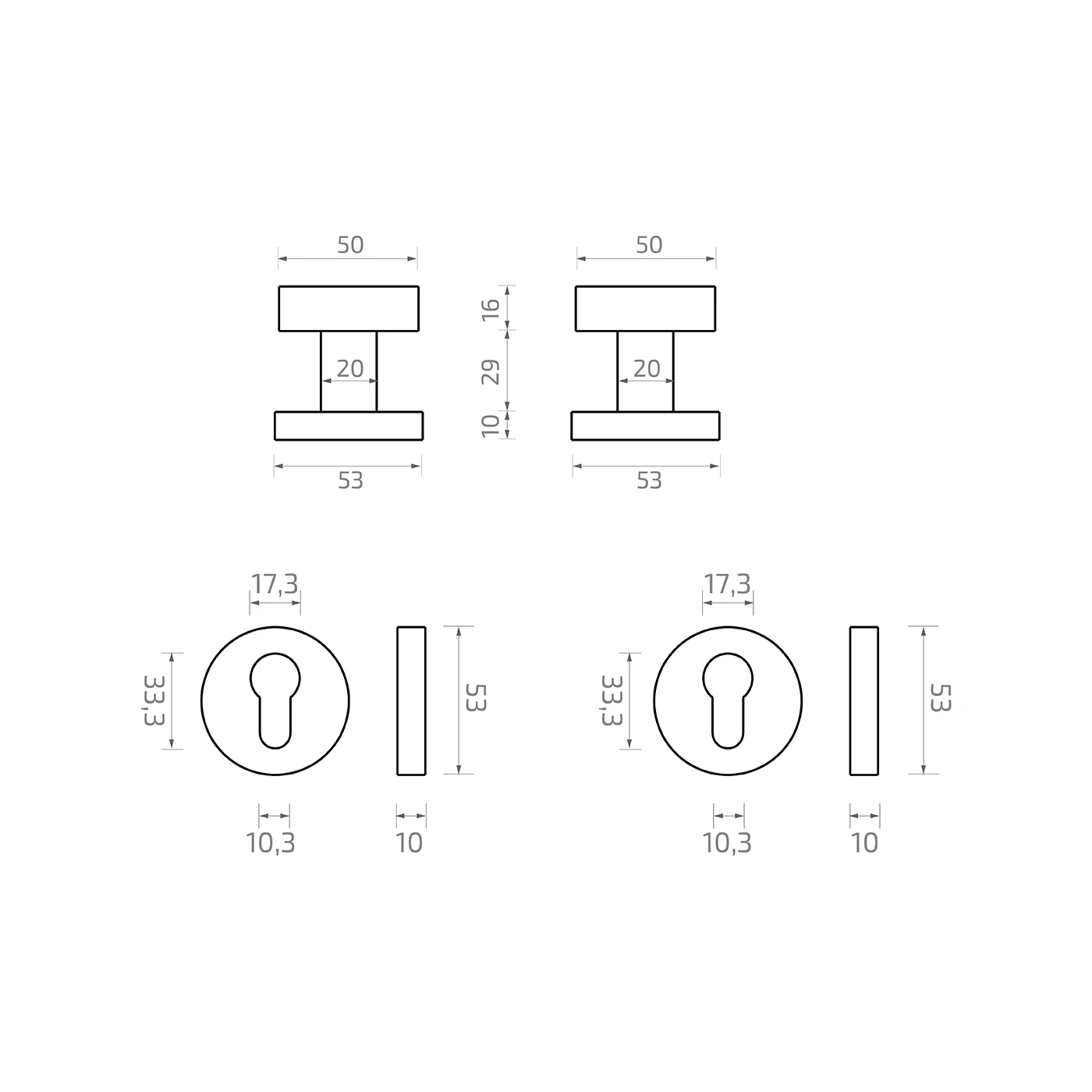

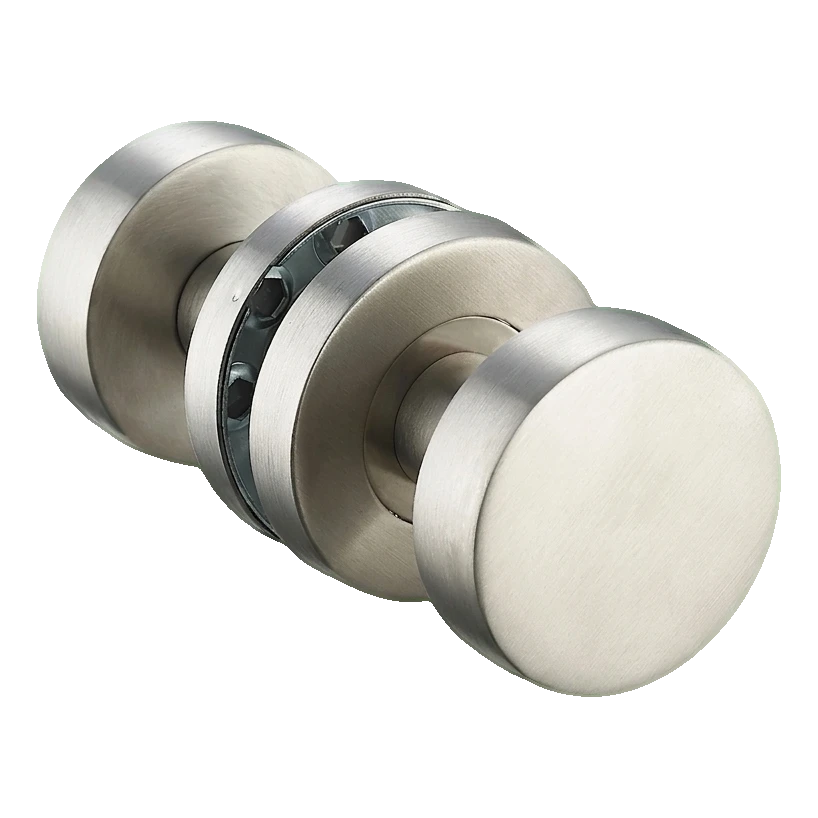

Handle dimensions
- Grip diameter: 50 mm
- Base diameter (handle rose): 53 mm
- Spindle diameter: 20 mm
- Grip thickness: 16 mm
- Spindle length: 29 mm
- Base thickness: 10 mm
- Total set height (H): 60 mm
- Total set length (L): 175 mm

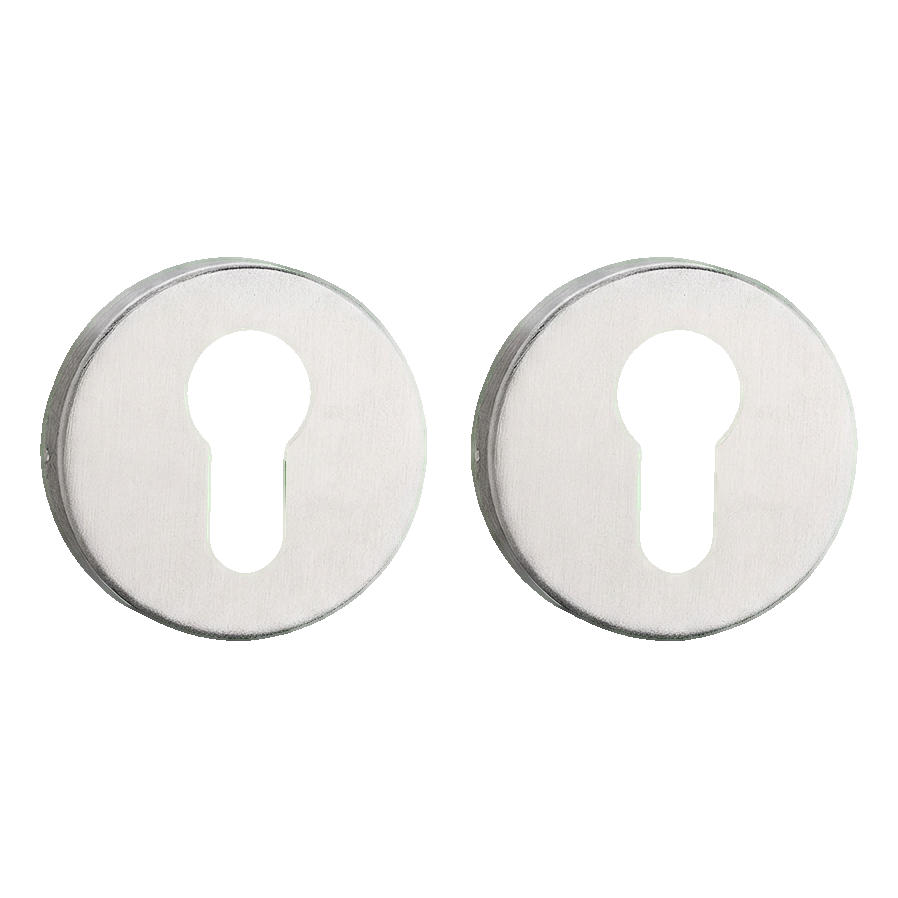

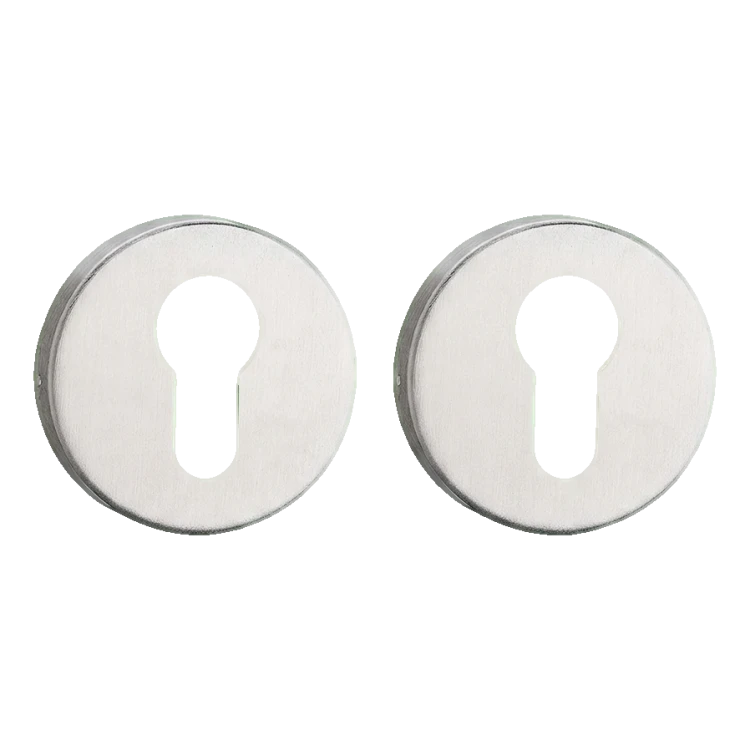

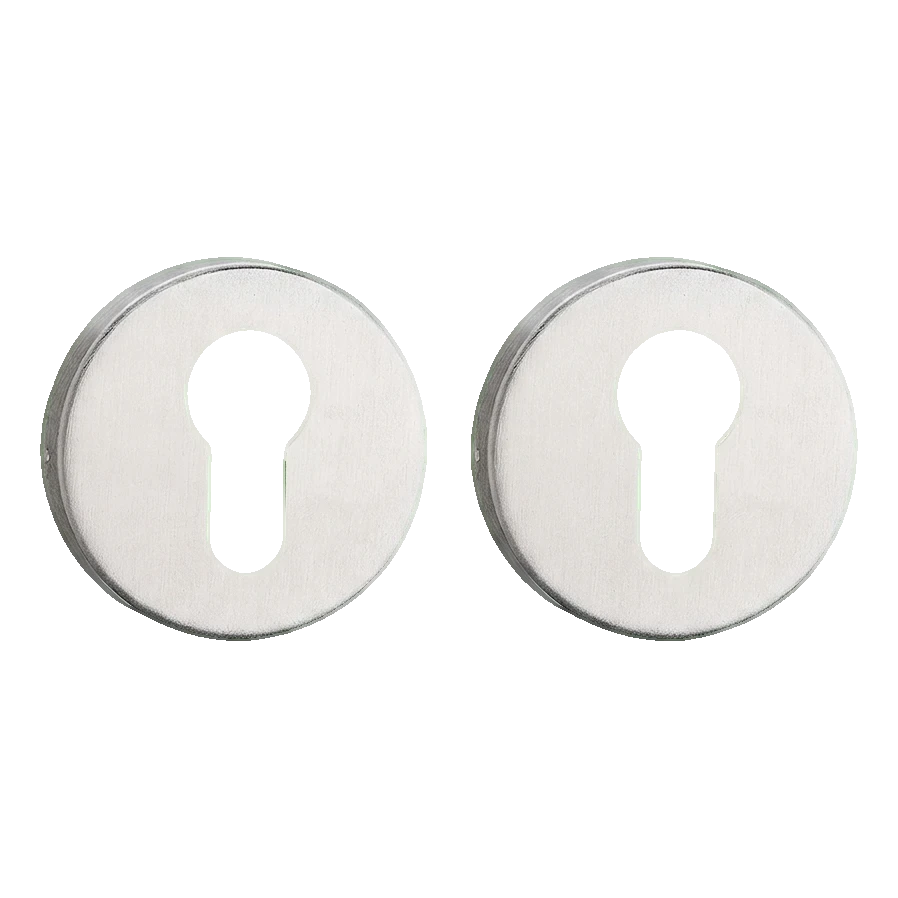

PZ escutcheon dimensions
- External diameter: 53 mm
- Thickness: 10 mm
- Insert hole: 17.3 × 33.3 mm (bottom width 10.3 mm)
Technical specification
- Manufacturer: PSG
- Material: AISI 304 stainless steel
- Handle type: movable
- Colour / finish: silver / satin
- Escutcheon: round, for PZ insert
- Handle diameter: 50 mm
- Set dimensions (L × H): 175 × 60 mm
- Weight: 0.385 kg
- EAN: 5903313205184
Technical data
| Material | AISI 304 |
| Fitting Type | Knob Set |
| Finish | Satin |
| Brand | PSG |
