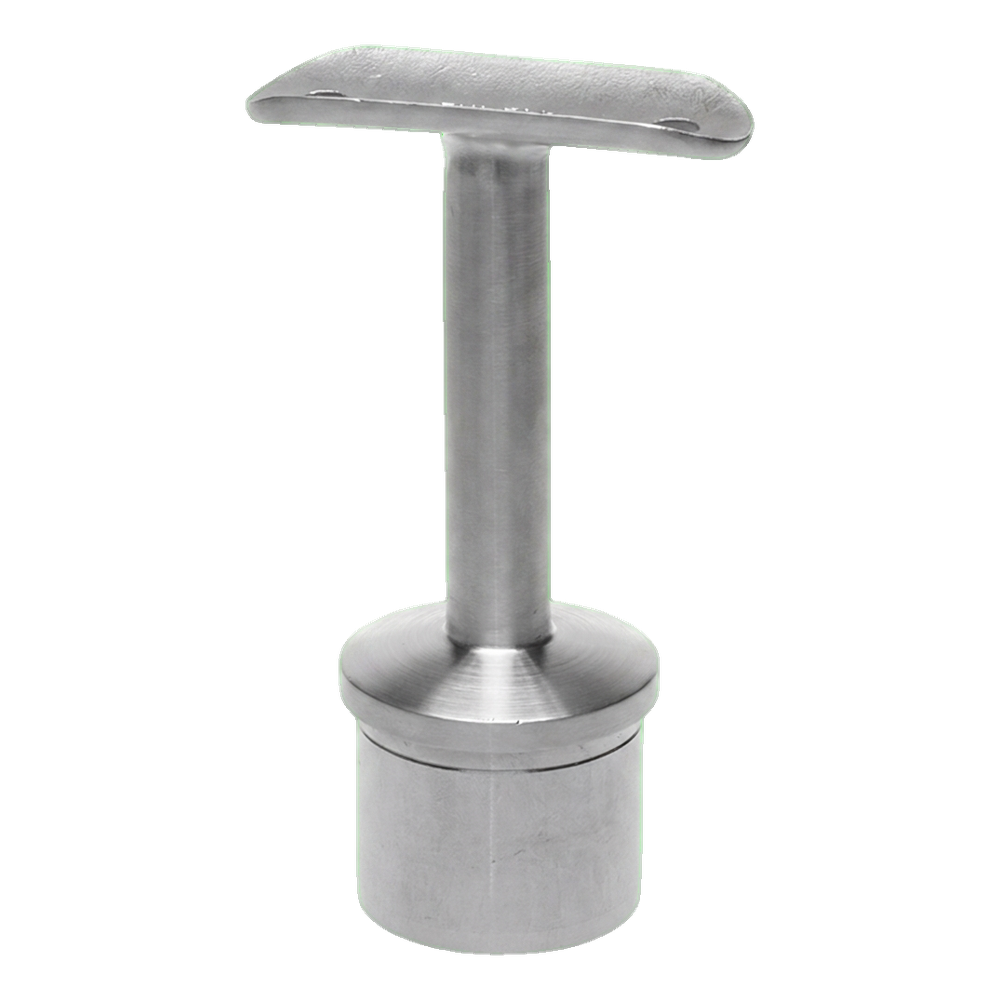

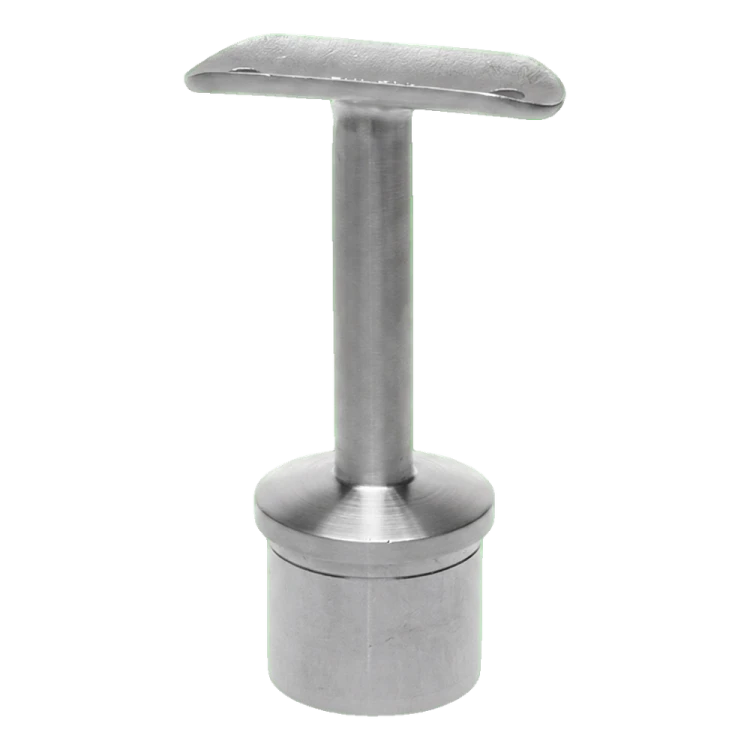

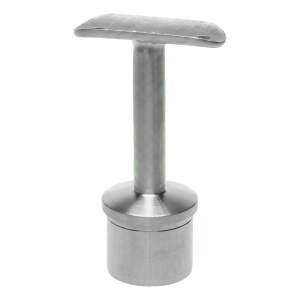

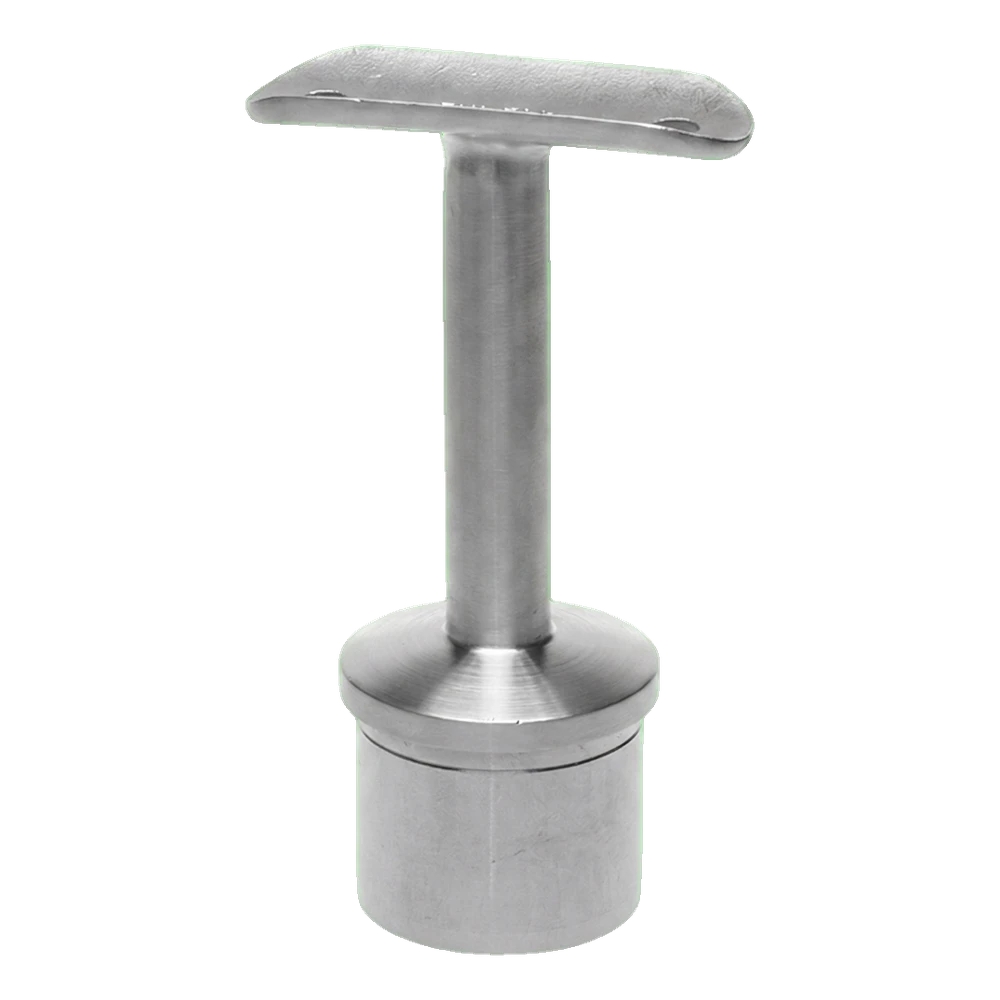

PSG handrail support for balustrade adhesive 42.4 mm – stainless steel AISI 304 polished
Description
PSG handrail support for balustrade adhesive 42.4 mm – stainless steel AISI 304 polished
Adhesive handrail support designed for 42.4 mm tubular balustrade systems. Connects the balustrade post to the handrail, providing a stable and durable connection without the need for grub screws. Made from AISI 304 stainless steel with polished finish — guarantees aesthetic appearance and years of corrosion resistance, even in external conditions.
Installation involves bonding the support base into the post tube using anaerobic adhesive, which bonds upon contact with metal and cures when oxygen supply is cut off. This achieves a clean, invisible connection — without visible fixing elements.

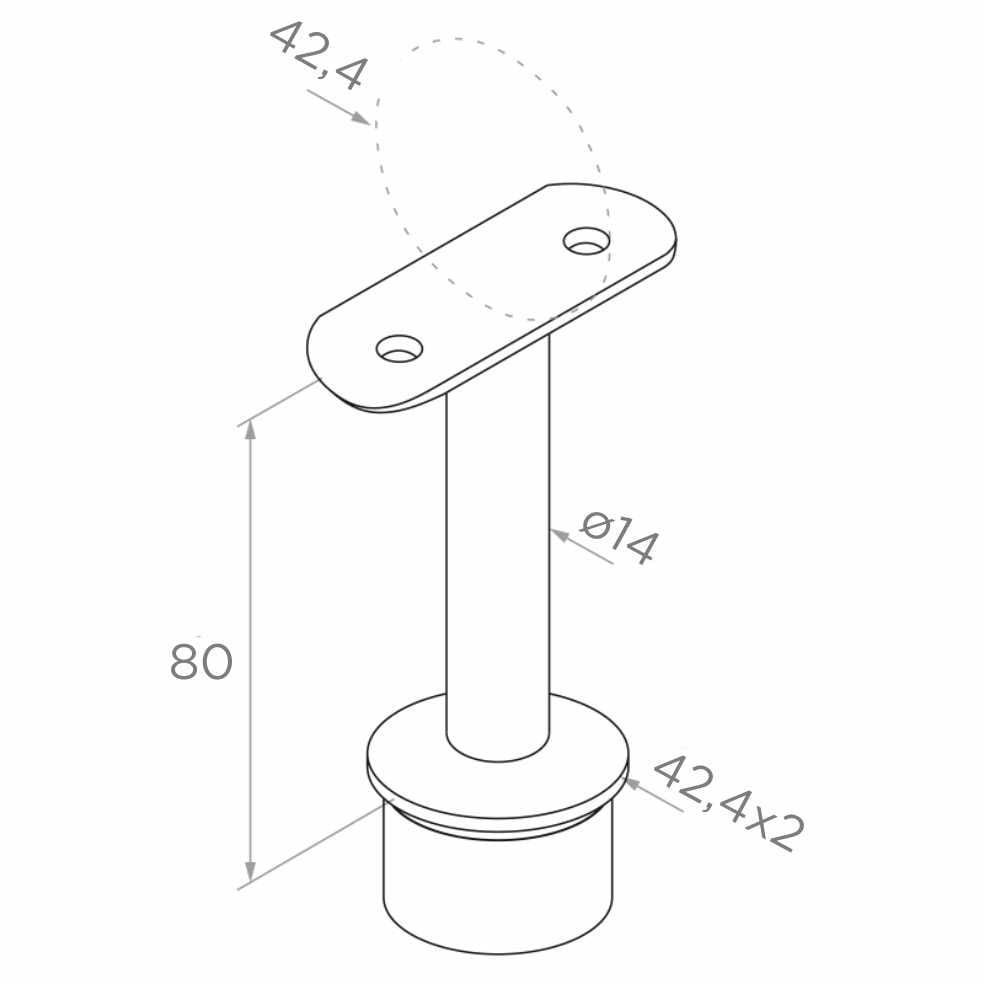

Dimensions and technical data
- Tube system: 42.4 mm
- Handrail diameter: 42.4 mm
- Post tube dimension: 42.4 × 2 mm (diameter × wall thickness)
- Spindle diameter: ø14 mm
- Support height: 80 mm
- Material: stainless steel AISI 304
- Finish: polished (gloss)
- Mounting type: adhesive (anaerobic adhesive)
- Weight: 0.22 kg
- Manufacturer: PSG
- EAN: 5901289671873
The support saddle (top mounting plate) is profiled for a handrail with diameter 42.4 mm and has two mounting holes enabling additional screwing of the handrail. The saddle shape ensures uniform contact with the handrail tube along the entire contact length.
The support is part of the 42.4 mm tubular balustrade system — compatible with standard tubes, elbows, connectors and handrails in this dimension. Ideal for internal and external balustrades in residential, office buildings and public facilities.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
