PSG guide roller with end cap for self-supporting sliding gate – rail 70
Description

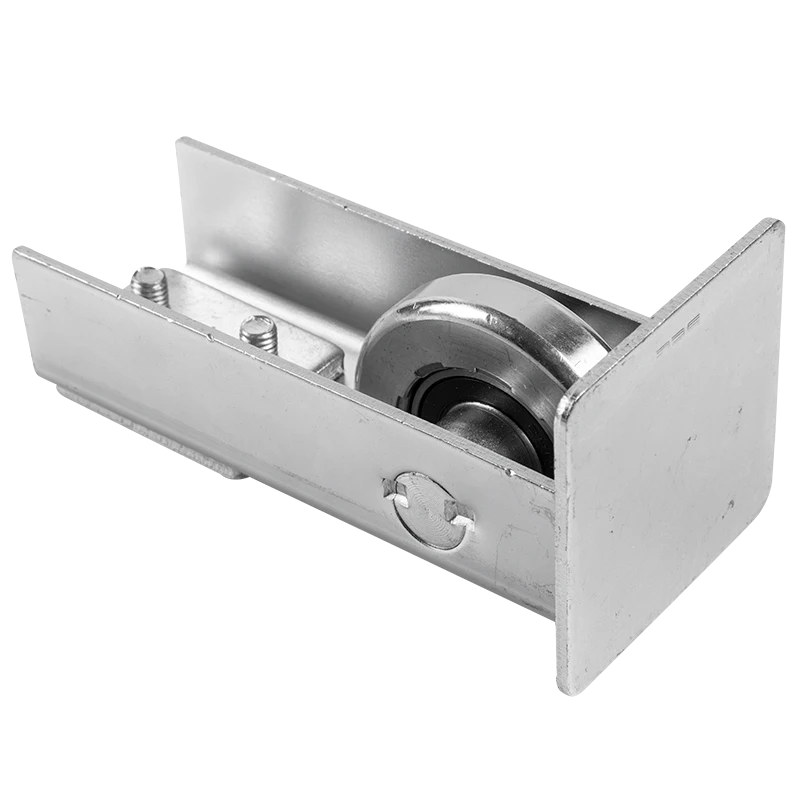

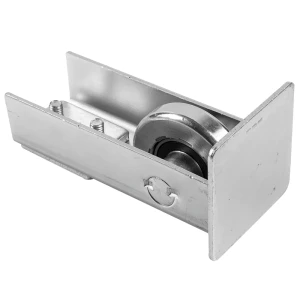

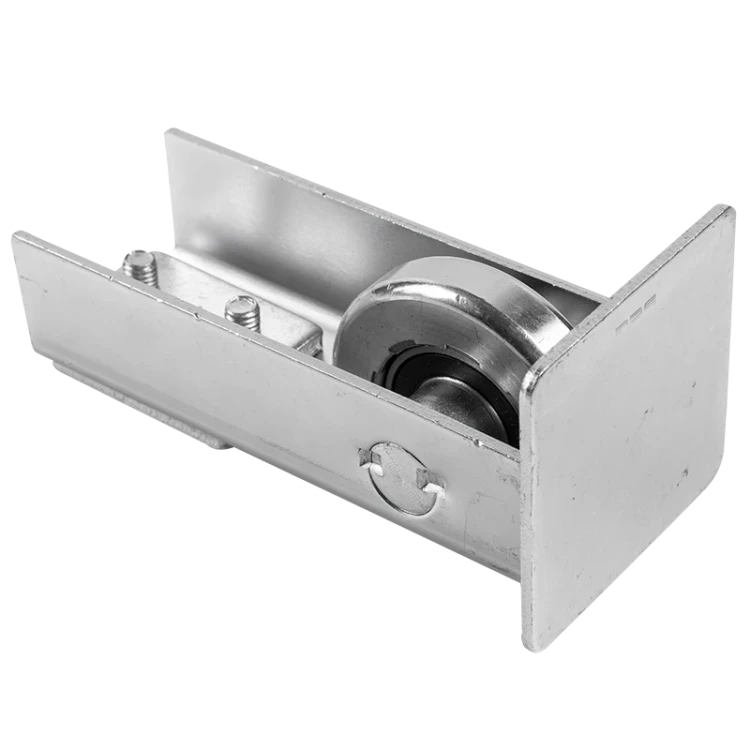

PSG guide roller with end cap for self-supporting sliding gate – rail 70
The PSG guide roller with end cap is a steel, galvanised mounting component designed for self-supporting sliding gates running on 70×70×4 mm rail. Mounted at the beginning of the rail, it works with the guide bracket attached to the gate post — when the gate closes, the roller enters the bracket, distributing the construction weight across more support points and effectively stabilising the leaf in the closed position.
Using the guide roller significantly extends the lifespan of the gate trolleys, as it relieves them from stress in the closed position. The end cap simultaneously serves as protection for the rail against snow, ice and contamination, which is particularly important in winter conditions — the installer can offer the customer a more reliable and durable solution without additional costs.

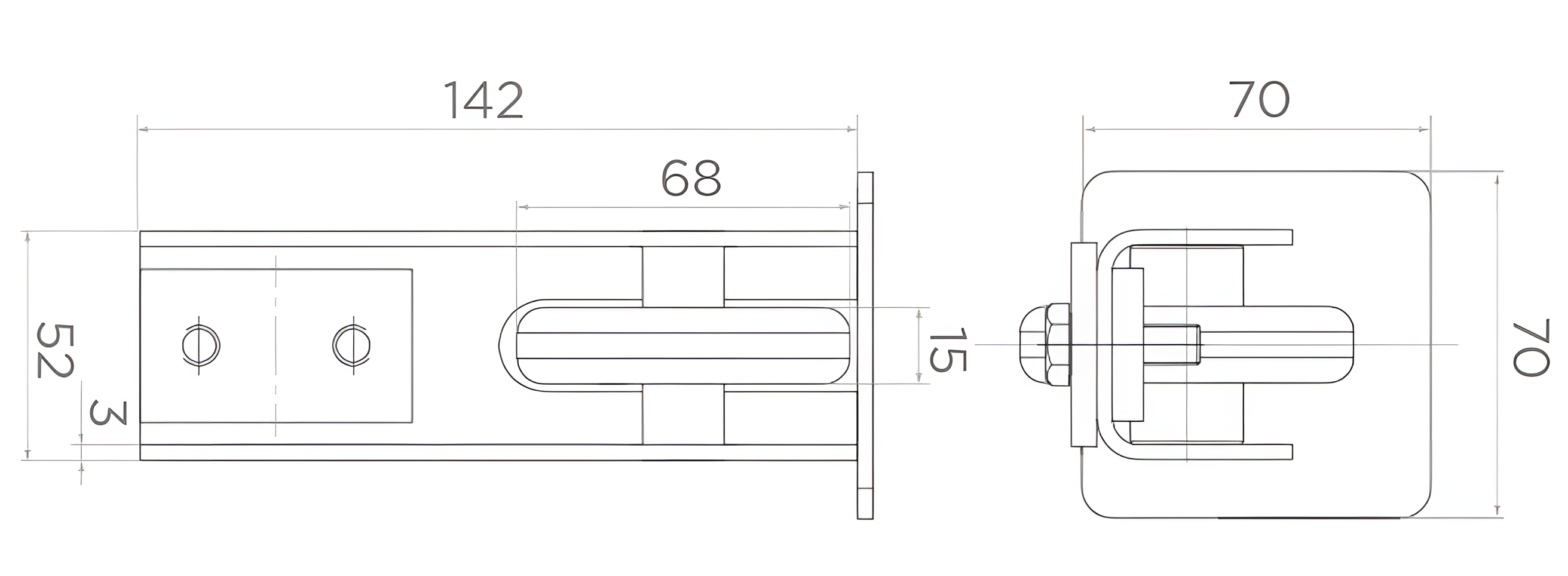

Dimensions
- Total length (insertion depth into rail): 142 mm
- Working cutout length for roller: 68 mm
- Body width (element inserted into rail): 52 mm
- Roller width: 15 mm
- Profile wall thickness: 3 mm
- Front end cap: 70 × 70 mm
Technical data
- Compatibility: gate rail 70×70×4 mm
- Material: galvanised steel
- Weight: 1.065 kg
- Overall dimensions: 142 × 70 × 70 mm
- Included: mounting screws
- Manufacturer: PSG
- EAN: 5901289674799
The square end cap 70 × 70 mm aesthetically closes the rail profile, giving the gate a neat appearance and protecting the interior of the guide. The galvanised surface provides high corrosion resistance, making the component suitable for installations exposed to variable weather conditions — without the need for additional anti-corrosion protection.
