PSG guide roller 140 mm with end cap for self-supporting sliding gate
Description
PSG guide roller 140 mm with end cap for self-supporting sliding gate

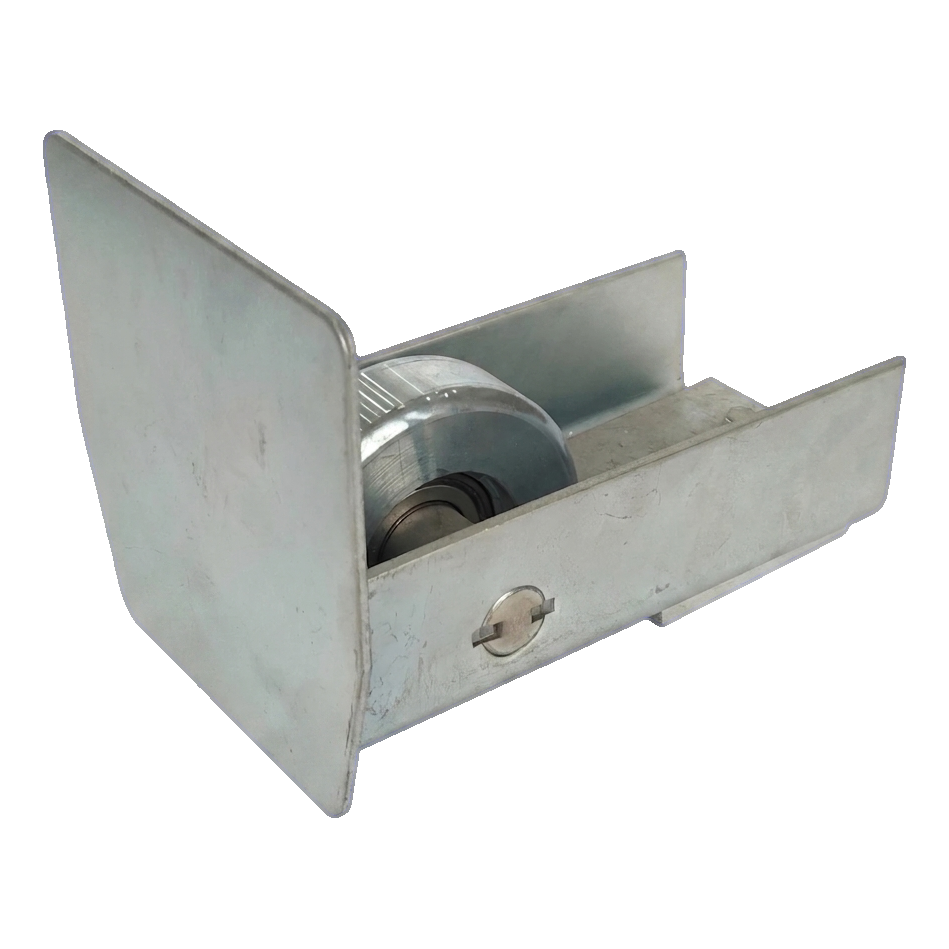

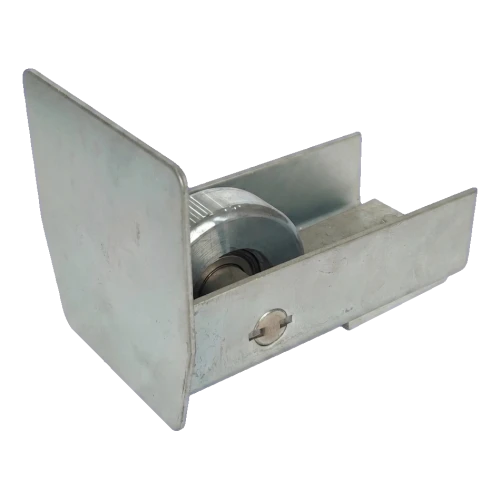

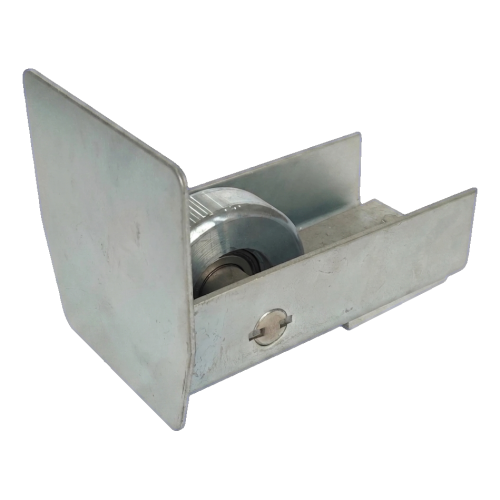

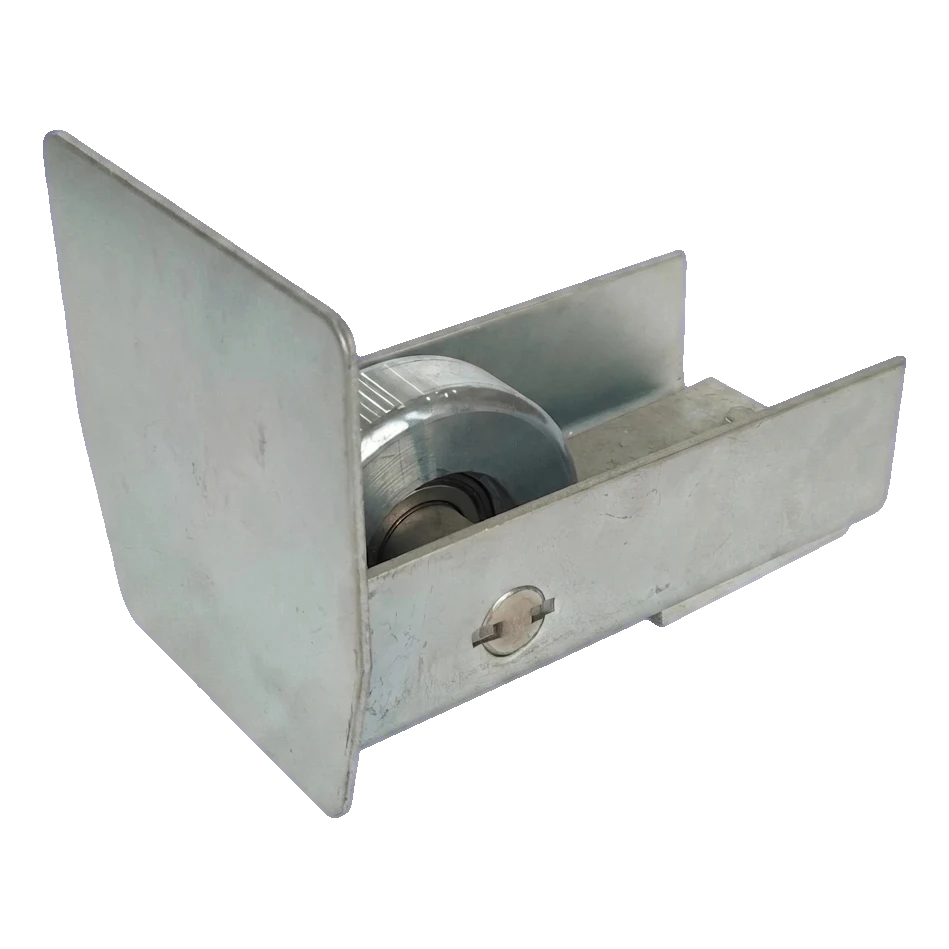

PSG guide roller 140 mm with end cap is a steel component mounted at the beginning of a self-supporting sliding gate rail. It provides stabilisation of the gate leaf in closed position and actual load relief for the running carriages, which translates into longer service life of the entire running system. Thanks to the included mounting screws, installation is quick and requires no additional purchases — you save time on every job.
The roller is compatible with the popular 140×140×6 mm rail profile used in most self-supporting gates on the market. Solid steel construction guarantees resistance to intensive use — even with heavy steel gate leaves and gates operated multiple times per day.
How does the guide roller work?
Once the roller is inserted into the guide catch mounted to the post, the gate weight is partially transferred from the running carriages to an additional support point. The load on the running system is distributed over more components, the gate leaf stabilises in the closed position, and structural vibrations and stresses are reduced. This is a solution that extends the service life of running carriages and improves gate operation comfort.

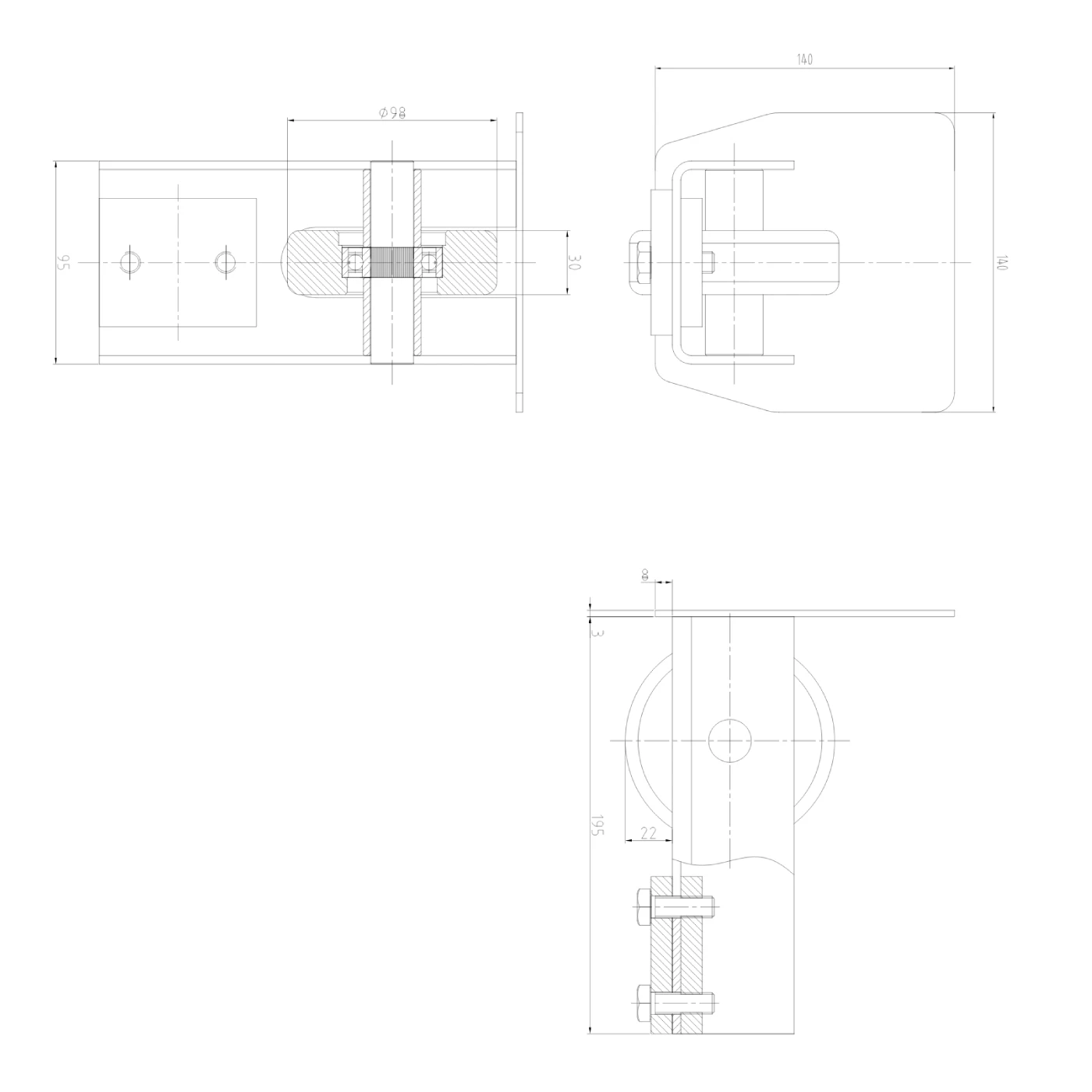

Dimensions and technical parameters
- Manufacturer: PSG
- Compatibility: rail profile 140×140×6 mm
- End cap width: 140 mm
- End cap height: 140 mm
- End cap thickness: 3 mm
- Body length (inserted part): 195 mm
- Inserted body width: 95 mm
- Roller diameter: Ø98 mm
- Roller track width: 30 mm
- Total height: 150 mm
- Weight: 3.9 kg
- Colour: silver
- Material: steel
- Mounting screws: included
- EAN: 5903313208444
Benefits for installers
- Protection of running carriages — partial transfer of gate weight to an additional support point significantly extends the service life of the running system
- Stable closure — the gate leaf maintains correct closed position without play and vibrations
- Quick installation — mounting screws included eliminate the need for additional purchases
- Versatility — compatible with the most popular 140×140 mm rail profile used in self-supporting gates
- Durability — steel construction resistant to years of intensive use
