PSG gate stopper for swing gates with lock – adjustable, steel, galvanised
Description
PSG gate stopper for swing gates with lock – adjustable, steel, galvanised
Steel gate stopper for swing gates with self-locking function by PSG — reliable securing of the gate leaf in open position. Thanks to the spring mechanism with automatic lock, the gate leaf is securely immobilised, eliminating the risk of accidental closure even in strong wind.

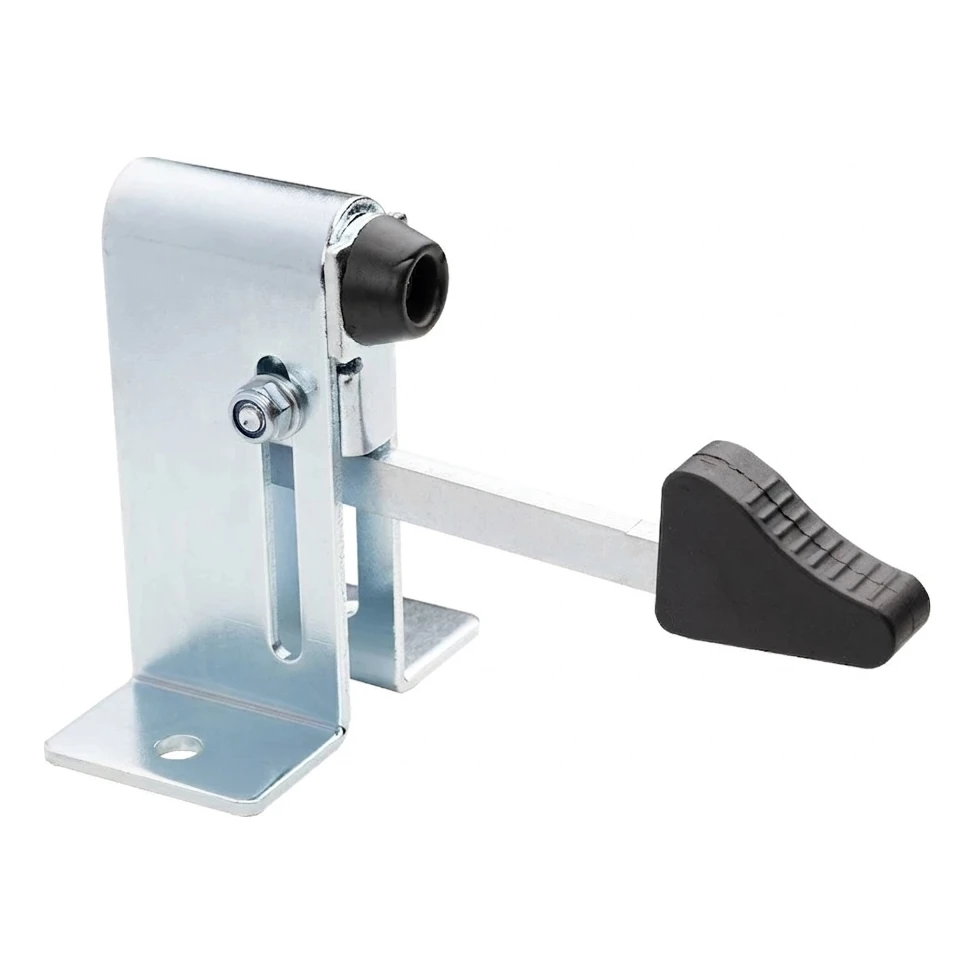

The stopper is designed for floor mounting at swing gates. The adjustable locking pin allows precise adjustment of the stopping point to specific installation. The rubber buffer at the end of the arm protects the gate leaf from mechanical damage upon impact, and the rubber cover of the upper pin ensures quiet operation. The vertical guide hole enables height adjustment of the mechanism operation, guaranteeing compatibility with different types of swing gates.
Spring mechanism with self-locking
Built-in compression spring automatically locks the stopper arm in raised position. To release the lock, simply press the pin — a simple and intuitive operating system that requires no additional tools. Solid galvanised steel construction ensures corrosion resistance and many years of operation even in harsh weather conditions.
Technical parameters
- Type: adjustable stopper with lock
- Application: swing gates
- Material: galvanised steel
- Finish: galvanised (silver colour)
- Total height (H): 130 mm
- Total length (L): 173 mm
- Catch arm length: 63 mm
- Mounting base depth: 60 mm
- Mounting base width: 108 mm
- Adjustment range (guide hole): 68 mm
- Sheet thickness: 4 mm
- Weight: 1.06 kg
- Brand: PSG
- EAN: 5901289670319

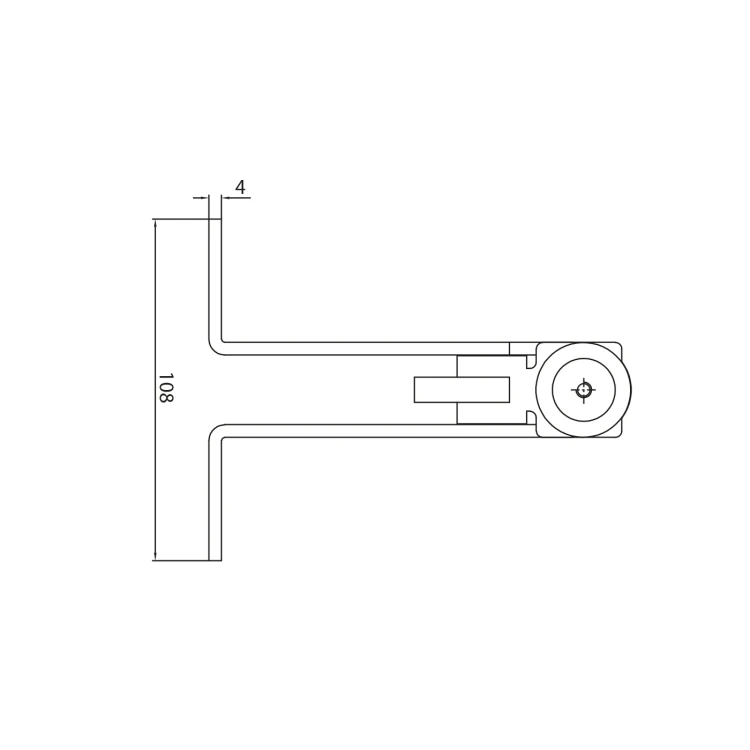

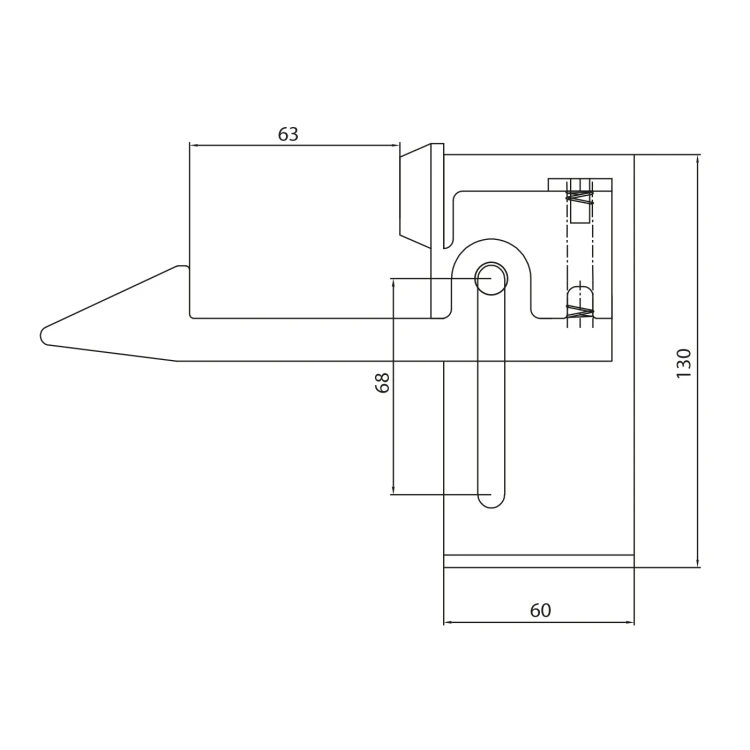

Dimensional drawing
Advantages for the installer
- Self-locking spring mechanism — gate locks automatically after opening
- Pin height adjustment — easy adaptation to different gate types
- Rubber buffers — protection of gate leaf from scratches and quiet operation
- Two anchor bolt mounting — quick and stable floor installation
- Galvanised steel with 4 mm thickness — durable construction resistant to corrosion
Technical data
| Material | Steel |
