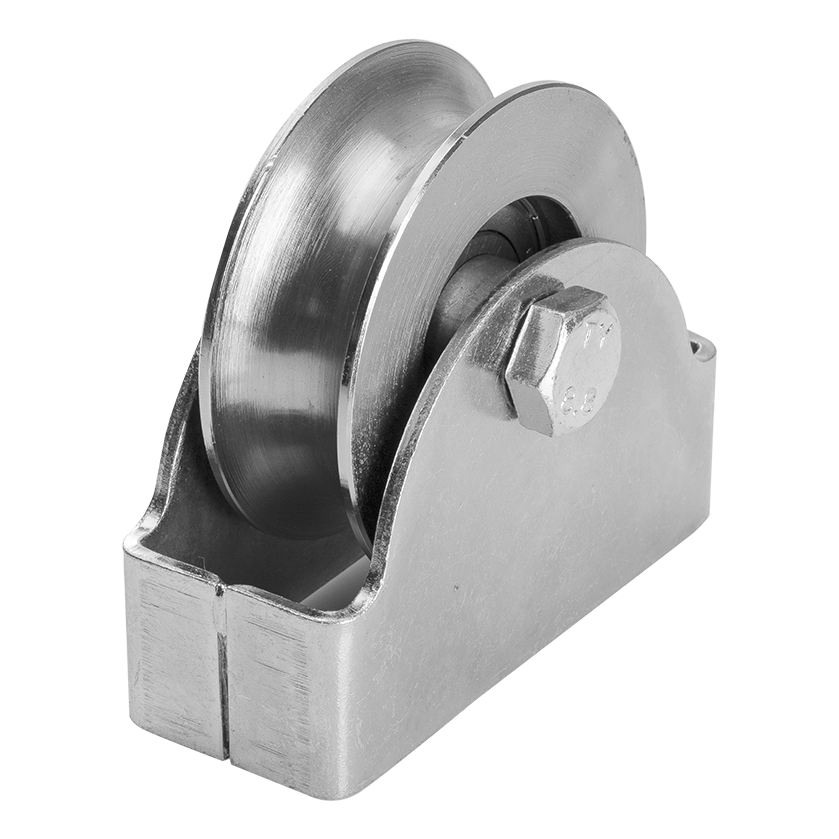

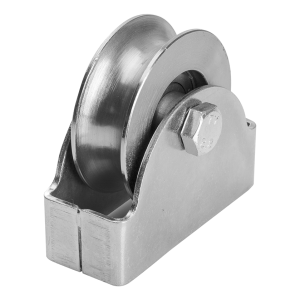

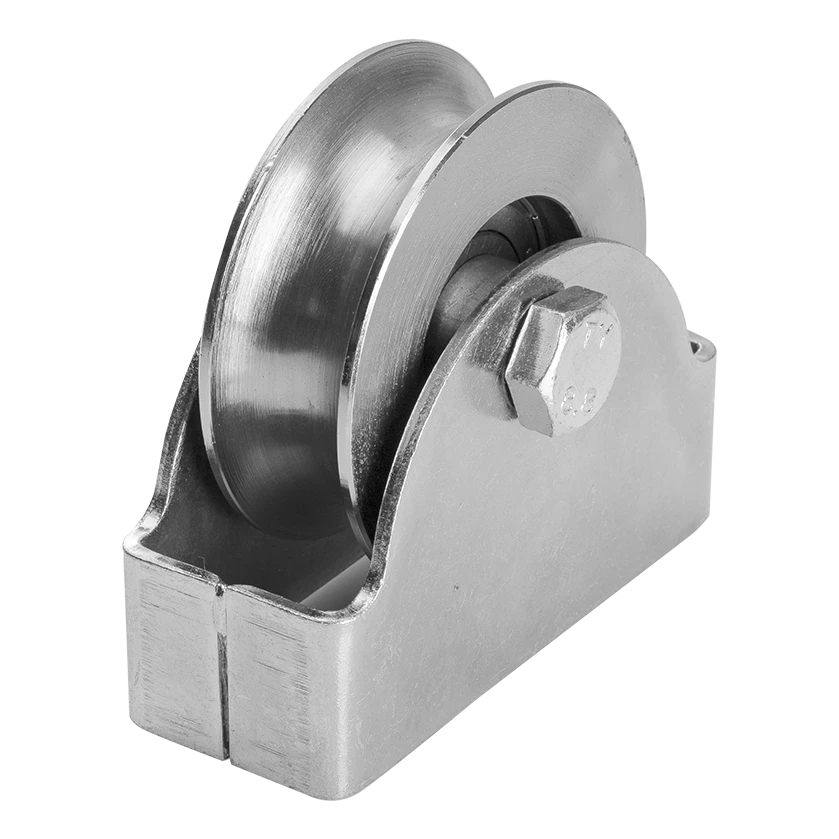

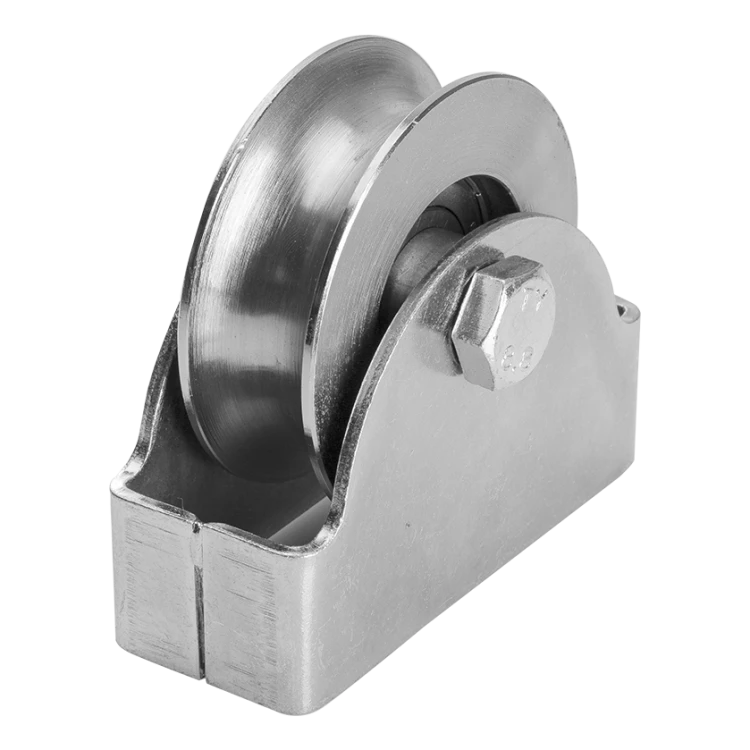

PSG gate sliding roller "O" ø 88 mm for round rail 3/4" – galvanised
Leave feedback on the product
PSG gate sliding roller type O, ø 88 mm, galvanised steel. For round rail 3/4" (19.05 mm). Dimensions: height 95 mm, housing length 100 mm, roller width 30 mm. Maximum load capacity 250 kg. Weight 1.215 kg.
Product code: 001-304
Description
PSG gate sliding roller "O" ø 88 mm for round rail 3/4" – galvanised
Steel sliding roller type 'O' designed for sliding rail gates. Thanks to the groove profile matched to the round rail (3/4" tube) it ensures stable and quiet guidance of the gate wing. The roller is galvanised, which guarantees high corrosion resistance and long service life even in demanding atmospheric conditions.
The PSG brand product is supplied complete with mounting bolt and roller housing, allowing for quick and convenient installation without the need to assemble additional components. Maximum load capacity of 250 kg makes the roller suitable for both light and medium-loaded gates.

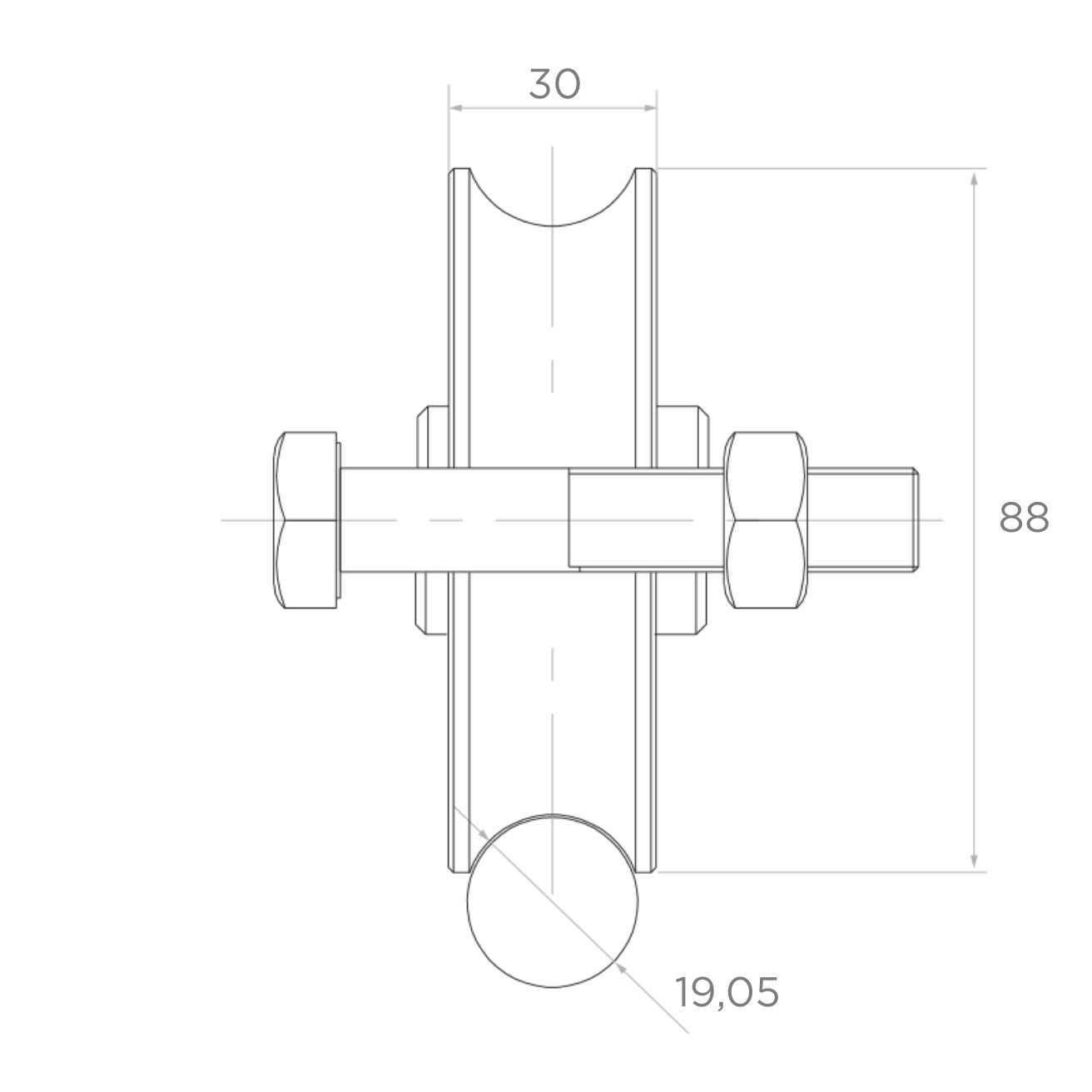

Dimensions and technical data
- Groove type: 'O' (for round rail)
- Roller diameter: 88 mm
- Roller width: 30 mm
- Rail (tube) diameter: 19.05 mm (3/4")
- Total height: 95 mm
- Housing length: 100 mm
- Maximum load capacity: 250 kg
- Material: galvanised steel
- Weight: 1.215 kg
- Complete with: mounting bolt + roller housing
- EAN: 5901289675451
The roller is dedicated to work with round rails (tubes) with a diameter of 3/4" (19.05 mm). The type 'O' groove profile ensures secure seating on the rail and minimises lateral displacement of the gate wing during travel. The solid steel housing with a heavy-duty axle bolt guarantees durable mounting in the sliding gate frame.
