PSG gate running roller V 88 mm diameter with bracket – for rail sliding gate
Description

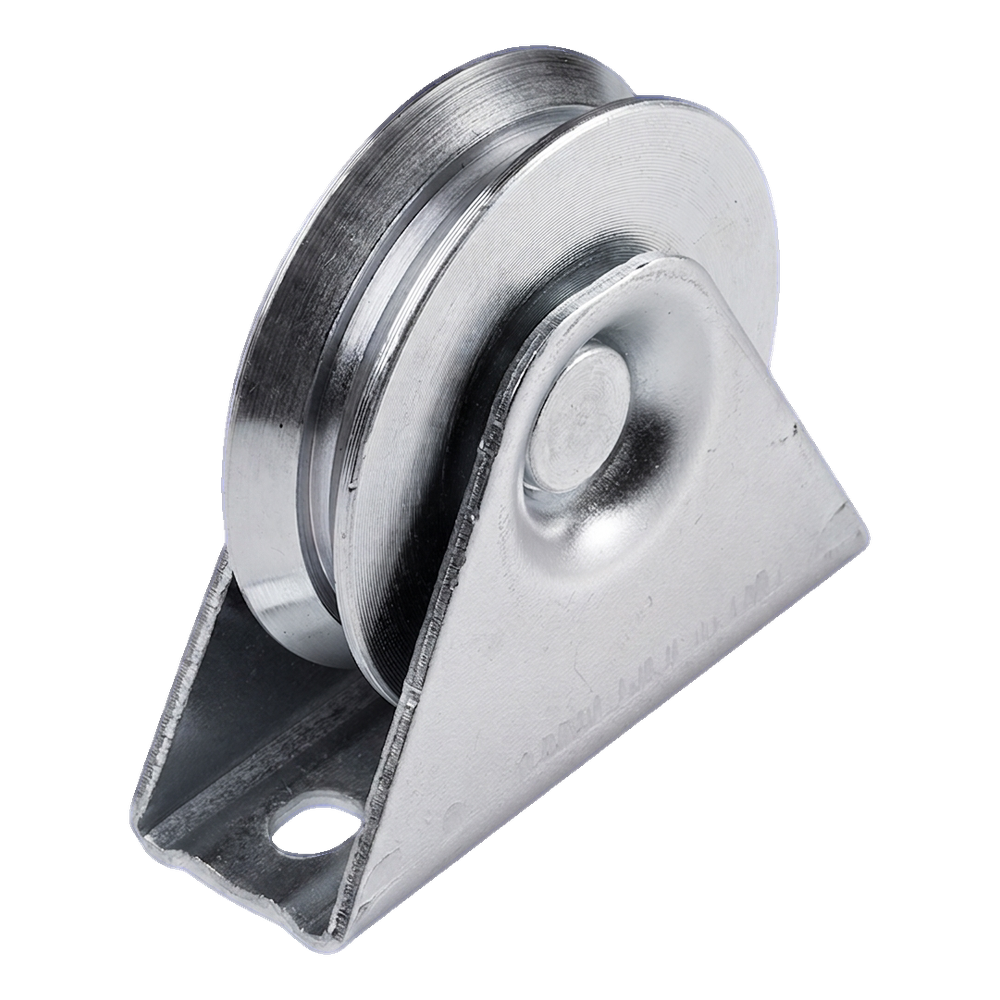

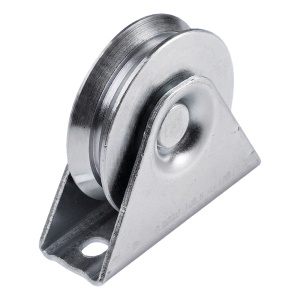

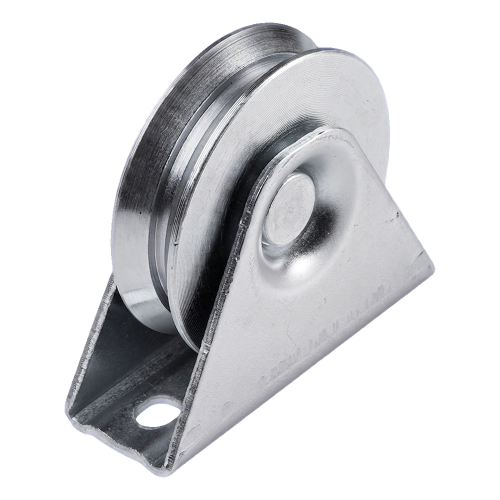

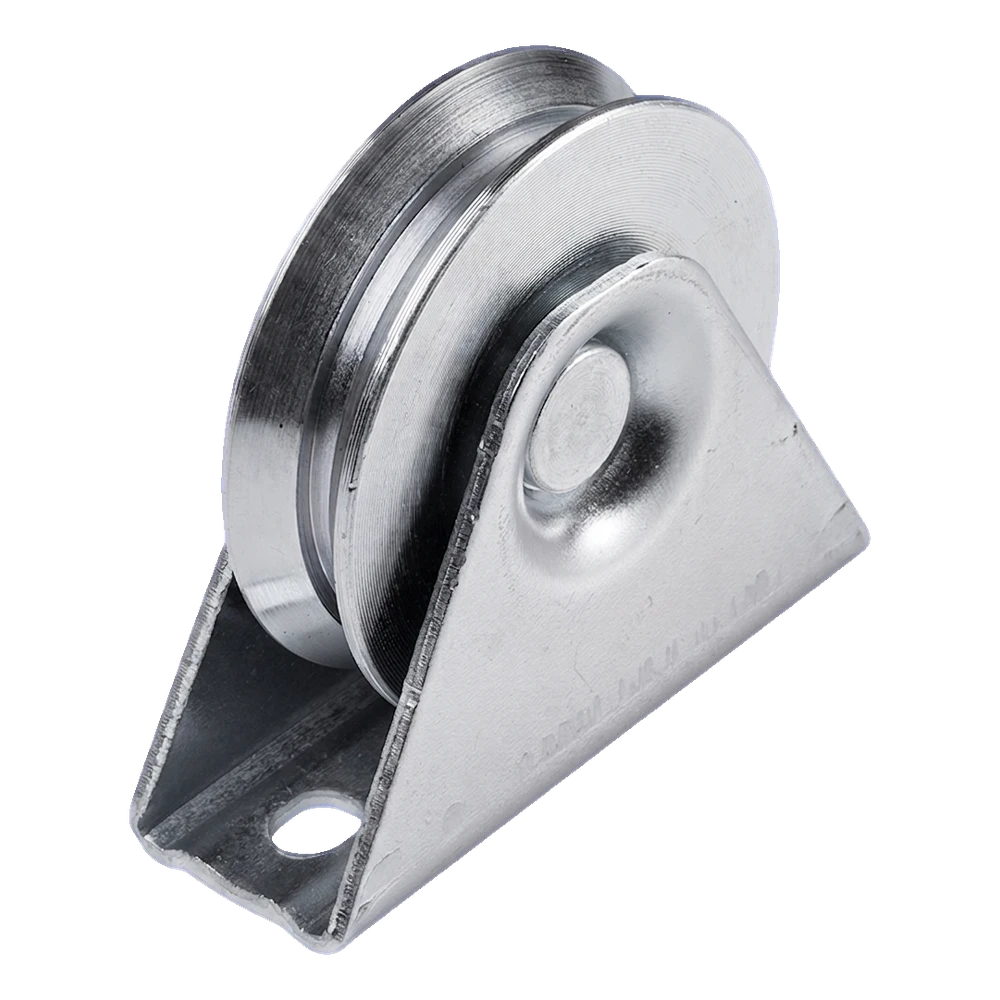

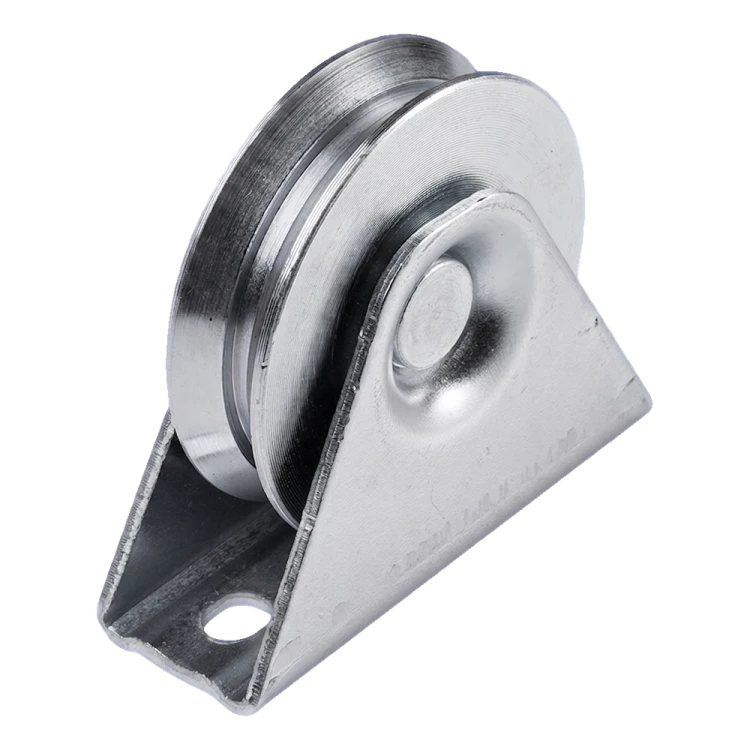

PSG gate running roller V 88 mm diameter with bracket – for rail sliding gate
Steel running roller with V-groove designed for rail sliding gates. Construction made from galvanised steel provides high corrosion resistance and years of trouble-free operation in outdoor conditions. The roller is mounted in a solid mounting bracket, which guarantees stable gate guidance on the running rail.
Maximum load capacity of 250 kg makes the roller suitable for both light wicket gates and heavy sliding gates in industrial facilities and private properties. The set includes mounting screws, which speeds up installation and eliminates the need to select hardware.

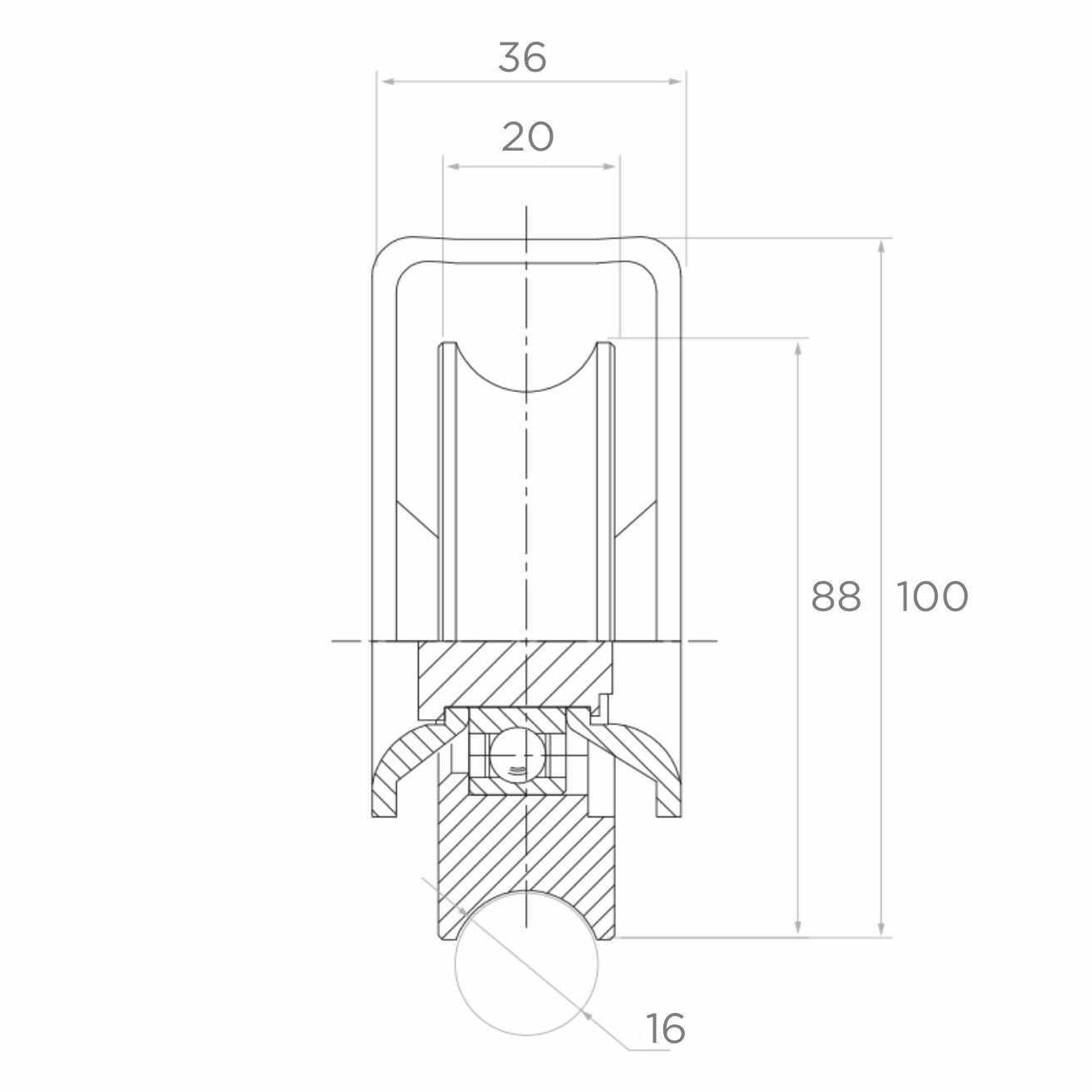

Technical parameters
- Manufacturer: PSG
- Groove type: V
- Roller diameter: 88 mm
- Groove width: 20 mm
- Total height: 100 mm
- Internal mounting height: 88 mm
- External bracket width: 36 mm
- Running rail diameter: 16 mm
- Mounting holes: 2 pcs with 8.7 mm diameter
- Mounting hole spacing: 105 mm
- Maximum load capacity: 250 kg
- Material: galvanised steel
- Weight: 1.1 kg
- Mounting screws: included
- EAN: 5901289675277
Installation and application
The roller is fixed to the lower frame of the sliding gate leaf using two screws through holes in the bracket base with 105 mm spacing. The V-shaped groove ensures secure guidance on a round rail with 16 mm diameter, eliminating lateral displacement of the leaf during gate operation. Surface galvanising protects the element from rust even in demanding atmospheric conditions, making this roller an ideal choice for professional installation companies seeking durable and reliable gate components.
