PSG gate running roller 'O' Ø 68 mm for round rail – 150 kg
Leave feedback on the product

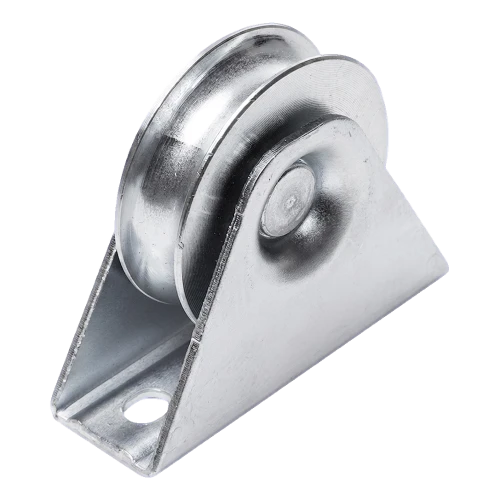

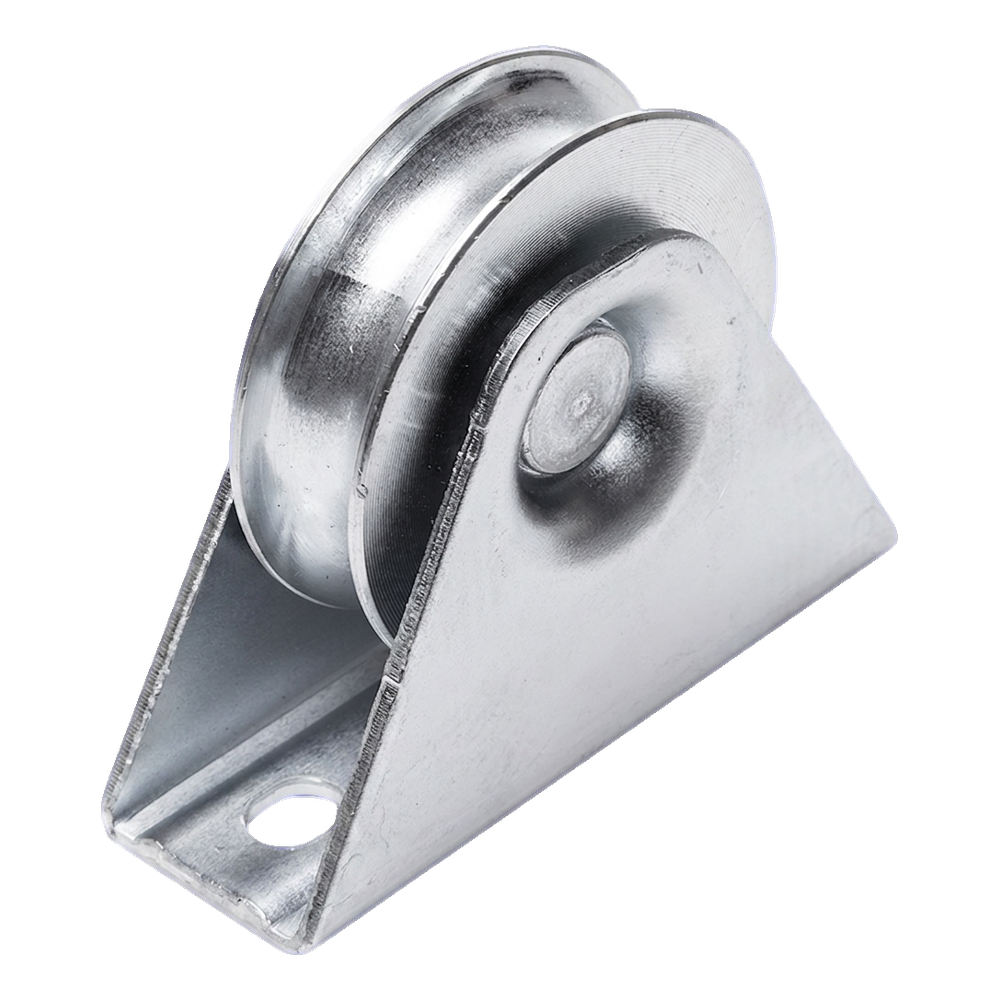

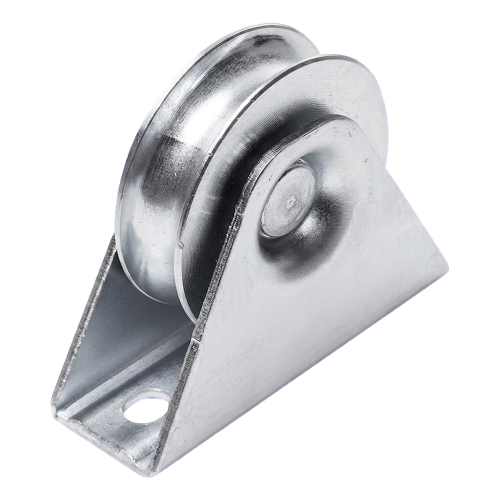

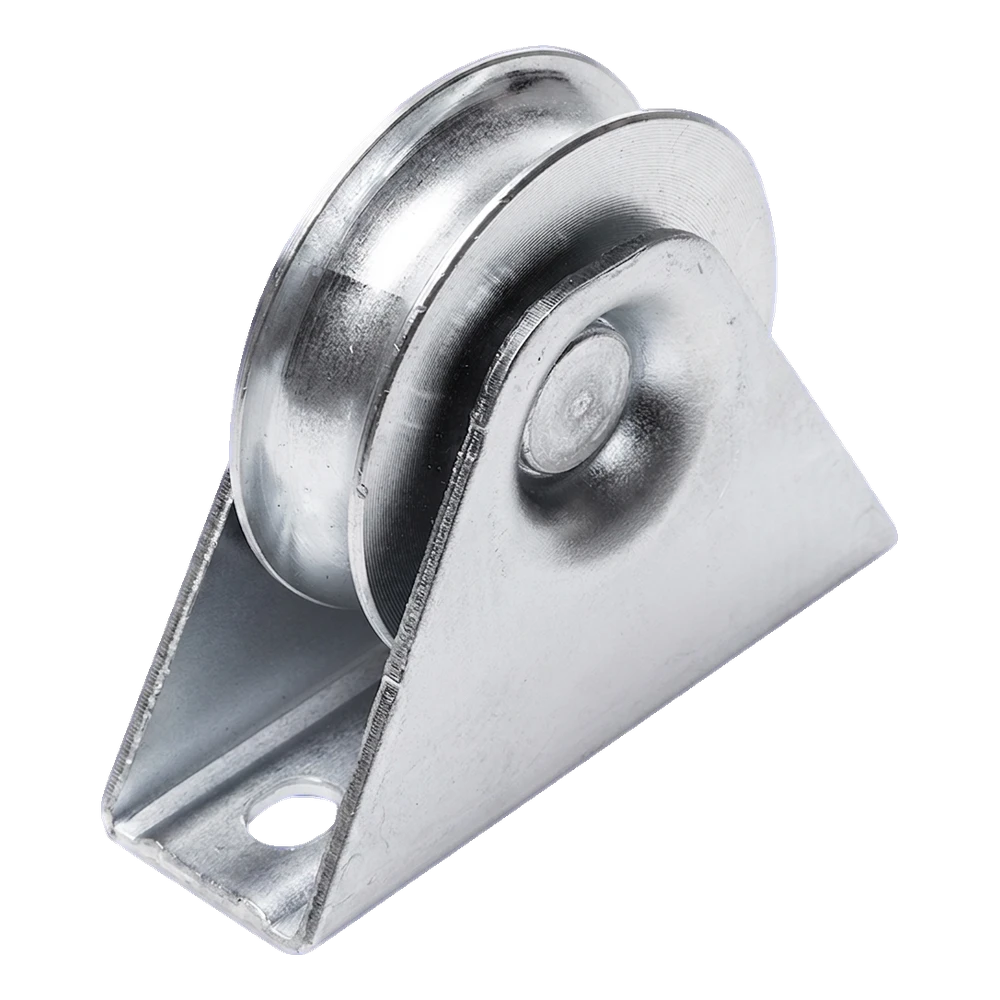

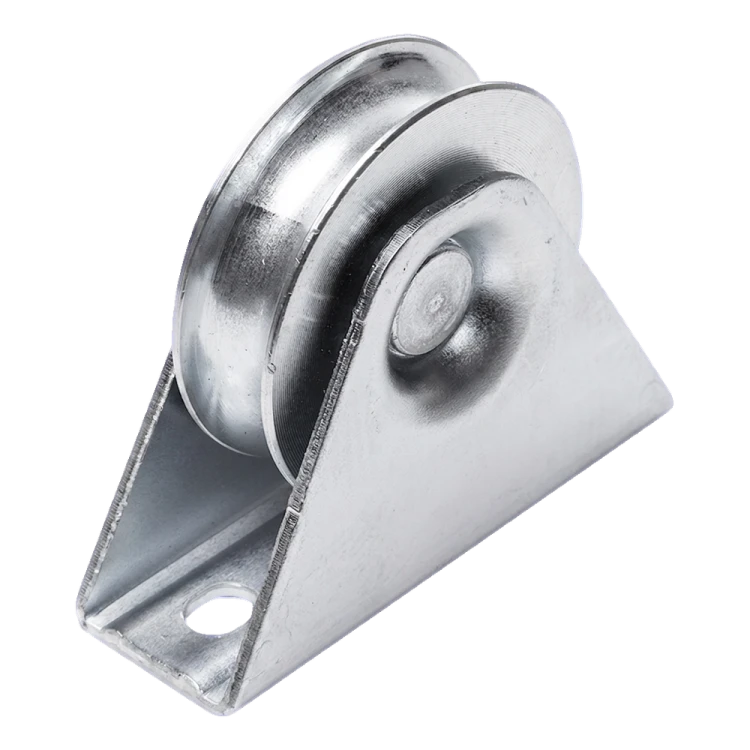

PSG gate running roller type O Ø 68 mm made of galvanised steel. For round rail 16.5 mm. Height 80 mm, bracket width 35 mm, weight 0.54 kg. Maximum load 150 kg. With mounting base and screw.
Product code: 001-305
Description
PSG gate running roller 'O' Ø 68 mm for round rail – 150 kg
Steel running roller type 'O' from PSG brand designed for sliding rail gates. The roller works with a round rail (tube) with diameter 16.5 mm and ensures smooth, quiet movement of the gate wing. Galvanised surface guarantees high corrosion resistance, making the product suitable for outdoor installations exposed to variable weather conditions.
The roller is supplied complete with mounting screw and base with mounting holes, allowing for quick installation without the need for cutting or additional machining of components. Maximum working load is 150 kg, which means full compatibility with most sliding gates used in residential properties and light industrial gates.
The type 'O' (round) groove is matched to the tubular rail profile — the roller seats securely on the guide rail, eliminating lateral play and reducing vibrations during gate operation. This is an important advantage for installations requiring quiet and stable operation, e.g. in semi-detached housing or gates with automatic drives.

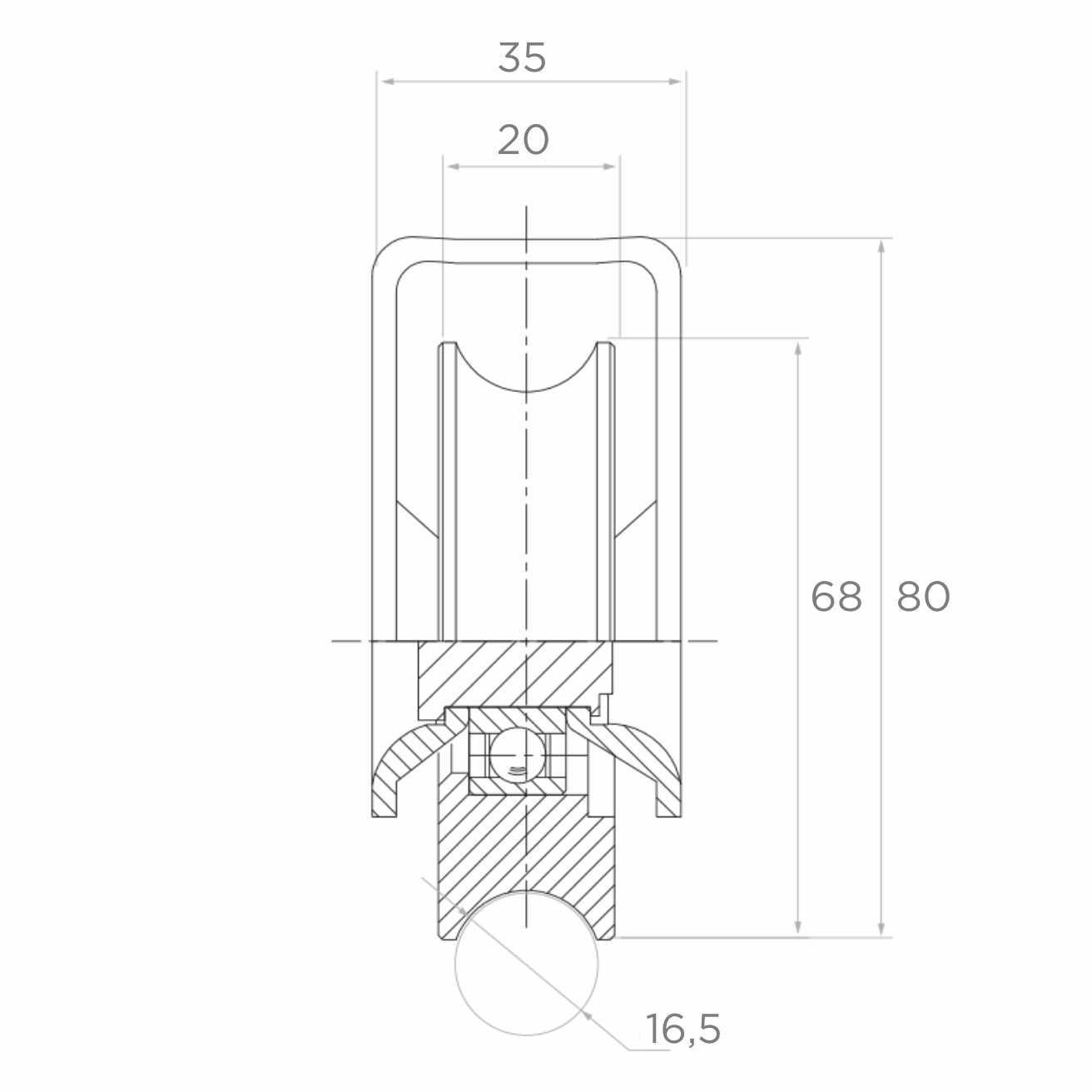

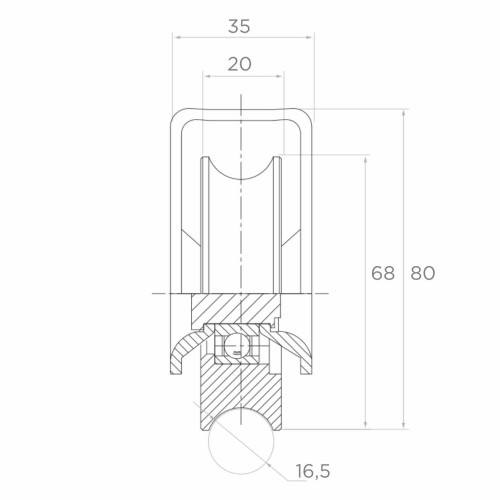

Technical parameters
- Groove type: 'O' (round)
- Roller diameter: Ø 68 mm
- Rail diameter (groove): 16.5 mm
- Total height: 80 mm
- Mounting height: 68 mm
- External bracket width: 35 mm
- Internal bracket width: 20 mm
- Maximum load: 150 kg
- Material: galvanised steel
- Weight: 0.54 kg
- Manufacturer: PSG
- EAN: 5901289675307
Set contents
- Running roller 'O' Ø 68 mm — 1 pc.
- Mounting screw — 1 pc.
- Base with mounting holes — 1 pc.
