PSG gate roller bearing type 'O' ø 70 mm for round rail - galvanised
Leave feedback on the product
PSG gate roller bearing type 'O' ø 70 mm, galvanised steel. 16.5 mm groove for round rail, load capacity 150 kg, weight 0.395 kg. For sliding rail gates.
Product code: 001-303
Description
PSG gate roller bearing type 'O' ø 70 mm for round rail - galvanised

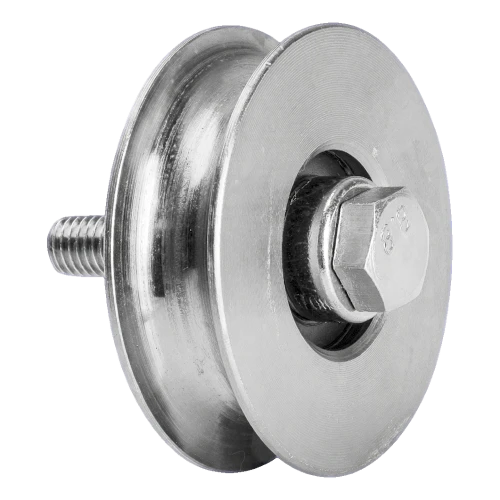

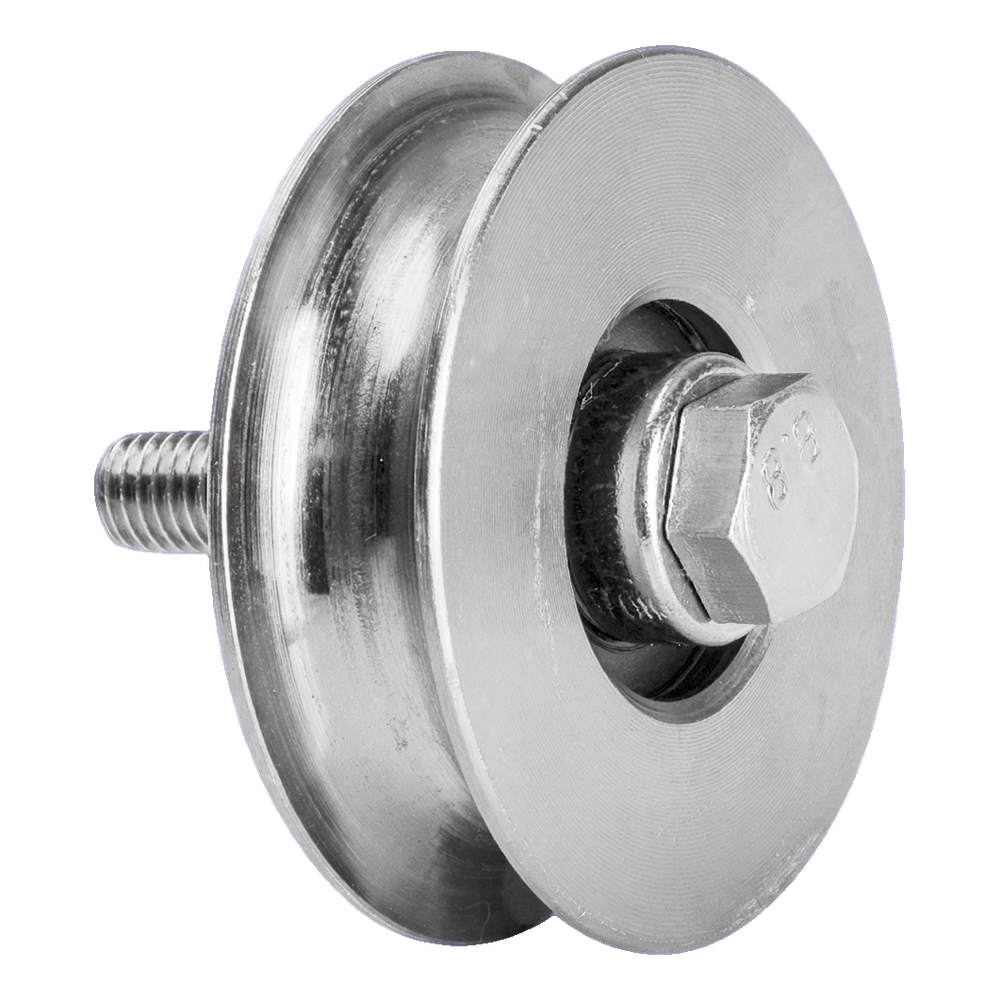

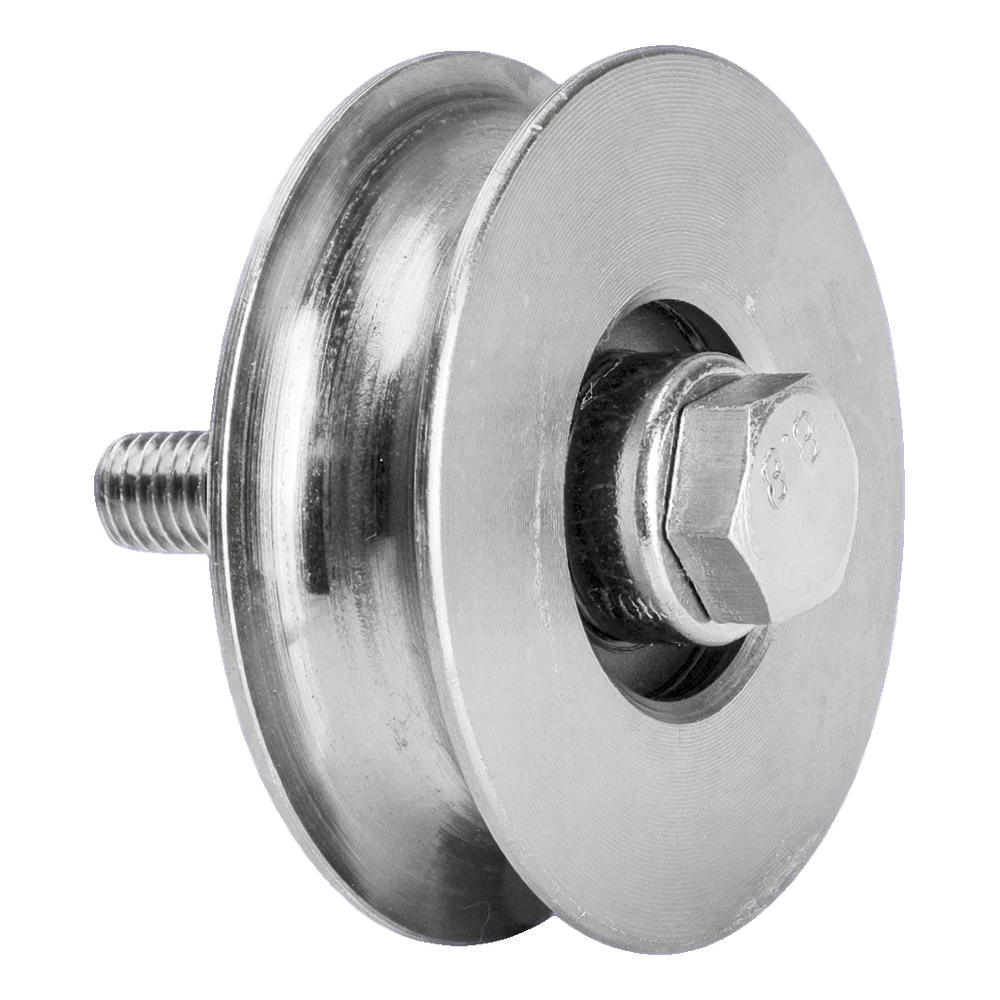

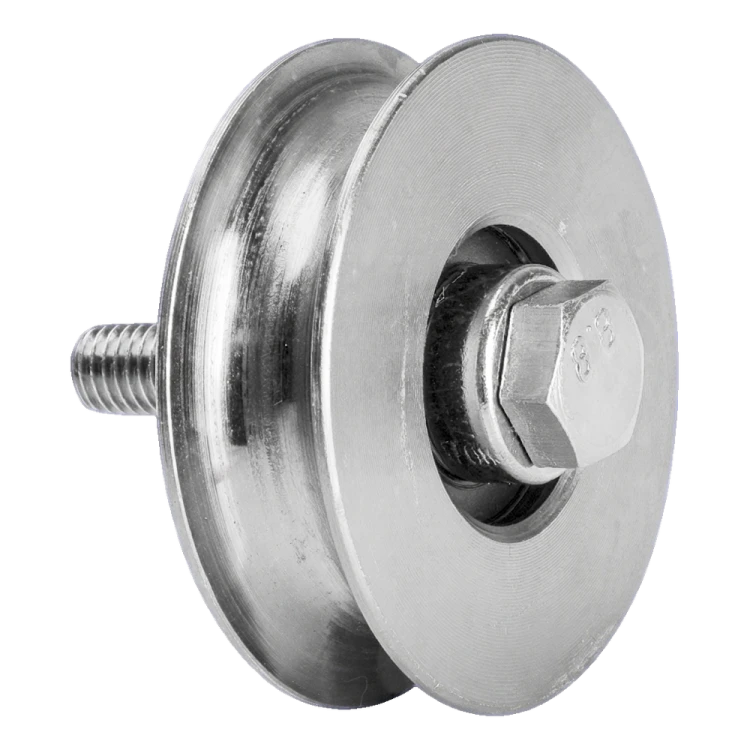

Steel roller bearing type 'O' designed for sliding rail gates. The roller with 70 mm diameter works with round rail (tube) and ensures smooth, quiet movement of the gate leaf. Thanks to the galvanised surface the component is corrosion-resistant and designed for long-term outdoor operation. The set includes a mounting screw, allowing immediate installation without the need to select separate fasteners.
The groove profile in the shape of letter 'O' ensures stable guidance on the tubular running rail. The roller performs well both in garden gates for private properties and in industrial facilities - wherever a reliable sliding system on ground rail is required. Maximum load capacity of 150 kg allows use with gates of moderate weight, typical for residential fencing and light industrial gates.
Dimensions and technical data
- Groove type: 'O' (for round rail / tube)
- Roller diameter (D): 70 mm
- Groove width (B): 16.5 mm
- Maximum load capacity: 150 kg
- Material: galvanised steel
- Included: mounting screw
- Weight: 0.395 kg
- Manufacturer: PSG
- EAN: 5901289675291
In the technical drawing, marking D corresponds to the external diameter of the roller, B - groove width, and P - diameter of the round rail with which the roller works. When selecting the roller, ensure that the running rail diameter matches the groove profile.
