PSG gate approach bracket 60 for rail 60×60 mm – self-supporting sliding gate
Description
PSG gate approach bracket 60 for rail 60×60 mm – self-supporting sliding gate

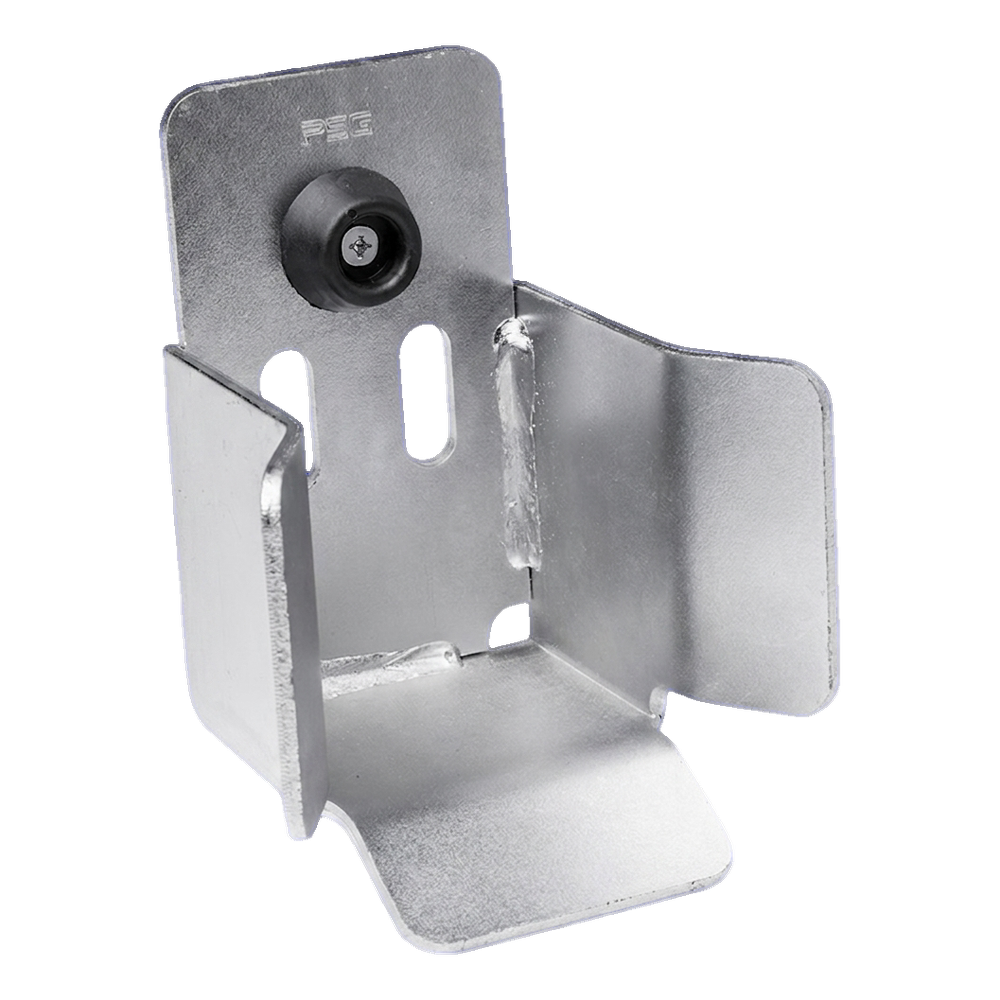

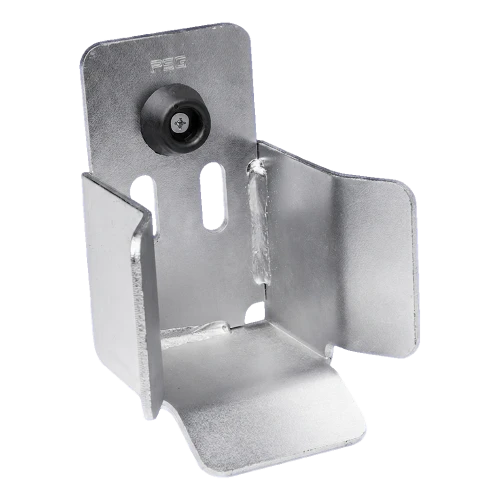

PSG approach bracket 60 is a robust guiding element designed for mounting self-supporting sliding gates equipped with a load-bearing rail of 60×60 mm cross-section. Made from thick steel sheet with 4 mm thickness, it ensures stable guidance and secure approach of the gate leaf onto the travel trolley. The funnel-shaped design with flared side walls facilitates rail introduction even with slight alignment deviations — this speeds up installation and eliminates the need for repeated adjustments.
The bracket is equipped with a buffer roller mounted on the mounting plate, which dampens vibrations and protects the rail from direct contact with metal. Slotted mounting holes enable position adjustment of the bracket after bolting to the supporting structure — you achieve precise alignment without the need for re-drilling.

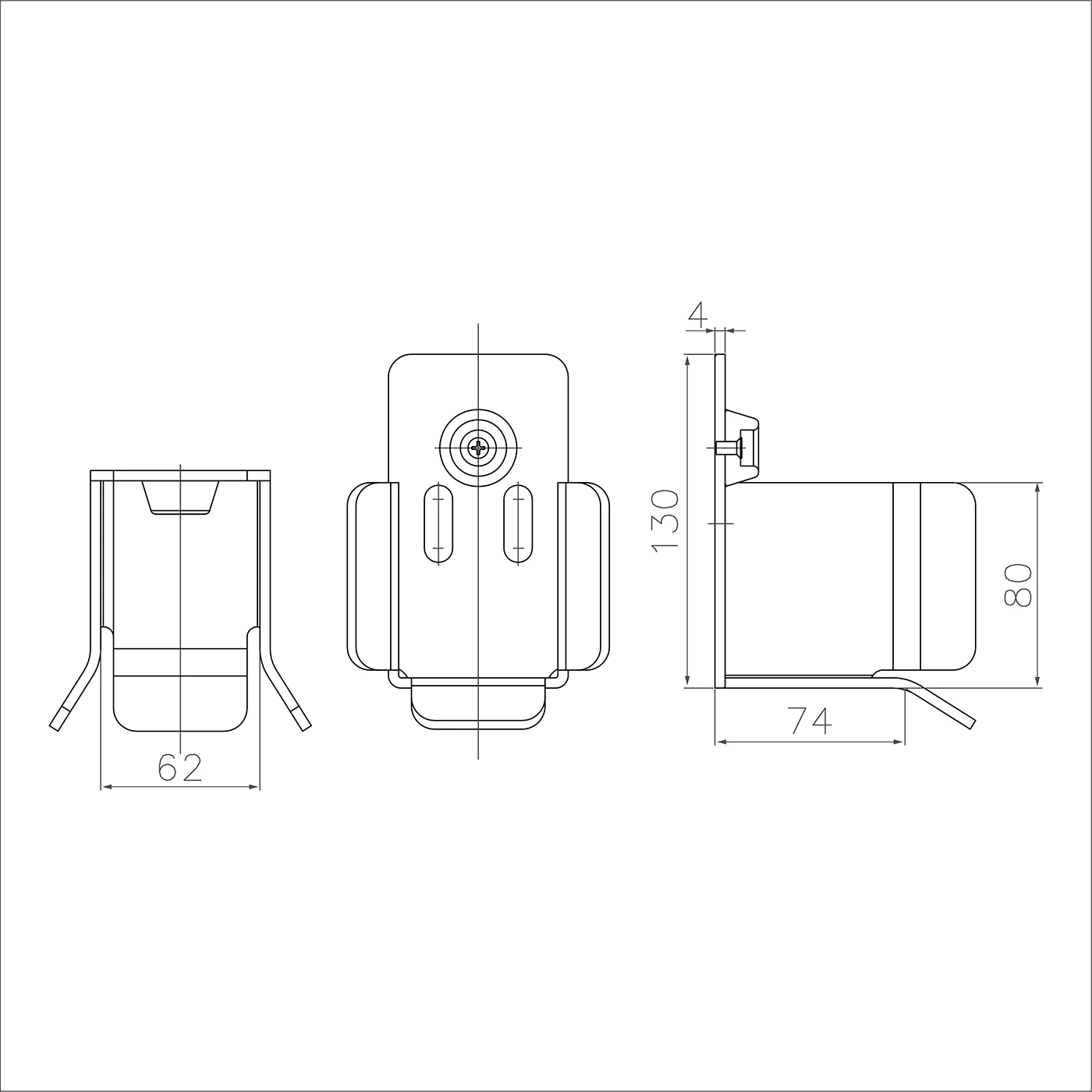

Dimensions and technical data
- Application: self-supporting gate rail 60×60 mm
- Total height (mounting plate): 130 mm
- Side wall height: 80 mm
- Base depth: 74 mm
- Internal width (clear): 62 mm
- Sheet thickness: 4 mm
- Weight: 0.9 kg
- Manufacturer: PSG
- EAN: 5903313202428
Application and mounting
The approach bracket is mounted on a post or supporting structure at the target point of gate closure. Its purpose is to safely guide the rail onto the travel trolley during gate leaf closing. The flared side walls in funnel shape compensate for slight deviations in the gate track, which is particularly important for long spans and changing thermal conditions affecting structural expansion.
Slotted mounting holes allow for smooth vertical and horizontal adjustment without the need to drill new holes — this represents real time savings on site. Solid construction from 4 mm sheet guarantees years of trouble-free operation even with intensively used industrial gates.
