PSG gate access bracket 100x89 for self-supporting sliding gates
Leave feedback on the product

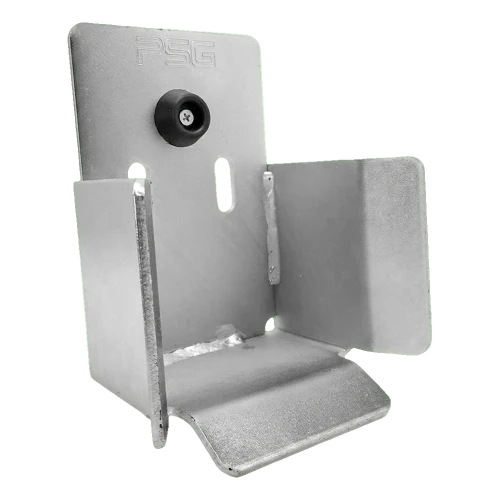

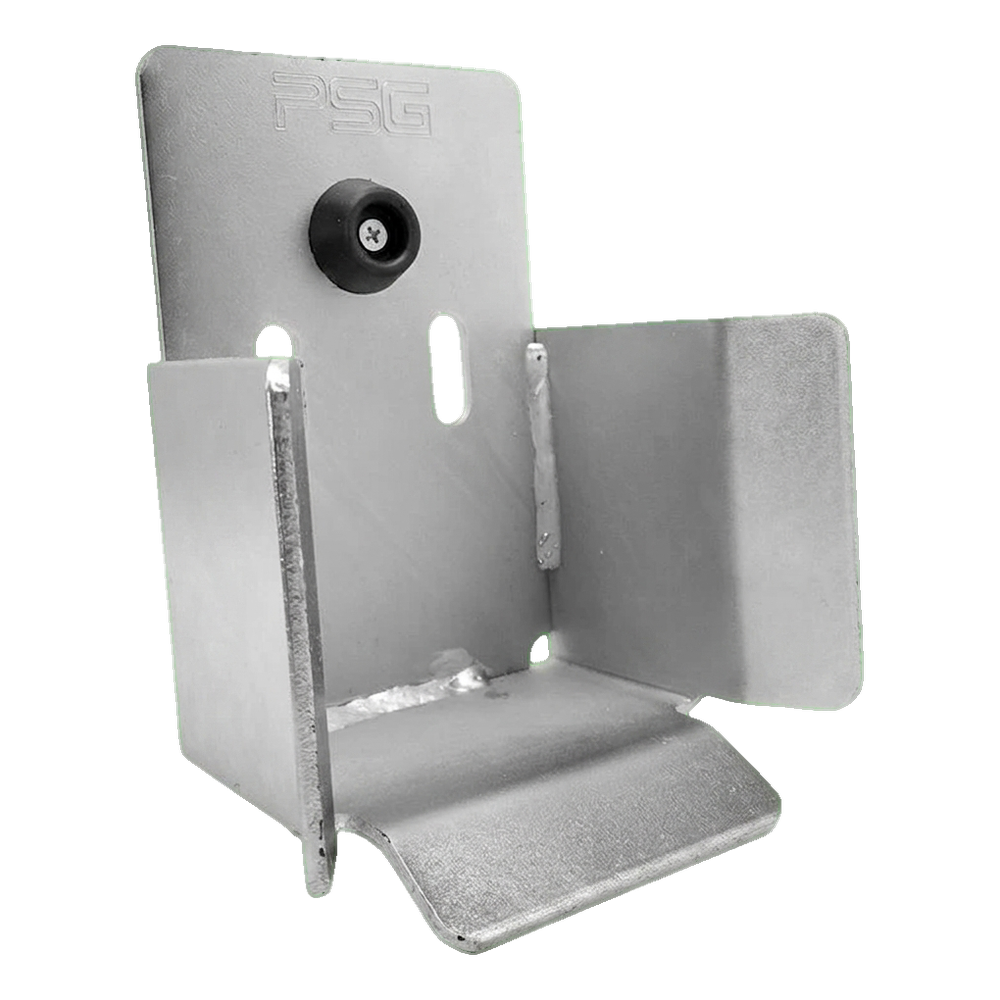

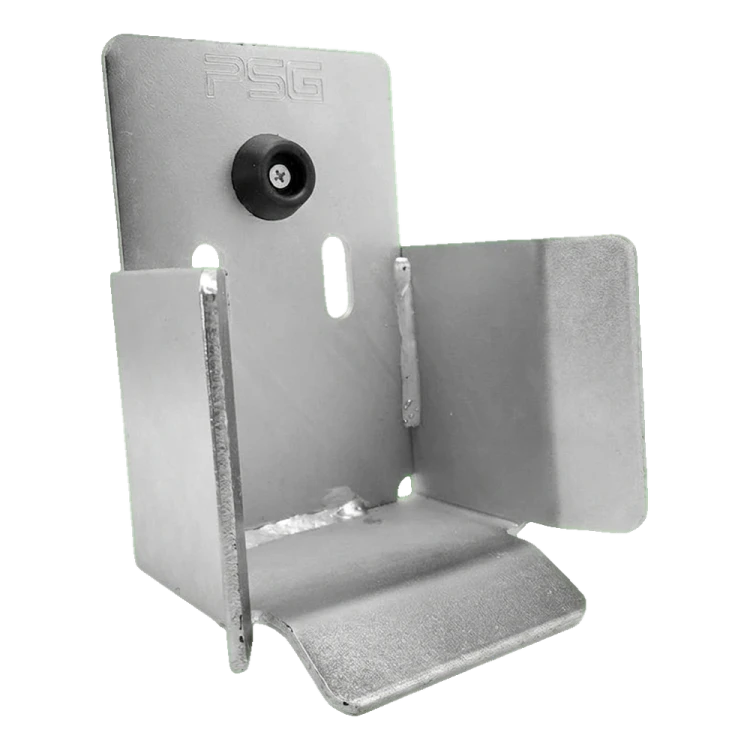

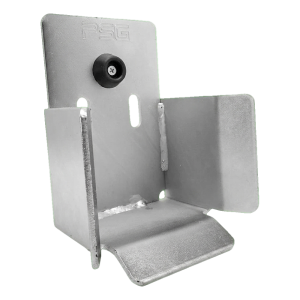

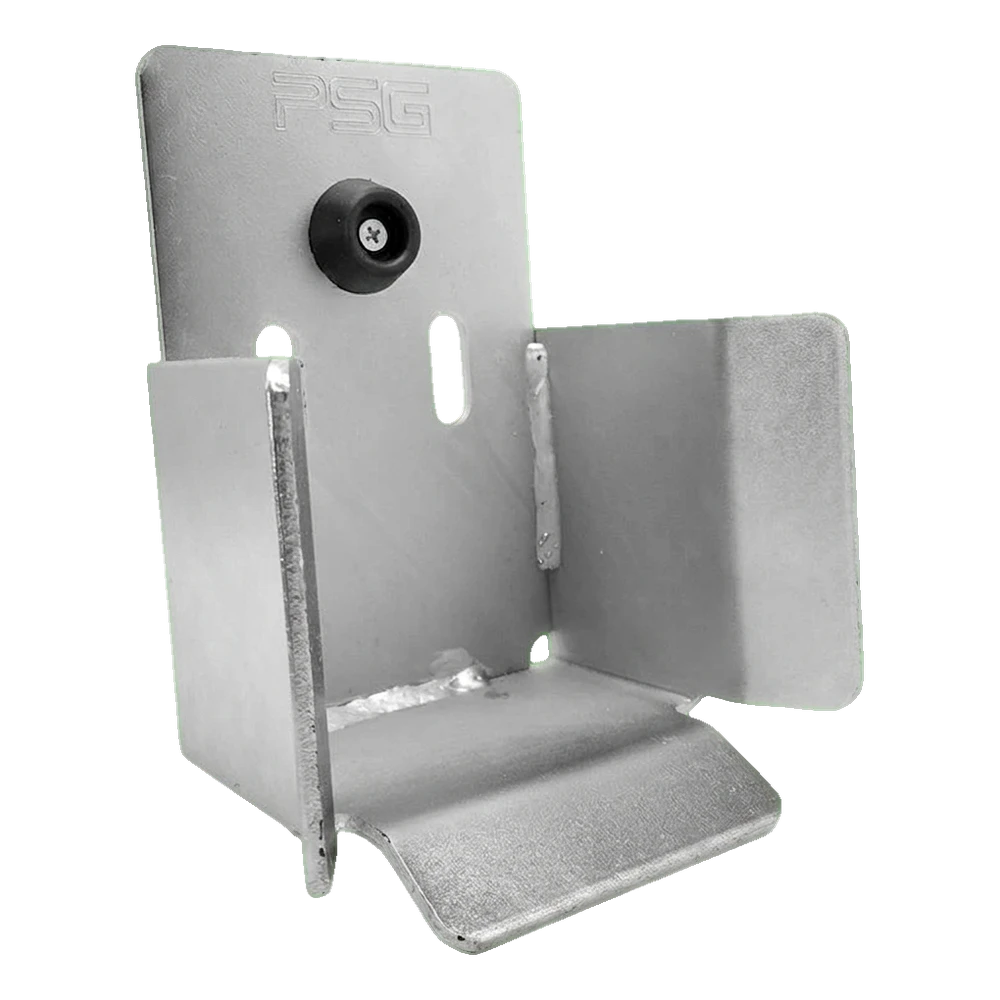

PSG access bracket made of steel, dimensions 168x108x102 mm, sheet thickness 4 mm, weight 1.53 kg. For self-supporting sliding gates with 89x100 mm rail. With rubber bumper and adjustable mounting holes.
Product code: 001-253
Description
PSG gate access bracket 100x89 for self-supporting sliding gates
PSG access bracket designed for mounting self-supporting sliding gates equipped with a guide rail of 89×100 mm dimensions. Solid, welded construction made of steel sheet with 4 mm thickness guarantees long-lasting and trouble-free gate operation, ensuring precise rail guidance at the access point.
The bracket is equipped with a rubber bumper that absorbs rail impacts during gate closing, protecting the mechanism from damage and reducing noise. Bean-shaped mounting holes enable position adjustment of the bracket after installation, significantly facilitating gate alignment in the guide axis. Splayed side wings act as guide channels directing the rail, ensuring smooth and safe access even with slight deviation from the gate track.

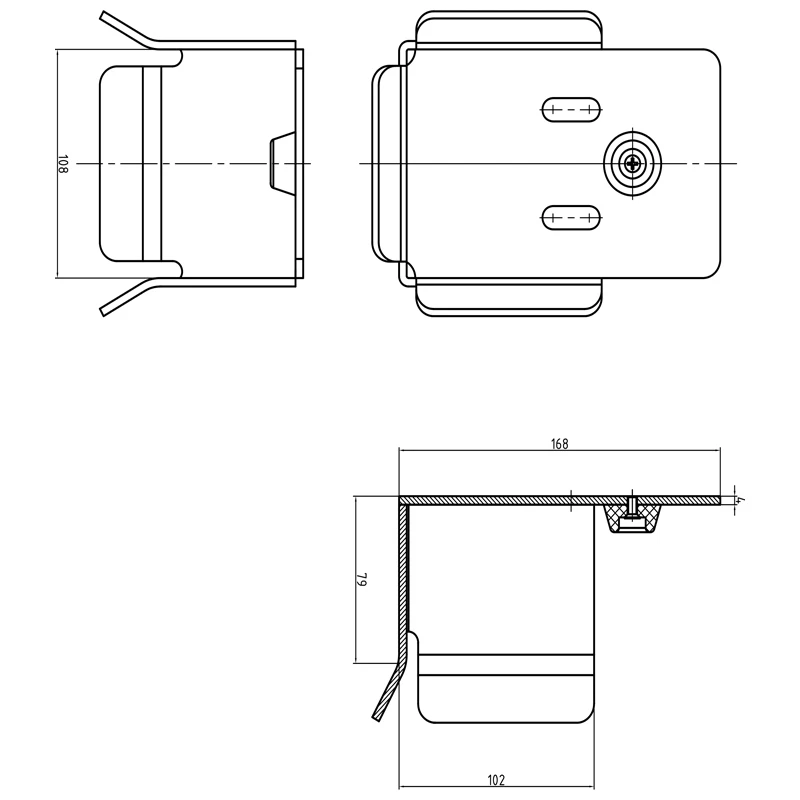

Dimensions and technical data
- Application: self-supporting sliding gates with 89×100 mm rail
- Overall length: 168 mm
- Internal width (wall spacing): 108 mm
- Side wall depth: 102 mm
- Rear wall height: 79 mm
- Sheet thickness: 4 mm
- Weight: 1.53 kg
- Material: steel with rubber bumper
- Mounting holes: slots enabling adjustment
- Manufacturer: PSG
- EAN: 5903313202022
Product ideal for completing PSG self-supporting sliding gate systems. Thanks to adjustable mounting holes, installation and precise bracket adjustment are quick and require no specialist tools — a standard assembly kit is sufficient.
