PSG galvanised steel entry roller for self-supporting sliding gate 70/80
Description

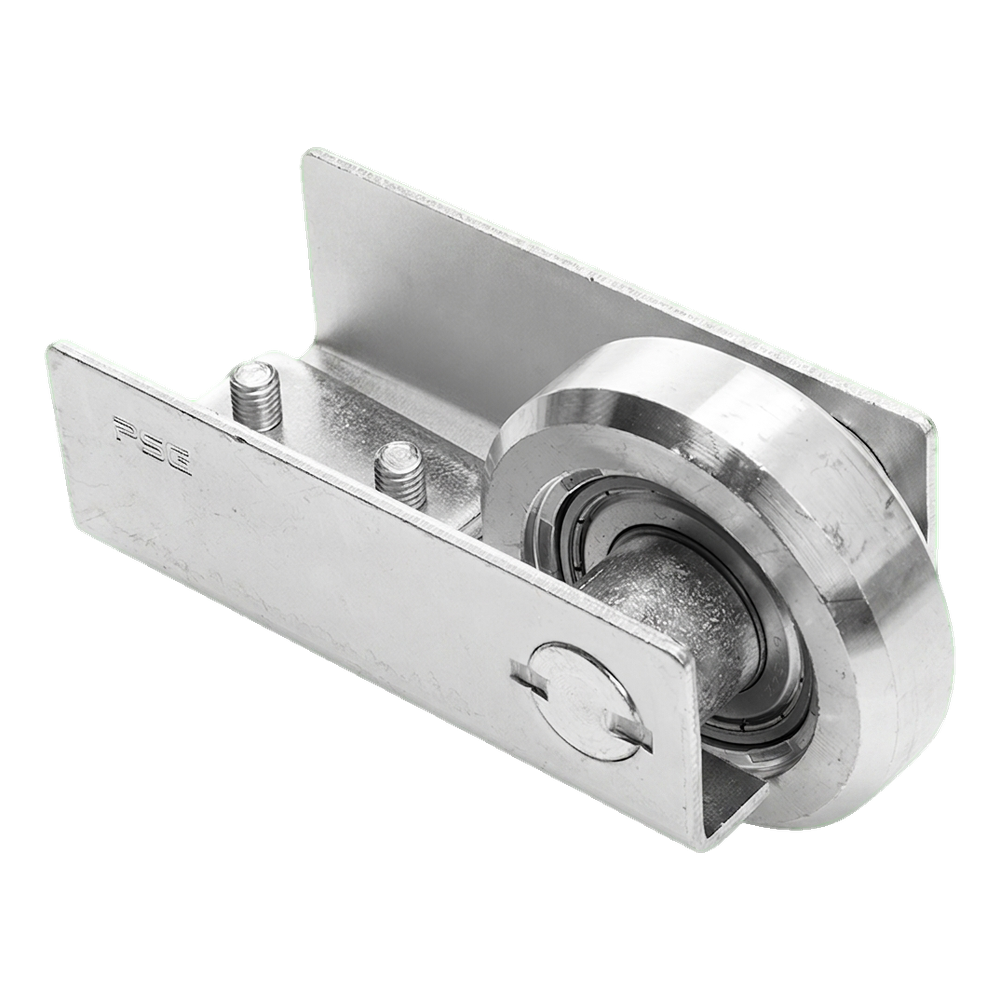

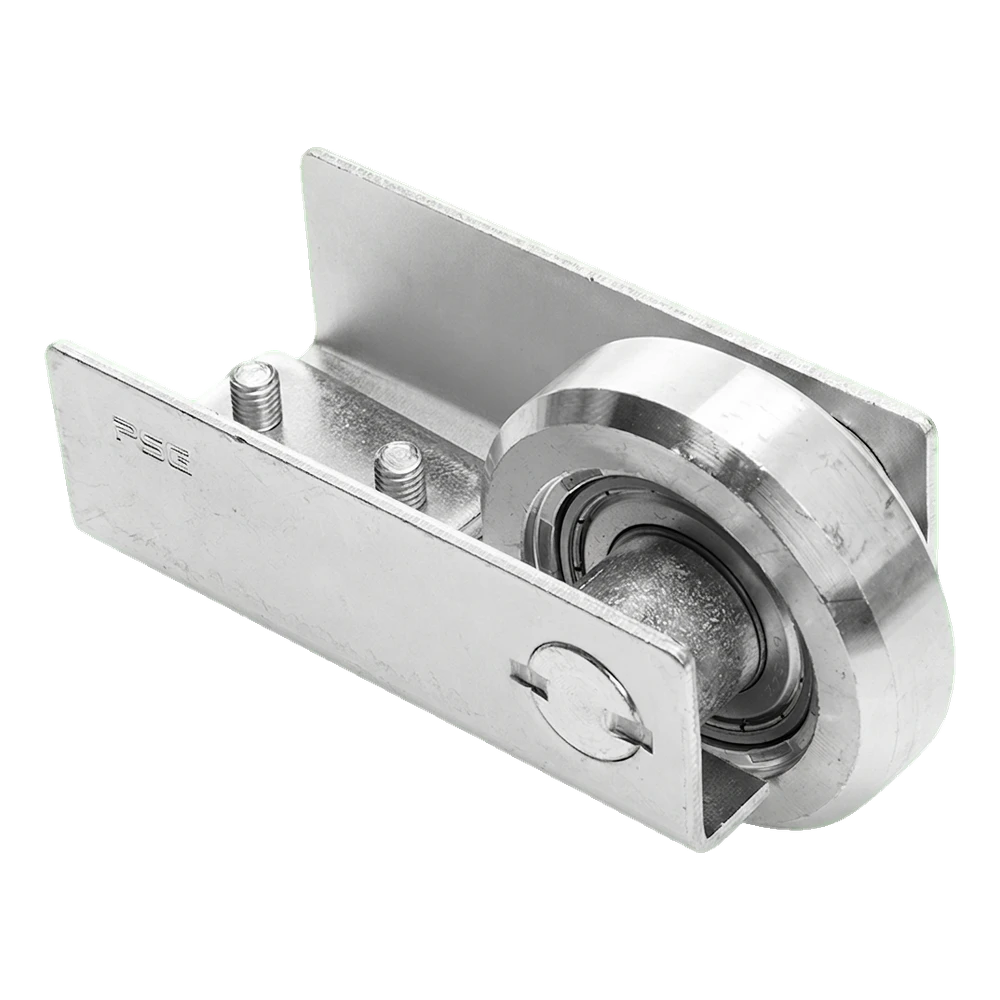

PSG galvanised steel entry roller for self-supporting sliding gate 70/80
PSG entry roller 70/80 is a steel, galvanised component mounted at the beginning of a self-supporting sliding gate rail. Its purpose is to enter the entry bracket attached to the gate post, which allows distributing the gate weight across more elements and effectively stabilising it when closed. Using an entry roller significantly extends the service life of gate carriages by reducing their load in the closed position.
The product is universal — it fits both 70×70×4 mm and 80×80×5 mm rails, making it suitable for most typical self-supporting sliding gate installations. Mounting screws are included in the set, eliminating the need to order connectors separately and speeding up installation.

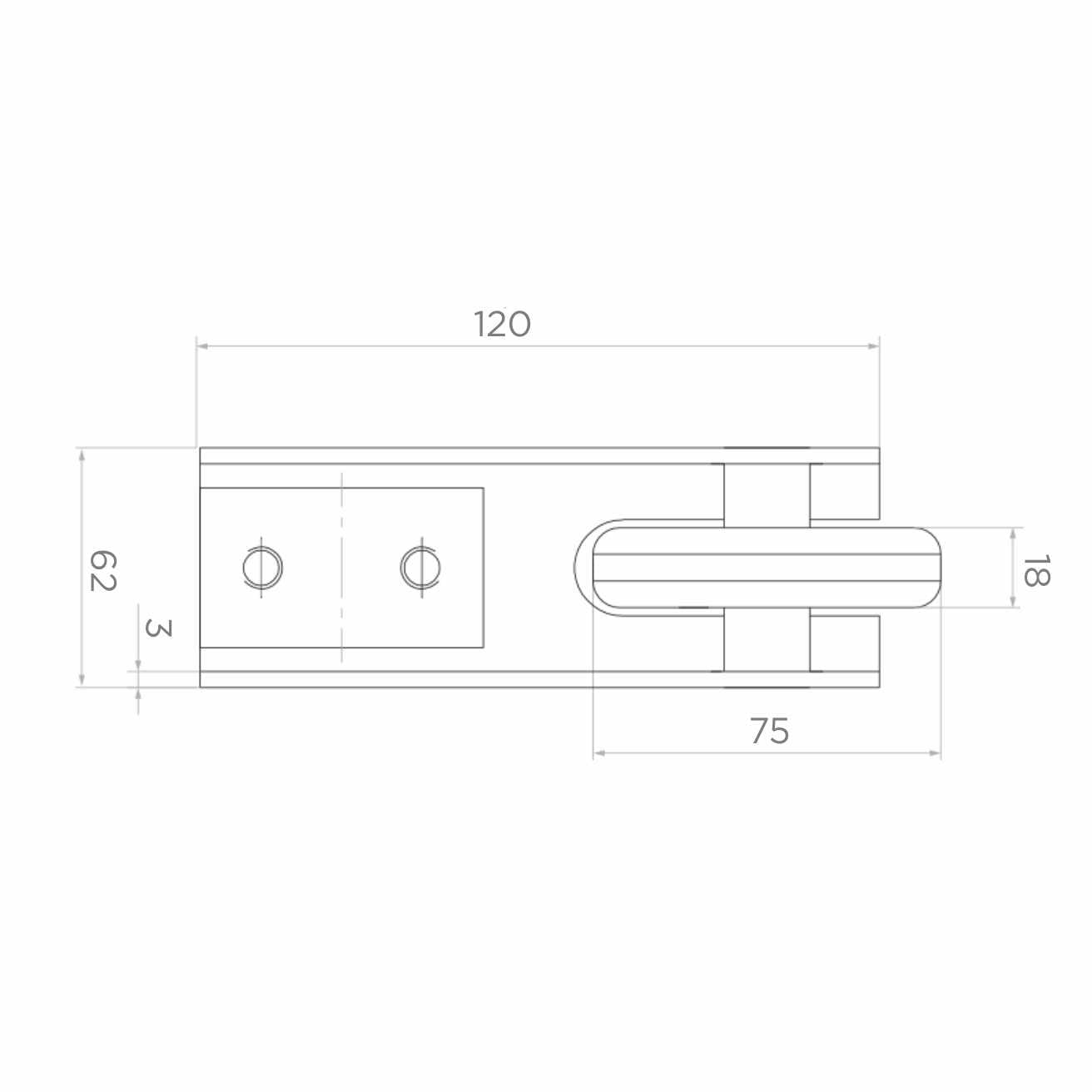

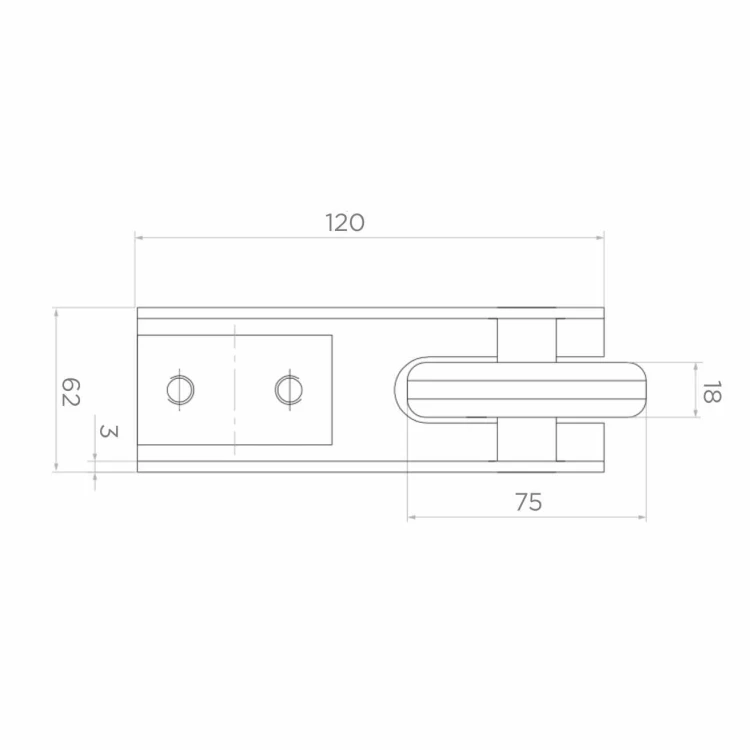

Dimensions and technical data
- Manufacturer: PSG
- Material: galvanised steel
- Rail compatibility: 70×70×4 mm and 80×80×5 mm
- Body length: 120 mm
- Total body width: 62 mm
- Wall thickness: 3 mm
- Roller width: 18 mm
- Distance of roller axis from rear edge: 75 mm
- Weight: 1.24 kg
- Included: mounting screws
- EAN: 5901289674775
Application and benefits for the installer
The entry roller is a key component of a properly functioning self-supporting sliding gate. When the gate closes, the roller enters the entry bracket, taking over part of the load from the running carriages. This reduces wear on carriage bearings, and the entire structure operates more quietly and smoothly. The galvanised surface ensures high corrosion resistance, guaranteeing years of trouble-free operation even in harsh weather conditions. Universal compatibility with the two most popular rail sizes allows reducing the number of variants in stock and simplifying order logistics.
