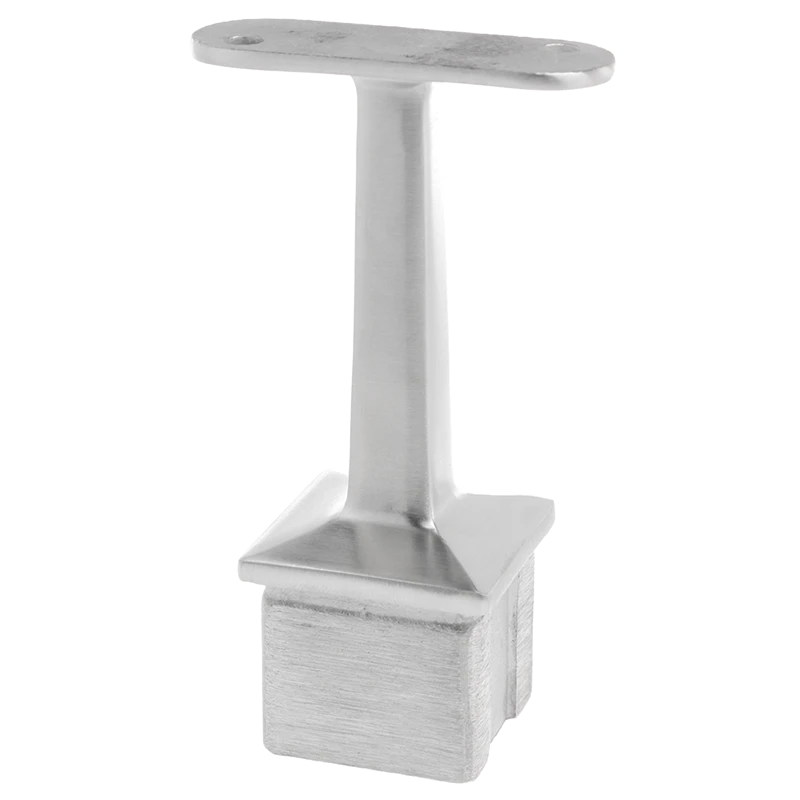

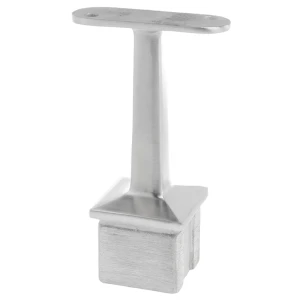

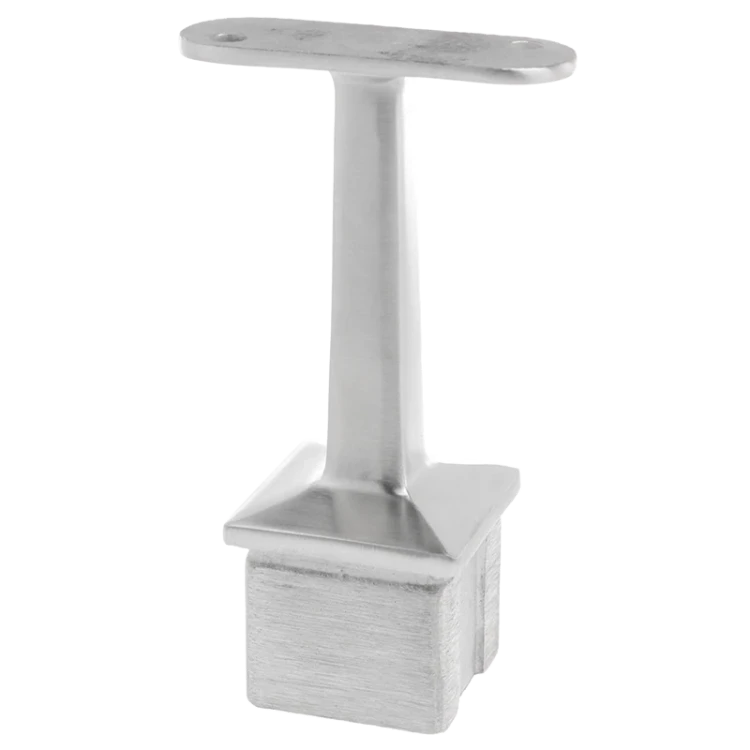

PSG flat handrail support bonded to 40×40 mm post – AISI 304 stainless steel satin
Description
PSG flat handrail support bonded to 40×40 mm post – AISI 304 stainless steel satin
Flat handrail support designed for square posts of the 40×40 mm system with 2 mm wall thickness. A connecting element between the post and flat handrail, installed using anaerobic bonding method — ensures a durable, aesthetic and invisible connection without screws at the joint with the post.
Construction and installation
The lower part of the support is inserted and bonded directly into the interior of the square post 40×40/2 mm using anaerobic adhesive. The vertical bracket transfers the load to the upper, oval mounting plate with two holes, to which the flat handrail is bolted. This design eliminates visible connecting elements on the outside of the post, giving a smooth, modern appearance to the entire balustrade.
Technical parameters

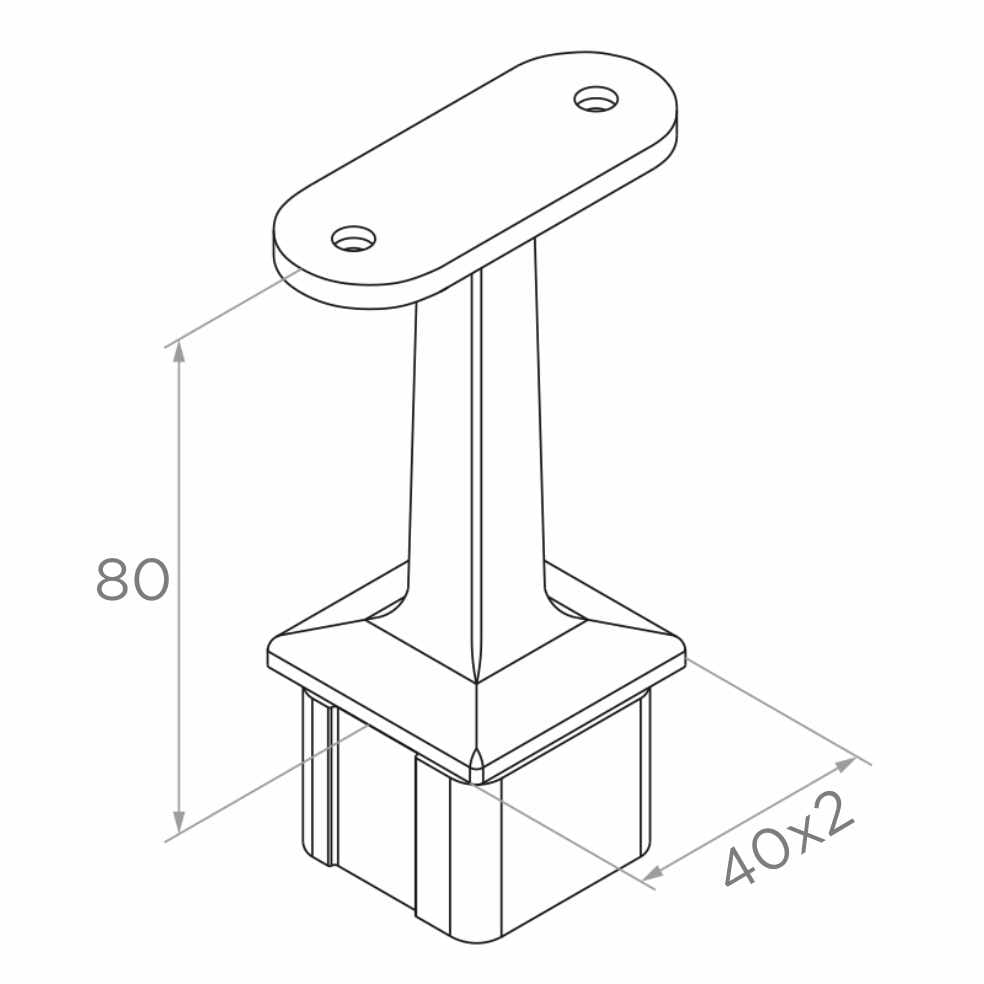

- Height (from post to handrail after installation): 81 mm
- Compatibility: square post 40×40 mm, wall thickness 2 mm
- Upper mounting plate: oval, 2 holes for flat handrail mounting (14×14 mm)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Installation method: anaerobic bonding (bonding into post)
- Weight: 0.24 kg
- EAN: 5901289672078
Application
The support is dedicated to balustrade systems based on square posts 40×40 mm with flat handrail. AISI 304 stainless steel with satin finish performs well in indoor applications — staircases, mezzanines, shopping galleries, office buildings. The satin surface effectively masks fingerprints and minor scratches, which minimises the costs of maintaining balustrade cleanliness.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
