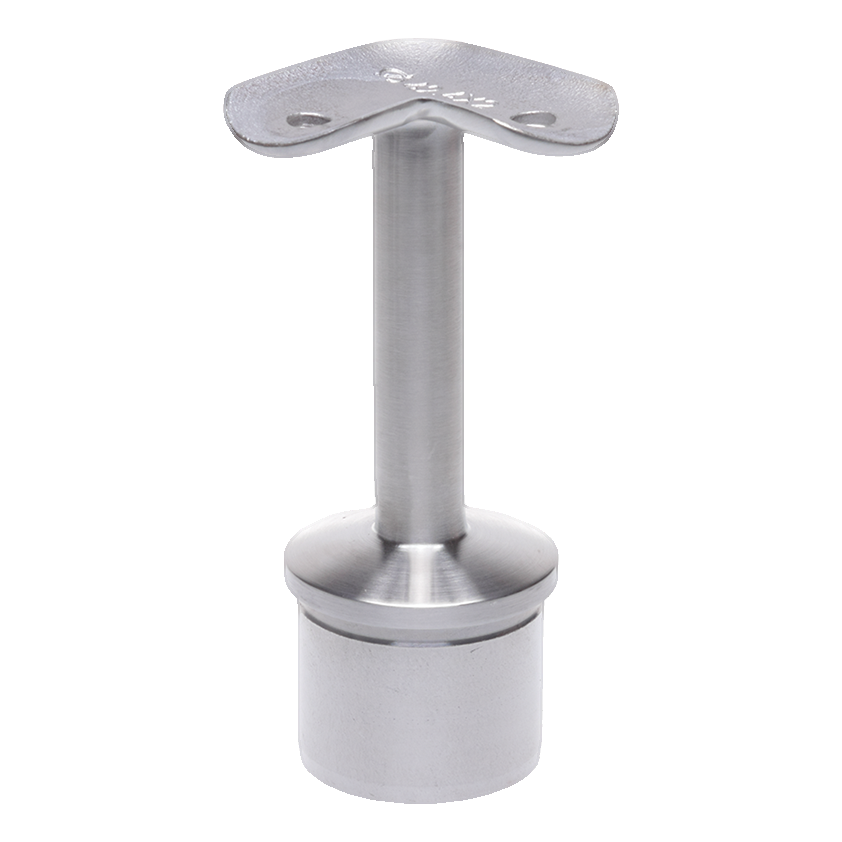

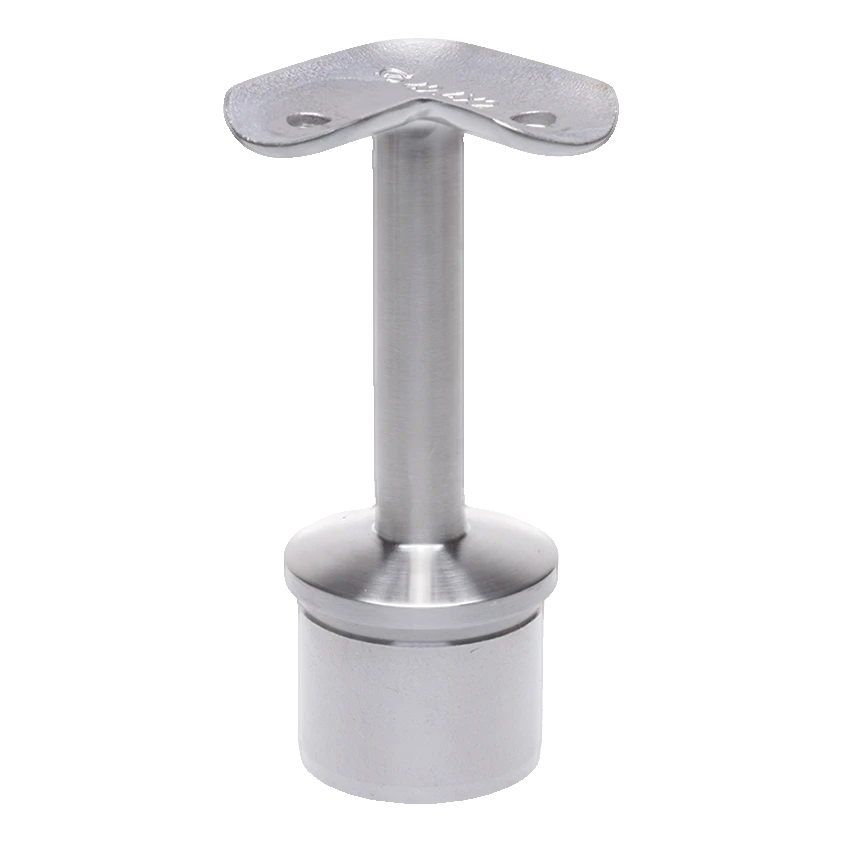

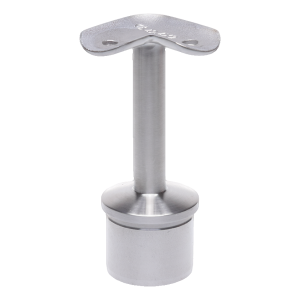

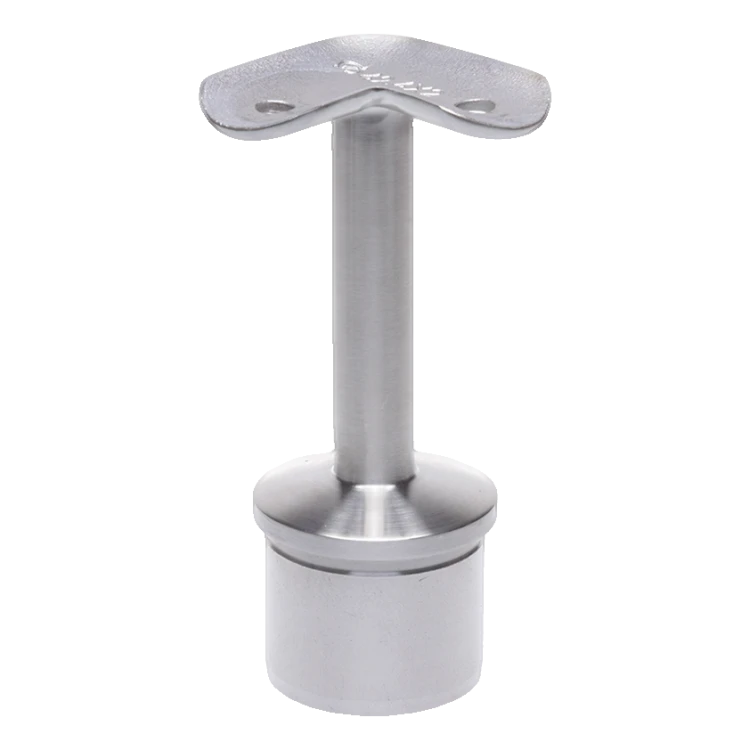

PSG corner handrail bracket 90° bonded – 42.4 mm balustrade system, stainless steel satin
Description
PSG corner handrail bracket 90° bonded – 42.4 mm balustrade system, stainless steel satin
Corner handrail bracket PSG is a permanent, bonded structural element for balustrades designed for mounting in 42.4 × 2 mm posts. Thanks to its rigid connection, it provides durable and stable handrail support at a 90° angle — ideal solution for balustrade corners, stairs and galleries. The product is mounted using anaerobic adhesive, which guarantees reliable, permanent connection without the need for welding on site.
The bracket is made of AISI 304 stainless steel with a satin finish, which provides an aesthetic, matt appearance resistant to fingerprints and minor scratches. The material guarantees high corrosion resistance — the element is suitable for both indoor installations and applications in sheltered outdoor spaces.

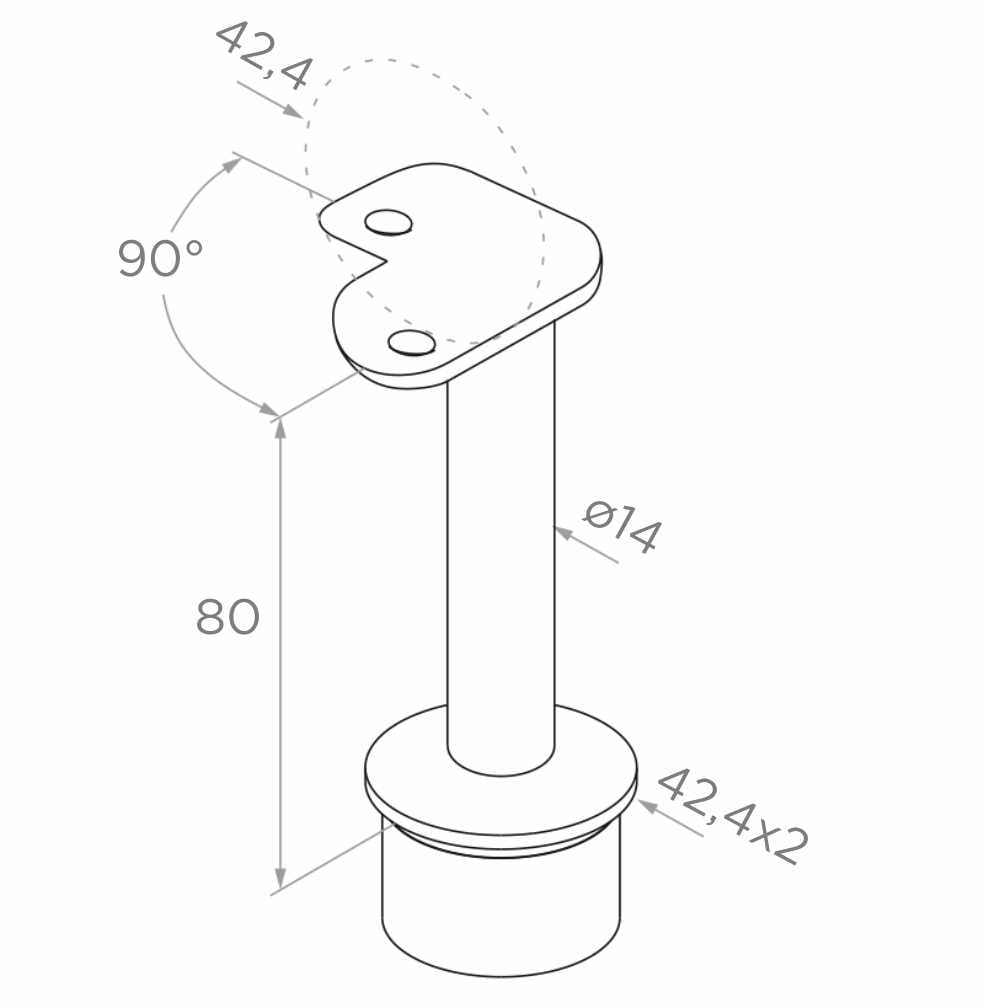

Dimensions and technical data
- Material: AISI 304 stainless steel
- Surface finish: satin
- Balustrade system: 42.4 mm
- Bracket angle: 90° (corner)
- Height (from post to handrail): 80 mm
- Handrail diameter: 42.4 mm
- Spindle diameter: Ø14 mm
- Mounting dimension base (post tube): 42.4 × 2 mm
- Mounting: bonded (anaerobic adhesive)
- Adjustment: none — fixed element
- Weight: 0.22 kg
- EAN: 5901289671903
Installation guidelines
The bracket is designed to be bonded into a post tube measuring 42.4 × 2 mm using anaerobic adhesive. Before installation, the contact surfaces must be degreased, then adhesive applied and the bracket seated in the tube, maintaining correct positioning of the saddle at a 90° angle. The element has no adjustment capability after mounting — precise positioning is crucial before adhesive curing.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
