PSG bumper for suspended sliding and folding gate – galvanised
Description

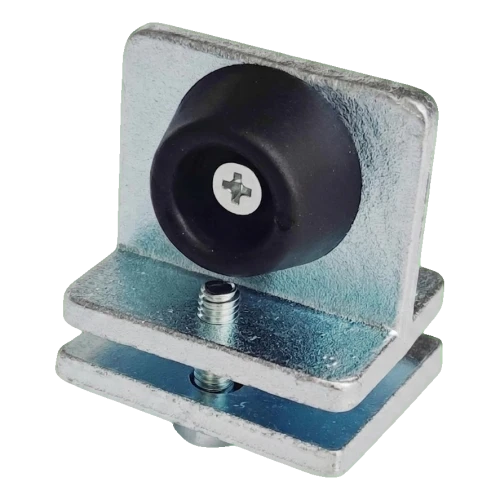

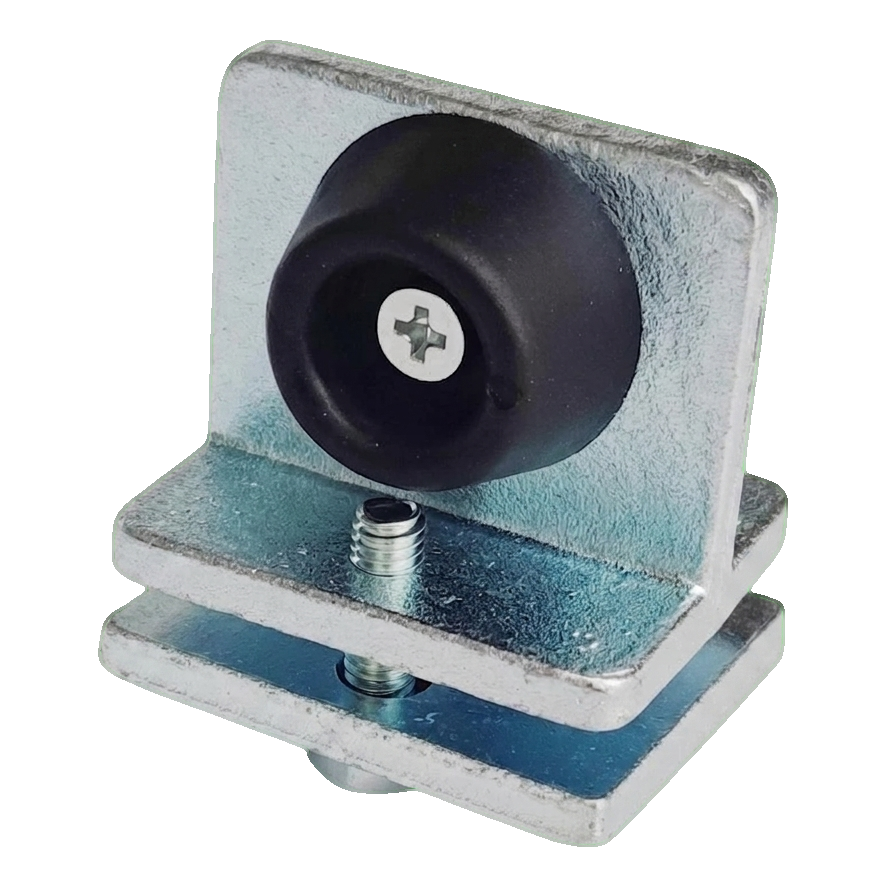

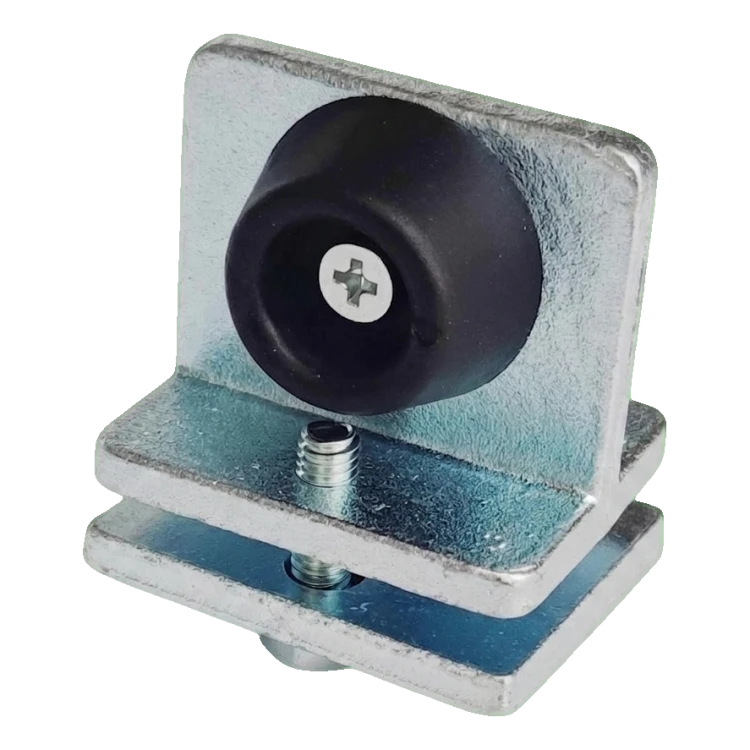

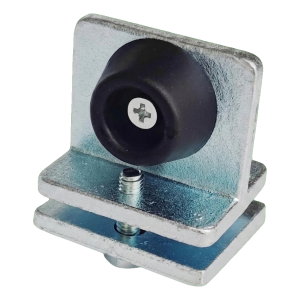

PSG bumper for suspended sliding and folding gate – galvanised
Bumper (stopper) for suspended gates by PSG is a protective element that prevents the sliding or folding gate leaf from uncontrolled extension beyond the running rail. Mounted at the end of the guide rail, it effectively absorbs impact thanks to the rubber buffer with diameter Ø30 mm, protecting both the running mechanism and the gate structure.
The product is fully galvanised, ensuring high resistance to corrosion and atmospheric conditions – suitable for both indoor and outdoor installations. The bumper is part of the 64×68 mm guide rail system, guaranteeing full compatibility with a wide range of suspended gates based on this standard.
The set includes mounting screws, making installation quick without the need for additional hardware. The mounting angle bracket with base screwed to the rail allows for secure and stable fixing at the selected position on the running track.
Dimensions and technical data
- Manufacturer: PSG
- Compatibility: 64×68 guide rail system
- Overall height (H): 50 mm
- Width (L): 46 mm
- Base depth: 38 mm
- Vertical plate height: 40 mm
- Vertical plate thickness: 5 mm
- Base thickness: 5 mm
- Rubber buffer diameter: Ø30 mm
- Rubber buffer depth: 13 mm
- Buffer mounting screw: M5×8
- Rail mounting screws: M6×20
- Angle bracket material: galvanised steel
- Buffer material: rubber (black)
- Weight: 0.201 kg
- EAN: 5903313203722
Application
The bumper is designed for mounting in running rails of suspended gates – both sliding and folding. It serves as an end stop, preventing running trolleys from travelling beyond the guide rail. Thanks to the rubber buffer, it ensures quiet and safe stopping of the gate leaf, which is particularly important in industrial and warehouse facilities where gates are intensively used.
Technical data
| Material | Steel |
