PSG bracket for self-supporting sliding gate catch guide 130×75 mm
Leave feedback on the product
PSG bracket for self-supporting sliding gate catch guide made from galvanised steel. Dimensions 130×75×55 mm, sheet thickness 3 mm. Angle bracket with slotted holes for position adjustment. For side mounting of catch socket. Weight 0.28 kg.
Product code: 001-250
Description
PSG bracket for self-supporting sliding gate catch guide 130×75 mm

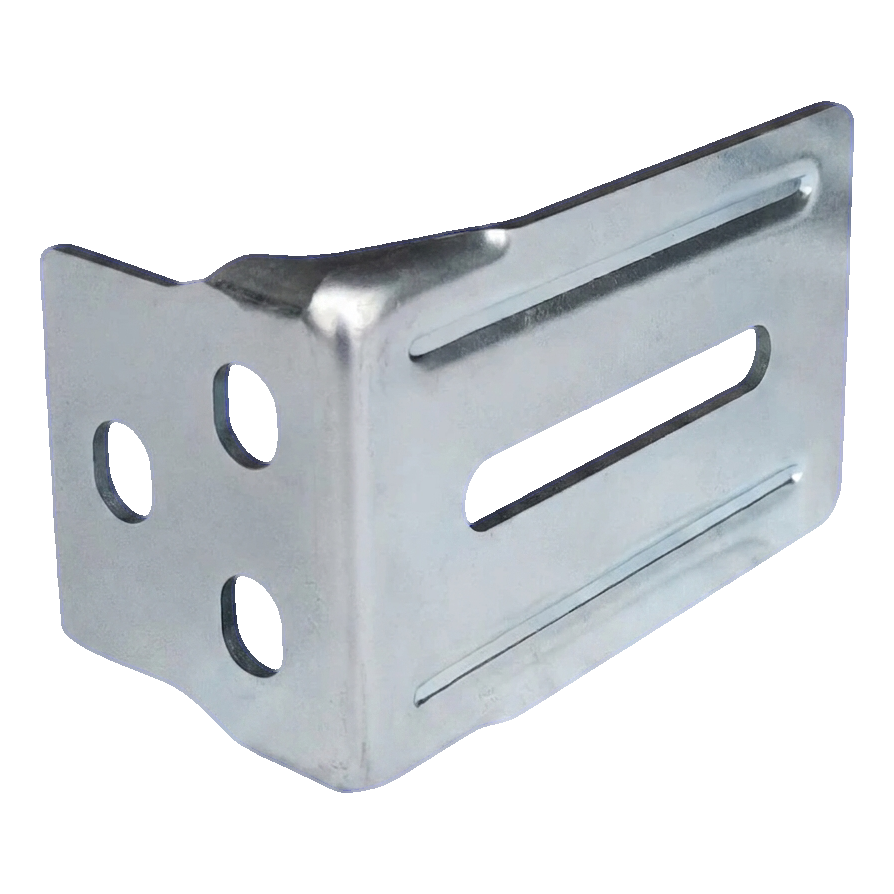

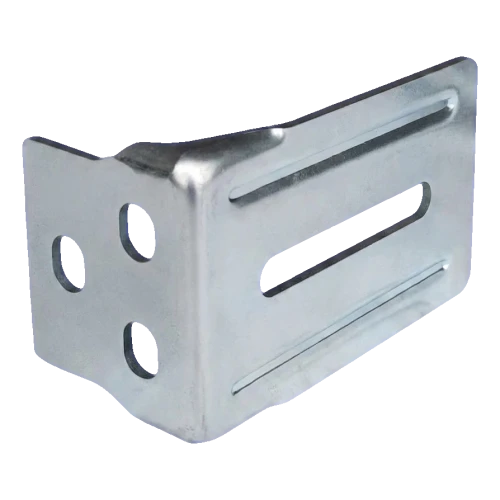

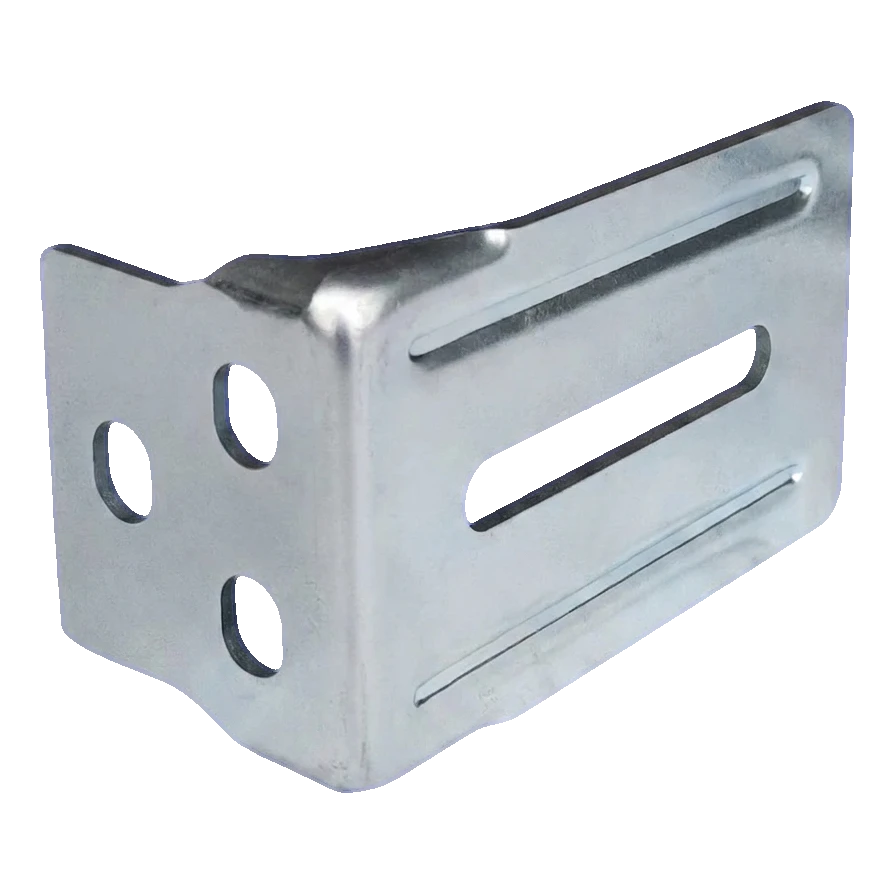

The PSG catch guide bracket is a steel angle bracket designed for side mounting of catch sockets in self-supporting sliding gates. Thanks to its robust construction made from steel sheet with a thickness of 3 mm, it provides stable and durable mounting for the catch mechanism — a crucial component responsible for proper closing of sliding gates.
The bracket has an L-shape and is equipped with slotted holes (elongated) on both the vertical and horizontal flanges, enabling precise adjustment of the catch guide position during installation. Round holes on the vertical face serve for additional fixing. This design allows installation companies to perform quick installation with the possibility of position correction without the need to drill new holes.
Dimensions and technical specification

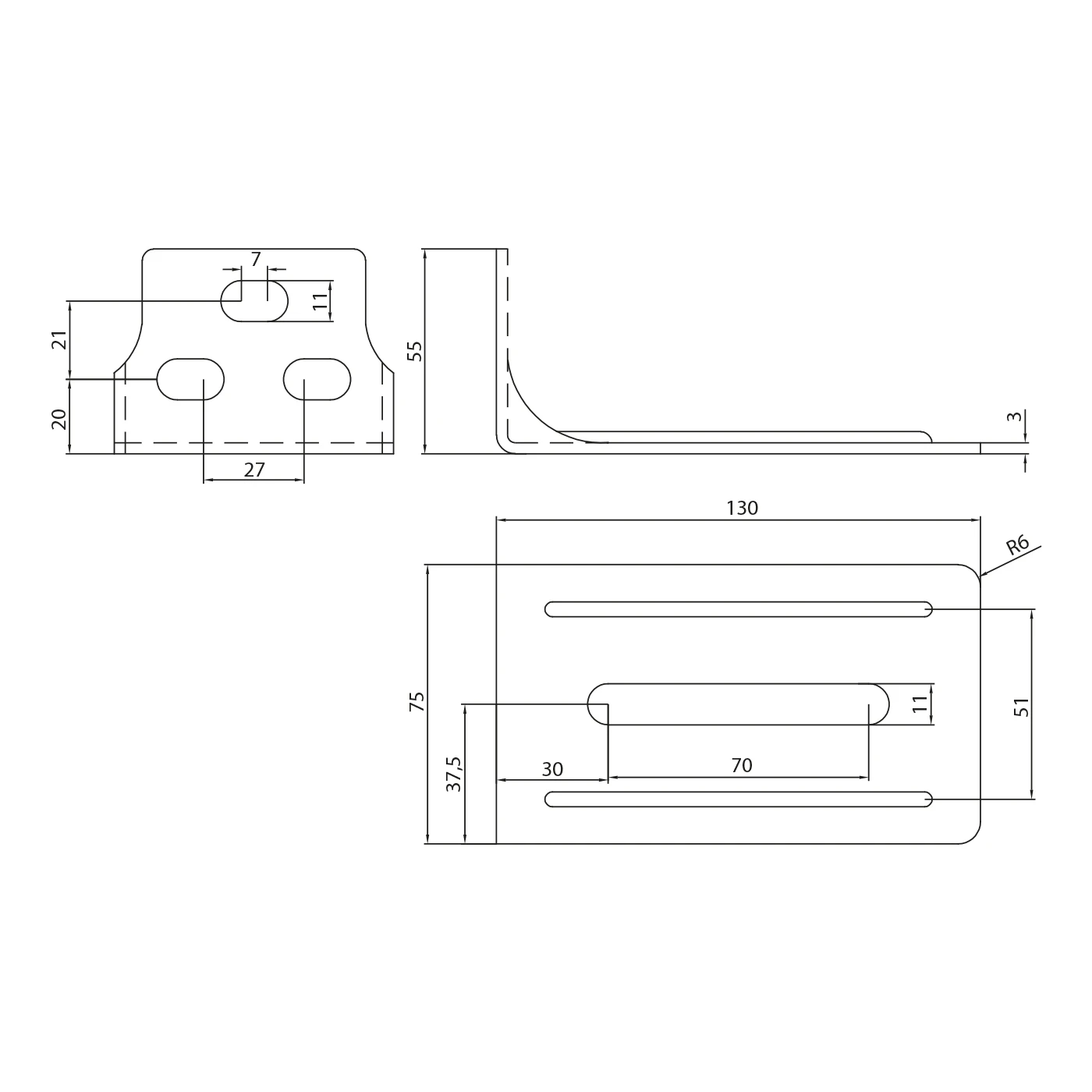

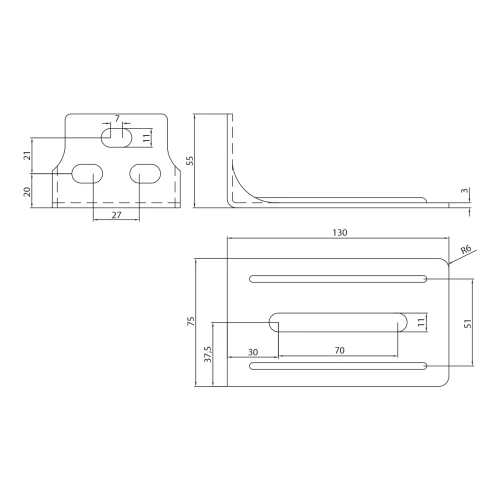

- Horizontal flange length (L): 130 mm
- Bracket width: 75 mm
- Vertical flange height (H): 55 mm
- Sheet thickness: 3 mm
- Corner radius: R6
- Slotted holes (adjustment): 11 mm width
- Central slotted hole length (horizontal flange): 70 mm
- Centre distance of elongated holes (horizontal flange): 51 mm
- Hole spacing (vertical flange): 27 × 21 mm
- Material: galvanised steel
- Weight: 0.28 kg
- EAN: 5901289670272
- Manufacturer: PSG
Application and installation
The bracket is mounted to the side of the post or gate support structure. The vertical flange with round and slotted holes serves to screw the bracket to the substrate, whilst the catch guide (catch socket) is mounted on the horizontal flange. The elongated slotted holes provide adjustment range in three axes, allowing precise positioning of the catch roller relative to the running rail of the self-supporting gate.
Component dedicated to PSG self-supporting sliding gate systems — guarantees full compatibility with this manufacturer's catch guides.
