PSG axial mounting flange for balustrade tube 42.4 mm – stainless steel AISI 304 satin
Description
PSG axial mounting flange for balustrade tube 42.4 mm – stainless steel AISI 304 satin

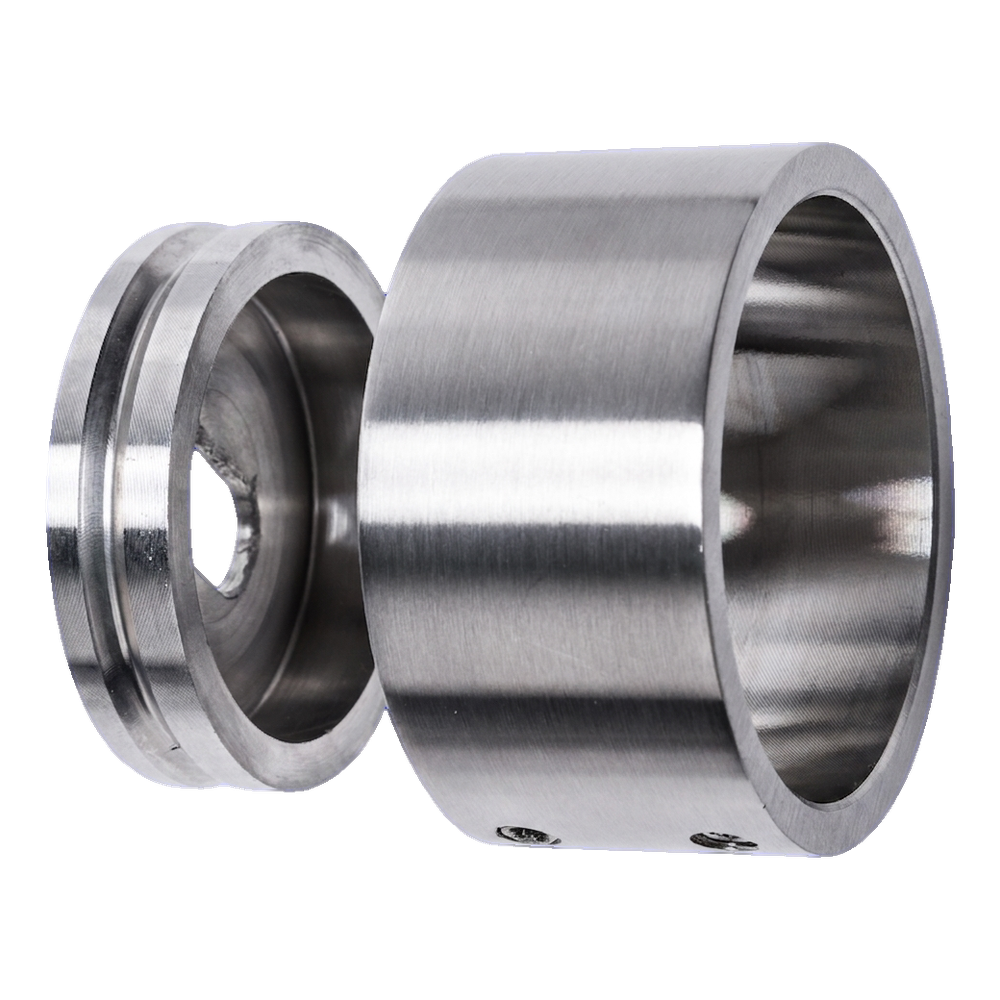

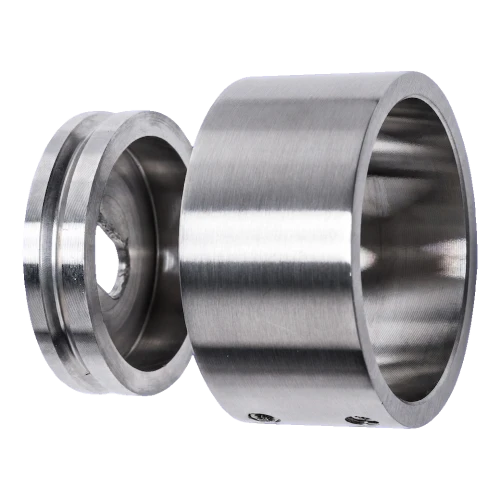

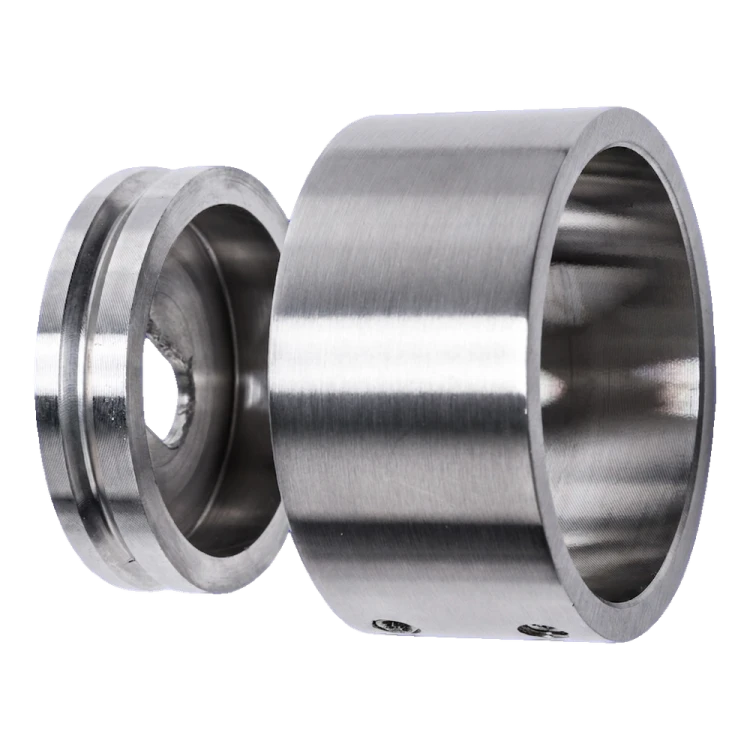

Axial mounting flange is a professional fastening element designed for mounting stainless steel balustrade handrails with diameter 42.4 mm directly to the wall. Made from high-grade stainless steel AISI 304 with satin finish, it provides aesthetic and durable connection between the handrail and mounting surface. Two-piece construction — mounting base with M8 thread and compression sleeve with screws — allows for quick and precise installation, which is particularly important when implementing larger balcony and terrace balustrade projects.

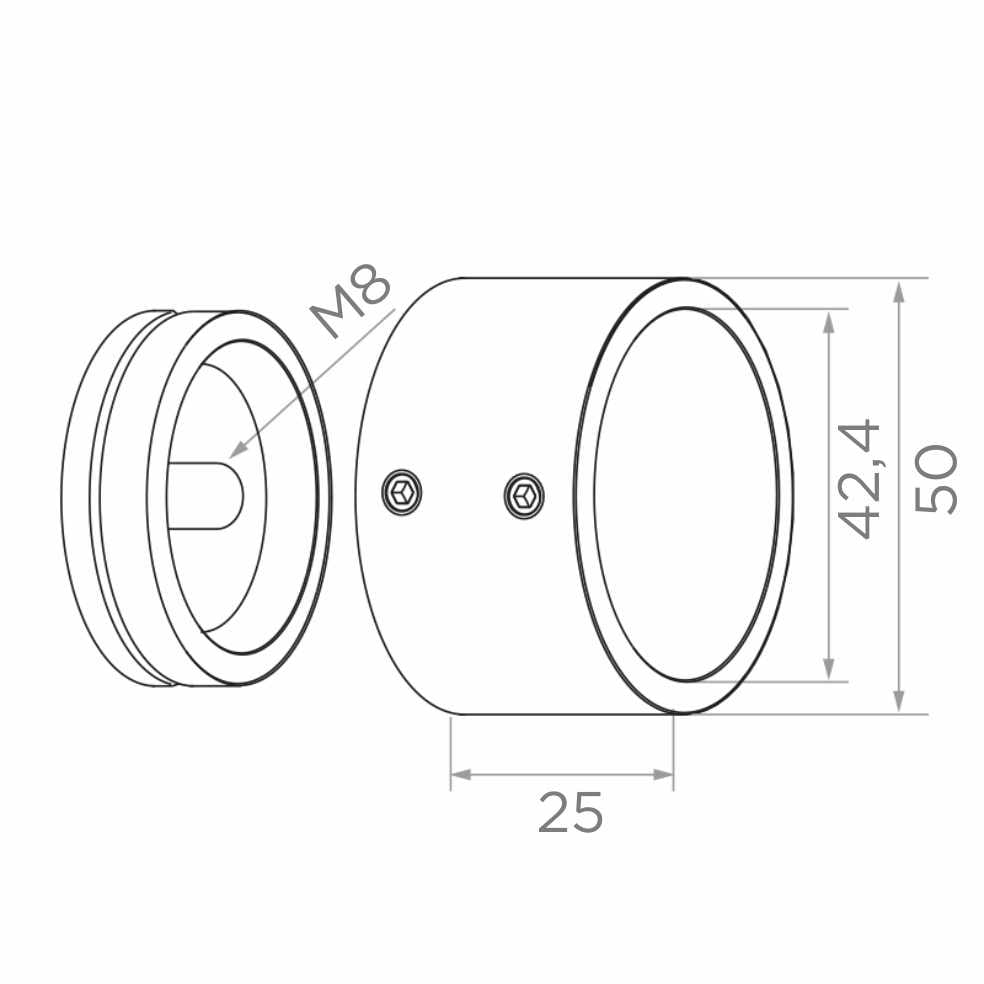

Dimensions and technical data
- Internal diameter (fits tube): 42.4 mm
- External diameter of flange: 50 mm
- Height (sleeve length): 25 mm
- Mounting hole: 8 × 16 mm
- Mounting thread: M8
- Number of mounting holes: 1
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.14 kg
- System: 42.4
- Manufacturer: PSG
- EAN: 5901289673693
Application and installation
The flange serves as axial mounting for the balustrade handrail to the wall. Two-piece construction significantly facilitates installation — the base with M8 thread is mounted to the wall, then the sliding sleeve with compression screws stably secures the handrail tube. The element is compatible with tubes of diameter 42.4 mm used in standard stainless steel balustrade systems. Satin finish harmoniously complements other system elements, giving the balustrade a modern and elegant appearance. High-quality AISI 304 stainless steel guarantees corrosion resistance, allowing use both inside buildings and outdoors — on balconies and terraces.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
