PSG articulated wall-mounted handrail bracket 70×40 mm – stainless steel AISI 304 satin, flat system
Description
PSG articulated wall-mounted handrail bracket 70×40 mm – stainless steel AISI 304 satin, flat system

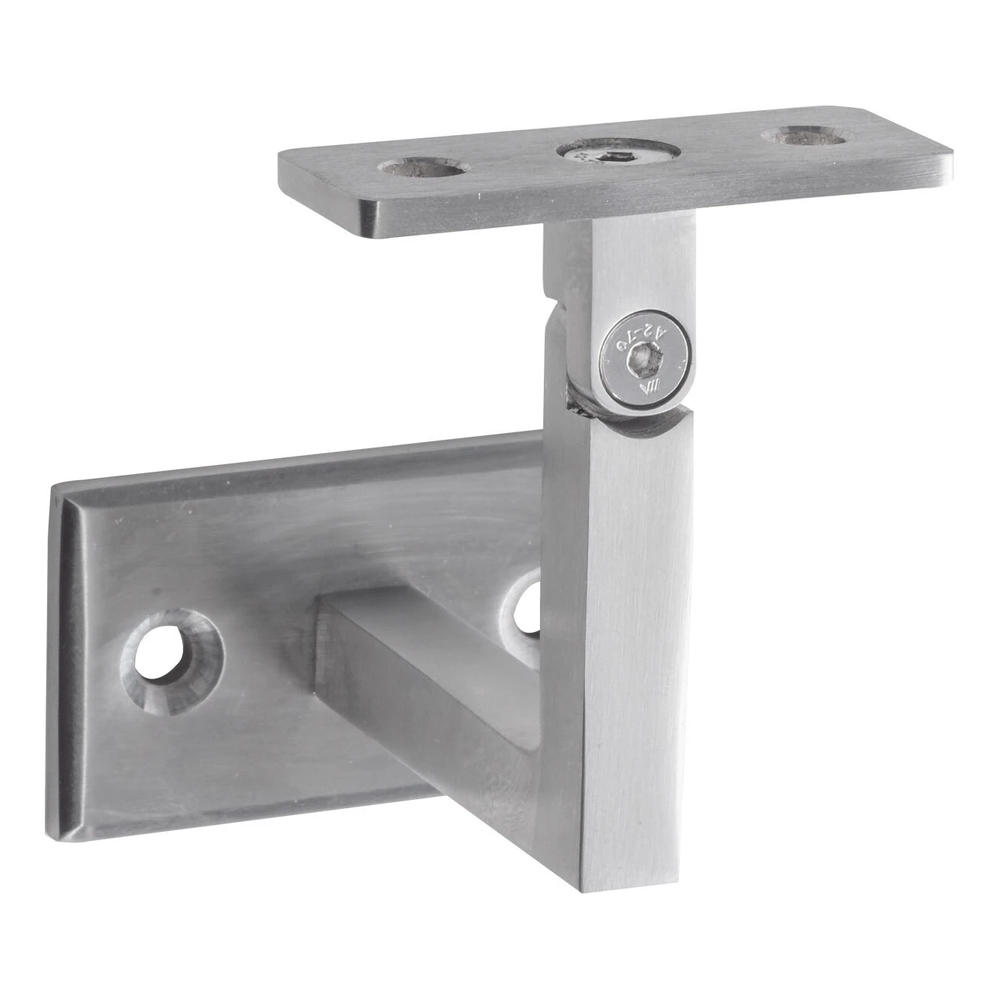

Articulated handrail bracket for wall mounting designed for professional stainless steel balustrade systems with satin finish. Thanks to the adjustable joint of the upper mounting plate, the bracket enables smooth adjustment of handrail inclination angle — a solution essential for mounting stair balustrades where the stair flight angle requires precise adjustment.
The element is manufactured entirely from AISI 304 stainless steel with a satin surface finish, guaranteeing high corrosion resistance and an aesthetic, modern appearance. The construction based on a square profile □12 mm ensures rigidity and stability whilst maintaining the slender form characteristic of the flat system. A mounting plate is included with the bracket to facilitate wall fixing.
Inclination angle adjustment

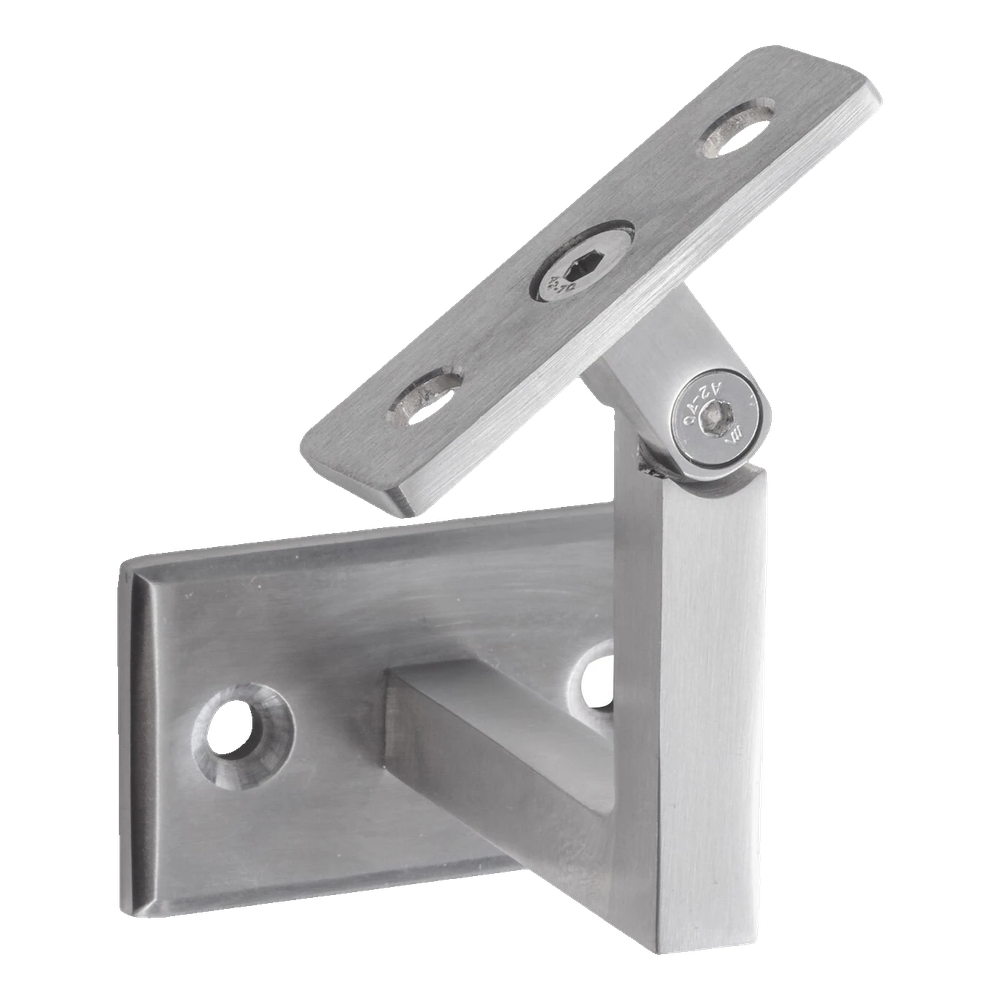

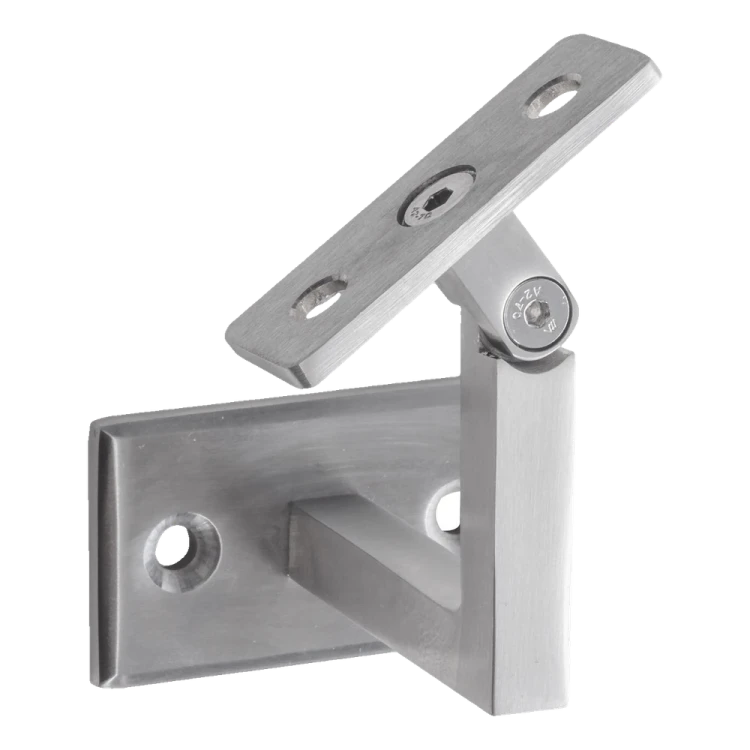

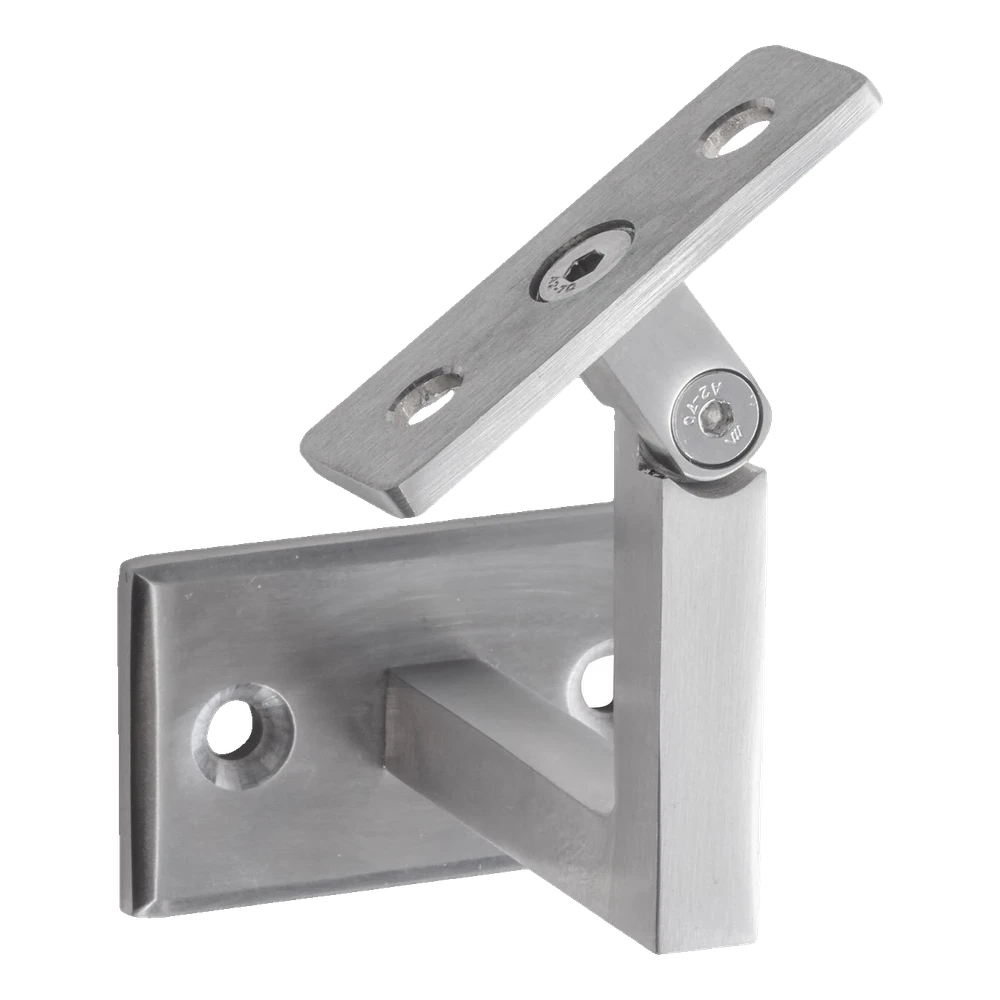

The joint secured with an A2-70 Allen screw allows for smooth angle adjustment of the upper plate relative to the bracket arm. After setting the correct handrail inclination, simply tighten the screw to permanently lock the position. This significantly speeds up stair balustrade installation — the fitter doesn't need to cut elements at an angle or use additional angle brackets.

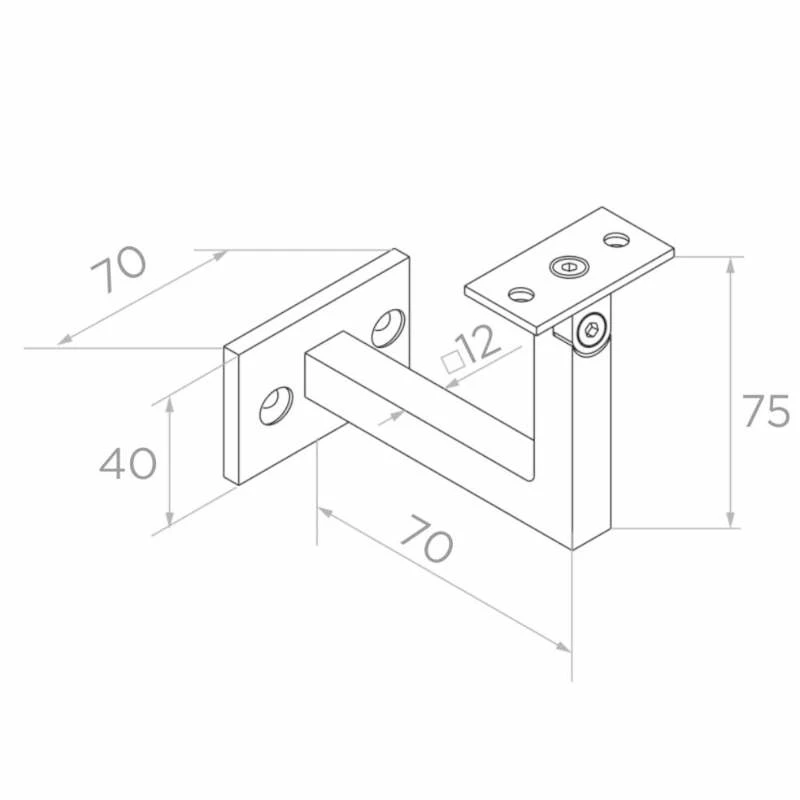

Dimensions and technical data
- Manufacturer: PSG
- Material: AISI 304 stainless steel
- Surface finish: satin
- System: flat (square profile)
- Wall mounting plate: 70 × 40 mm
- Arm cross-section: □12 × 12 mm
- Projection from wall: 70 mm
- Total height: 75 mm
- Mounting holes in wall plate: 2 pcs.
- Handrail connection type: articulated (angle adjustment)
- Joint screw: A2-70 (Allen, stainless steel)
- Mounting plate: included
- Weight: 0.205 kg
- EAN: 5901289671712
Application
The bracket is designed for mounting steel balustrade handrails directly to the wall. It performs ideally with stair balustrades where angle adjustment is required, as well as with balustrades on landings and galleries. The satin finish from AISI 304 steel ensures long-term durability without the need for maintenance — any soiling can be removed with a dry microfibre cloth or dedicated stainless steel cleaner.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
