PSG articulated handrail support bracket drive-in 42.4 mm AISI 304 satin
Description
PSG articulated handrail support bracket drive-in 42.4 mm AISI 304 satin

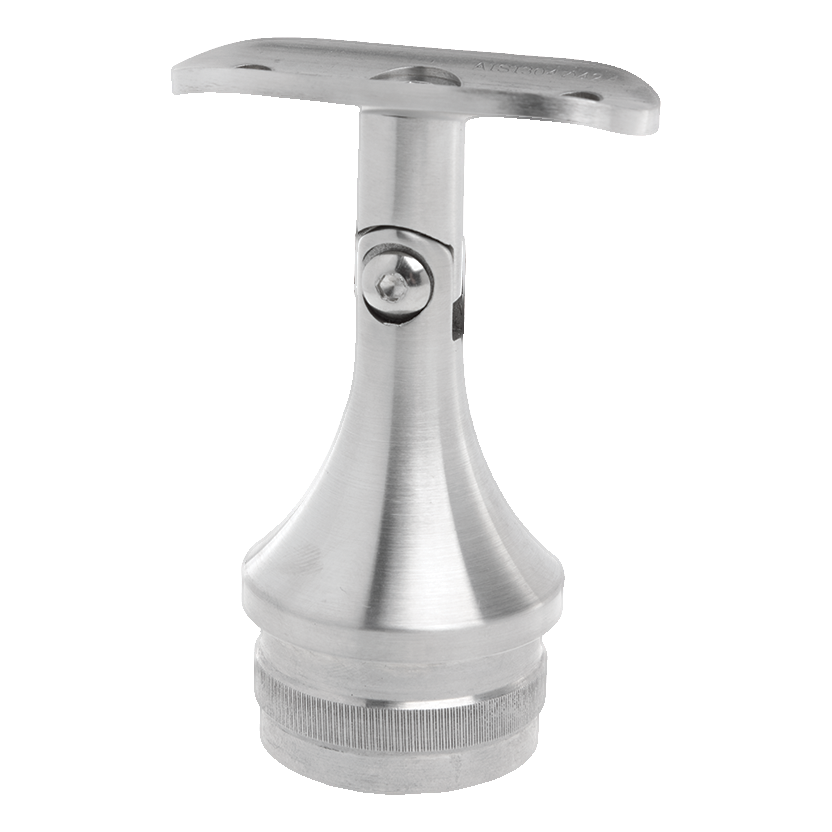

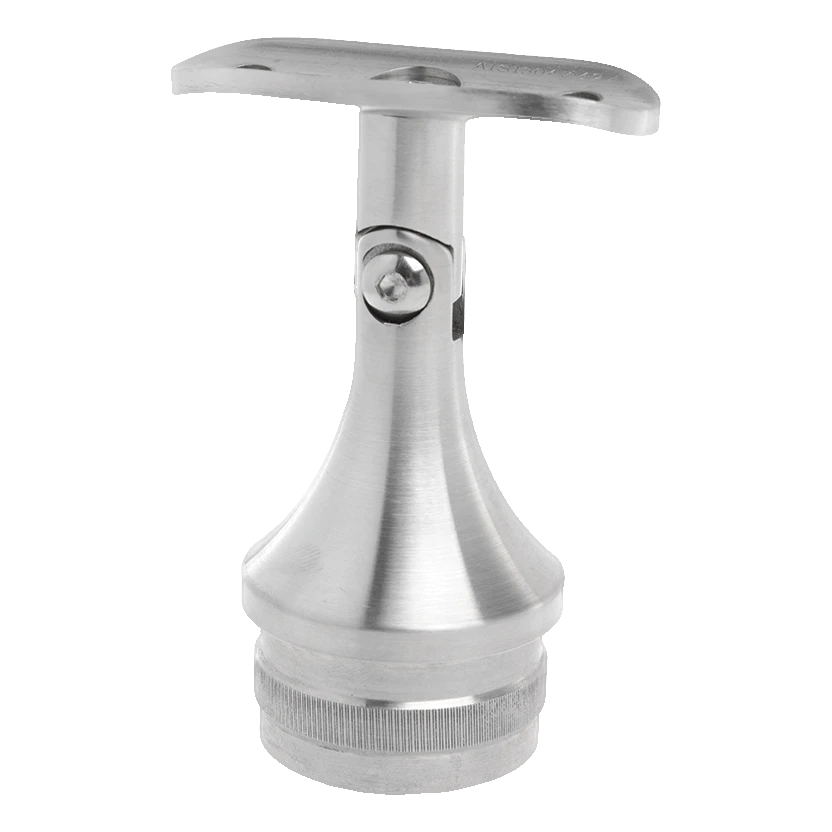

Articulated handrail support for stainless steel balustrade systems, designed for drive-in mounting into post with diameter 42.4 mm. The adjustable joint allows for smooth adjustment of handrail angle, making this connector an ideal solution for both stair balustrades and balcony balustrades installed at various angles.
Thanks to the articulated construction, the installer can precisely adjust the handrail angle without the need for additional angled elements. The element is made from AISI 304 stainless steel with satin finish, ensuring an aesthetic, matt appearance and high corrosion resistance — even in outdoor conditions.

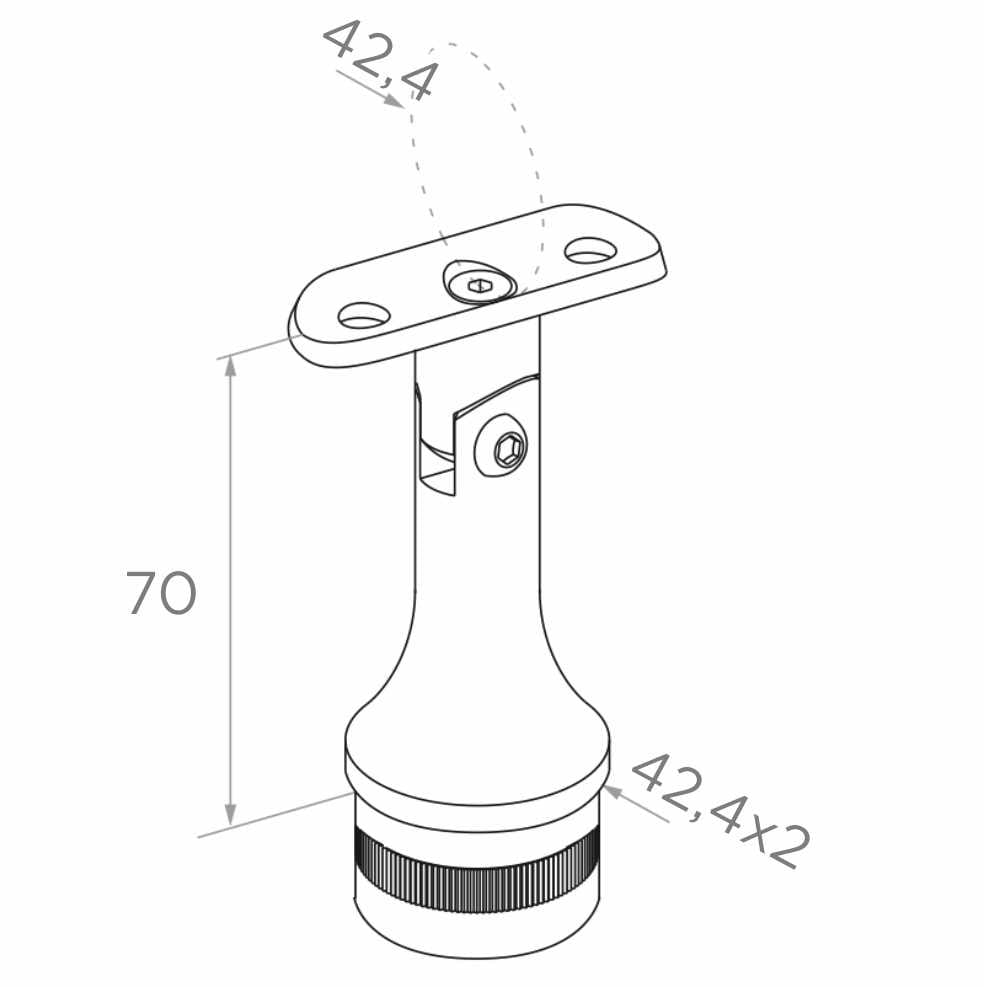

Dimensions and technical data
- Type: drive-in articulated support
- Handrail diameter: 42.4 mm
- Post diameter: 42.4 mm (wall thickness 2 mm)
- Support height: 70 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.22 kg
- EAN: 5901289671989
Installation and application
The support is mounted by drive-in into the post hole with internal diameter corresponding to 42.4×2 mm tube. The saddle at the top fits handrail with diameter 42.4 mm, and the joint enables angle adjustment — particularly useful at stair transitions where the handrail must run at an incline. After setting the proper angle, the position is locked with an Allen screw visible on the spindle. The number of supports in a balustrade depends on its shape, length and post spacing.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
