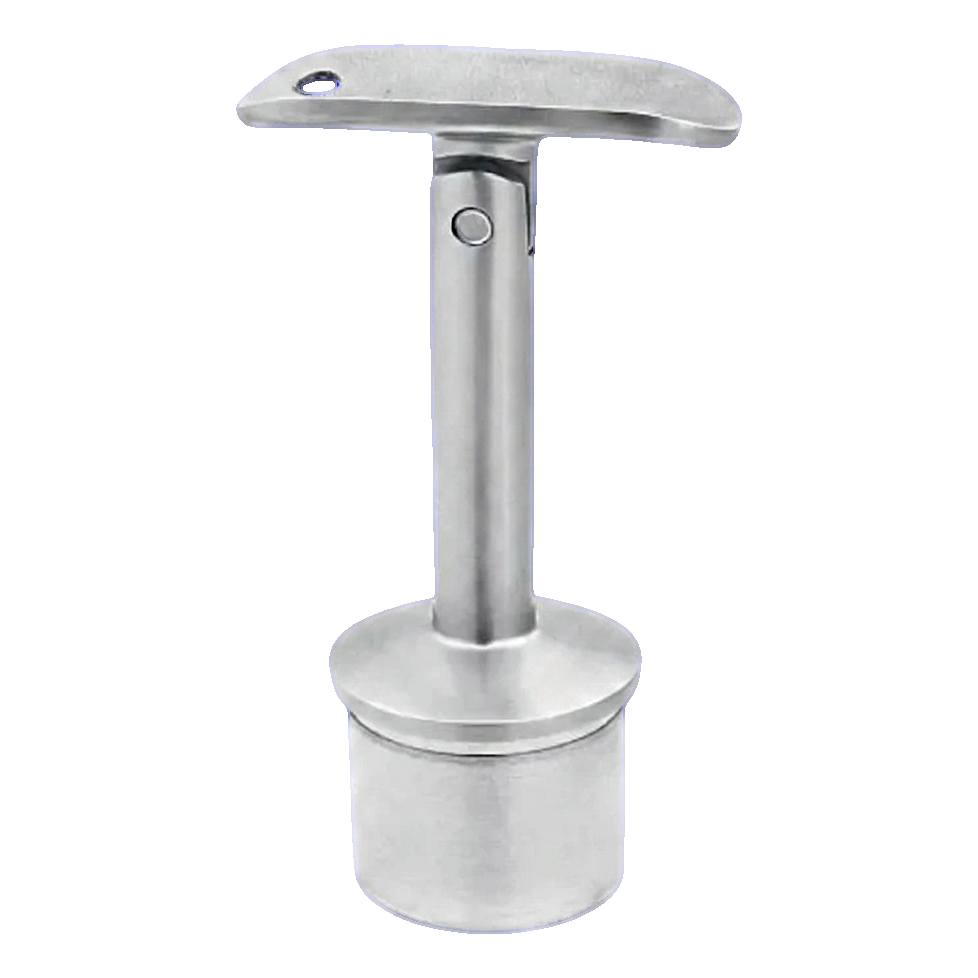

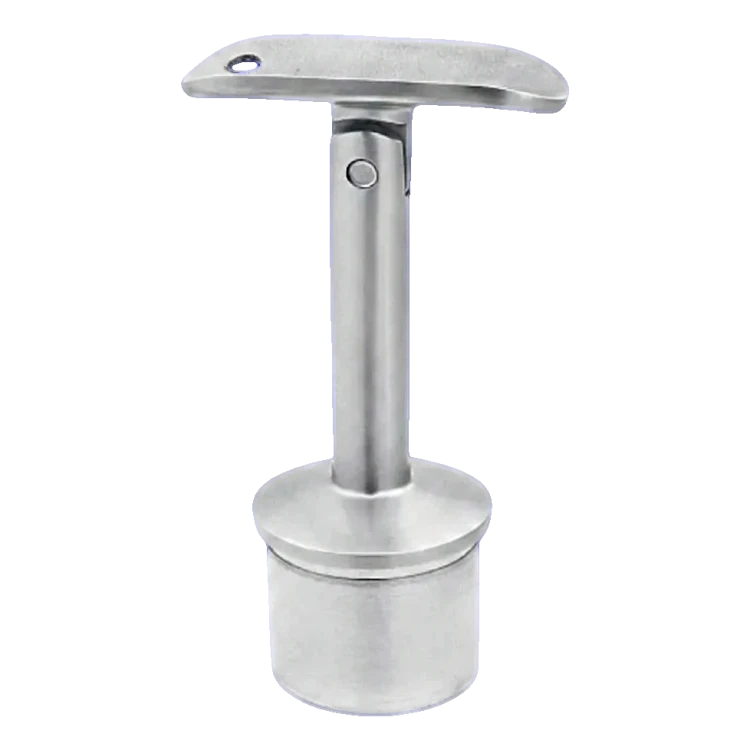

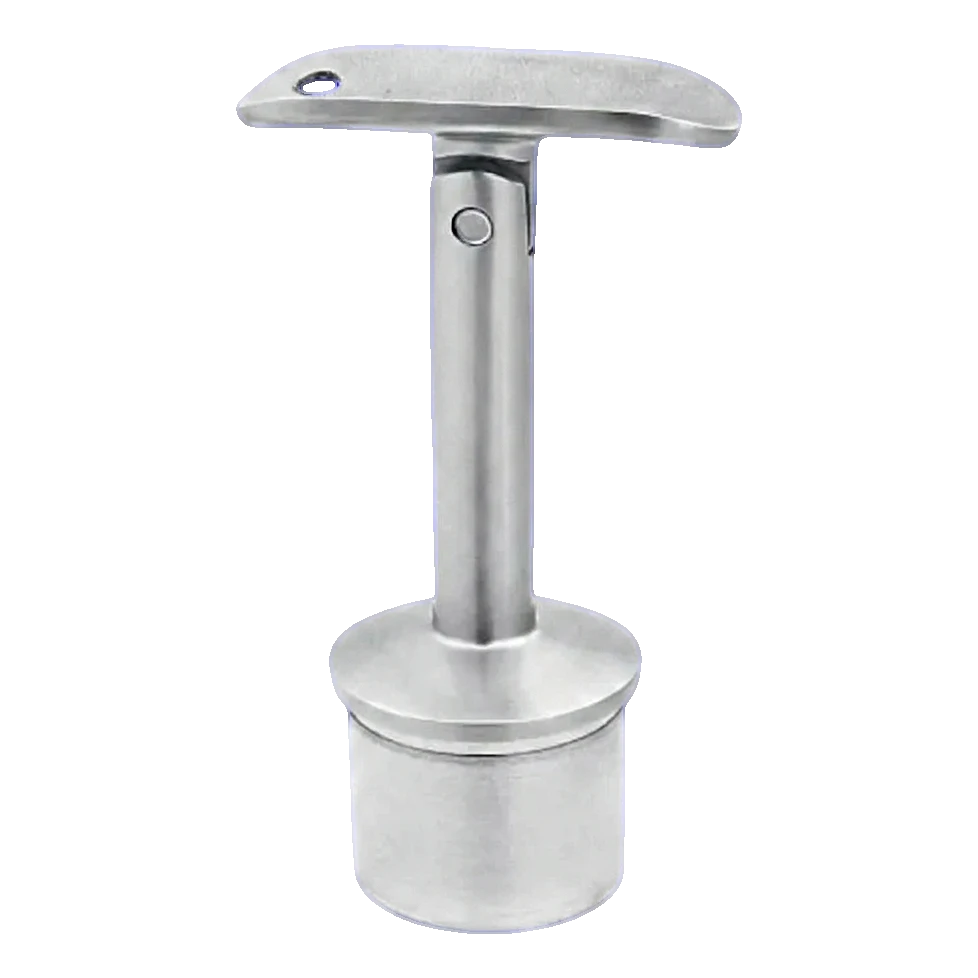

PSG articulated handrail support bonded AISI 316 – 42.4 mm system, satin
Description
PSG articulated handrail support bonded AISI 316 – 42.4 mm system, satin
Articulated handrail support made from AISI 316 stainless steel designed for connecting balustrade posts with handrails in 42.4 mm system. Component mounted by bonding the pin into the post tube using anaerobic adhesive — the adhesive bonds under contact with metal and cures by cutting off oxygen supply, ensuring a permanent and secure connection without the need for welding.
The articulated construction enables adjustment of handrail angle setting, which is particularly useful when installing stair balustrades, where the handrail must follow the inclination of the stair flight. Satin finish gives the balustrade an elegant, matt appearance that complements modern interior arrangements and commercial spaces perfectly.

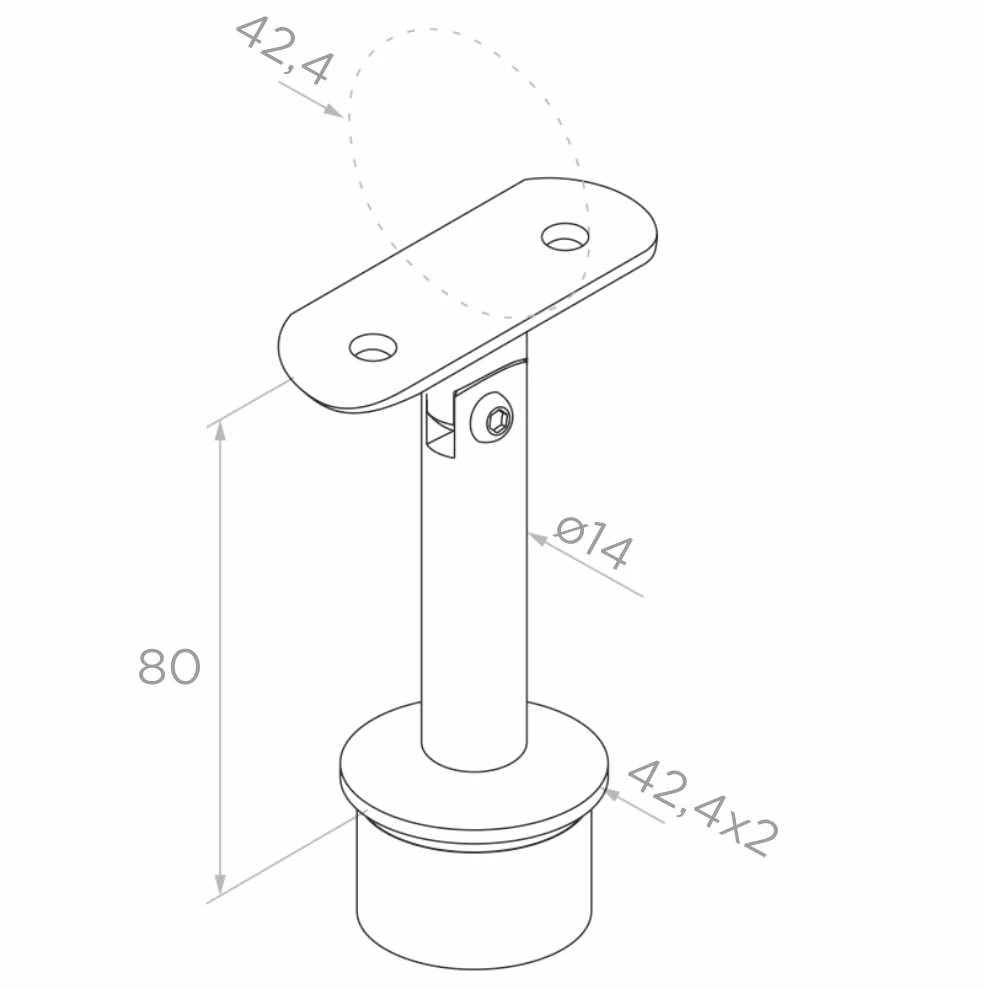

Dimensions and technical parameters
- Material: AISI 316 stainless steel
- Surface finish: satin
- Support height (H): 80 mm
- Pin diameter: Ø14 mm
- Handrail system: Ø42.4 mm
- Post tube: Ø42.4 x 2 mm
- Mounting method: bonding (anaerobic adhesive)
- Connection type with handrail: articulated (angle adjustment)
- Weight: 0.22 kg
- EAN: 5901289671866
Application and benefits for the installer
The support is dedicated to professional stainless steel balustrade systems. AISI 316 steel (acid-resistant) guarantees high corrosion resistance — both in internal and external applications, including in environments with elevated humidity or exposed to salt contact. Bonded mounting eliminates the need for on-site welding, which significantly speeds up realisation and allows for clean finishing without heat treatment marks on component surfaces.
Product sold individually (1 piece).
Technical data
| Material | AISI 316 |
| Finish | Satin |
| Mounting System | 42.4 mm |
