PSG articulated handrail support bonded 42.4 mm for 40x40 mm post AISI 304 satin
Description
PSG articulated handrail support bonded 42.4 mm for 40x40 mm post AISI 304 satin

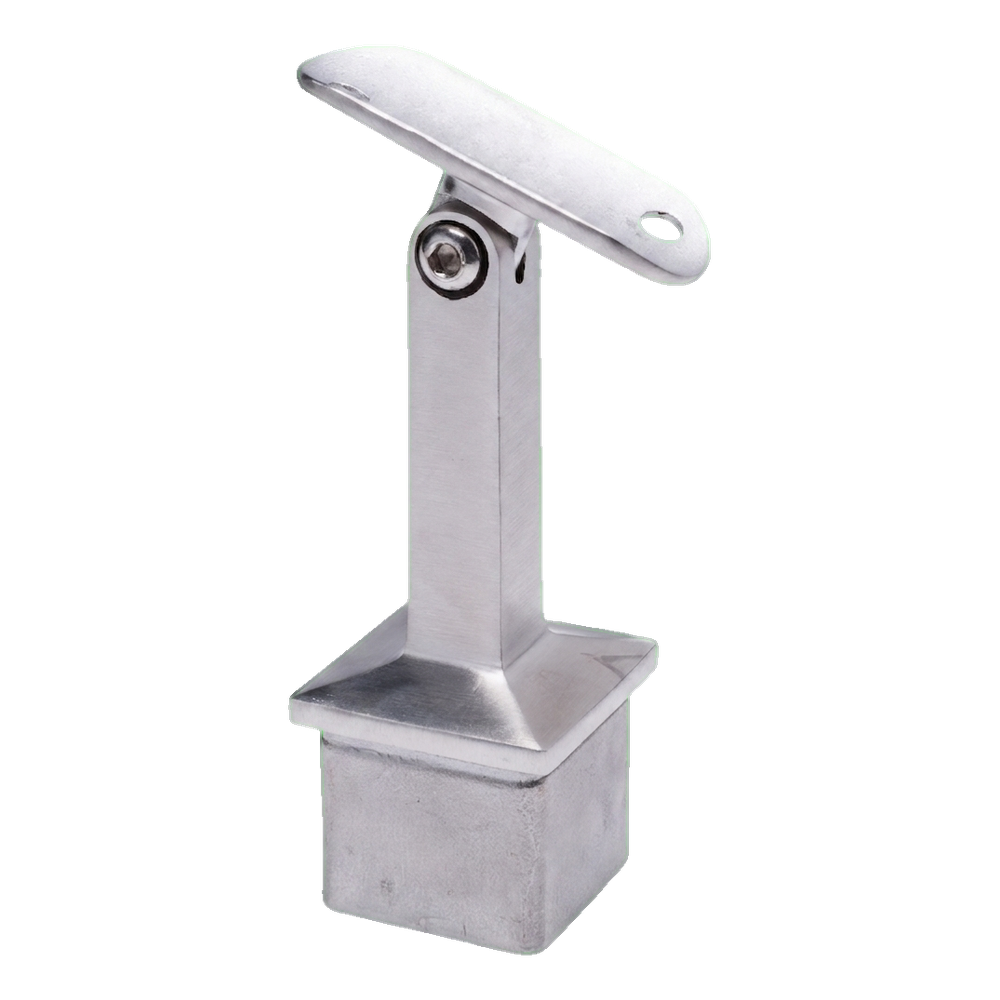

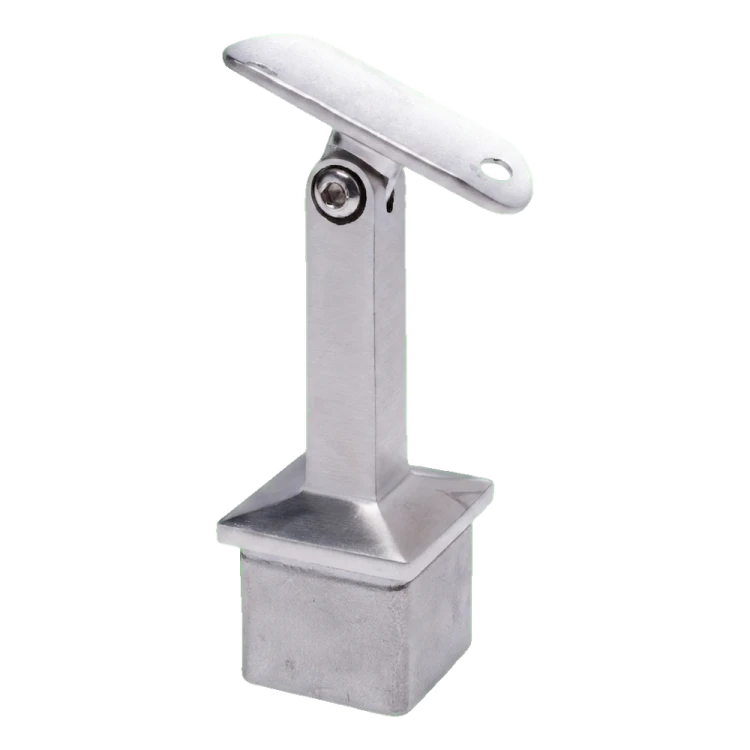

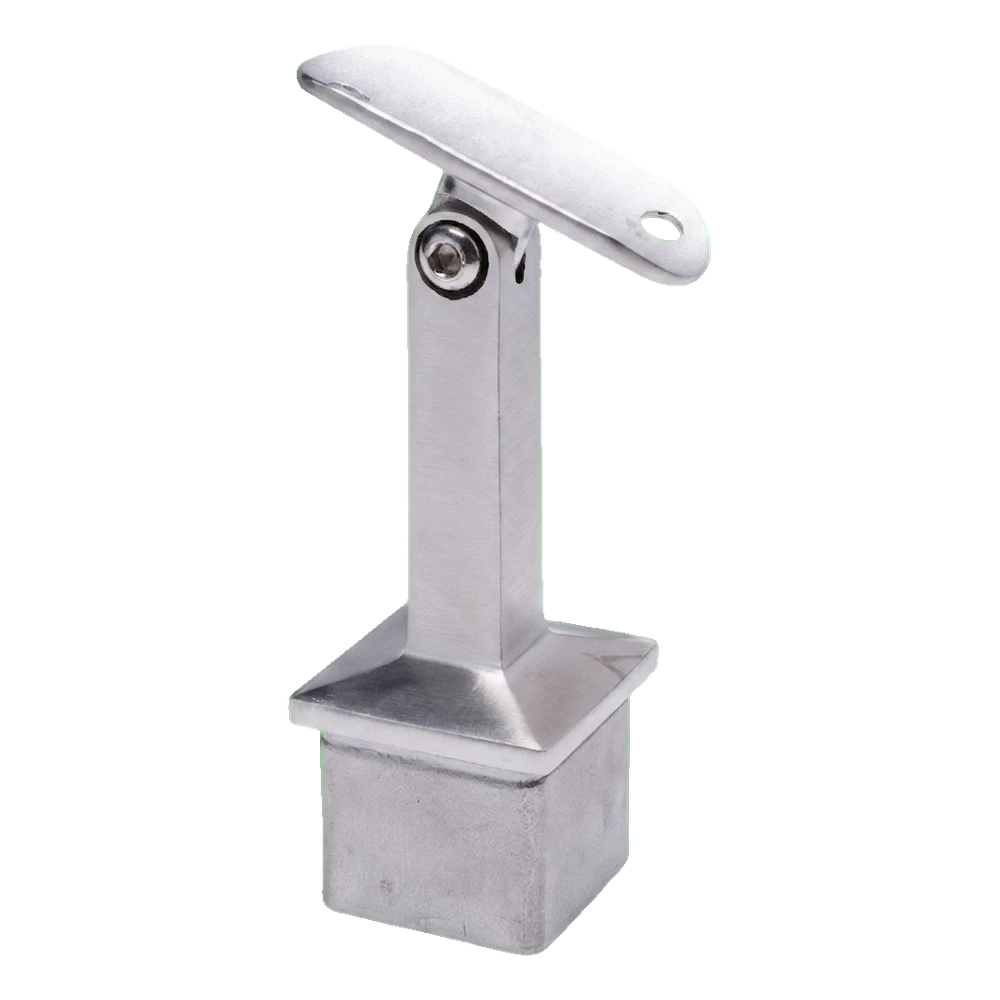

Articulated handrail support designed for connecting square posts 40×40 mm with handrails of 42.4 mm diameter in stainless steel balustrade constructions. Thanks to the adjustable joint, the element enables free adjustment of the handrail angle of inclination, which is particularly useful when installing stair balustrades — eliminating the need for cutting and angling on site.
The connector features a mounting plate that acts as handrail support, fixed using bonding method. High-quality satin finish ensures an aesthetic, matt appearance, whilst the use of AISI 304 steel guarantees corrosion resistance in internal use conditions. Solid construction translates into long-term durability, stability and safety of the entire balustrade system.

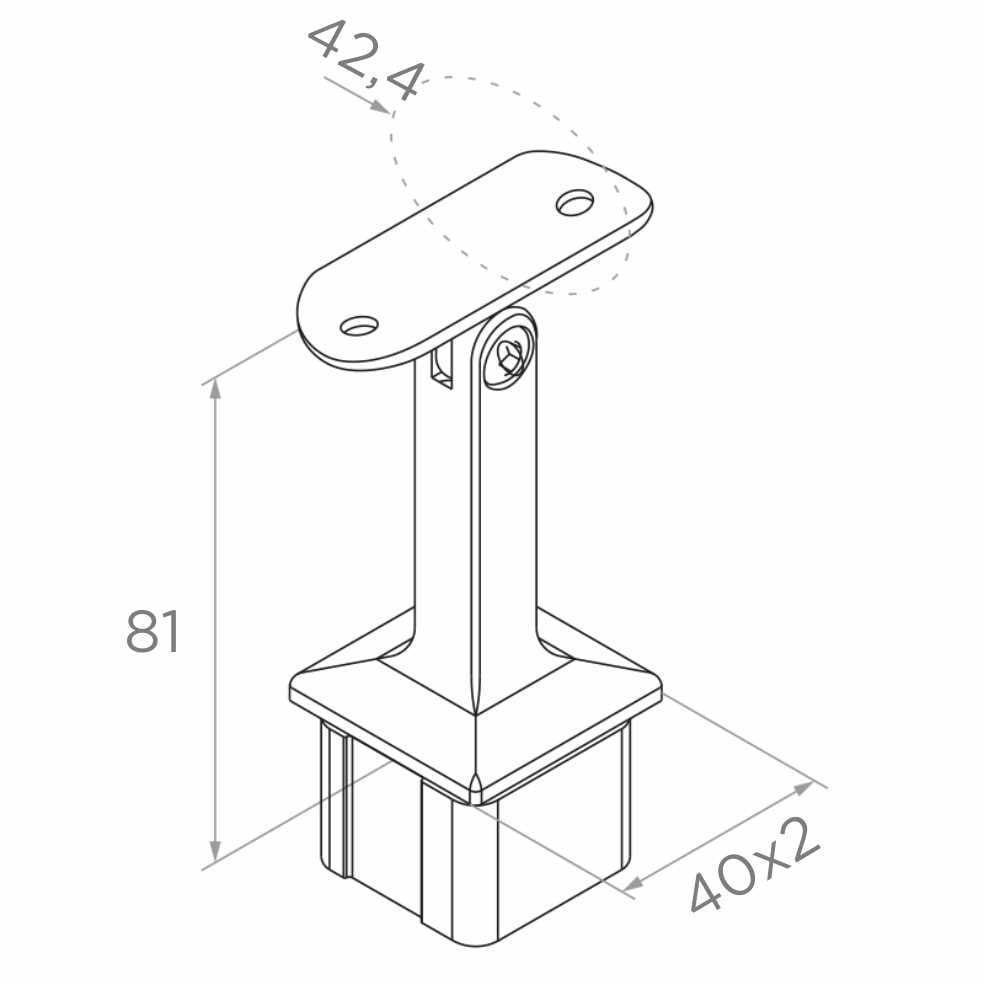

Technical parameters
- Type: articulated bonded handrail support
- System: 40×40 mm
- Handrail diameter: 42.4 mm
- Post section: 40×40×2 mm
- Connector height: 81 mm
- Mounting plate dimension: 14×14 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Manufacturer: PSG
- Weight: 0.28 kg
- EAN: 5901289672009
Application and mounting
The support is intended for use in stainless steel balustrade systems based on square posts 40×40 mm. The articulated construction enables smooth adjustment of handrail angle of inclination, which significantly speeds up installation on stair flights and slopes. The element is fixed to the handrail using bonding method, which ensures clean, screw-free finish of visible surfaces. AISI 304 stainless steel is intended for internal applications — for external mounting, AISI 316 steel is recommended.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
