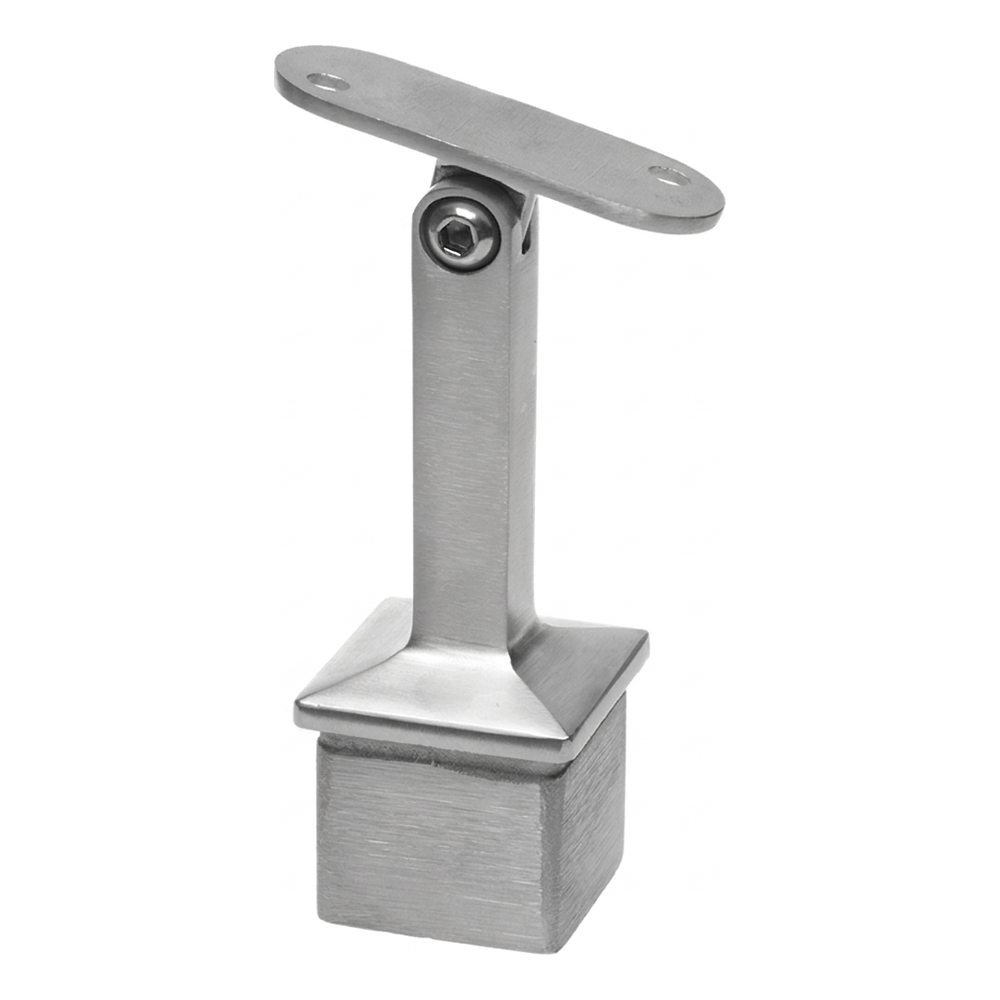

PSG articulated flat handrail support bonded to 40x40 mm post AISI 304 satin
Description
PSG articulated flat handrail support bonded to 40x40 mm post AISI 304 satin
Articulated flat handrail support designed for mounting on square posts 40×40/2 mm made of stainless steel. Thanks to the adjustable joint, it enables precise adjustment of the handrail angle to the actual stair run or gradient — without the need for cutting or welding elements on site.
The element is mounted using anaerobic bonding method — bonded directly into the square post. This type of connection guarantees an aesthetic appearance of the balustrade without visible welds, whilst providing durable and stable fixing. The satin finish gives the element a modern, matt character, perfectly complementing stainless steel balustrade systems.
Features and benefits
- Articulated construction — smooth angle adjustment of handrail saddle, adaptation to individual stair gradient
- Bonded mounting — bonding with anaerobic adhesive eliminates welding and preserves surface aesthetics
- Flat saddle with two mounting holes — stable flat handrail fixing
- AISI 304 stainless steel — corrosion resistance, intended for internal use
- Satin finish — matt, elegant surface resistant to fingerprints

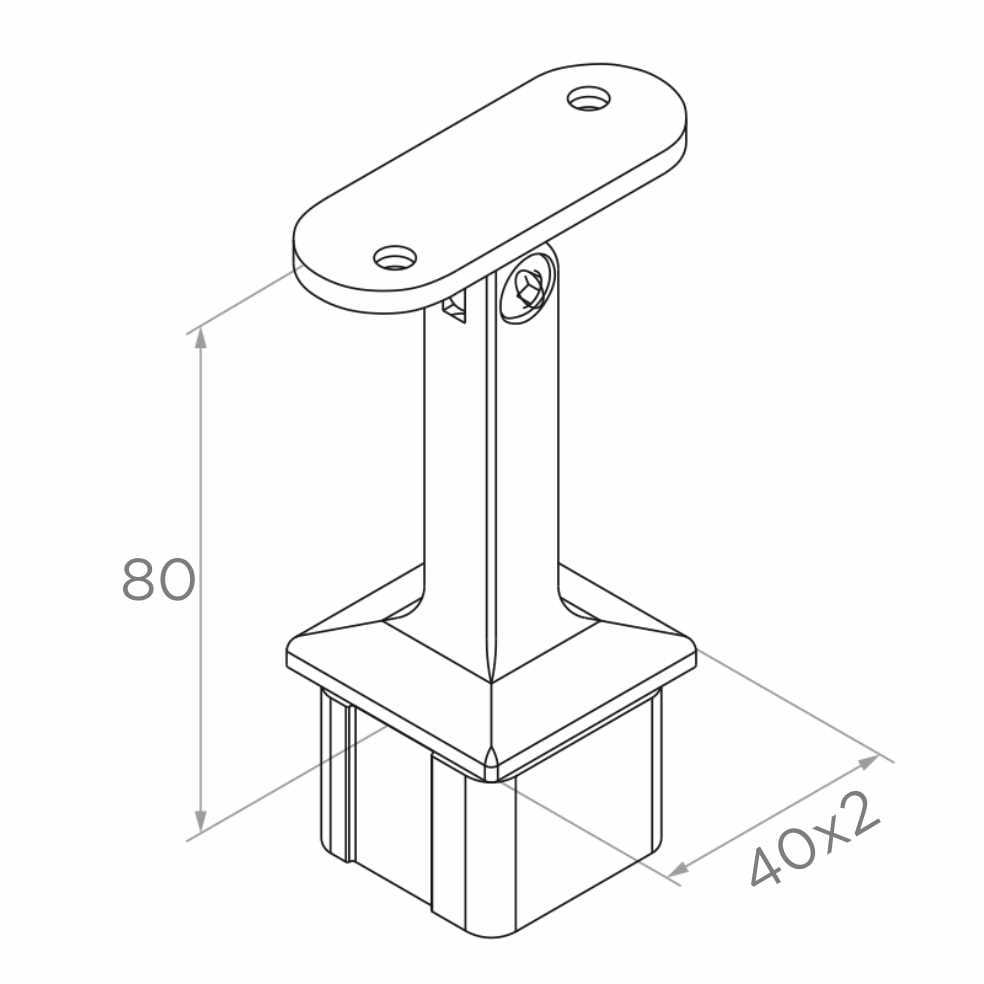

Technical parameters
- Compatible post profile: 40×40 mm, wall thickness 2 mm
- Height from post to handrail after installation: 80 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Connection type: bonded (anaerobic adhesive)
- Adjustment type: articulated
- Weight: 0.26 kg
- EAN: 5901289672061
The support is part of the 40×40 mm balustrade system — works with other elements of this system (posts, flat handrails, connectors, end caps). Ideal solution for companies carrying out internal balustrade installations in residential, office and public buildings.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
