PSG adjustable upper sliding gate holder 55–90 mm with guide rollers
Description
PSG adjustable upper sliding gate holder 55–90 mm with guide rollers
PSG adjustable upper holder 55–90 mm is a steel mounting element designed for self-supporting and rail sliding gates. Its purpose is to stabilise the gate leaf when closed — the holder eliminates lateral movement, ensuring precise guidance and quiet gate operation. Thanks to the adjustable roller spacing in the range of 55–90 mm, the installer can easily adapt the holder to the leaf thickness, significantly reducing installation time and allowing different gate models to be serviced with a single element.

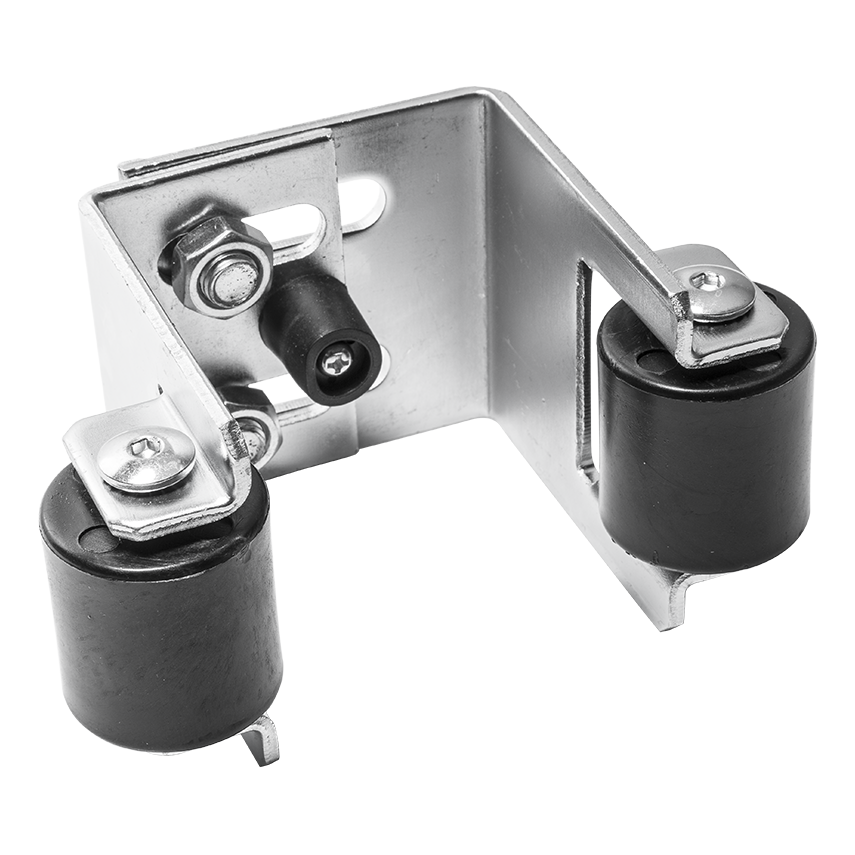

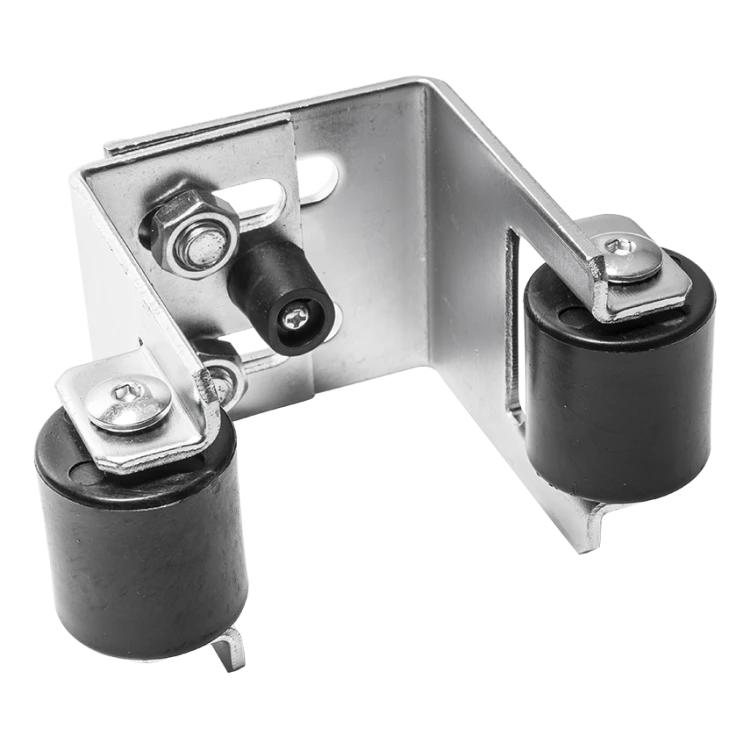

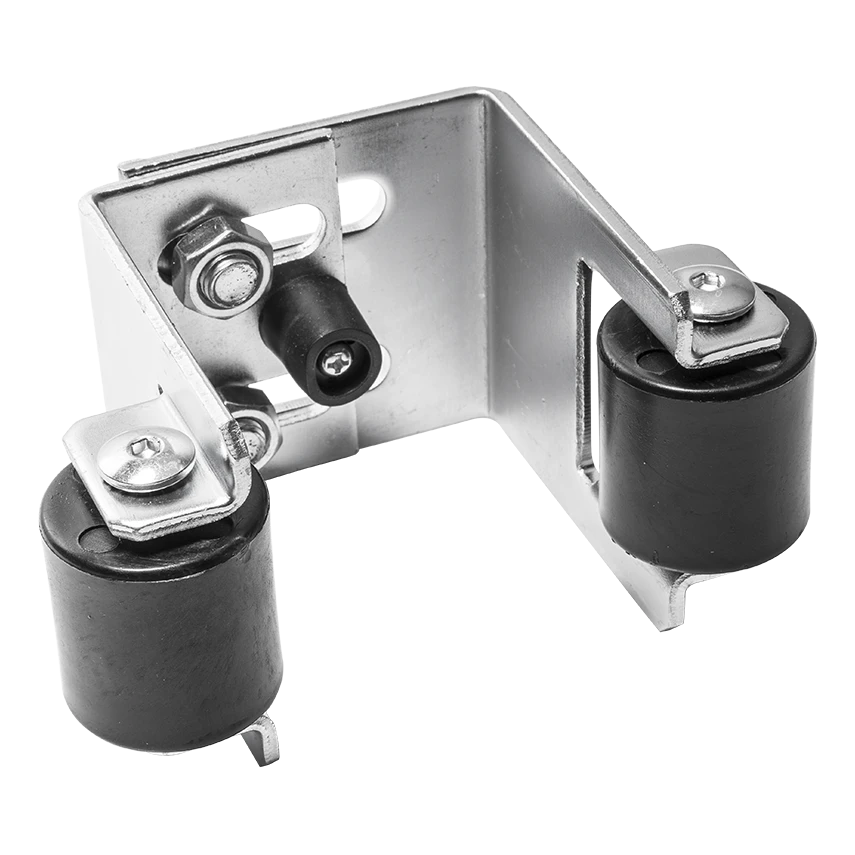

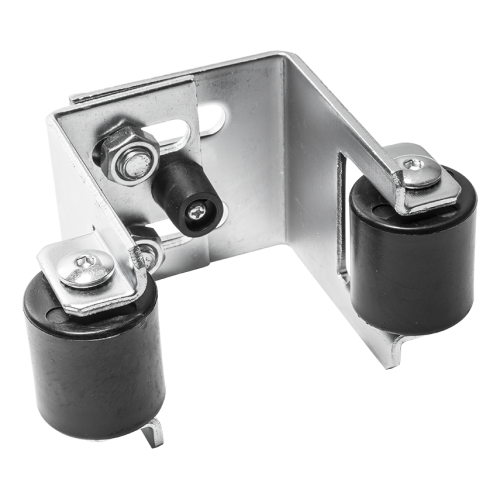

The holder is equipped with two guide rollers with rubber coating that gently guide the gate leaf without scratching the paintwork, and a rubber buffer that dampens the impact of the gate in the closed position. The body made of 4 mm thick steel sheet guarantees high rigidity, whilst galvanising ensures years of corrosion resistance — even in demanding atmospheric conditions.

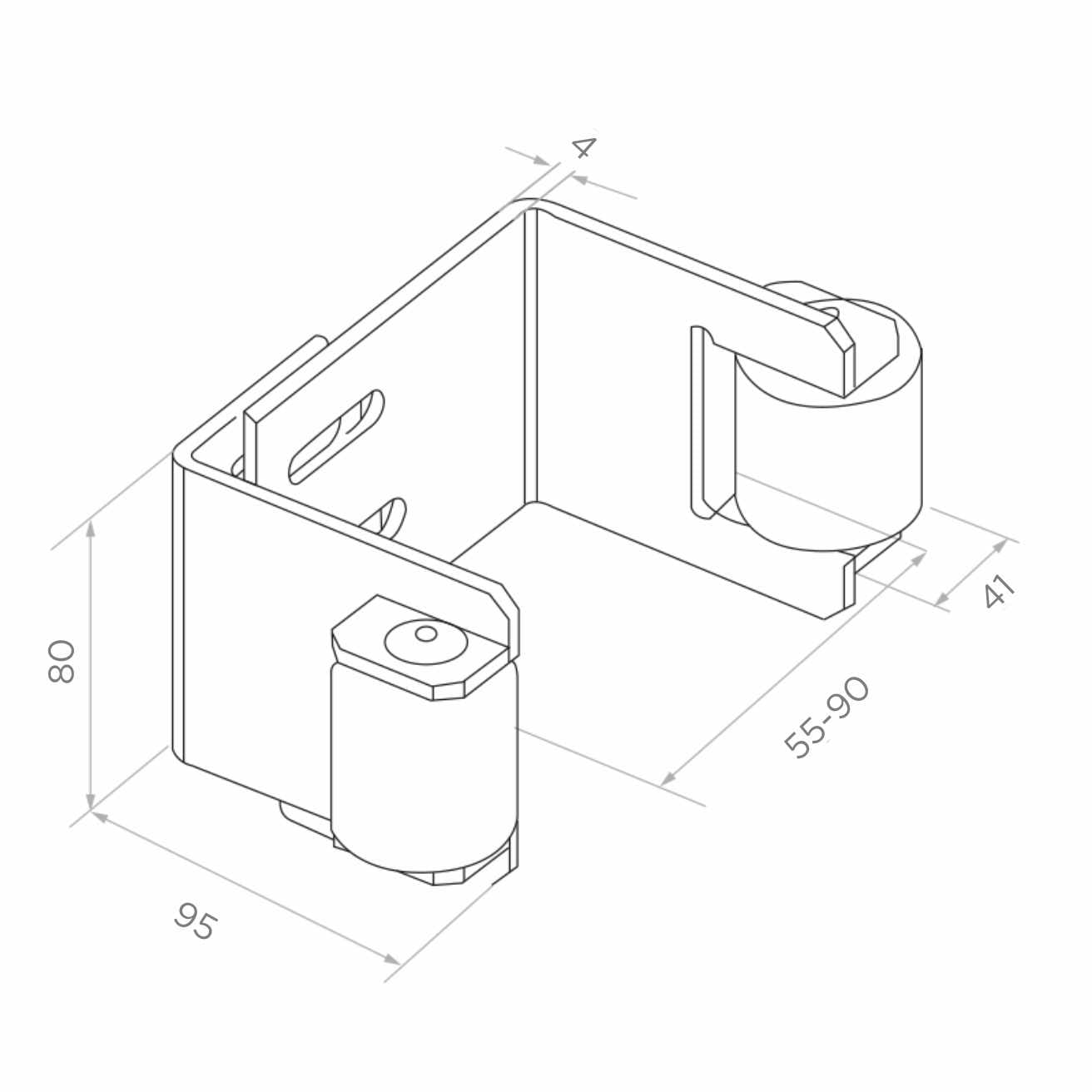

Dimensions and technical data
- Manufacturer: PSG
- Material: galvanised steel, sheet thickness 4 mm
- Adjustment range (roller spacing): 55–90 mm
- Total height: 80 mm
- Depth (projection from wall): 95 mm
- Guide roller height: 41 mm
- Guide rollers: 2 pcs. with rubber coating
- Rubber buffer: yes
- Weight: 0.96 kg
- EAN: 5901289674911
Application
The holder is mounted in the upper part of the gate opening (on the lintel or post). When the gate is closed, the leaf enters between the rollers, which stabilise it laterally and prevent vibrations due to wind. The spacing adjustment allows precise adaptation to the thickness of a specific leaf in the range from 55 to 90 mm — simply loosen the fixing screws, set the desired distance and retighten. The versatility of this element makes it an essential accessory when installing sliding gates, both self-supporting and rail types.
