PSG upper guidance for sliding gates with adjustable roller spacing 49-79 mm. Roller height 152 mm, diameter 50 mm. Bracket made from 5 mm galvanised steel, M12 bolts. Plastic rollers. Dimensions: 203x105x200 mm, weight 2.02 kg.
Product code: 001-287
Description
PSG adjustable upper guidance for sliding gate – 152 mm roller

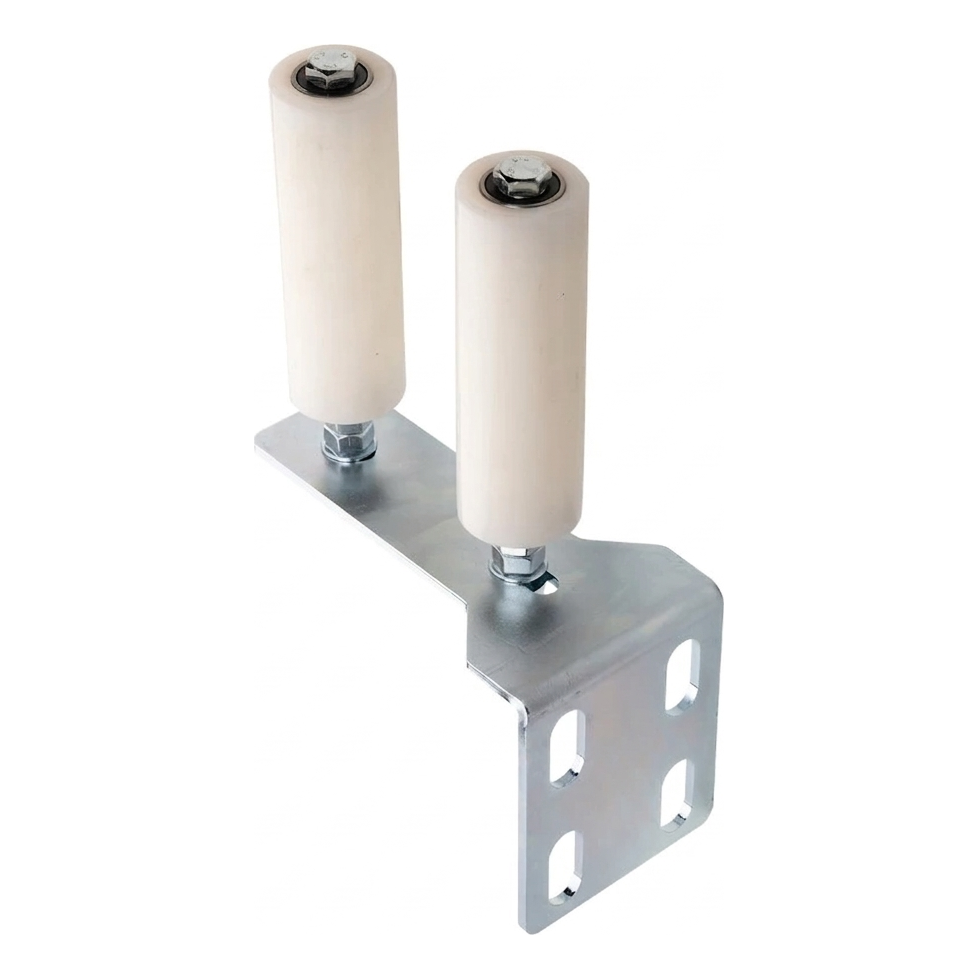

Adjustable upper guidance PSG is a key component in sliding gate installation, responsible for stable and smooth guidance of the gate leaf during opening and closing. Two plastic rollers with a height of 152 mm embrace the upper profile of the gate, ensuring quiet and trouble-free sliding without risk of scratching the leaf surface.
The construction with adjustable roller spacing (range 49–79 mm) allows the guidance to be adapted to gates with different profile thicknesses — one order is sufficient instead of selecting several variants. The bracket made from galvanised steel with a thickness of 5 mm guarantees rigidity and durability, whilst the mounting bolts M12 transfer heavy loads. The product is ideally suited to gates with smooth and closed profiles, without decorative elements.
Installation and application

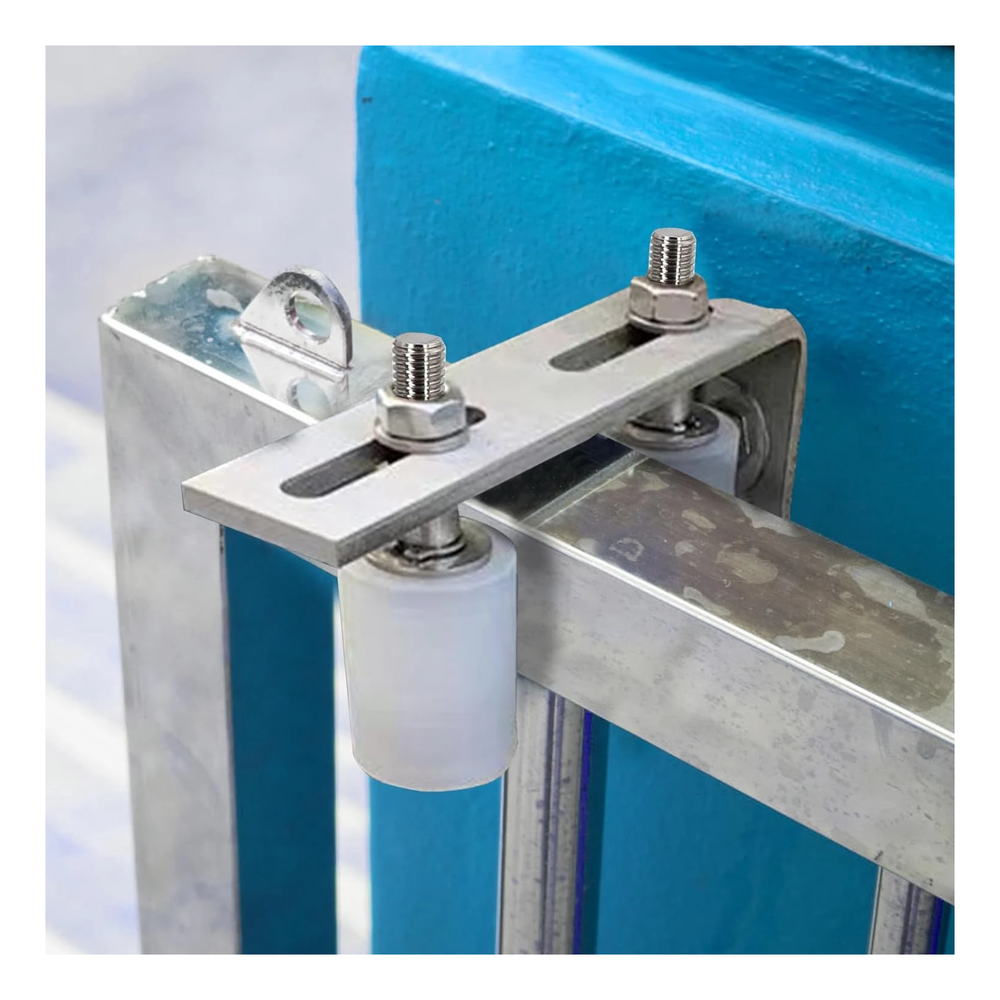

The guidance is mounted to a post or wall using a side mounting plate with elongated holes, which enable precise position adjustment. Elongated holes in the mounting arm facilitate positioning of the guidance relative to the gate, whilst roller spacing adjustment allows for quick adaptation to the leaf profile thickness — the entire installation takes just a few minutes.

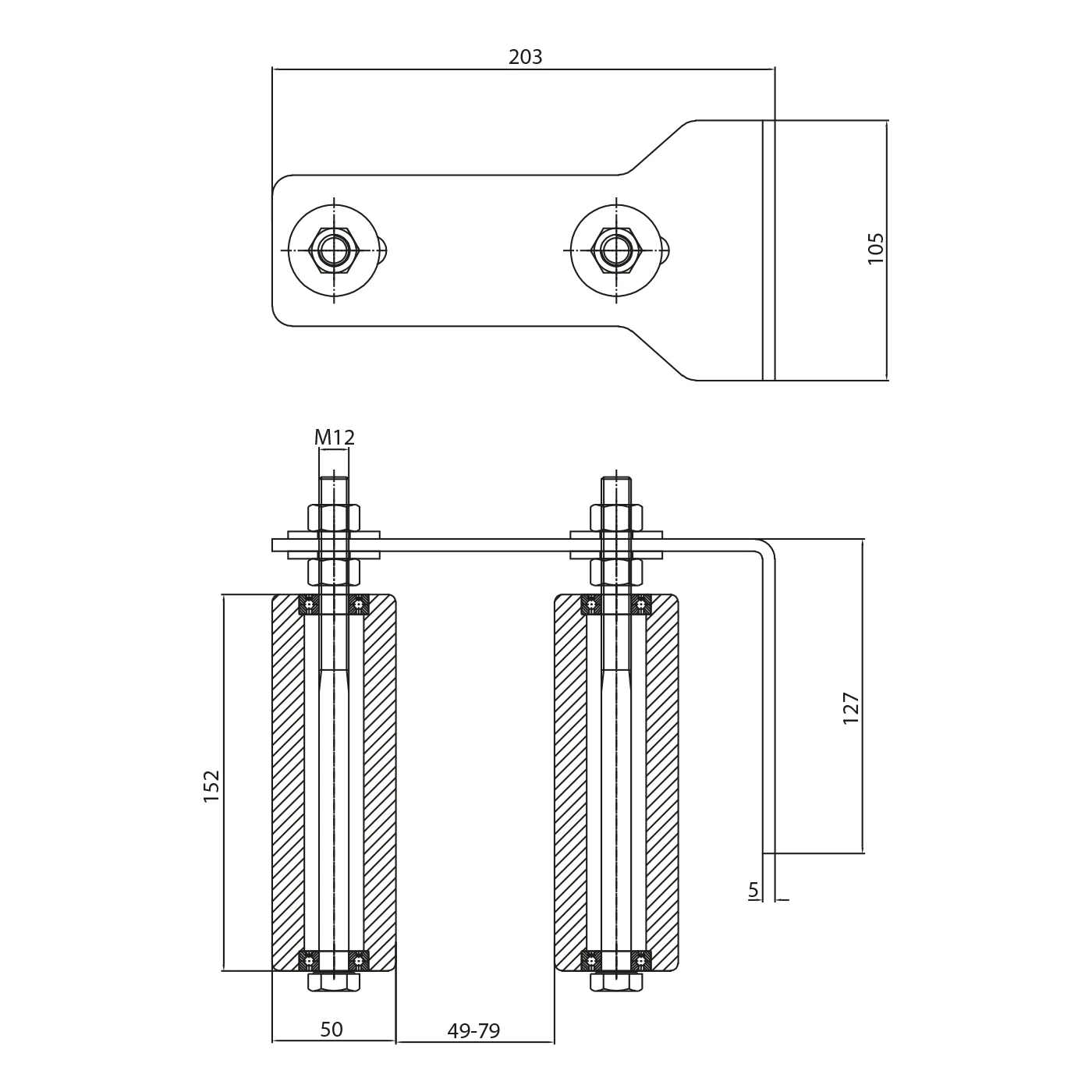

Dimensions and technical specification
- Manufacturer: PSG
- Bracket length: 203 mm
- Mounting plate width: 105 mm
- Total height: 200 mm
- Mounting arm height: 127 mm
- Roller height: 152 mm
- Roller diameter: 50 mm
- Roller spacing adjustment (clearance): 49–79 mm
- Bracket plate thickness: 5 mm
- Mounting bolt thread: M12
- Bracket material: galvanised steel
- Roller material: plastic
- Number of rollers: 2 pcs
- Weight: 2.02 kg
Why choose this?
- Adjustable spacing of rollers — one guidance fits gates with profiles from 49 to 79 mm
- Galvanised steel — corrosion resistance and long-term outdoor operation
- Plastic rollers — quiet operation, high wear resistance, no risk of gate scratching
- Quick installation — elongated adjustment holes facilitate precise positioning
- Solid construction — 5 mm plate and M12 bolts transfer significant loads
