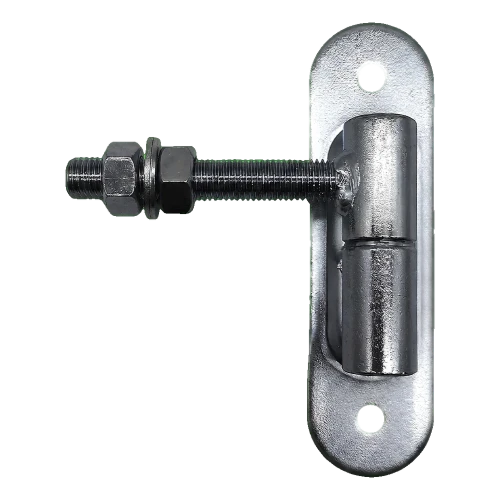

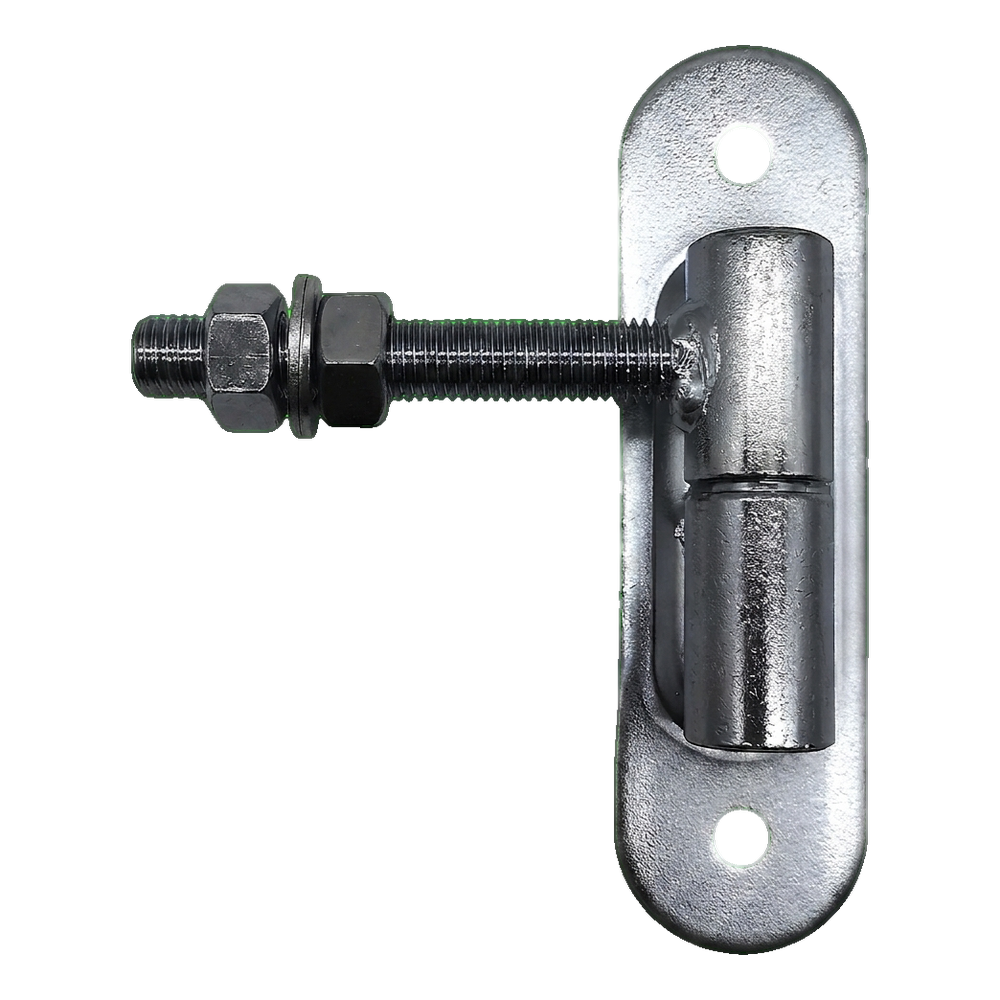

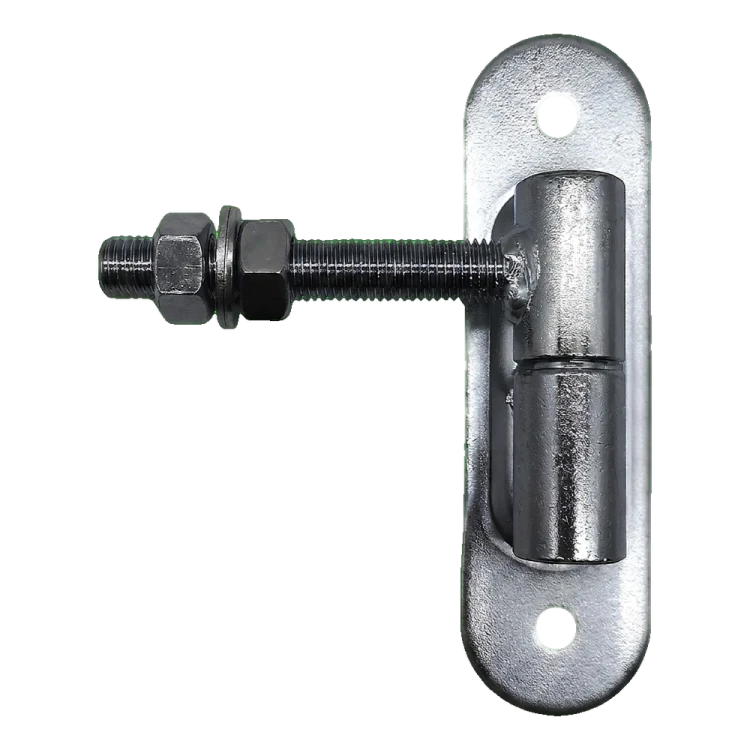

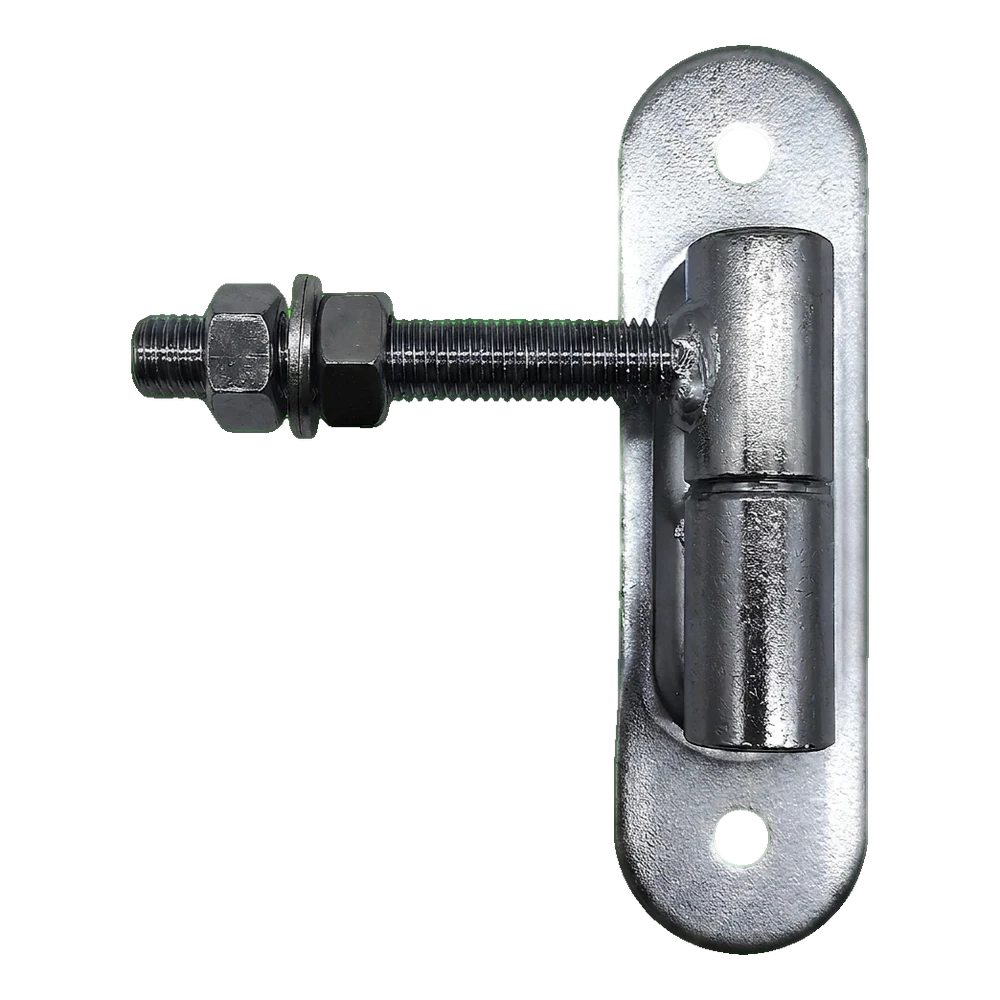

PSG adjustable rolled hinge ø27 M16 with 180×50 mm plate and ball
Leave feedback on the product
PSG adjustable rolled hinge ø27 with M16 thread. Galvanised steel, plate 180×50×5 mm, sleeve 91 mm, adjustment screw 100 mm. Load capacity per pair 350 kg. For gates and fencing. Weight 0.92 kg.
Product code: 001-400
Product features
[PIM] zawiasy #113
- Thread type M16
- Diameter 27
- Mounting Method With Plate
- Material Steel
Description
PSG adjustable rolled hinge ø27 M16 with 180×50 mm plate and ball
Steel adjustable rolled hinge from PSG with plate and ball, designed for professional installation of gates and fencing. Pin diameter ø27 mm and M16 thread ensure high load capacity — permissible load per pair of hinges is 350 kg. Galvanised surface guarantees long-lasting anti-corrosion protection, making the hinge suitable for outdoor use for many years.
The adjustment mechanism based on thread allows the wing position to be corrected at any time — simply tighten or loosen the nut. This is particularly useful when the structure sags under weight or when metal changes dimensions due to extreme temperatures. For installation teams, this means quick correction without dismantling the entire hinge.
Features and benefits
- Anti-corrosion protection: galvanising — long-lasting protection in outdoor conditions
- Permissible load per pair of hinges: 350 kg
- Post-installation adjustment — compensation for sagging and thermal deformation
- Simple and quick installation thanks to plate with two mounting holes
- High quality construction — resistance to mechanical damage and heavy loads

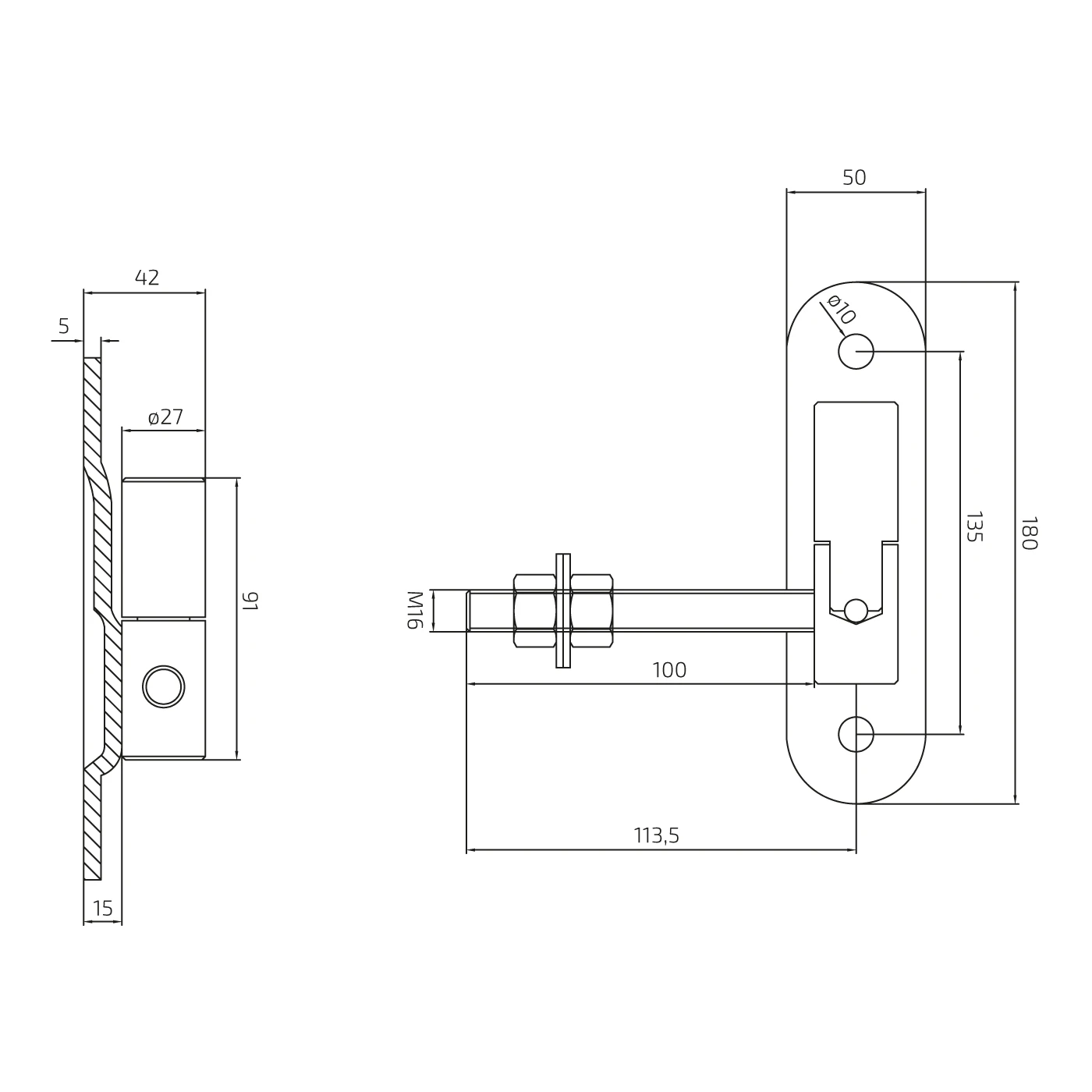

Dimensions and technical parameters
- Material: galvanised steel
- Pin diameter: ø27 mm
- Thread: M16
- Plate dimensions: 180 × 50 mm
- Plate thickness: 5 mm
- Hinge sleeve length: 91 mm
- Adjustment screw length: 100 mm
- Total length with thread: 113.5 mm
- Mounting hole diameter: ø10 mm
- Mounting hole spacing: 135 mm
- Side width: 42 mm
- Weight: 0.92 kg
- EAN: 5901289676304
