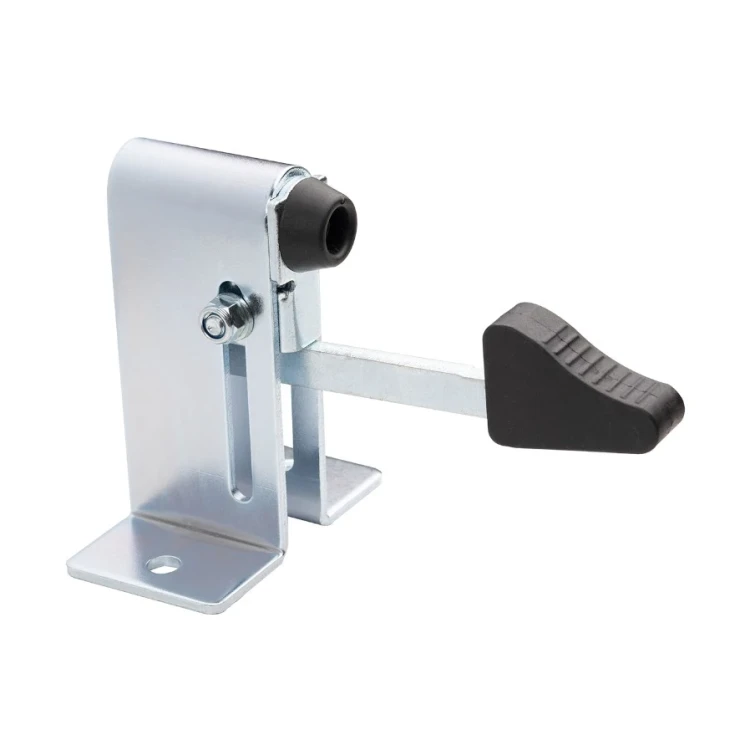

PSG adjustable gate stop for swing gates with lock – 50 mm catch, galvanised steel

Go to Product feedback

PSG adjustable stop for swing gates with self-locking mechanism, galvanised steel. 50 mm catch, dimensions 163x130x60 mm, sheet thickness 4 mm. Adjustment range 68 mm, weight 1.06 kg.

Go to full description
with VAT without VAT
Price €13.67
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] stopery-blokady-odbojniki #116

  • Material Steel

Description

PSG adjustable gate stop for swing gates with lock – 50 mm catch, galvanised steel

Adjustable stop for swing gates by PSG with self-locking mechanism and catch with 50 mm length. Ensures secure holding of the gate leaf in open position — even during strong wind gusts. Steel, galvanised construction guarantees multi-year corrosion resistance and weather conditions resistance, and the adjustment capability allows adapting the stop to different gate types.

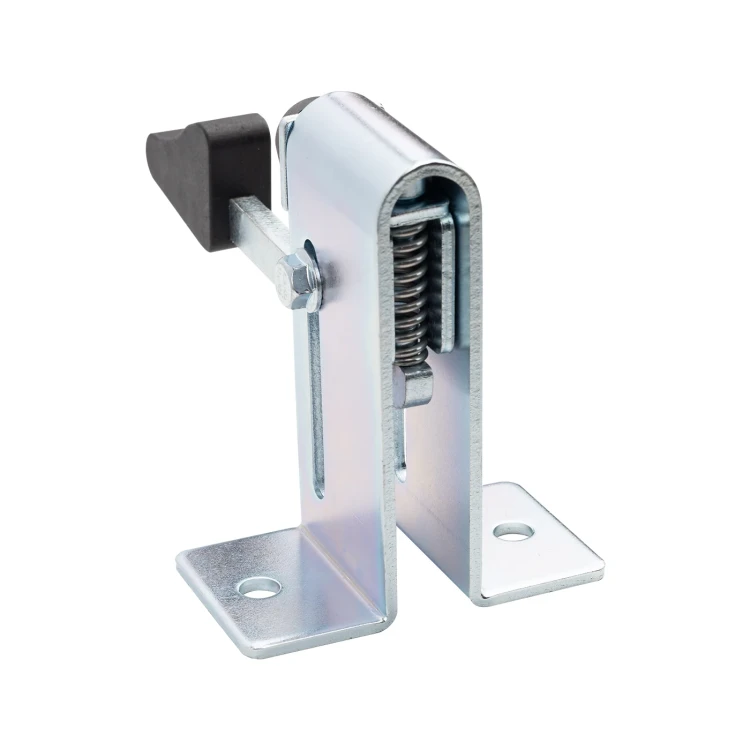

Self-locking mechanism automatically stabilises the gate after opening, eliminating the risk of uncontrolled closing. This provides installers with work comfort during assembly and servicing, and end users with safety during daily use.

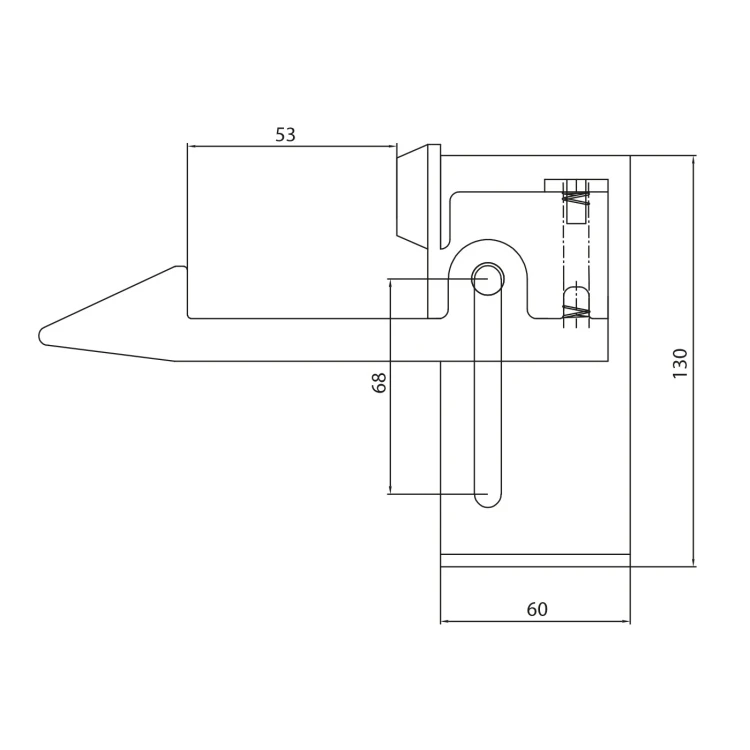

Dimensional drawing of PSG swing gate stop – side view with dimensions 130 mm, 60 mm, 53 mm and 68 mm
Dimensional drawing of PSG swing gate stop – side view with dimensions 130 mm, 60 mm, 53 mm and 68 mm

Dimensions and technical parameters

  • Overall height (H): 130 mm
  • Overall length (L): 163 mm
  • Mounting base width: 108 mm
  • Vertical body depth: 60 mm
  • Catch length (support element): 50 mm (construction dimension 53 mm)
  • Adjustment range (elongated hole): 68 mm
  • Sheet thickness: 4 mm

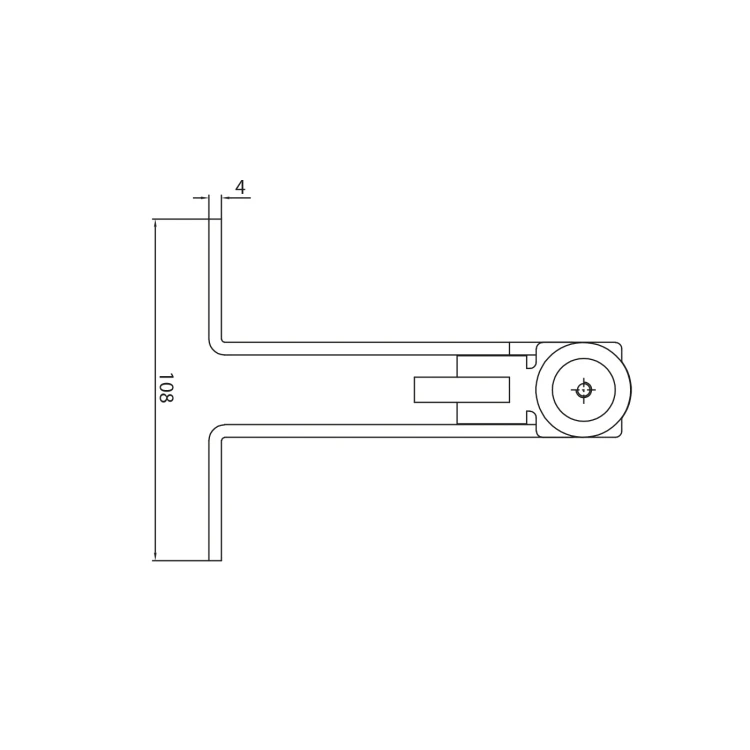

Dimensional drawing of PSG swing gate stop – top view with dimensions 108 mm and sheet thickness 4 mm
Dimensional drawing of PSG swing gate stop – top view with dimensions 108 mm and sheet thickness 4 mm

Material and finish

  • Material: steel
  • Surface finish: galvanised — increased corrosion resistance and aesthetic, silver appearance
  • Weight: 1.06 kg

Functional features

  • Application: swing gates
  • Lock: self-locking mechanism — automatic protection against unwanted closing
  • Adjustment: possibility to adapt to different gate types and sizes thanks to elongated mounting hole (68 mm adjustment range)
  • Effective gate holding in open position regardless of weather conditions
  • EAN: 5901289670302

PSG stop is a reliable accessory that will work well both in new installations and during modernisation of existing swing gates. Solid, galvanised steel construction with 4 mm thickness ensures durability for years, and simple mounting with adjustment capability shortens installation team working time.
