PSG T-type running roller for sliding rail gate fi 80 mm galvanised
Leave feedback on the product
PSG T-type running roller fi 80 mm for sliding rail gate, galvanised steel. Load capacity 220 kg, dimensions L136 x H68 mm, roller width 20 mm. With mounting bolt and internal bracket.
Product code: 001-311
Description
PSG T-type running roller for sliding rail gate fi 80 mm galvanised

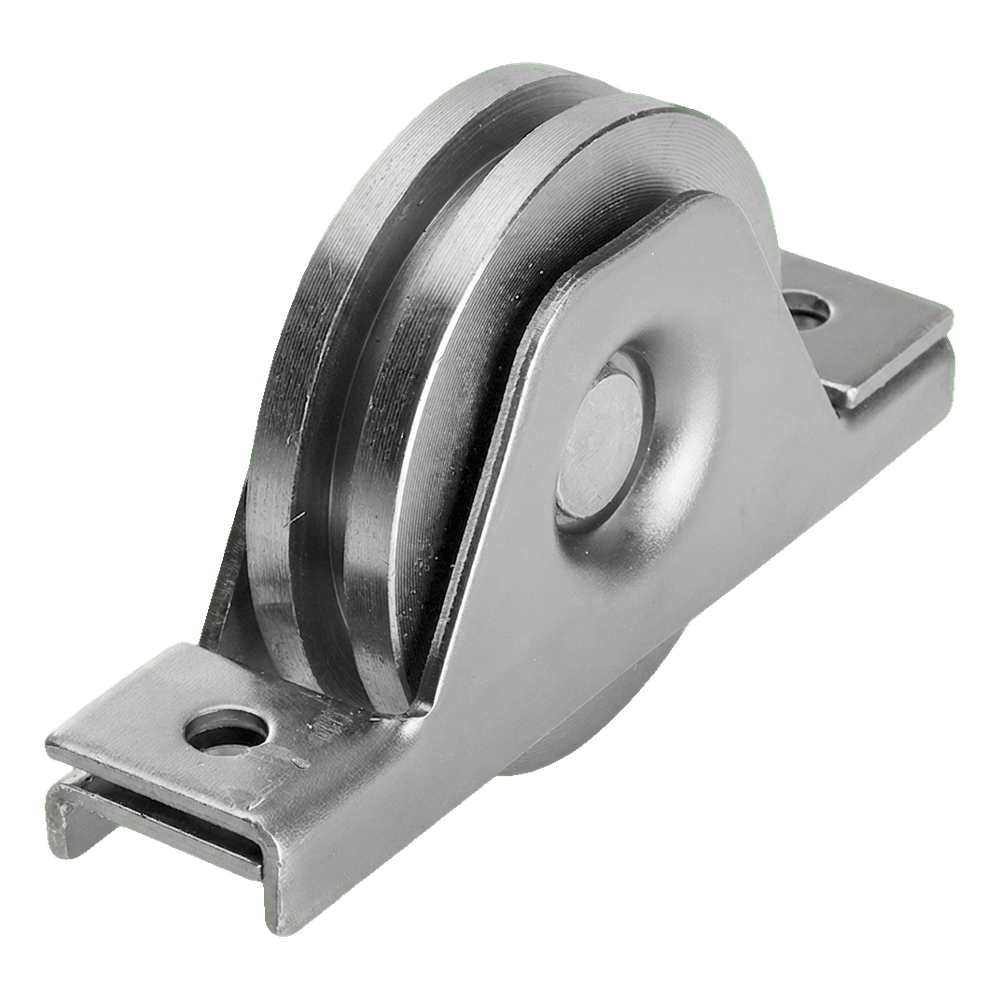

Steel T-type running roller from PSG brand designed for sliding rail gates. Thanks to the profile cooperating with the T-beam, it ensures smooth and quiet movement of the gate leaf, whilst the galvanised surface guarantees high corrosion resistance even in harsh atmospheric conditions. Maximum load capacity of 220 kg makes the roller perfectly suitable for both light and medium-loaded gates — a reliable component for professional installations.
The roller is supplied complete with a mounting bolt and internal bracket, which reduces installation time and eliminates the need for separate assembly of fastening elements.

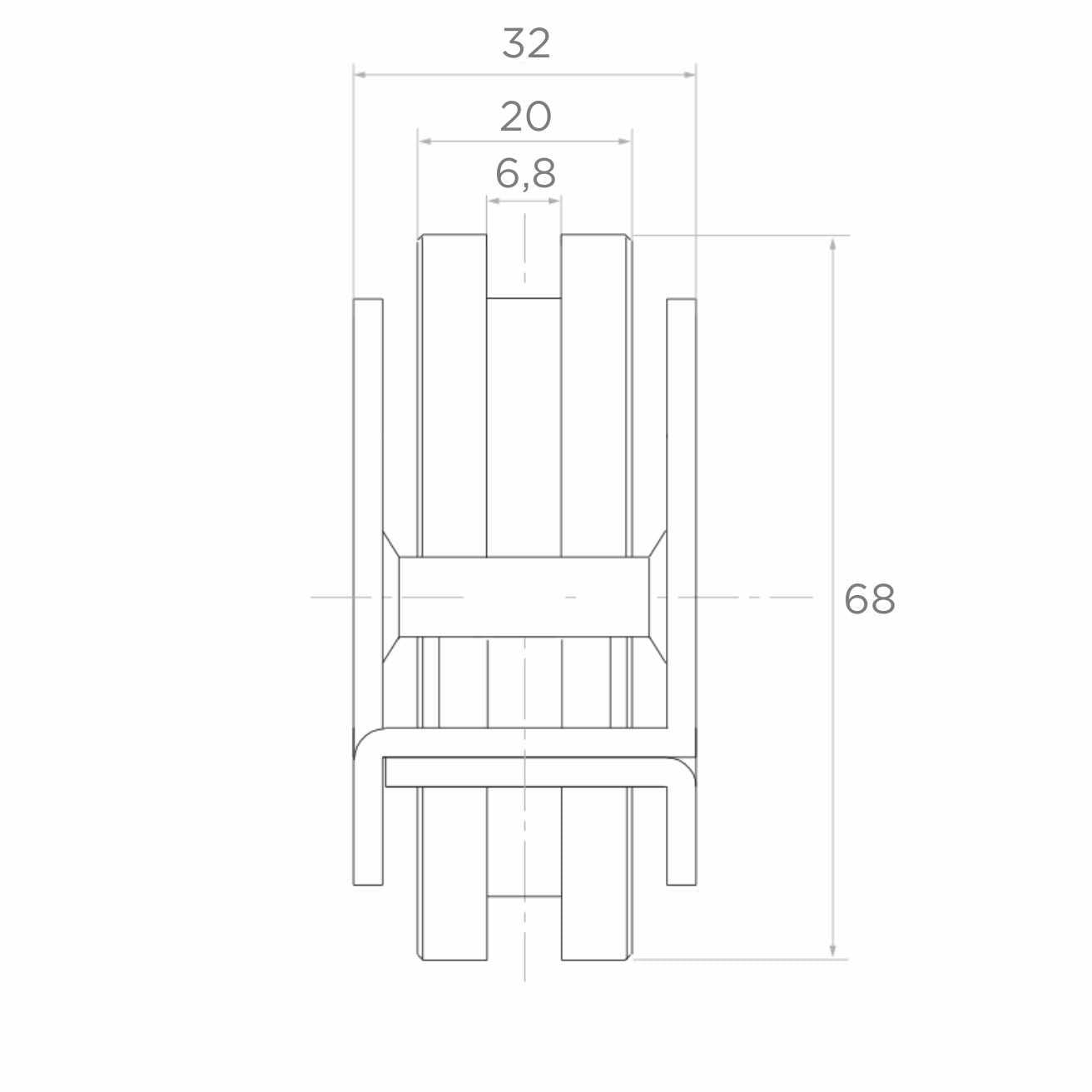

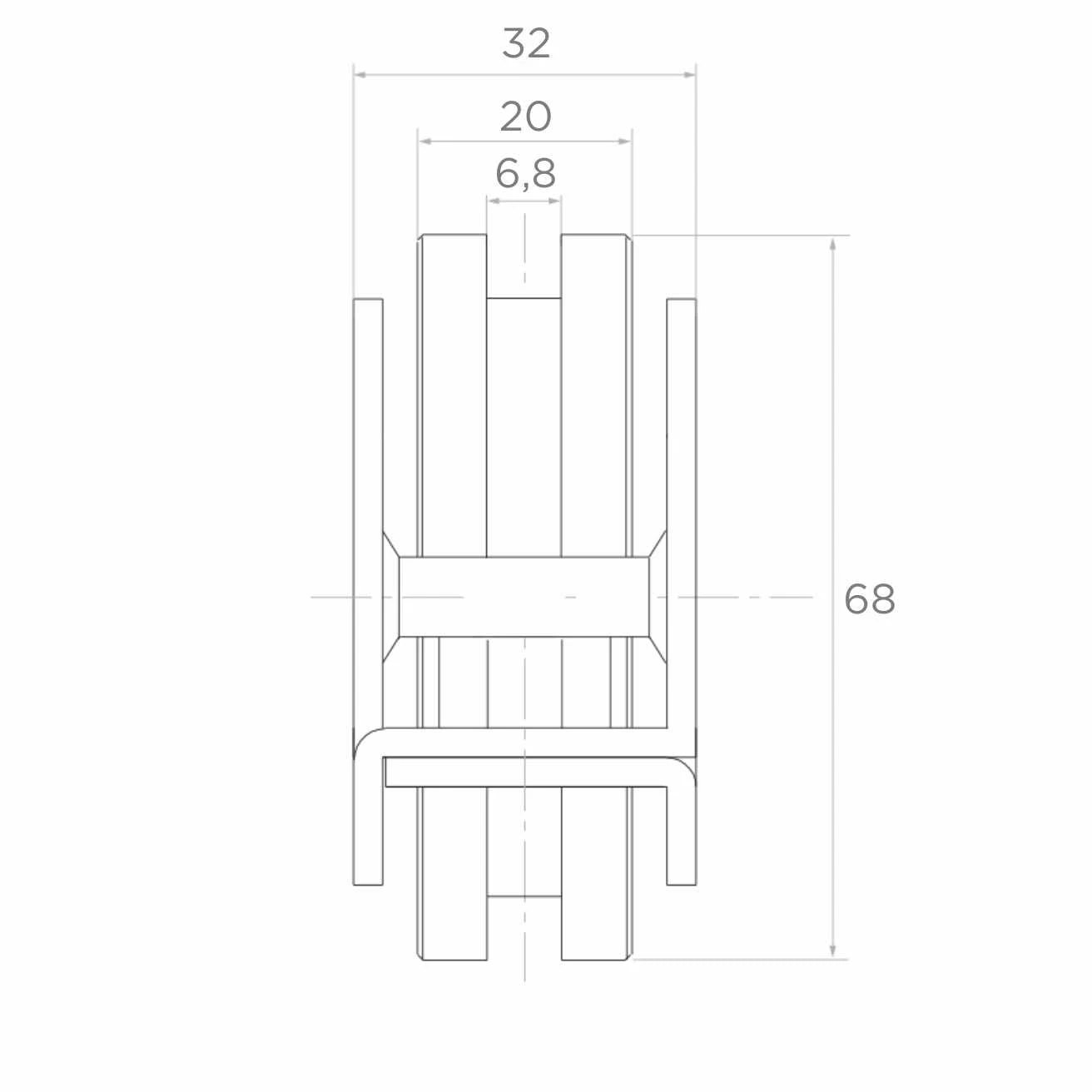

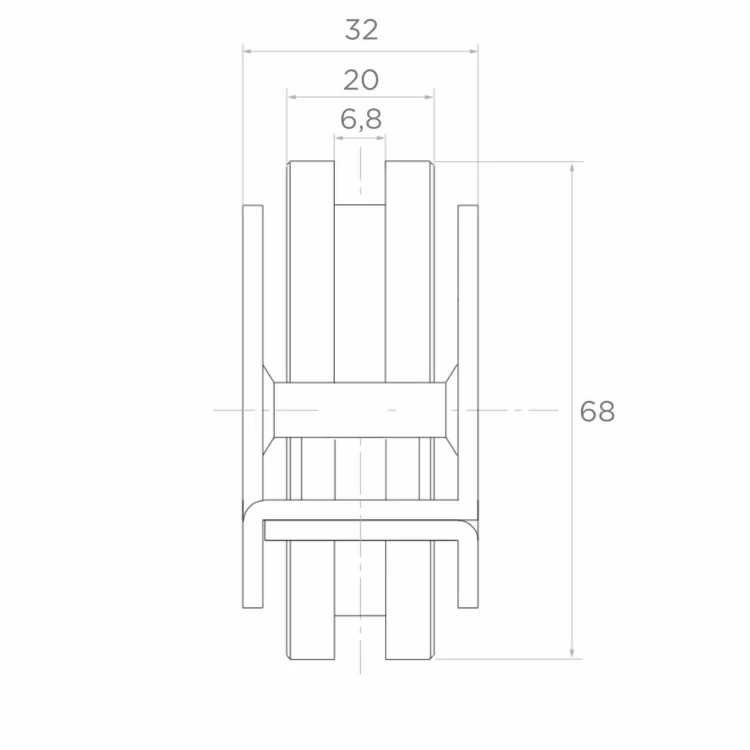

Technical parameters
- Roller type: T (for T-beam)
- Roller diameter: fi 78 mm (catalogue designation fi 80)
- Overall length (L): 136 mm
- Overall height: 68 mm
- Roller width: 20 mm
- Mounting bracket width: 32 mm
- Guide groove width: 6.8 mm
- Maximum load capacity: 220 kg
- Material: galvanised steel
- Weight: 0.81 kg
- Manufacturer: PSG
- EAN: 5901289675512
Kit contents
- T-type running roller fi 80 mm
- Mounting bolt
- Internal bracket
